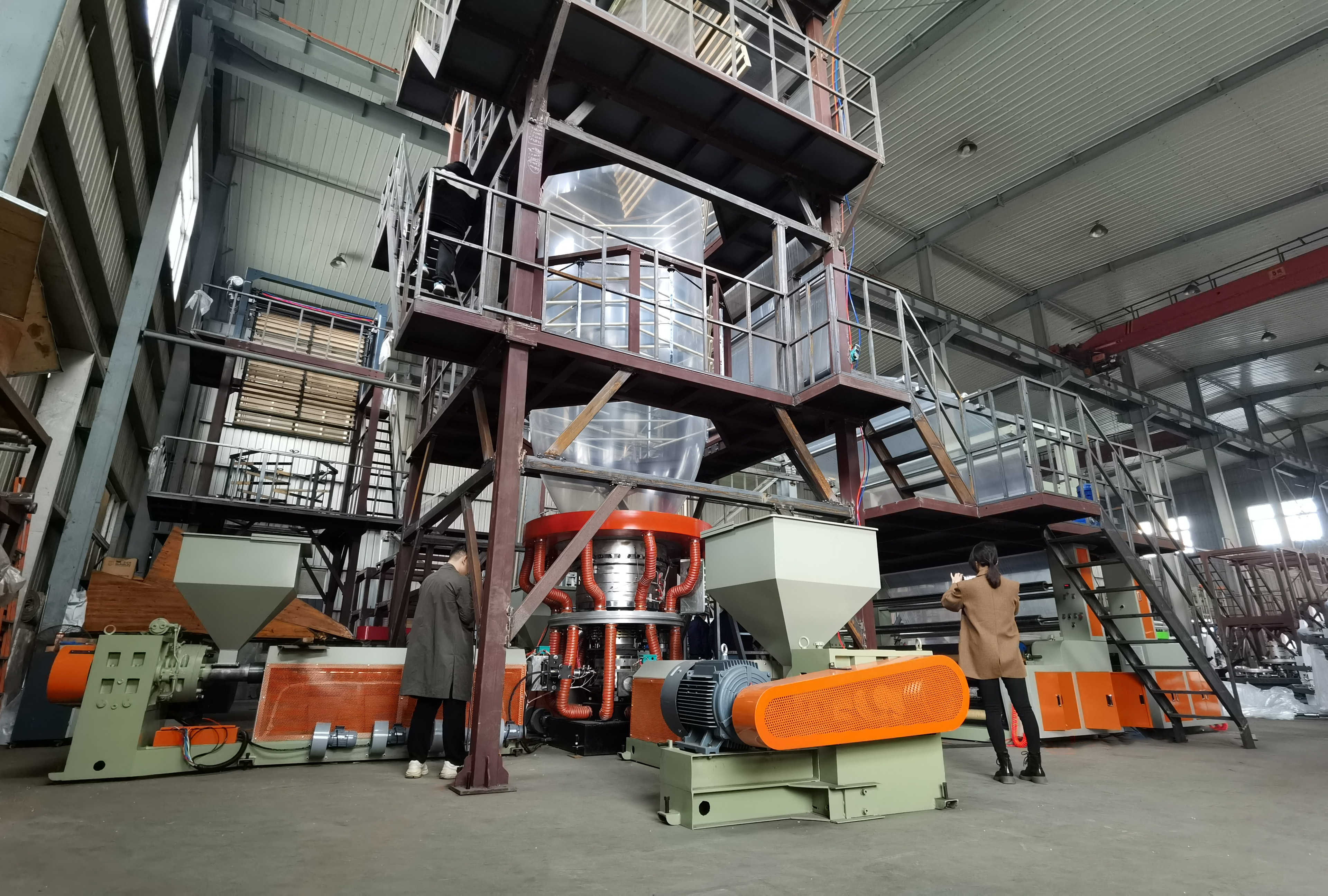

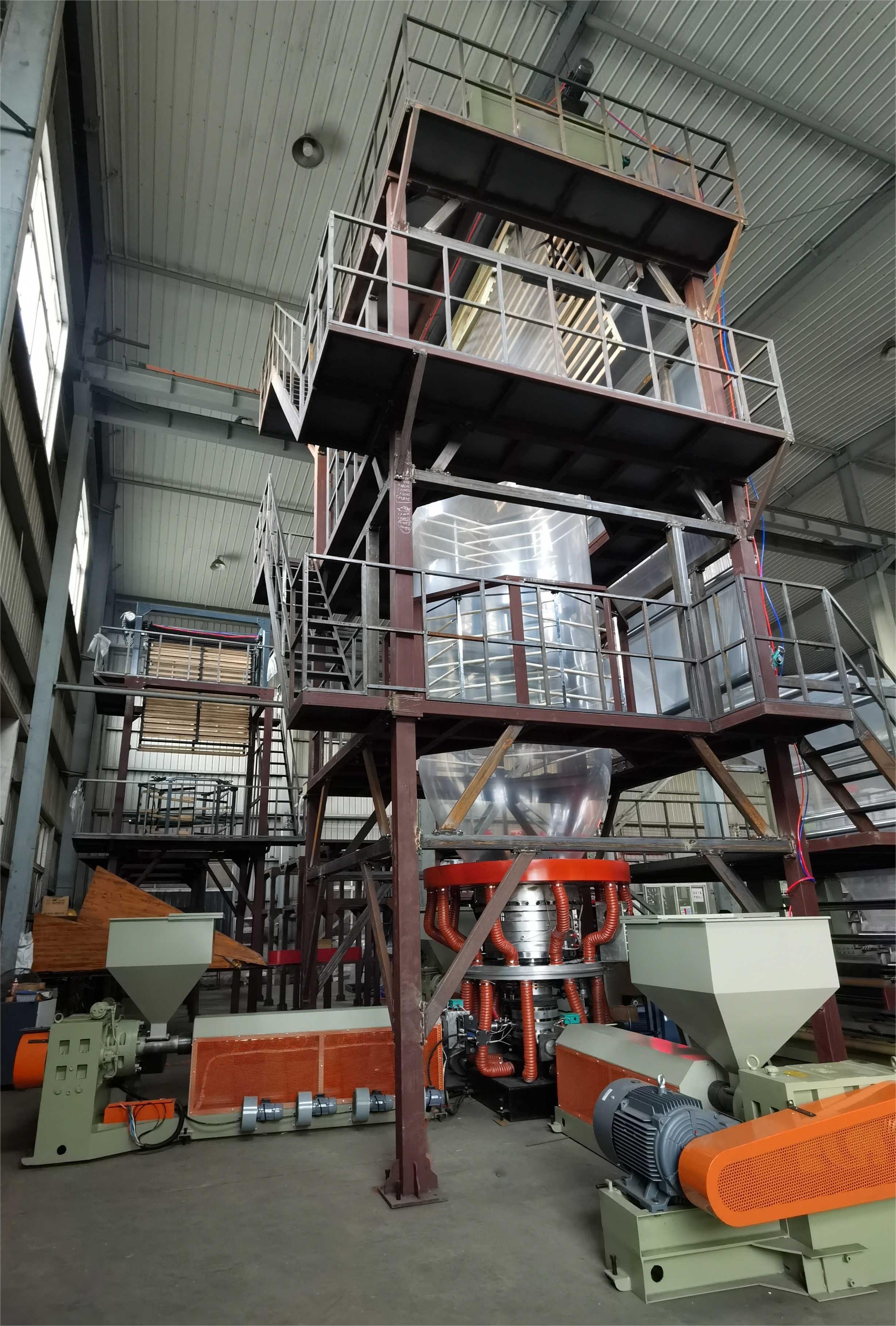

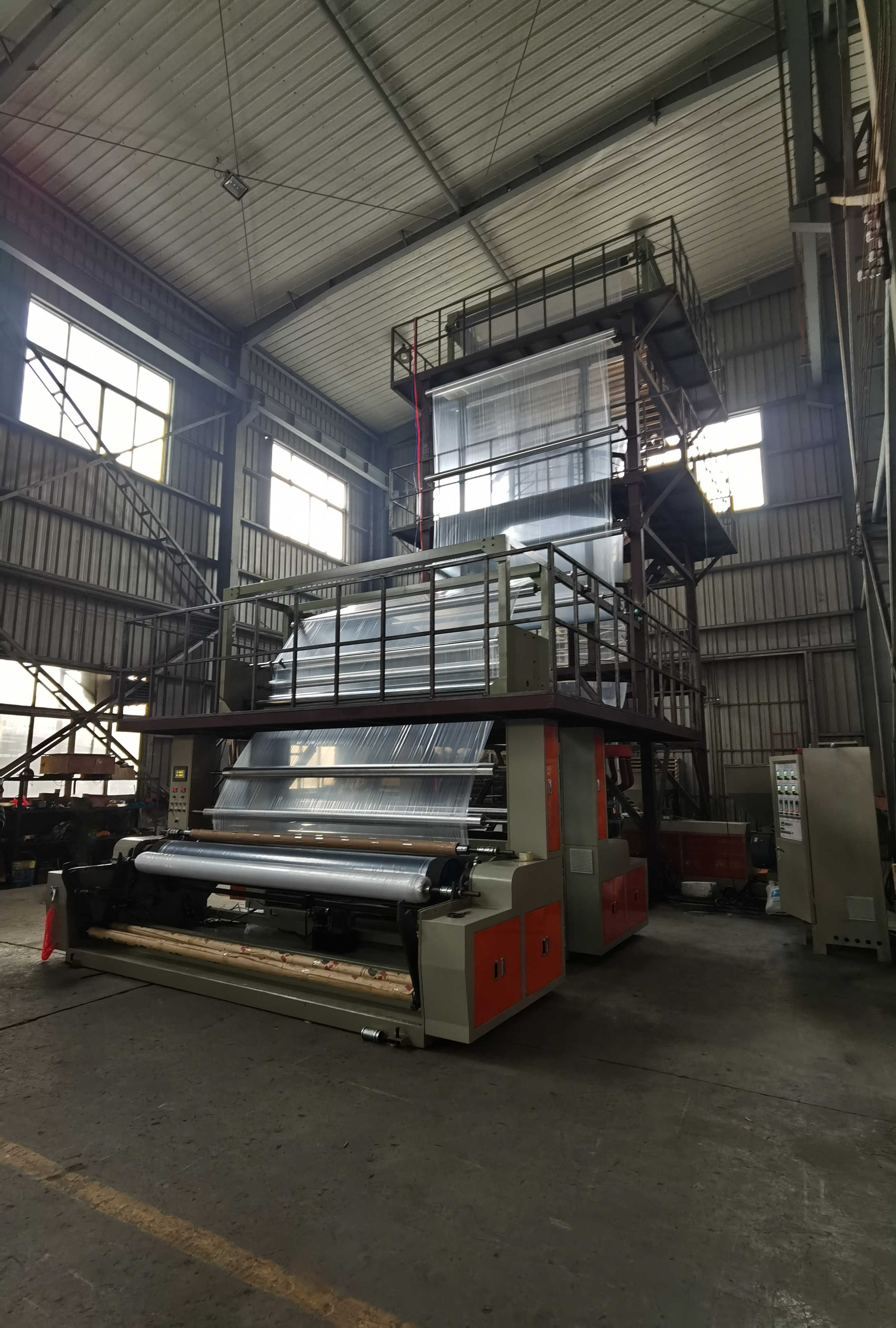

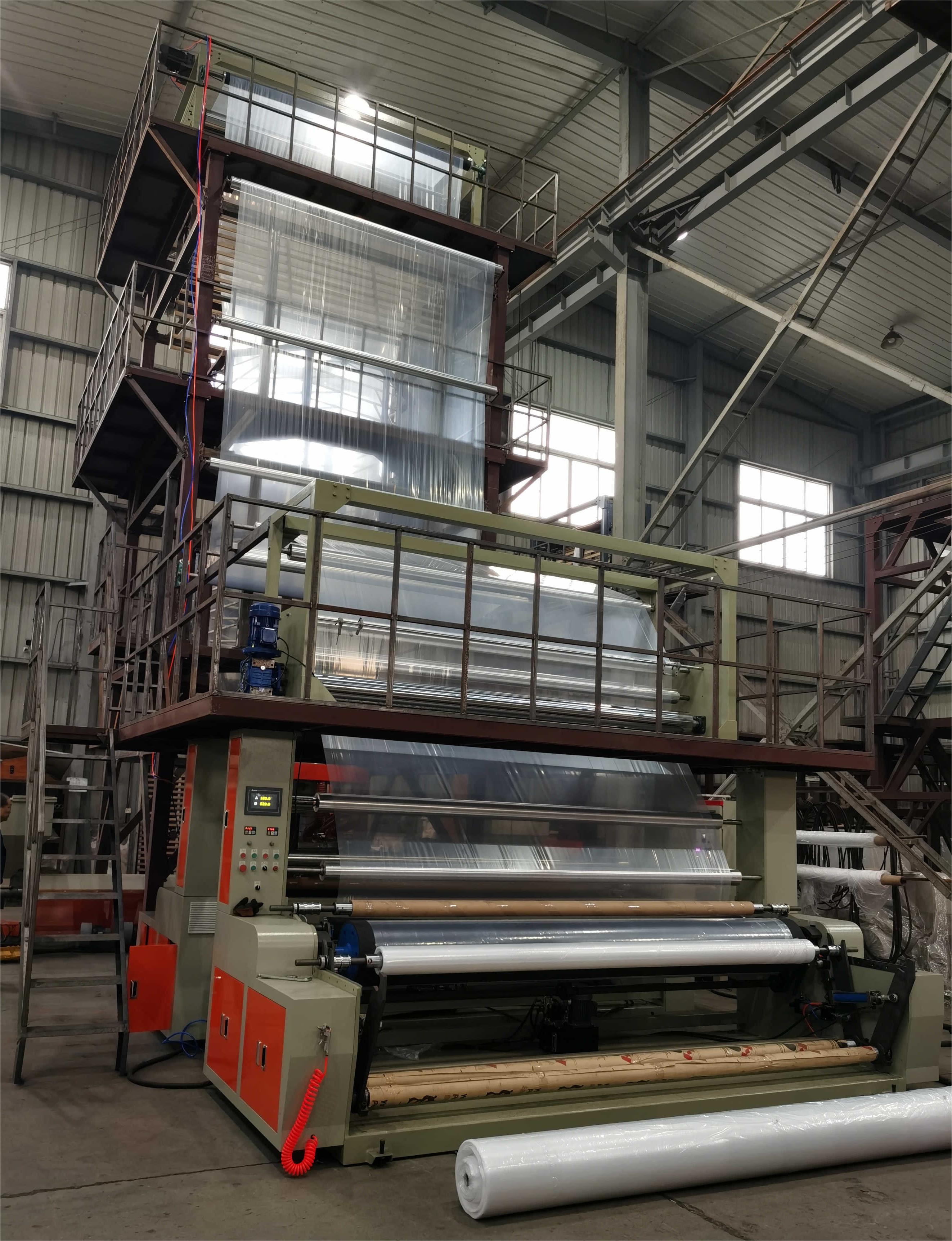

High Strength ABC Three 3 Layer Coextrusion Plastic PE film blowing machine
Main Features:

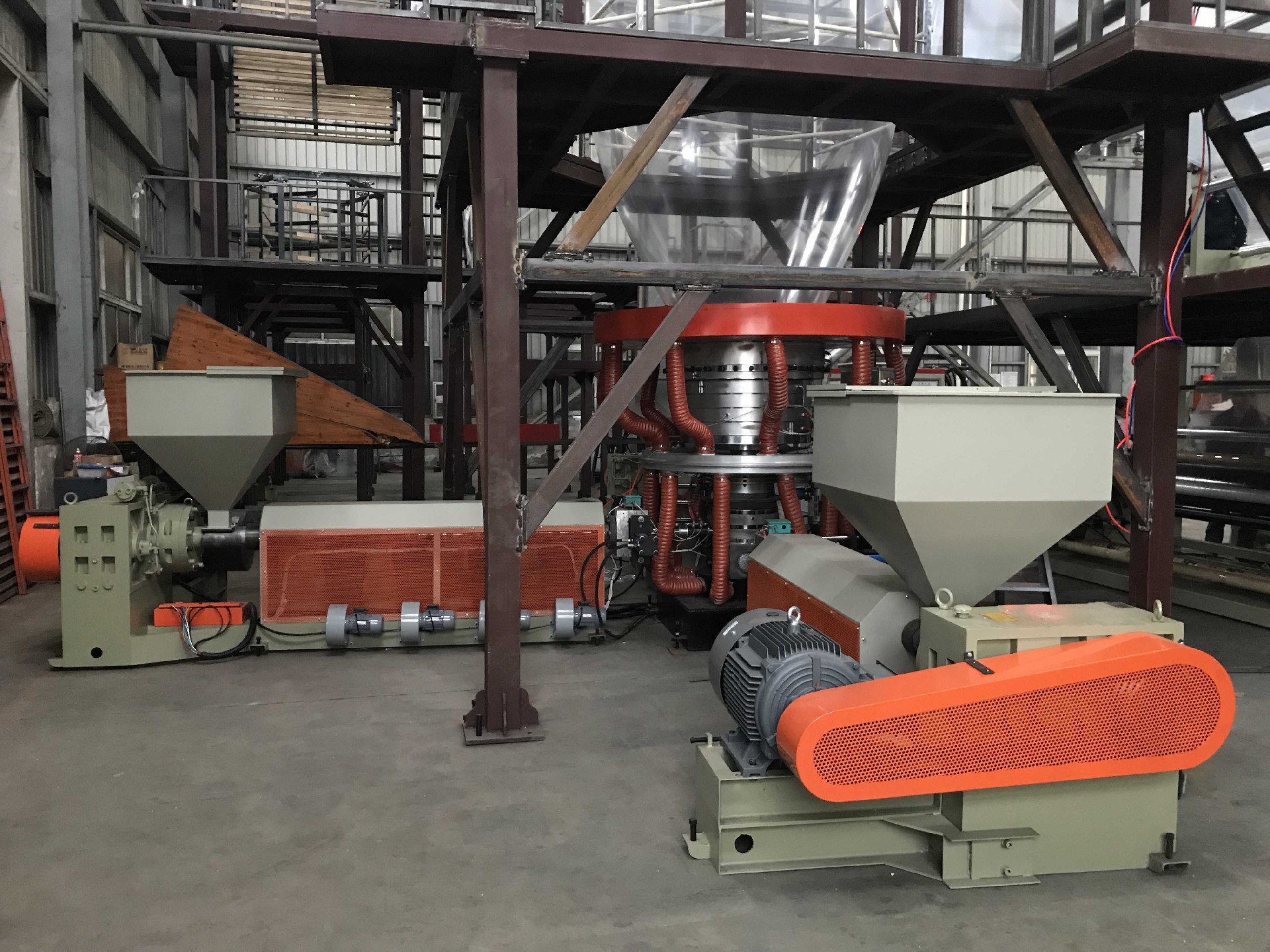

The production line of ABC three-layer co-extrusion blown film machines produced by our company can realize more energy-saving and flexible production applications at lower costs. For the production line of ABC three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion. One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.
The production line of ABC three-layer co-extrusion blown film machines produced by our company can realize more energy-saving and flexible production applications at lower costs. For the production line of ABC three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion. One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.
| Main Technical Parameters | ||||
| Model | XH-ML1200 | XH-ML1500 | XH-ML2000 | XH-ML3000 |
| Suitable material | LDPE; LLDPE; HDPE; MLLDPE; EVA | |||
| Max Film width | 1200mm | 1500mm | 2000mm | 3000mm |
| Film thickness | 0.02-0.2mm | |||
| Max.output | 200kg/hr | 280kg/hr | 350kg/hr | 450kg/hr |
| Screw diameter | Φ55/Φ65/Φ55 | Φ60/Φ70/Φ60 | Φ65/Φ75/Φ65 | Φ75/Φ100/Φ75 |
| Screw L/D | 30:1 Option | |||
| Barrel Screw | Material :38 crmoala | |||
| Main motor | 22/37/22kw | 30/45/30KW | 37/55/37kw | 55/75/55kw |
| Screw control | 3/4/3 | 3/4/3 | 4/4/4 | 4/5/4 |
| Power use | 90kw/h | 110kw/h | 130kw/h | 180kw/h |

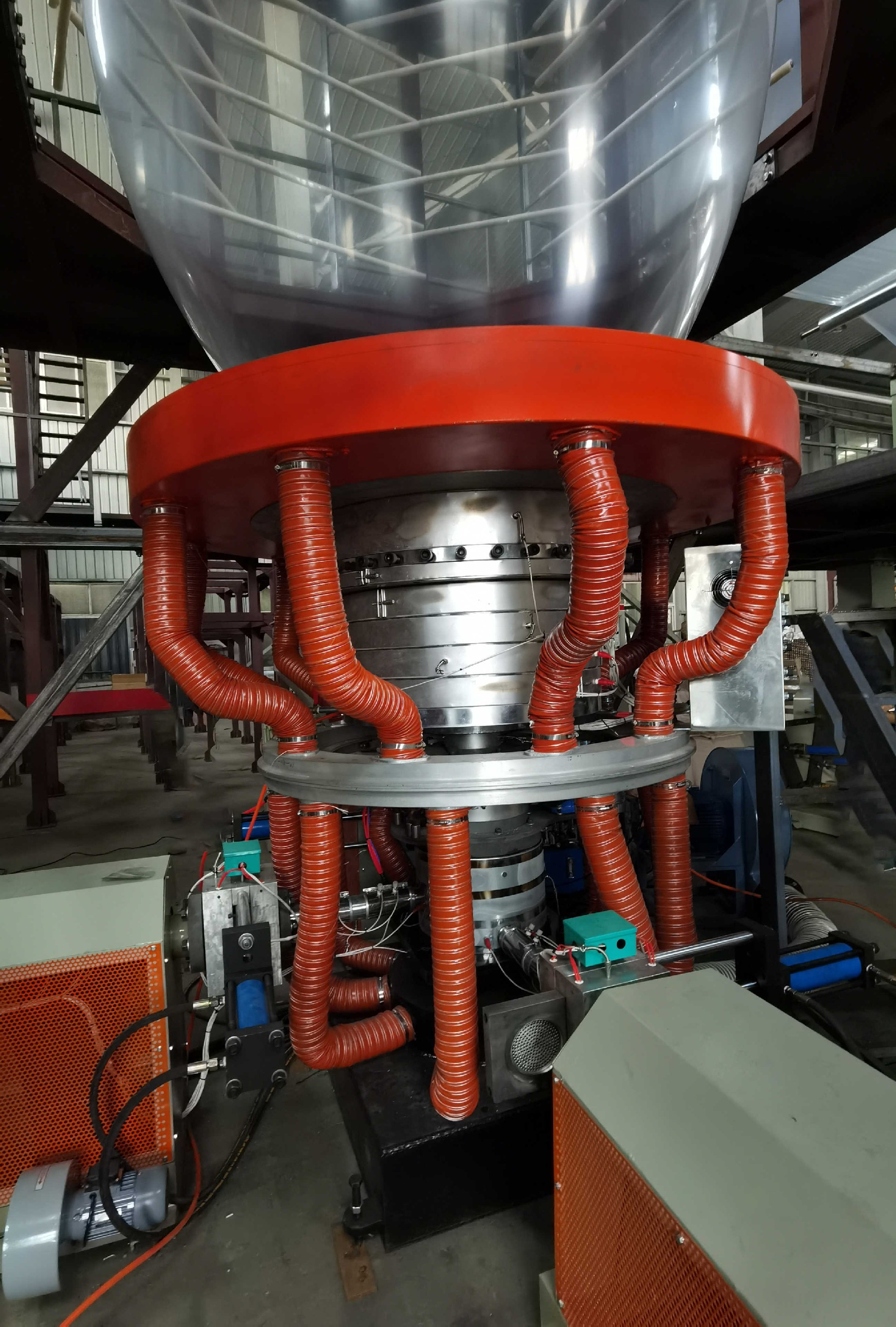

| Die size | Φ350mm | Φ400mm | Φ500mm | Φ650mm |
| Air ring | Double layer Option | |||
| Air blower | 7.5kw | 11kw | 15kw | 22kw |
| Roller width | 1400mm | 1700mm | 2200mm | 3200mm |
| Max Traction speed | Max 60m or 100m/min | |||
| Traction motor | 2.2kw | 2.2KW | 3 kw | 3.7 kw |

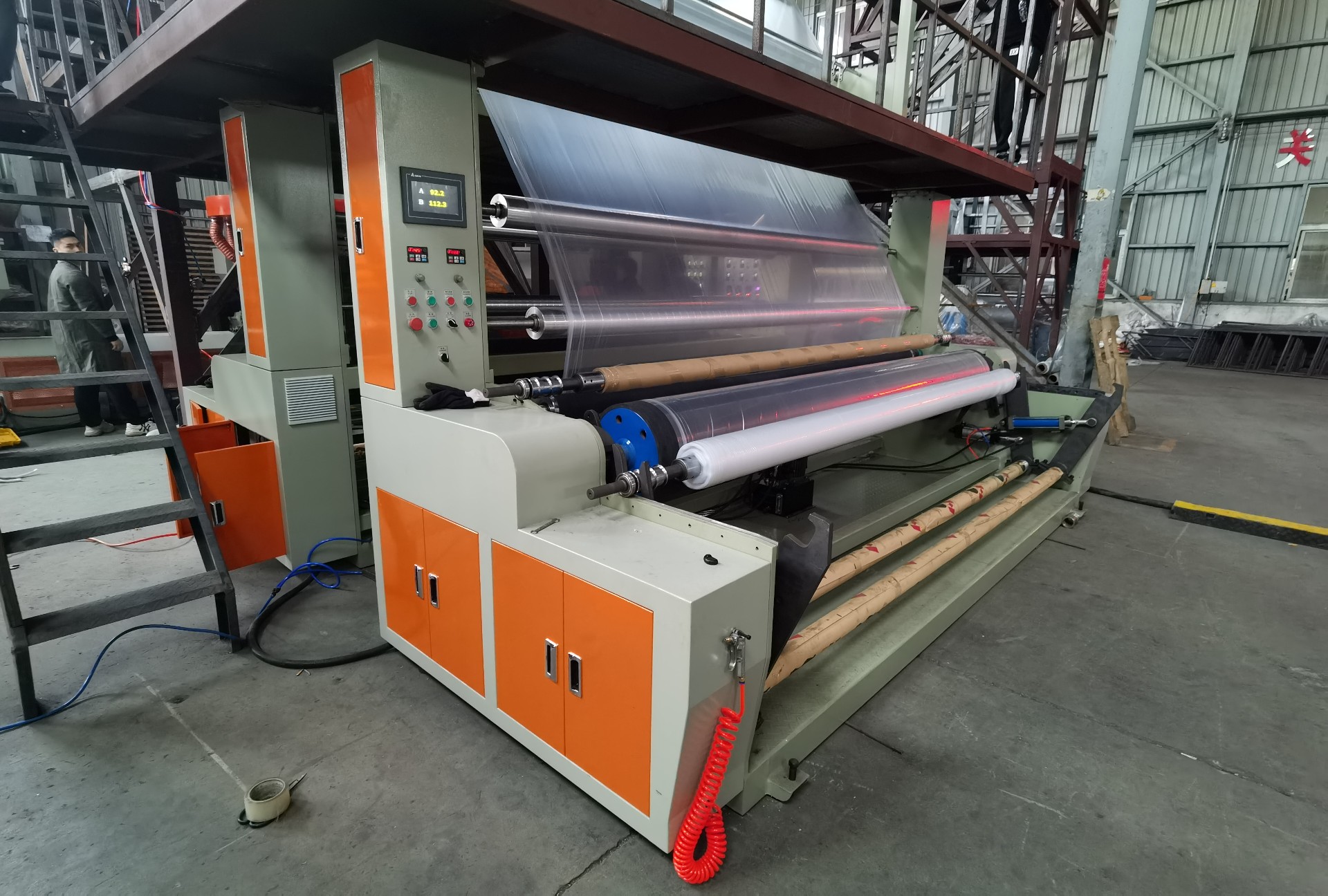

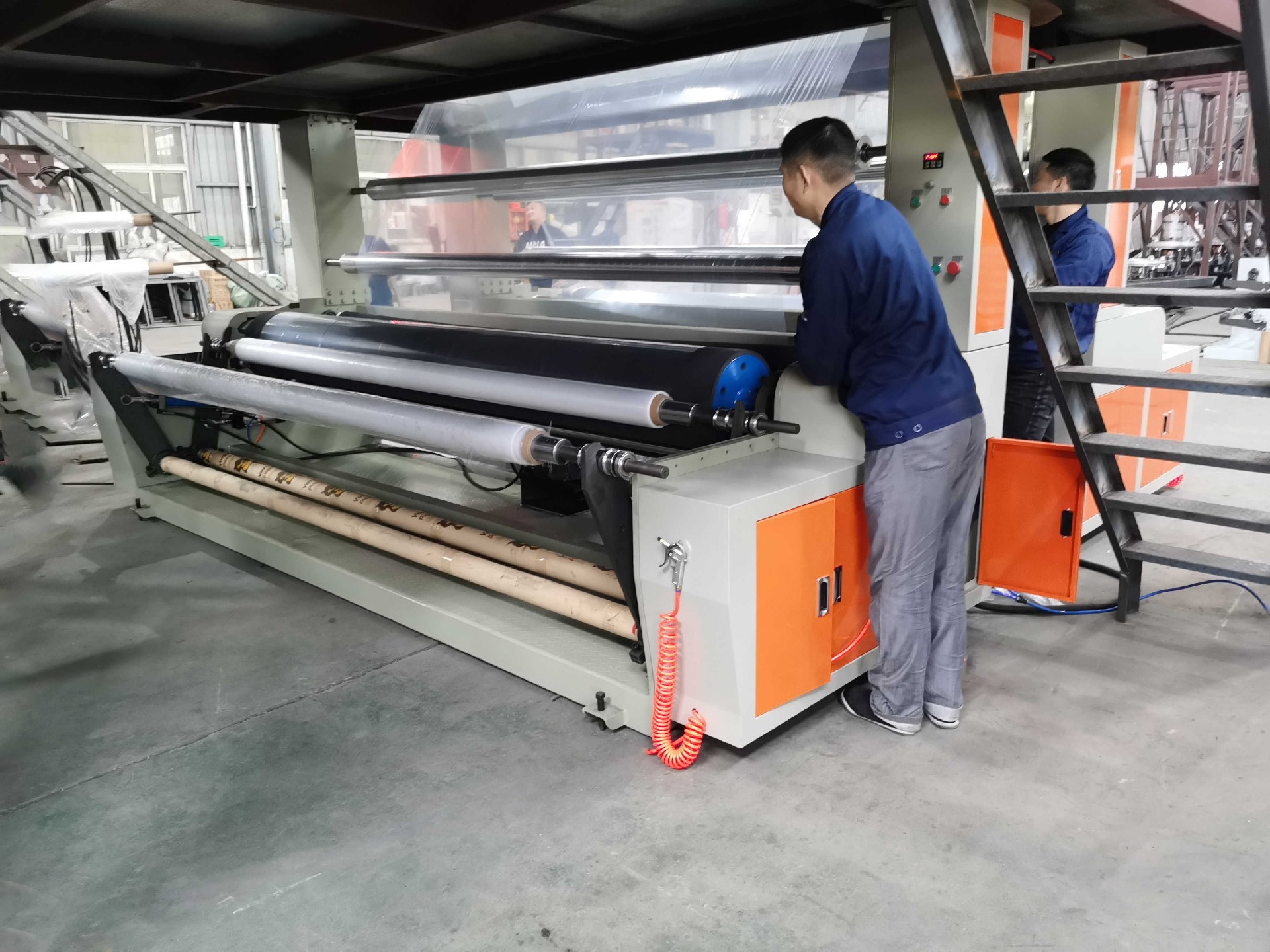

| Winding type | Surface friction type | |||
| Winding motor | 1.5 kw | 2.2KW | 2.2kw | 3kw |
| Winding speed | Max 60m or 100m/min | |||
| Machine size | 12*8*9.5m | 12.5*8.5*10m | 12*9*12m | 14*11*13m |
| Machine weight | 12 T | 14 T | 17 T | 20 T |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
