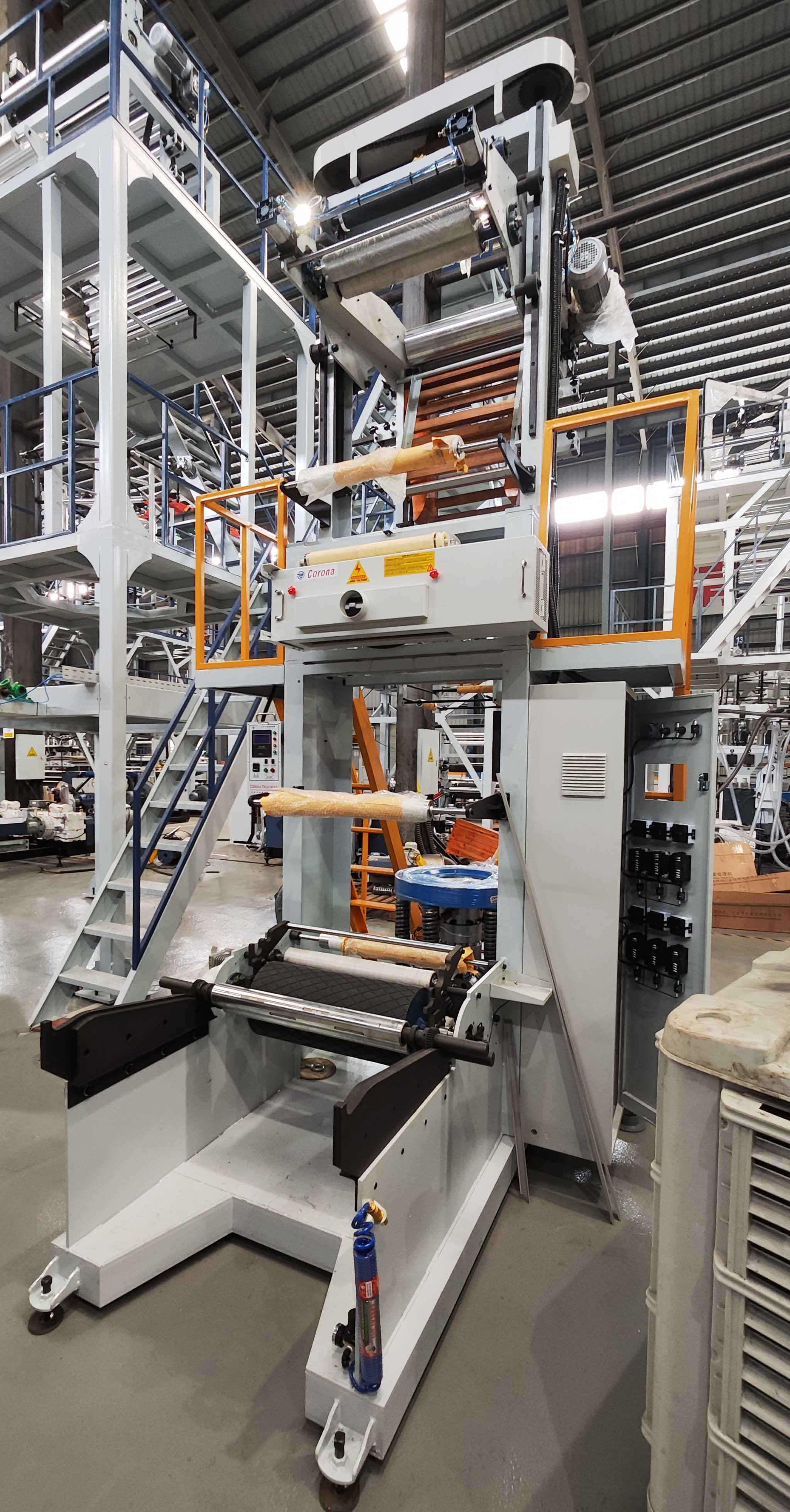

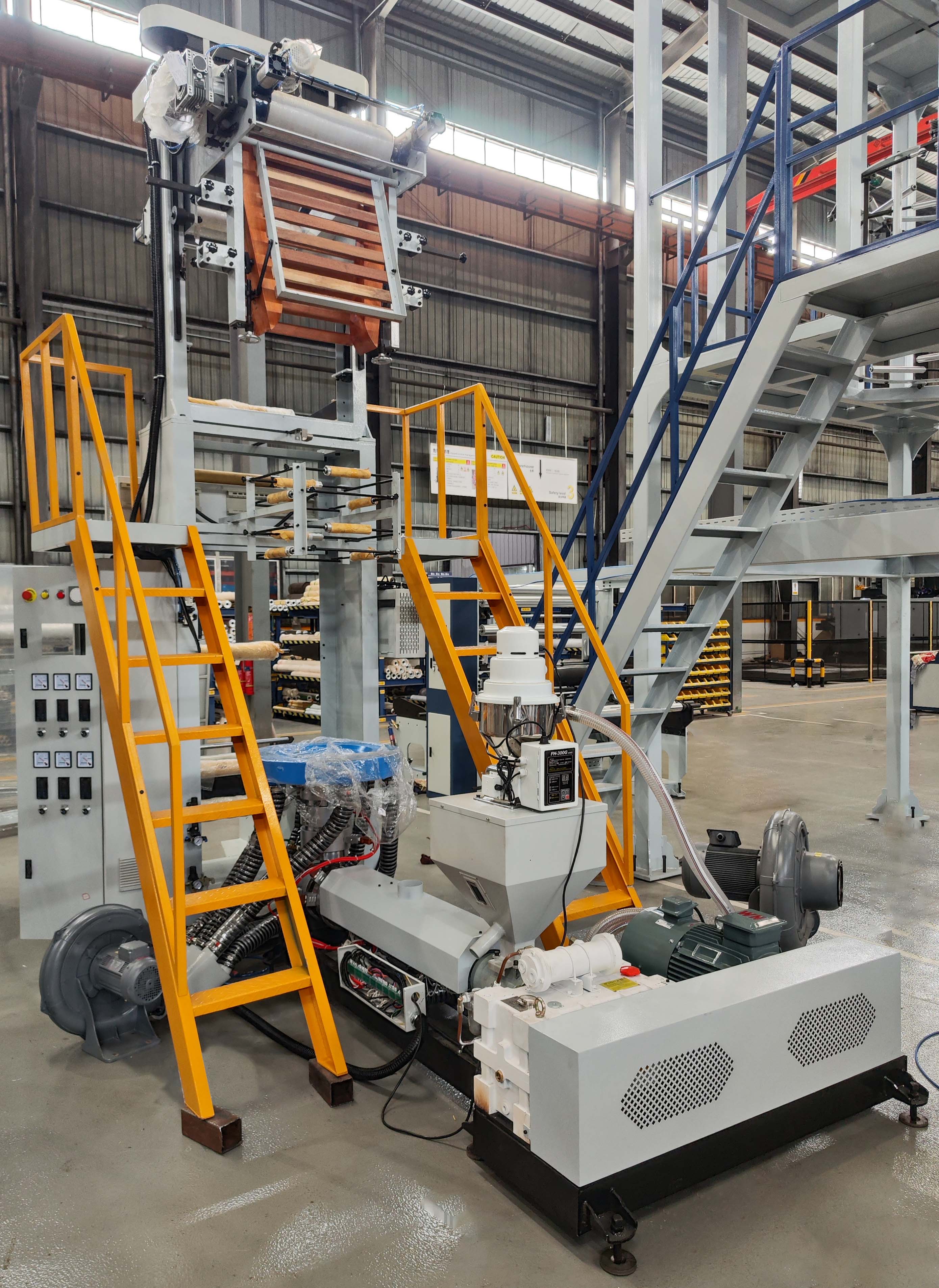

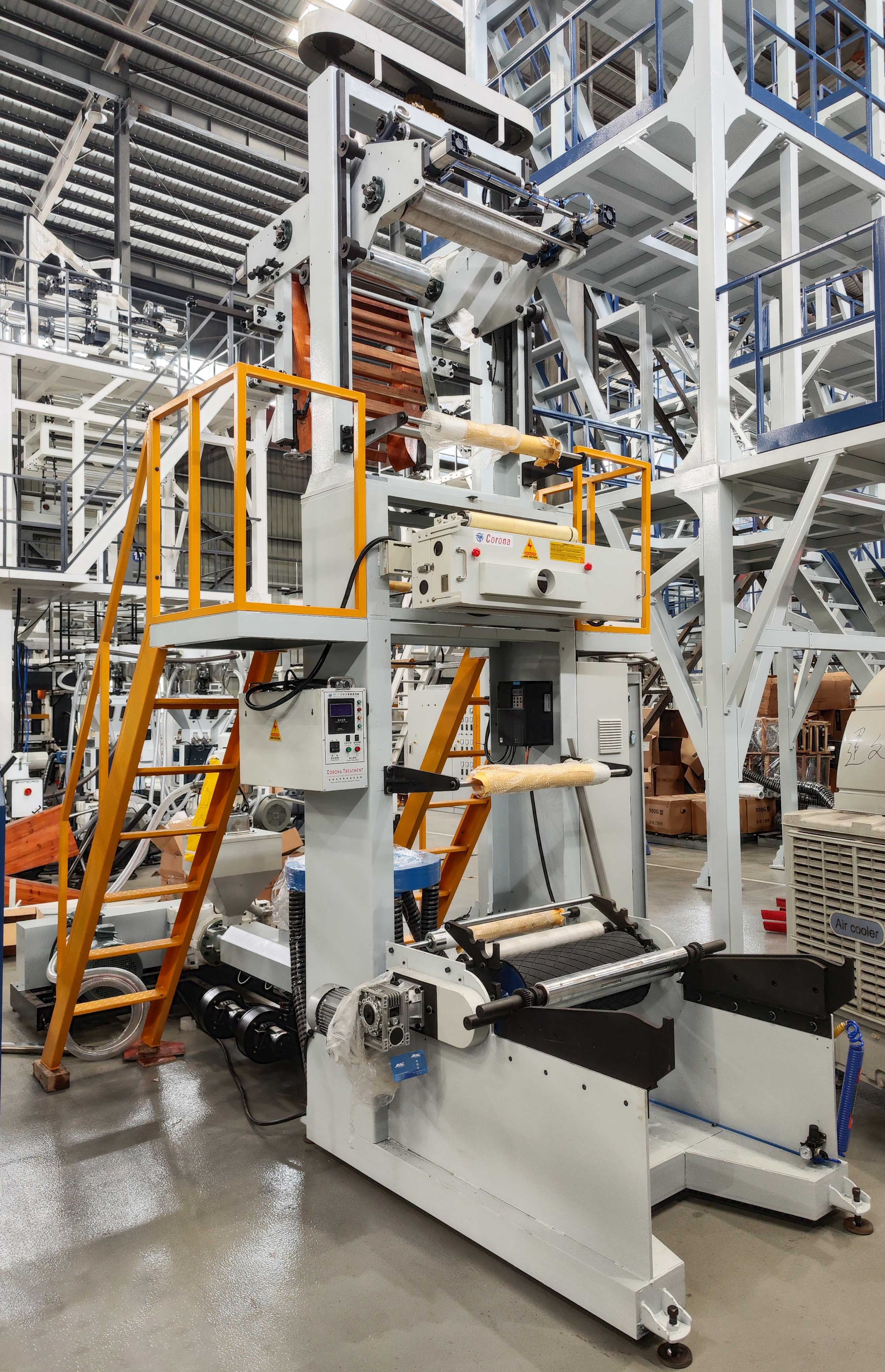

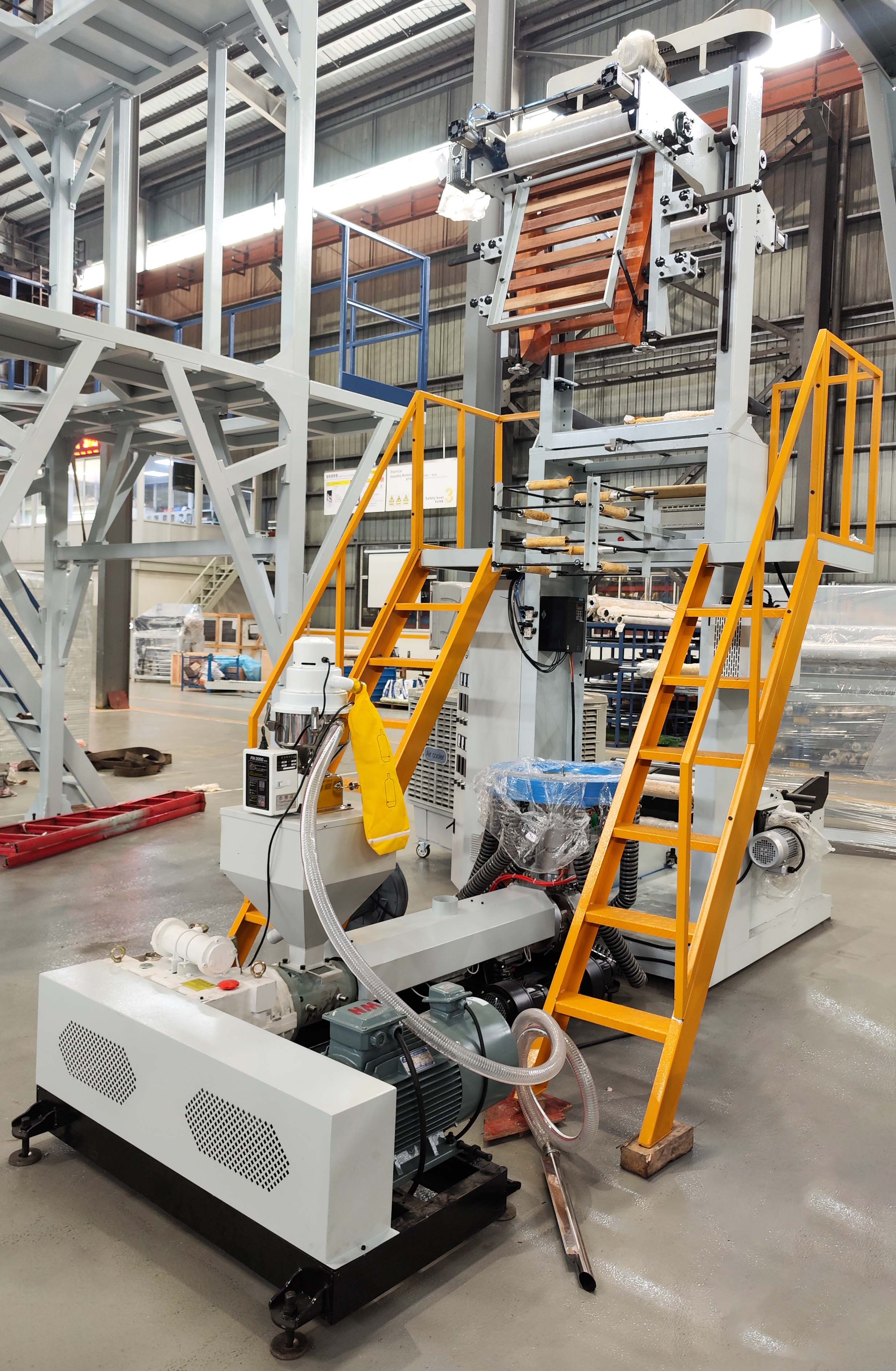

China Best Quality 500mm Mini Film Blowing Machine
Application:
It is used to blow low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE)plastic films and other films, and is widely used in civil and industrial package such as food, clothes, garbage bags and T-shirt bags.
It is used to blow low density polyethylene (LDPE), high density polyethylene (HDPE) and linear low density polyethylene (LLDPE)plastic films and other films, and is widely used in civil and industrial package such as food, clothes, garbage bags and T-shirt bags.
China Best Quality 500mm Mini Film Blowing Machine
Main technical parameters:
Main technical parameters:
| Model | XH-MN45 | XH-MN50 |
| Suitable material | HDPE/LDPE/LLDPE | |
| Film width | 100-500mm | 100-600mm |
| Max.output | 40kg/h | 45kg/h |
| Screw diameter | 45 | 50 |
| ScrewL/D | 30:1 | |
| Screw material | Sacm-645/38crmoala | |
| Cylinder cooling | 120w*2 | 120w*2 |
| Main motor | 11kw | 15kw |
| Max.power-consume | 10kw/h | 15kw/h |

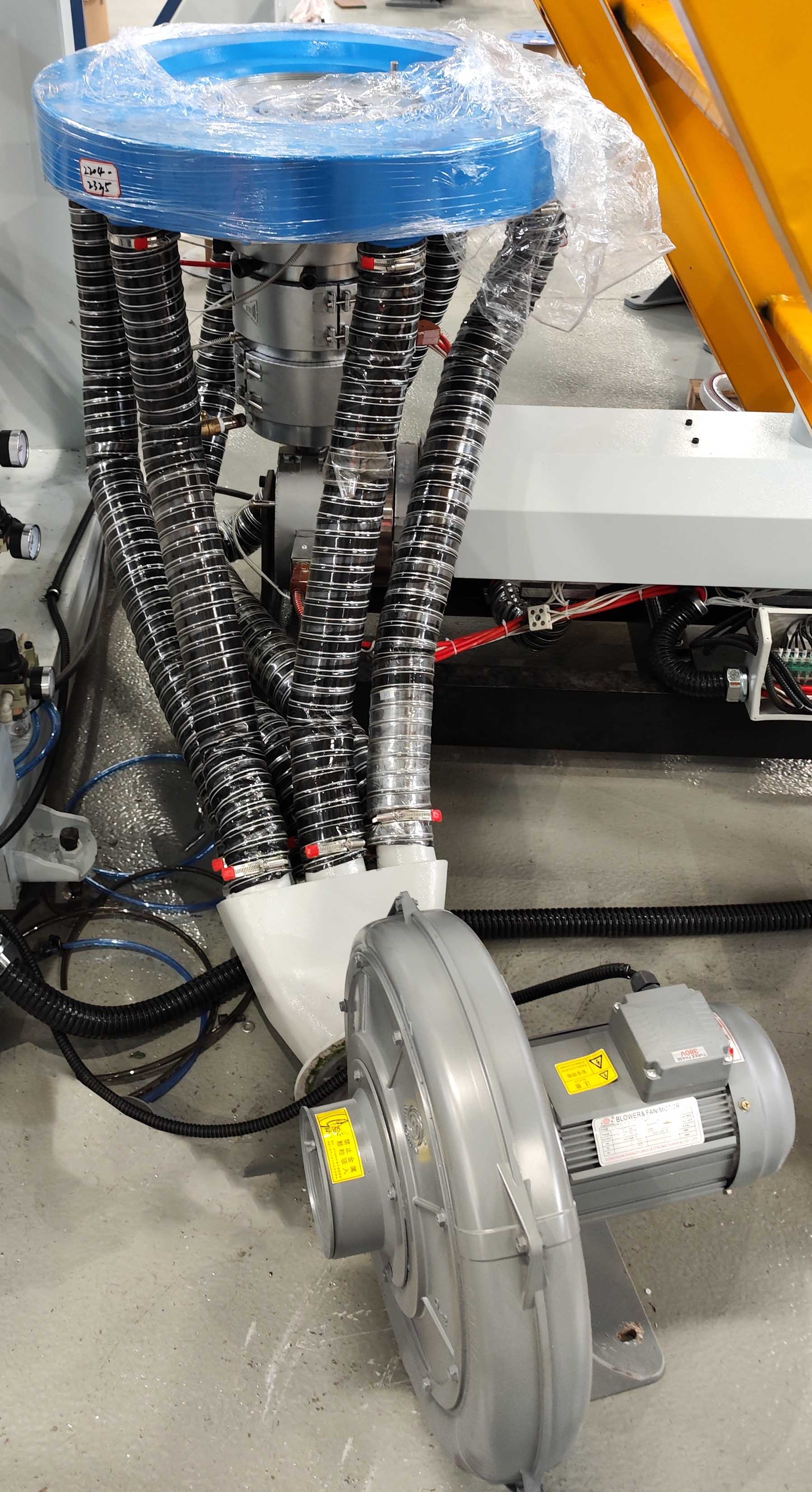

| Air ring | 550mm*2 | 620mm*2 |

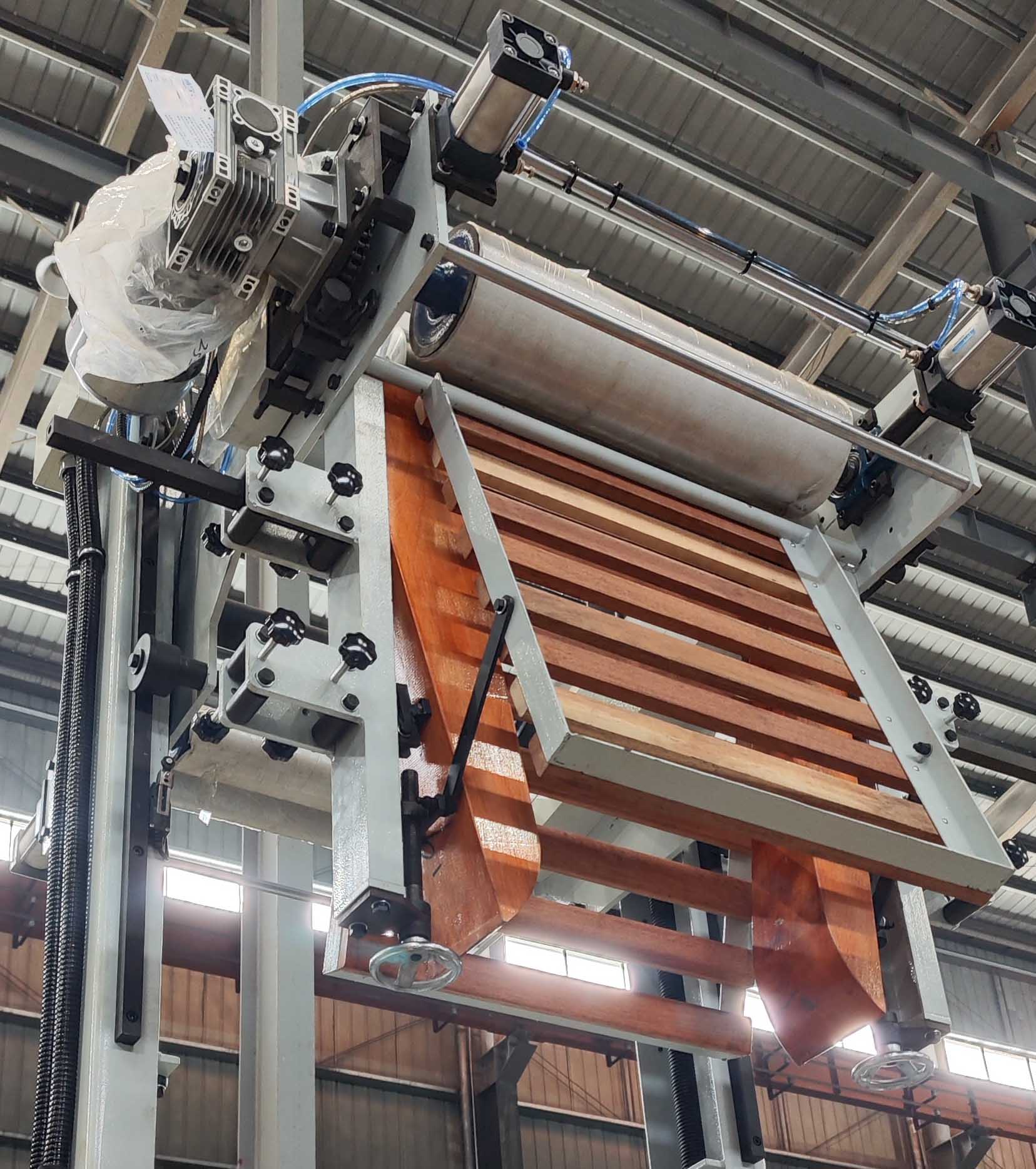

| Traction speed | 5-60m/min | |
| Winding type | Surface frication type | |
| Winding speed | 5-60m/min | |
| Machine size | 2.6m*2.0m*3.9m | 2.8m*2.2m*3.9m |
| Machine weight | 2T | 2.2T |
