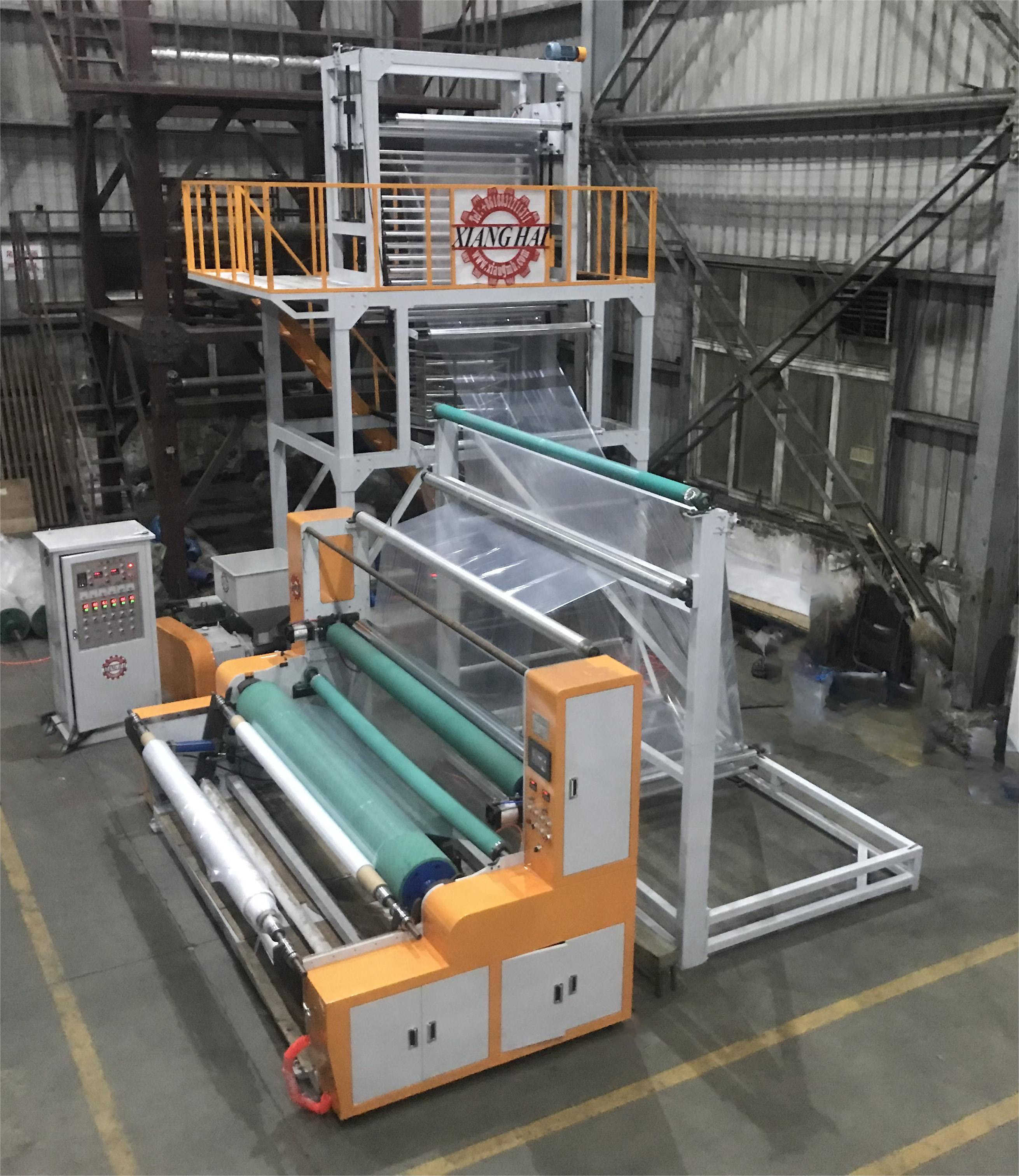

HDPE LDPE open folding single layer film blowing machine

Product Application
XIANGHAI

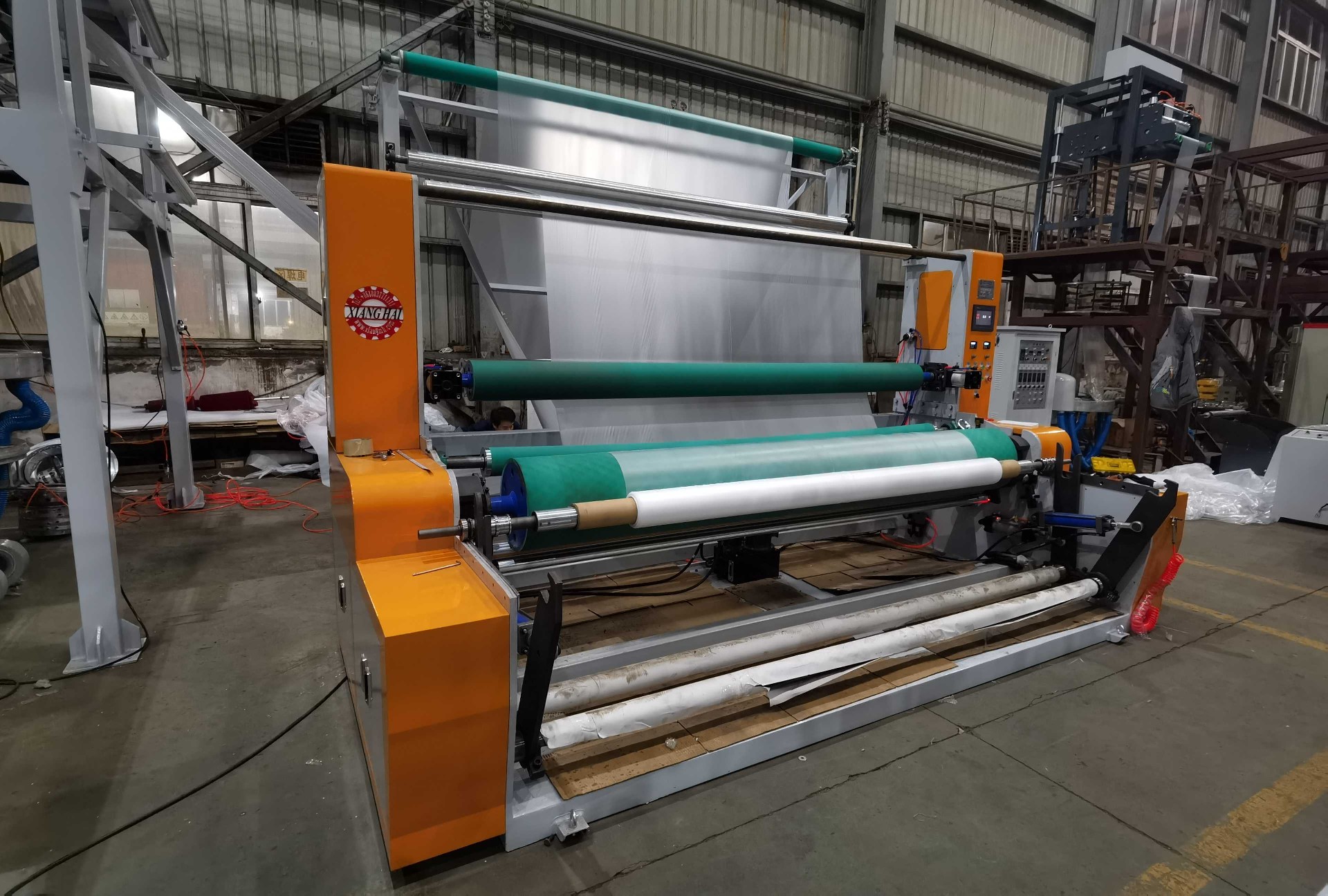

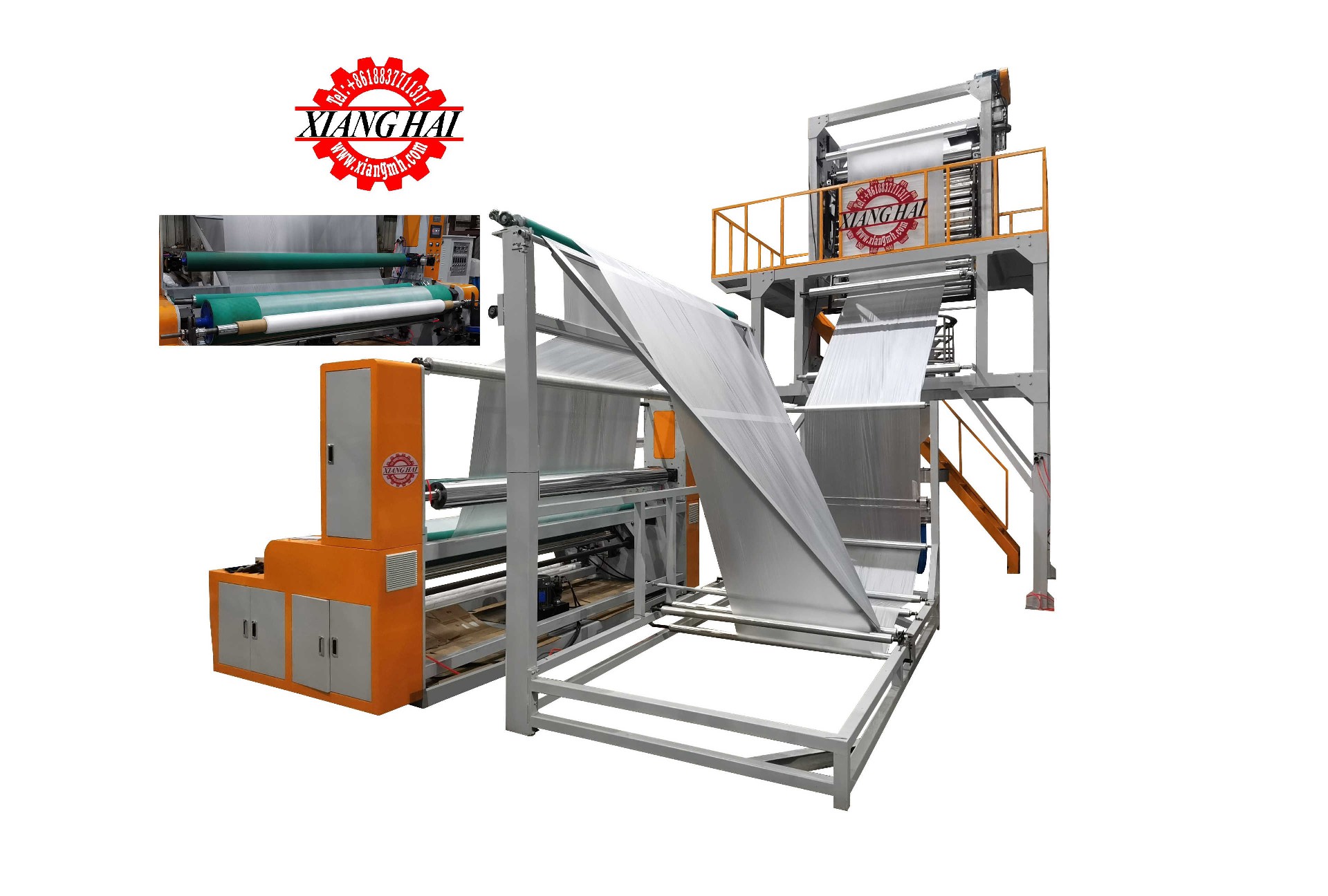

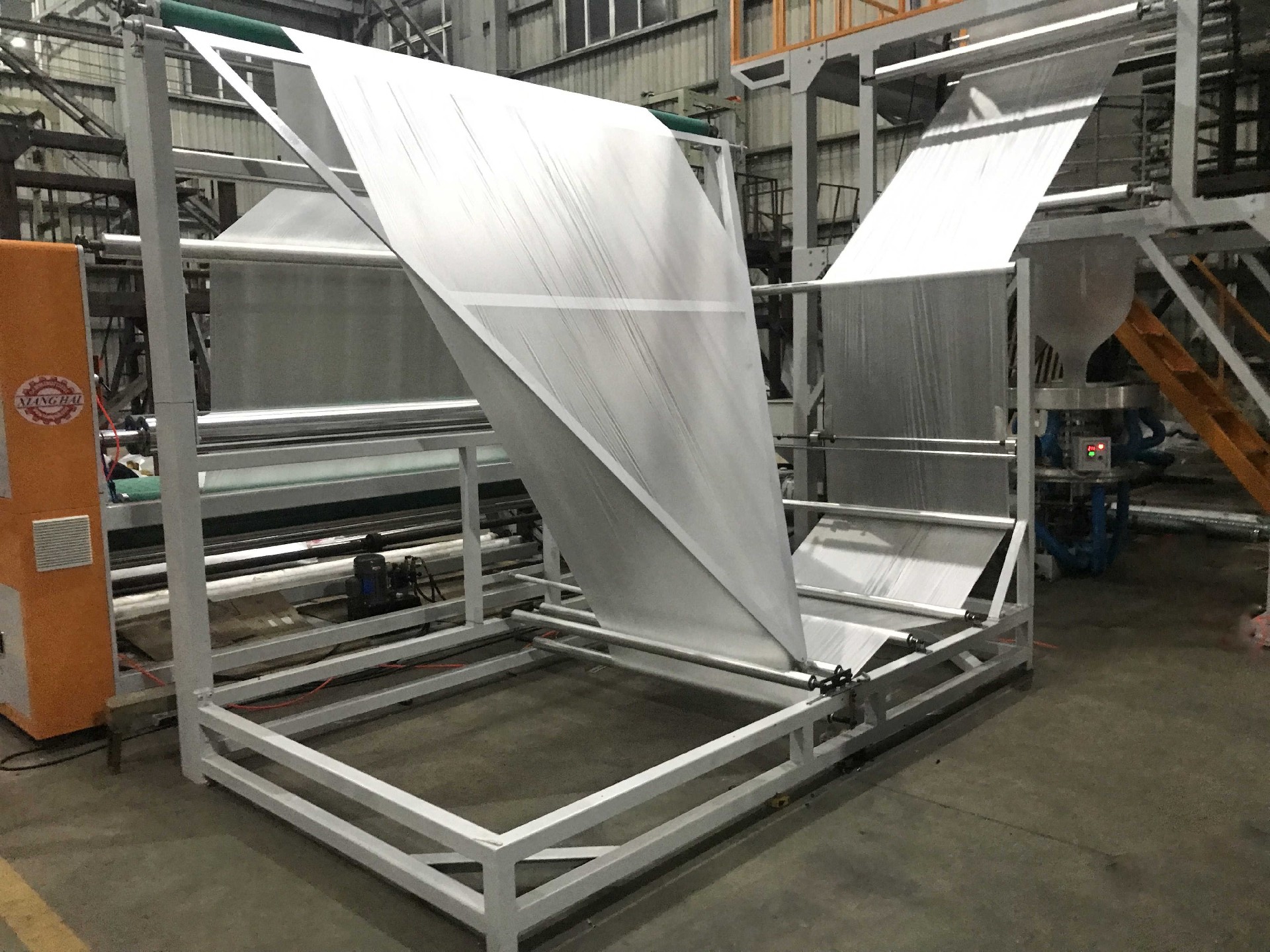

single layer fully automatic film blowing machine.Customized,With unfold and winding function, the maximum winding width 2800mm.

Products Detail

Model NO.	XH-65/1300	Type	Open Folding Film Blowing Machine
Raw Material	HDPE	Maximum Folding Width of Film	1300mm

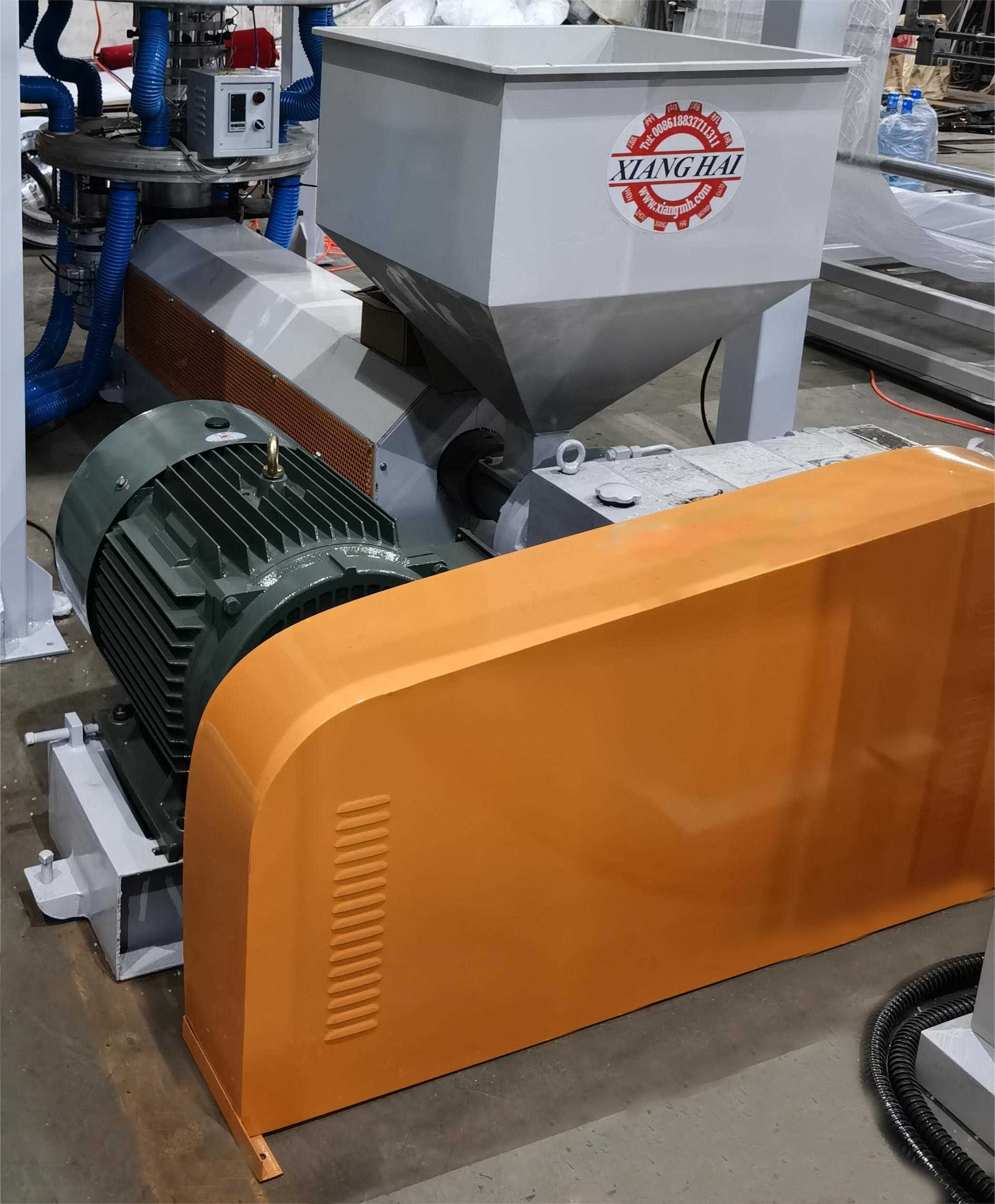

Screw Diameter	65mm	Automation	Automatic
Computerized	Computerized	Machine Weight	7 T
Certification	CE	Suitable Material	LDPE/LLDPE/HDPE
Film Thickness	0.01-0.1 mm	Max Output	90 Kg/H
Screw L/D	30:1	Main Motor	37 Kw
Use Power	50 Kw/H	Die Size	250 mm

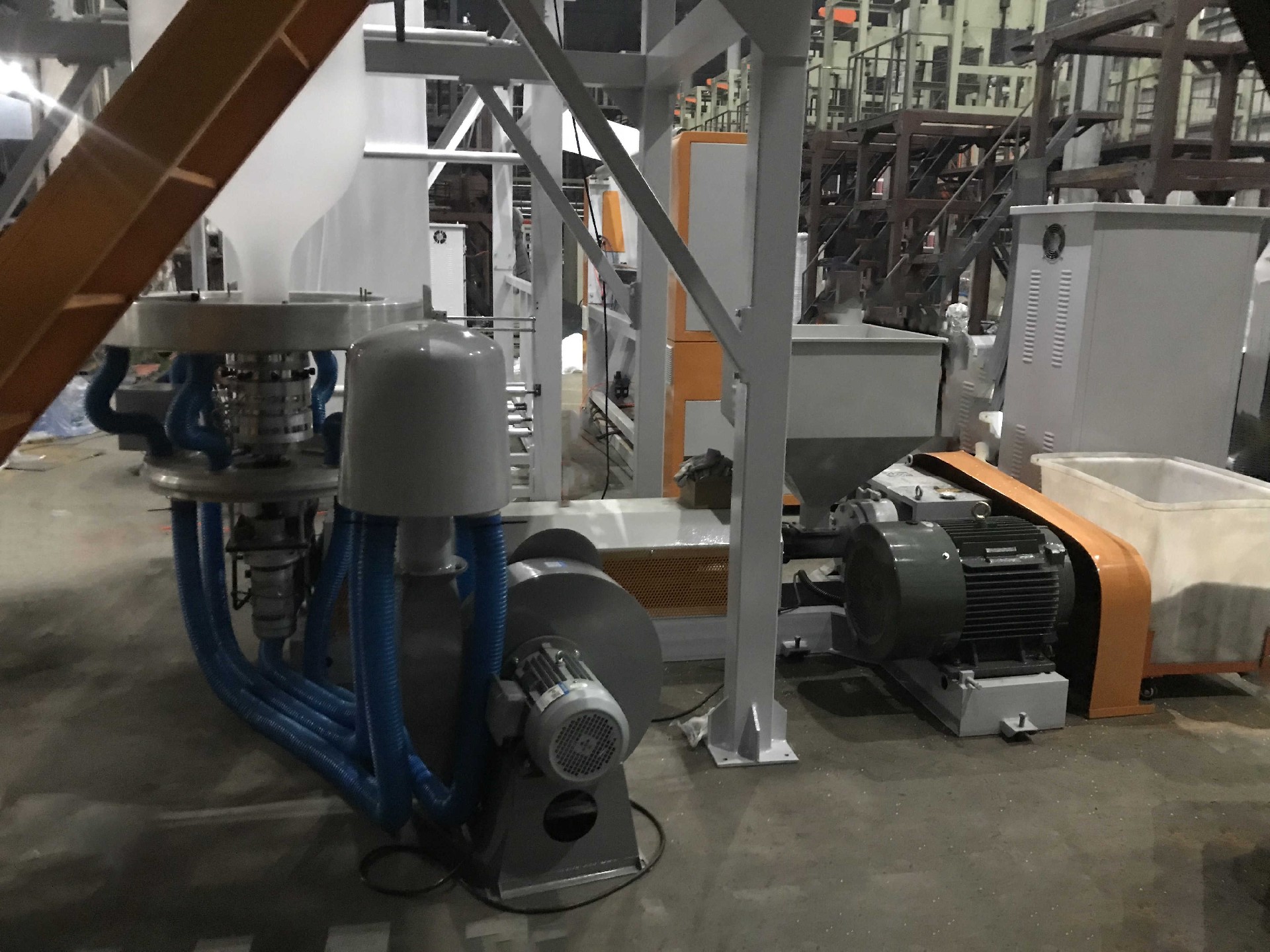

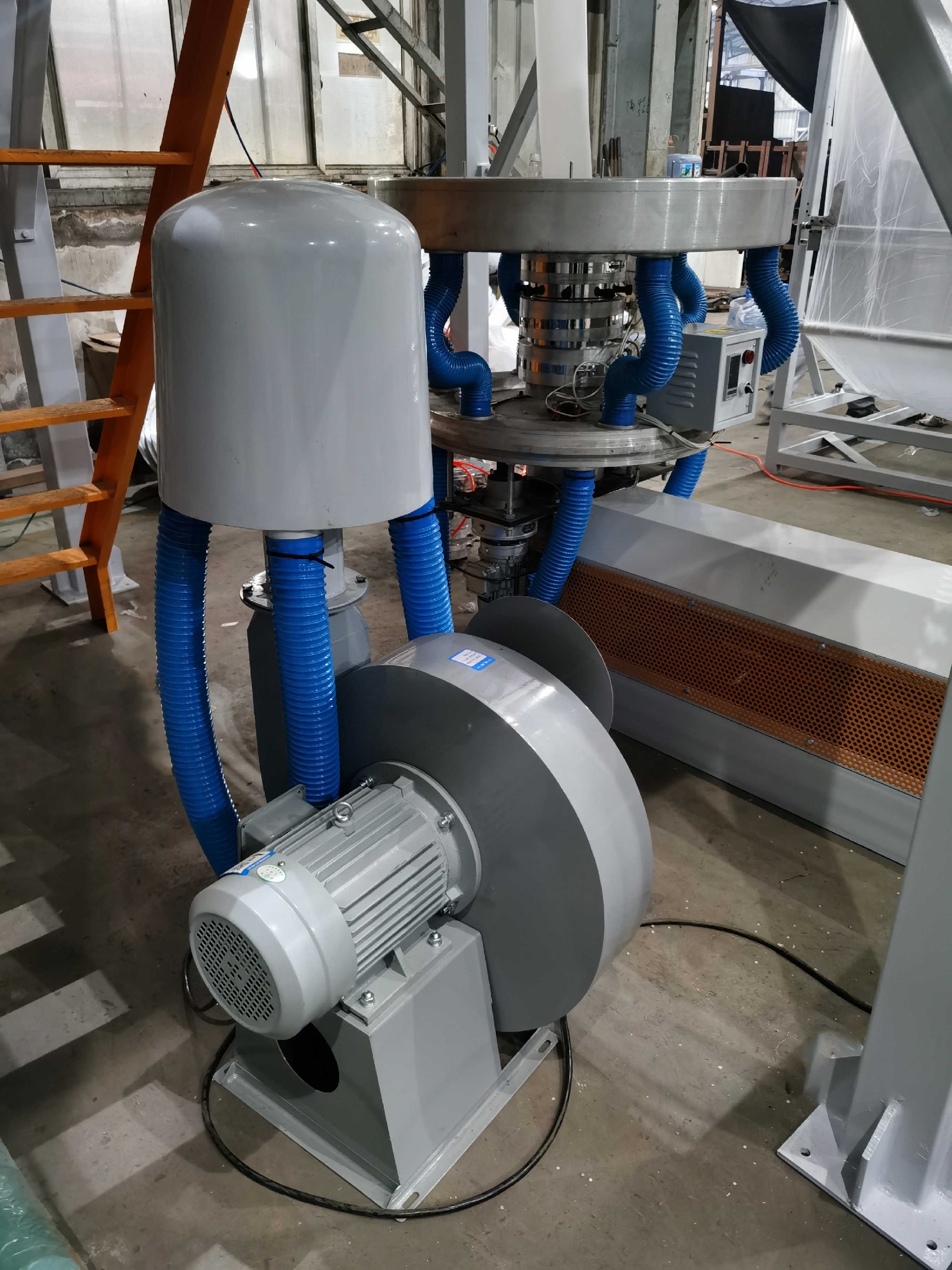

Air Ring	850mm	Air Blower	3.7 Kw
Roller Width	1500 mm	Max Traction Speed	100 M/Min
Traction Motor	2.2 Kw	Winding Motor	20 N.M
Max Winding Speed	100 M/Min	Winding Type	Surface Friction Type
Transport Package	Stretch Film Package or in Bulk	Specification	5900mm4250mm5500mm
Trademark	XIANGHAI	Origin	China
HS Code	847730900	Production Capacity	100 Set/Year
