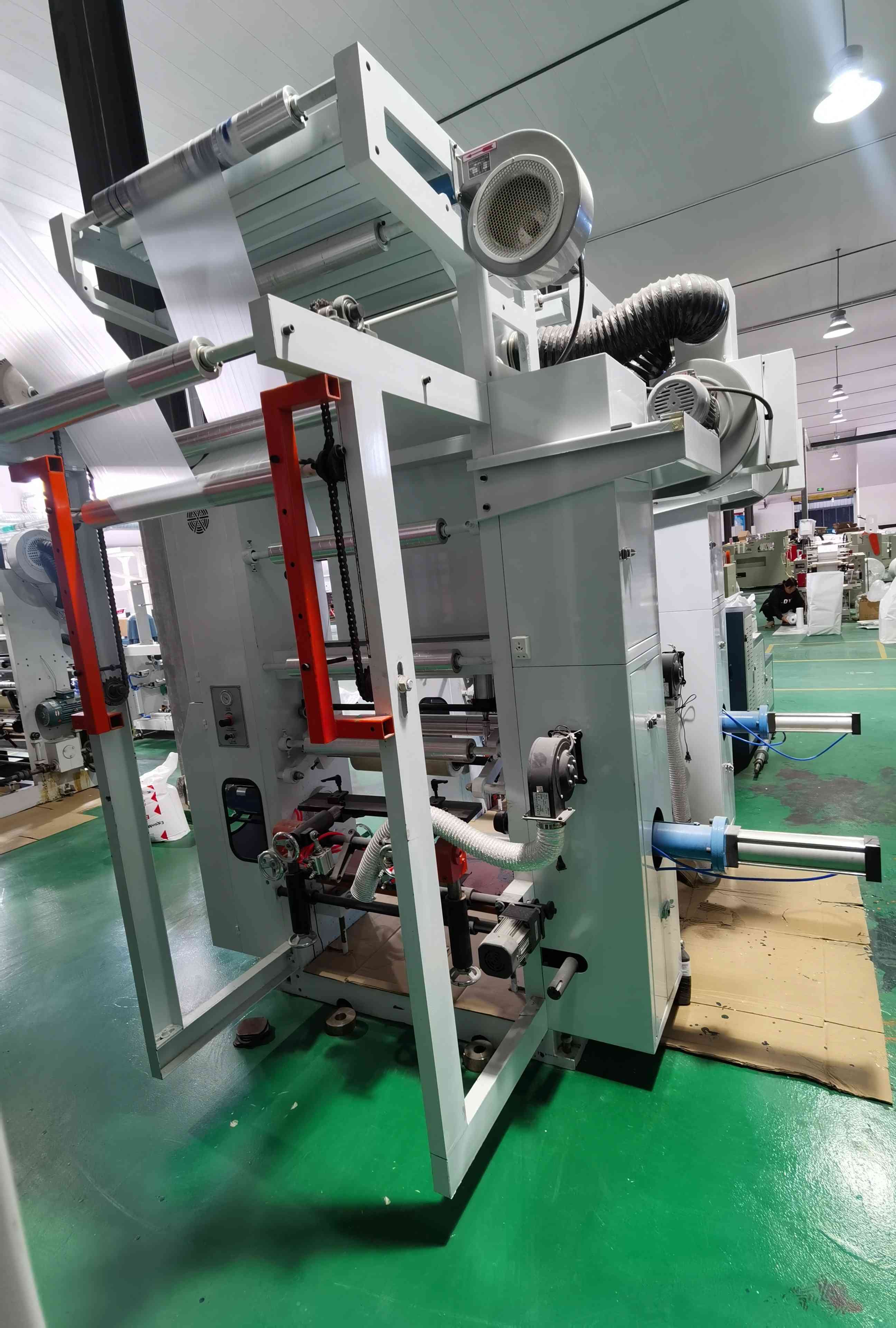

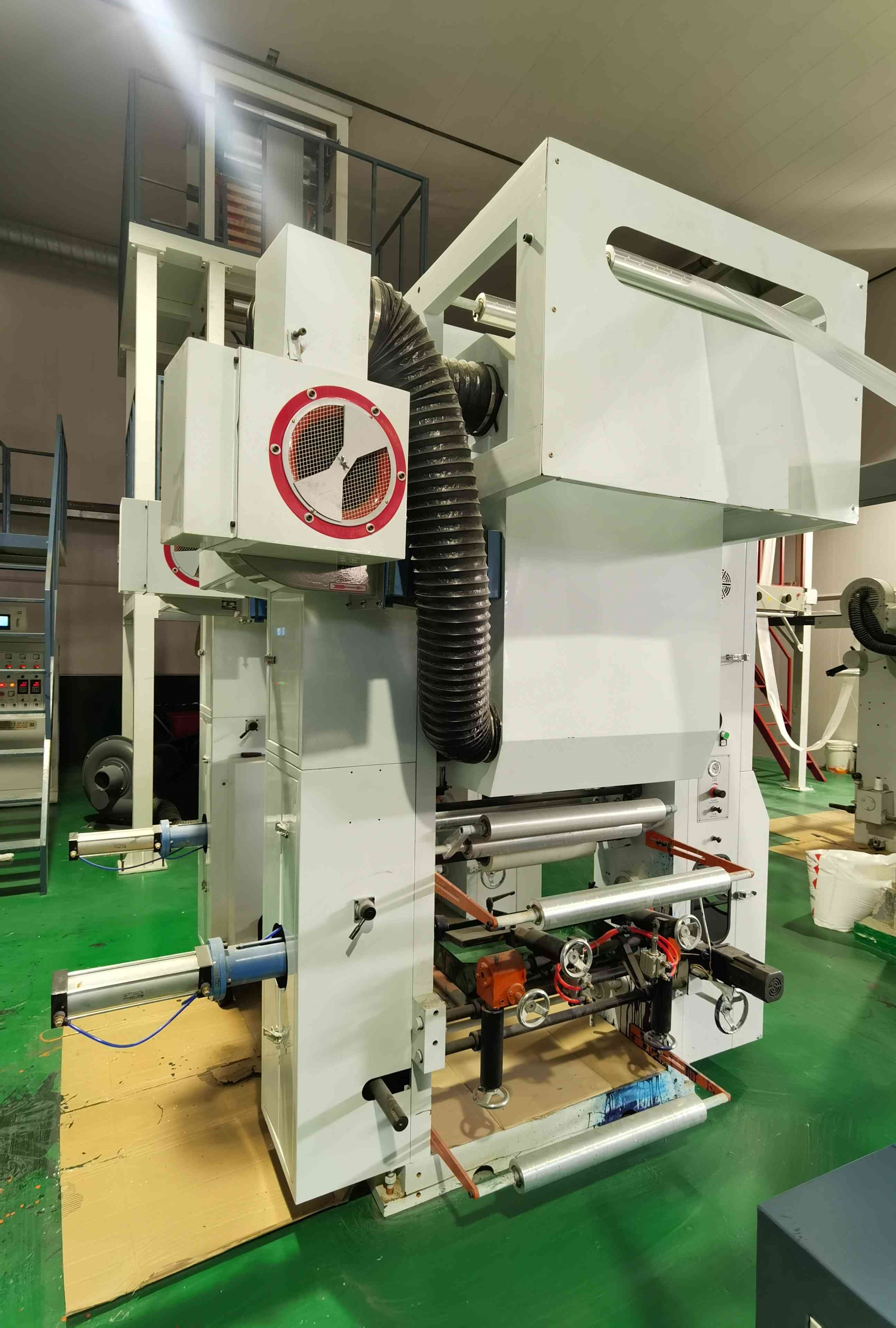

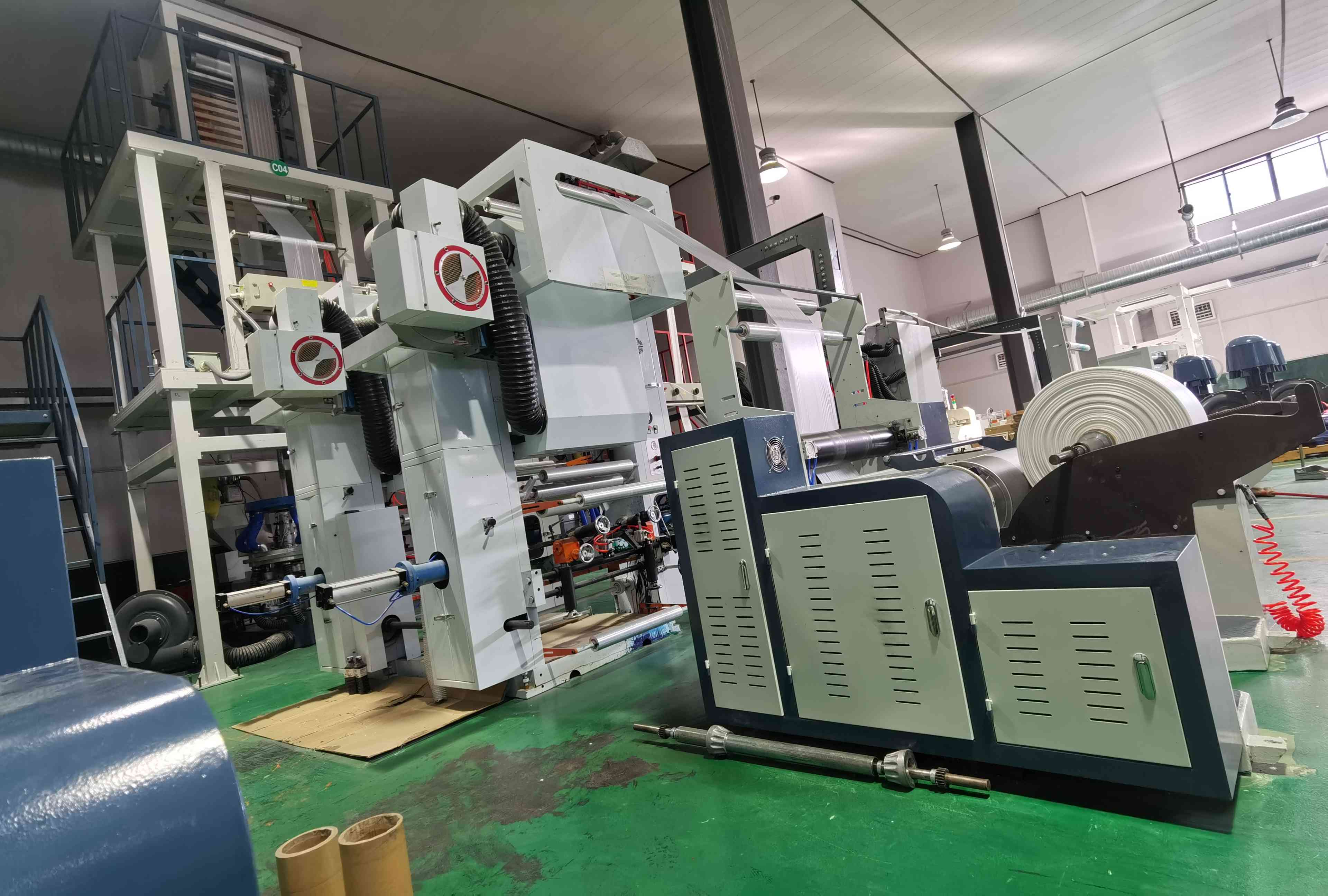

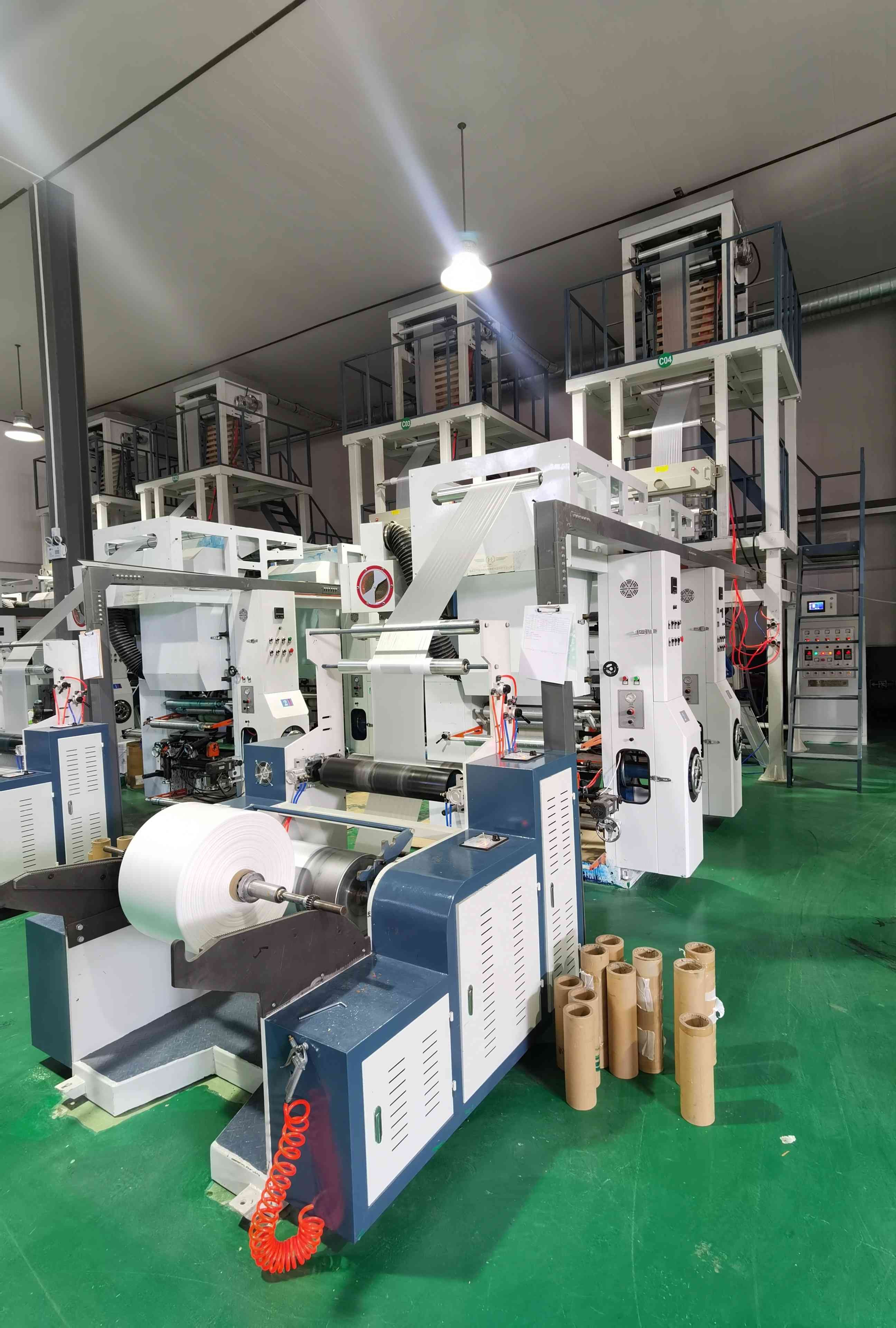

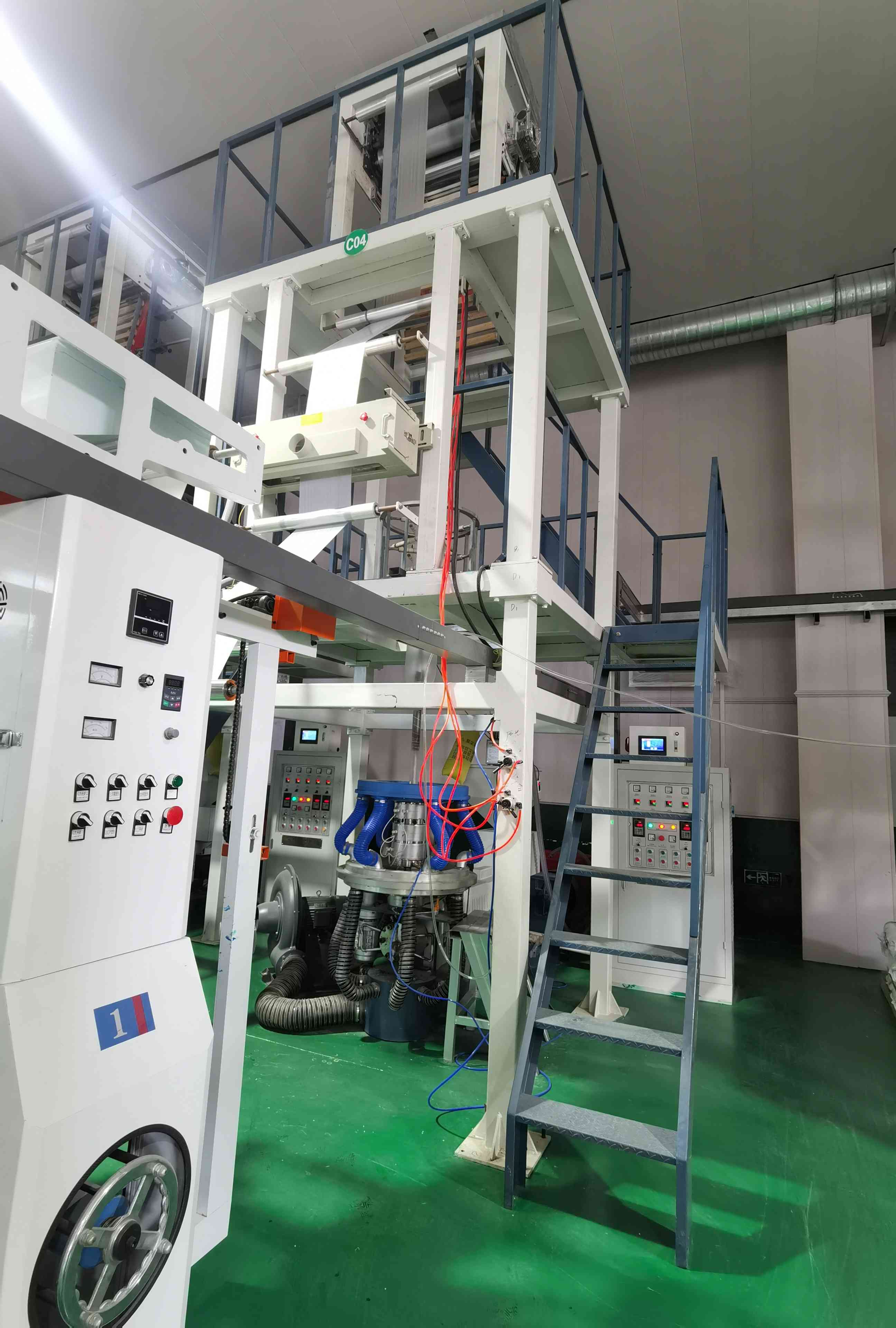

Gravure Printing and Film Blowing Machine Line

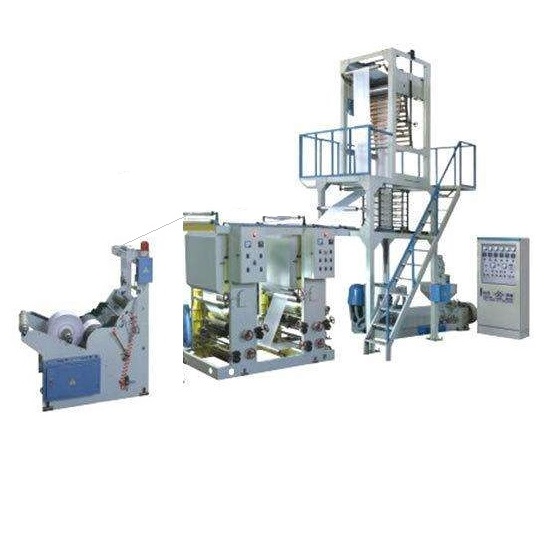

plastic pe film blowing machine with gravure printing machine line
This machine unit is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic films and the like. The plastic films can be widely used for civil and industrial packaging such as food, apparel, trash bags, vest bags and the like. The machine unit is a well-designed film blowing and printing production line which saves labor force and factories and improves the quality and the economic benefits of products.This machine unit is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic films and the like. The plastic films can be widely used for civil and industrial packaging such as food, apparel, trash bags, vest bags and the like.
This machine unit is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic films and the like. The plastic films can be widely used for civil and industrial packaging such as food, apparel, trash bags, vest bags and the like. The machine unit is a well-designed film blowing and printing production line which saves labor force and factories and improves the quality and the economic benefits of products.This machine unit is suitable for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE) plastic films and the like. The plastic films can be widely used for civil and industrial packaging such as food, apparel, trash bags, vest bags and the like.
Quick Details
Application:Film
Plastic Processed:PP, HDPE, PVC, PET, FRPP/PVC, Polystyrene, EPS, EVA, PA, HDPE/PP, ABS/PP, LDPE, PE/PP, Lldpe, MLLDPE, EVOH
Condition:New
Output (kg/h):20 - 50
Screw diameter (mm):50
Number of Layers:Single-layer
Film Thickness (mm):0.008 - 0.1
Brand Name:XIANGHAI
Place of Origin:Zhejiang, China
Die Size(mm):60 - 120 mm
Model Number:XH-YT50
Year:2020
Voltage:380V
Dimension(L*W*H):6.0m*1.7m*4.3m
Certification:CE
Key Selling Points:Energy saving
Warranty:1 Year
Model:XH-YT50
Suitable material:HDPE/LDPE/LLDPE
Film width:100-600mm
Film thickness:0.008-0.1mm
Max.output:50kg/h
ScrewL/D:30:1

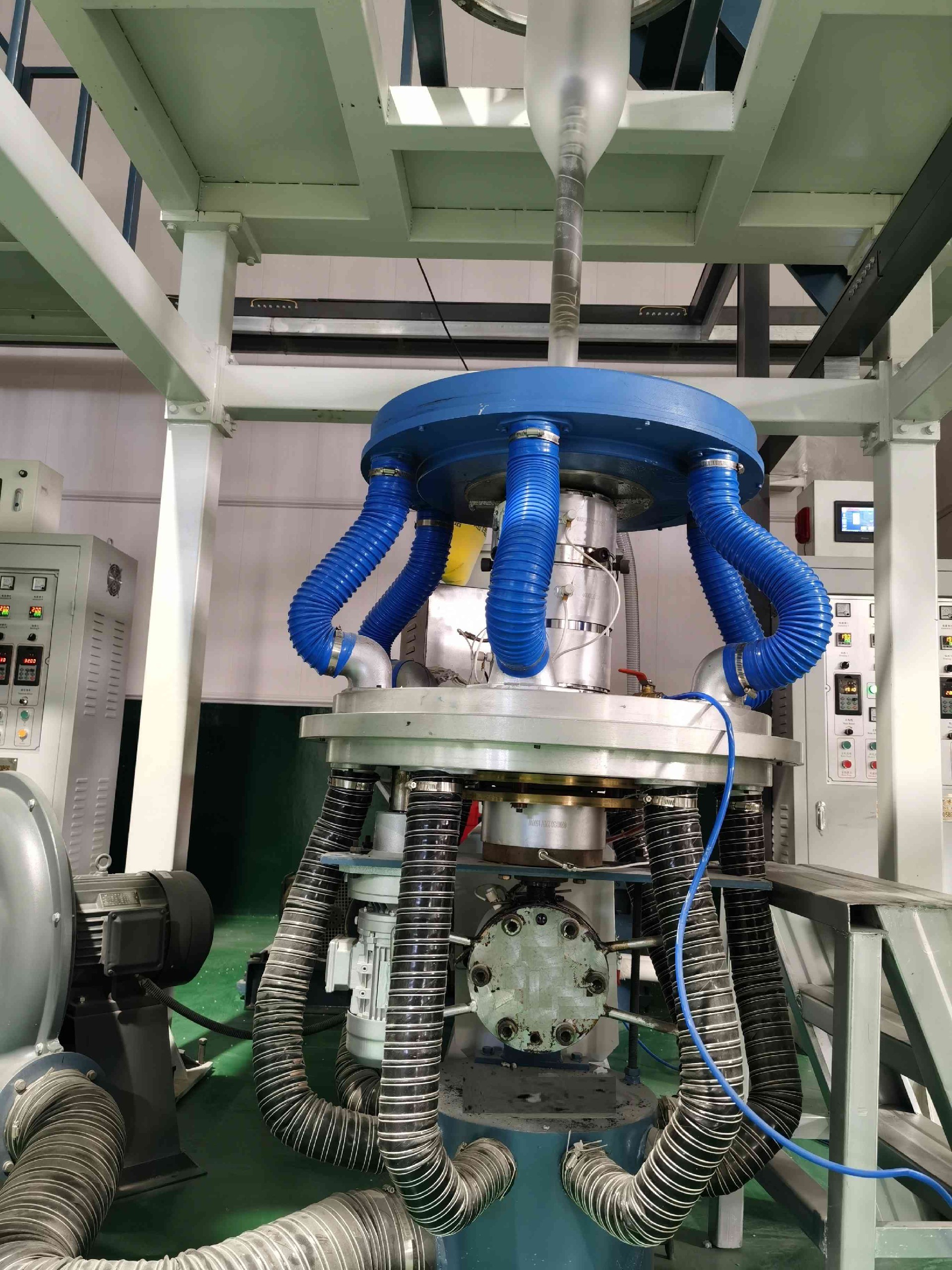

Air ring:620mm
Printing length:191-990mm
Printing width:600mm
Winding speed:5-60m/min

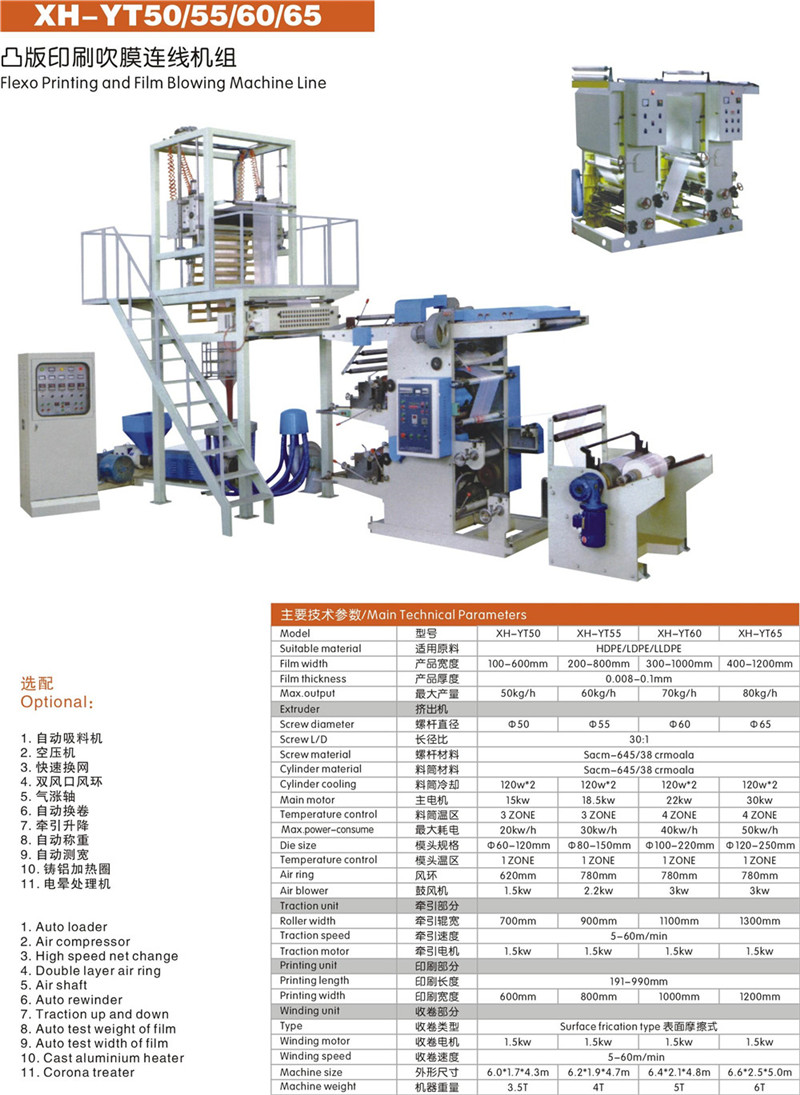

| Model | XH-YT50 | XH-YT55 | XH-YT60 | XH-YT65 |
| Max.output | 50kg/h | 60kg/h | 70kg/h | 80kg/h |
| Screw diameter | 50 | 55 | 60 | 65 |
| Cylinder cooling | 250w*2 | 250w*2 | 250w*2 | 250w*2 |
| Main motor | 15kw | 18.5kw | 22kw | 30kw |
| Temperature control | 3zone | 3zone | 4zone | 4zone |
| Max power-consume | 20kw/h | 30kw/h | 40kw/h | 50kw/h |
| Die size | 60-120mm | 60-150mm | 60-220mm | 60-250mm |
| Air ring | 620mm | 780mm | 780mm | 850mm |
| Air blower | 1.5kw | 2.2kw | 3kw | 3kw |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Printing length | 191-990mm | |||
| Printing width | 600mm | 800mm | 1000mm | 1200mm |
| Winding type | Surface frication type | |||
| Machine size | 7*1.7*4.3m | 8*1.9*5m | 9*2.1*6m | 10*2.5*7.0m |
| Machine weight | 3.5T | 4T | 5T | 6T |
