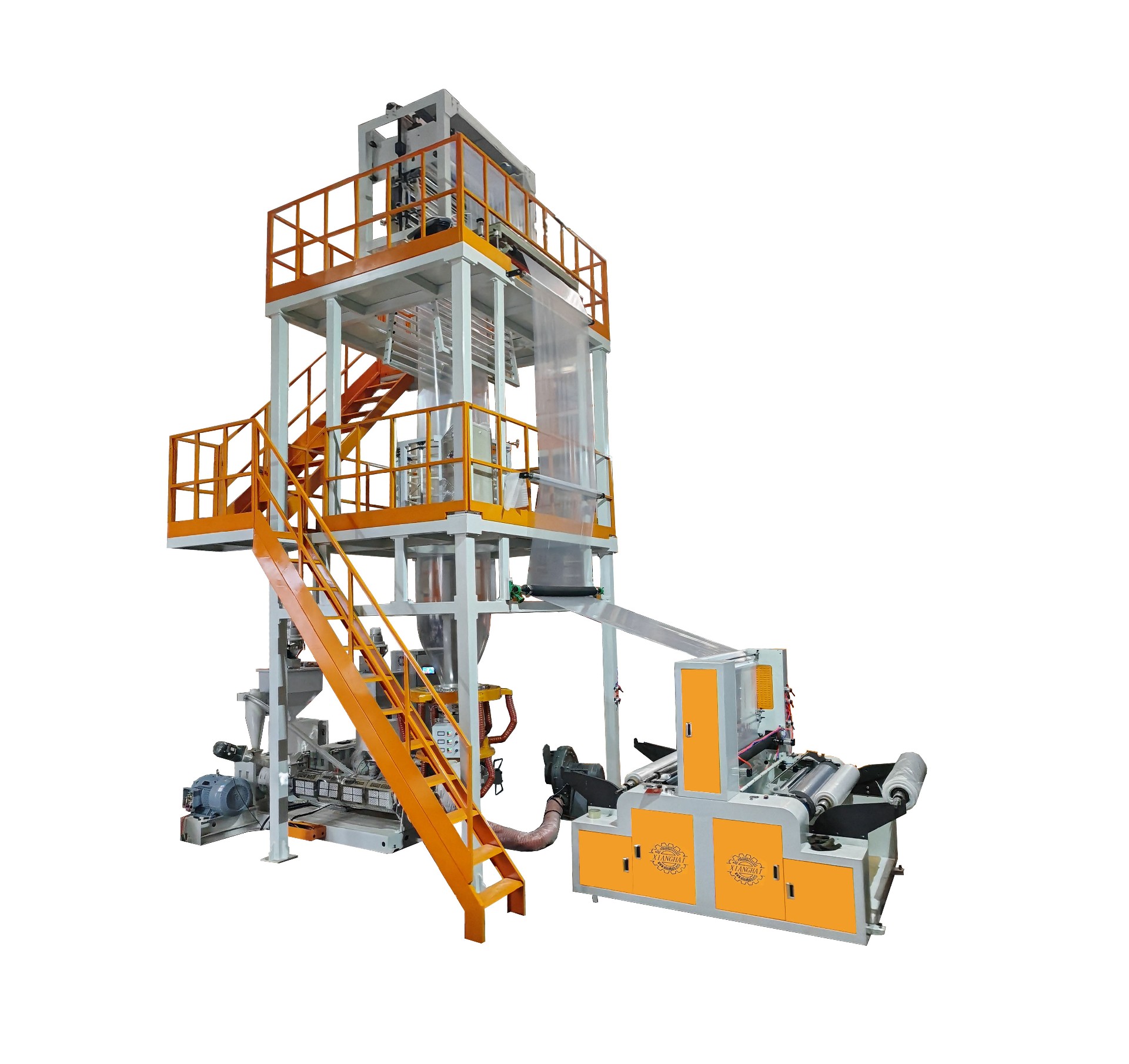

HDPE/LDPE/LLDPE 2 Layer Multifunctional Film Blowing Machine

Products Detail

Main Features:
1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment
3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head
Machine Description:
It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film; film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.

Main Technical Parameters
Model	XH-ABA800	XH-ABA1000	XH-ABA1200	XH-ABA1400
Suitable material	LDPE; LLDPE; HDPE;
Max Film width	800mm	1000mm	1200mm	1400mm
Film thickness	0.01-0.1mm		0.02-0.1mm
Max.output	70kg/hr	100kg/hr	120kg/hr	250kg/hr
Screw L/D	30:1 Option
Barrel Screw	Material :38 crmoala
Main motor	15/18.5 kw	18.5/22 kw	22/30 kw	30/37 kw
Screw control	3 ZONE	3 ZONE	4 ZONE	Option
power use	35 kw/h	40 kw/h	55 kw/h	70 kw/h
Die size	Φ70mm	Φ80/Φ200mm	Φ250mm	Φ300mm
Air ring	800mm	1000mm	1000mm	1000mm
Air blower	2.2 kw	3 kw	3.7 kw	5.5 kw
Roller width	900mm	1100mm	1400mm	1700mm
Max Traction speed	Max 60m or 100m/min
Traction motor	1.5kw	1.5KW	2.2 kw	2.2 kw
Winding type	Surface friction type
Winding motor	6 N.M	10 N.M	10 N.M	16 N.M
Winding speed	Max 60m or 100m/min
Machine weight	3 T	3 T	4 T	4.5 T
