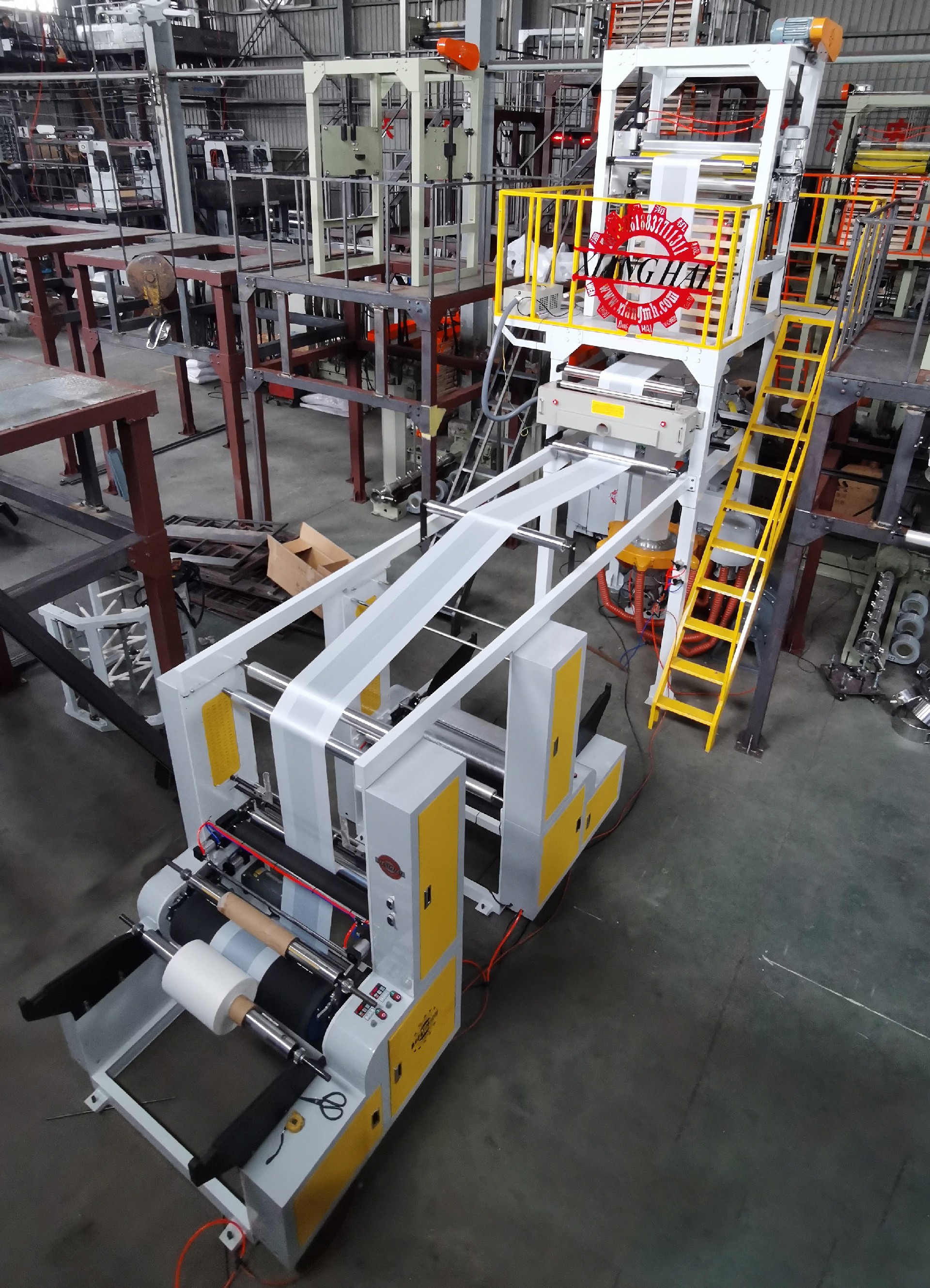

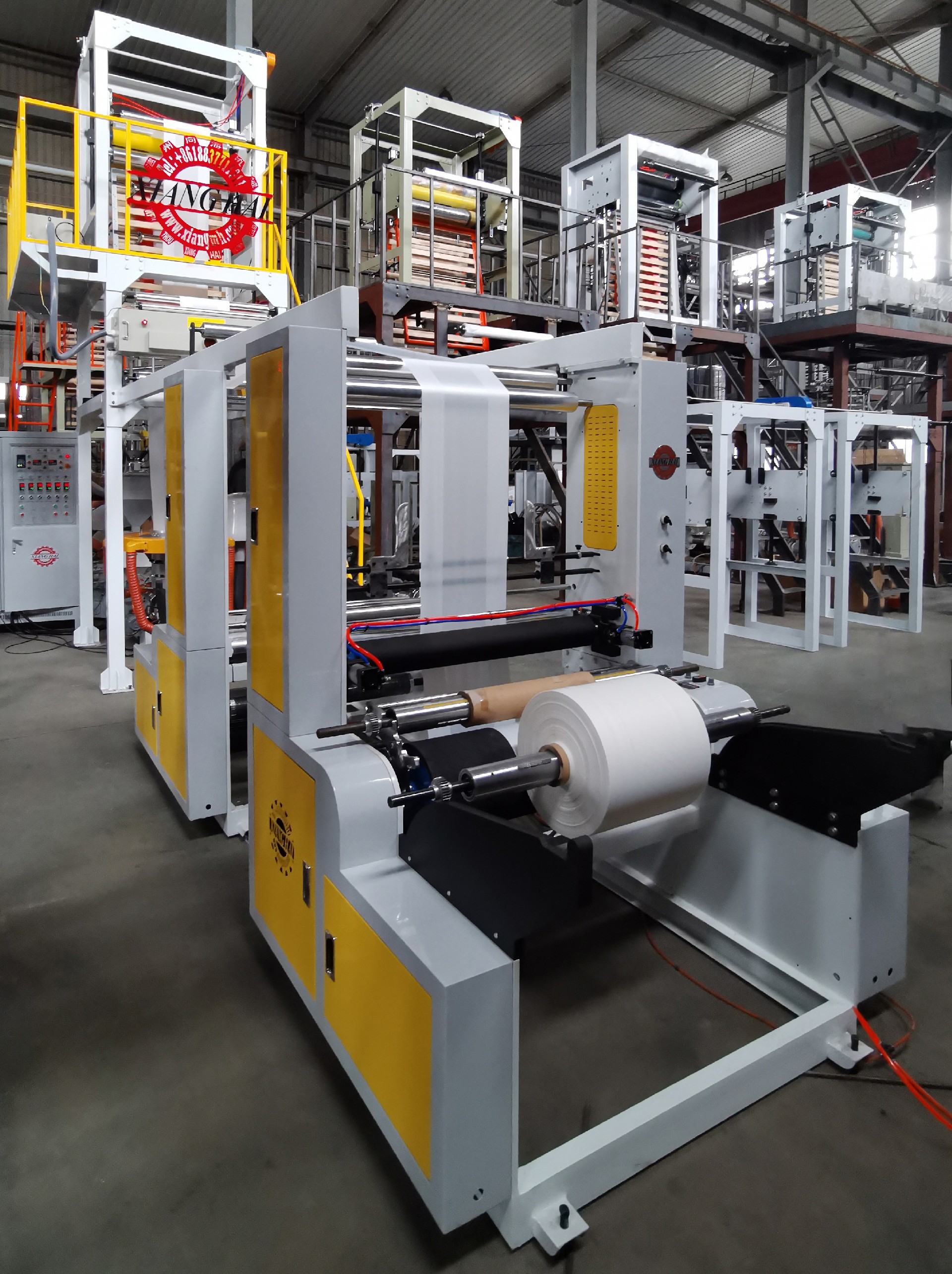

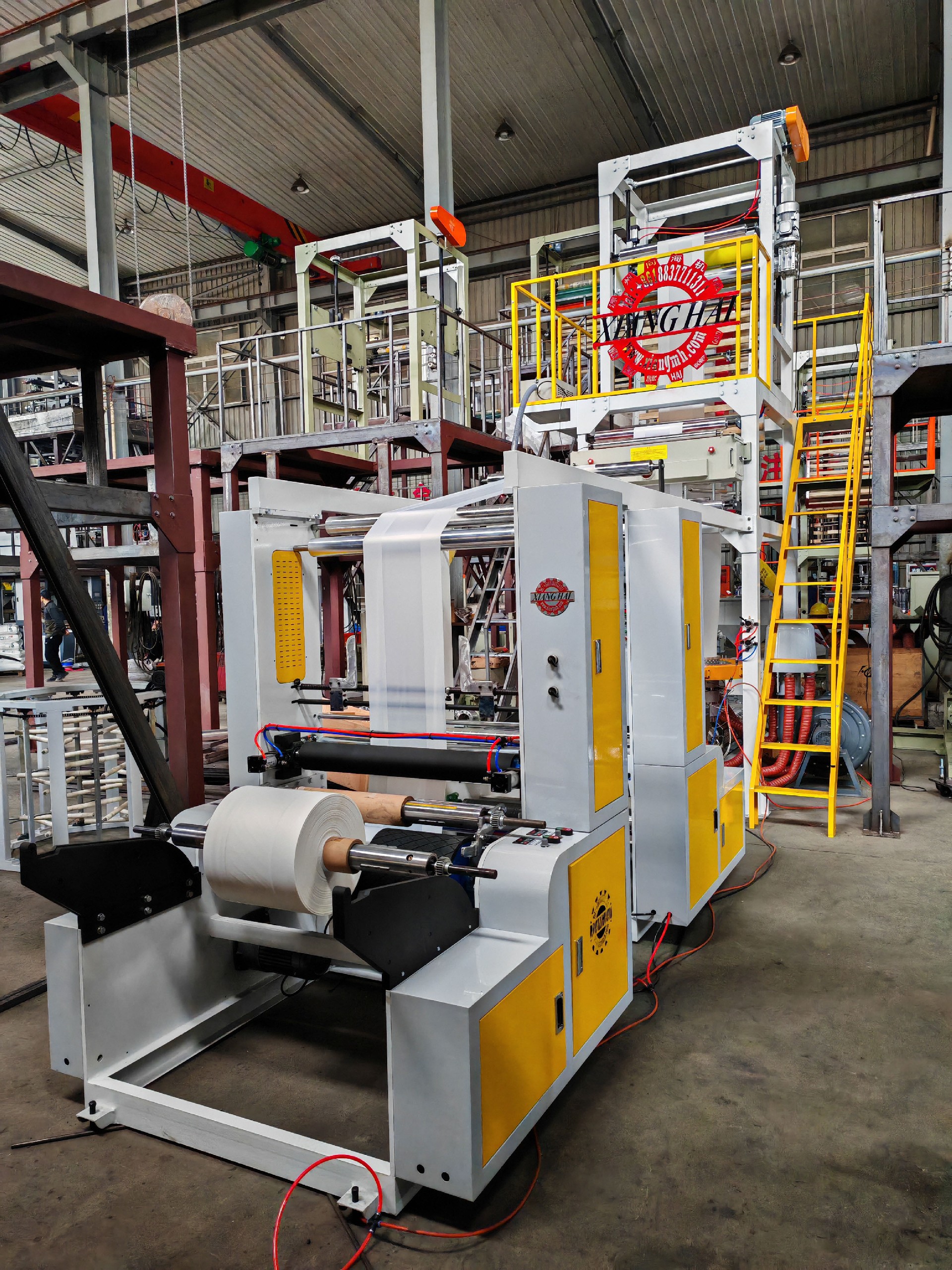

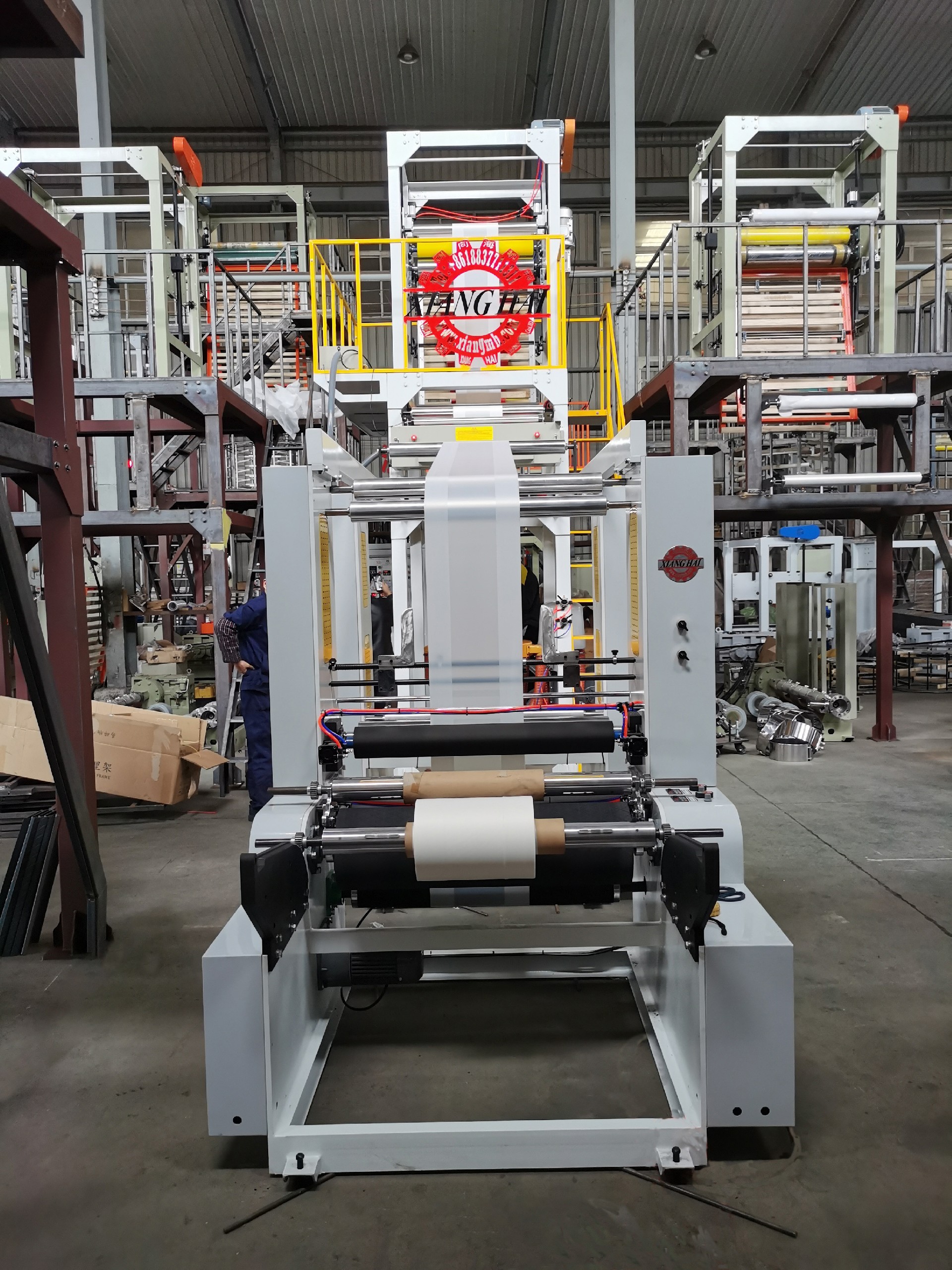

Biodegradable Plastic Mono Layer Film Blowing Machine
Main Features:
1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment
3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding
4. Die material: steel No.45 material, hard chrome- plating

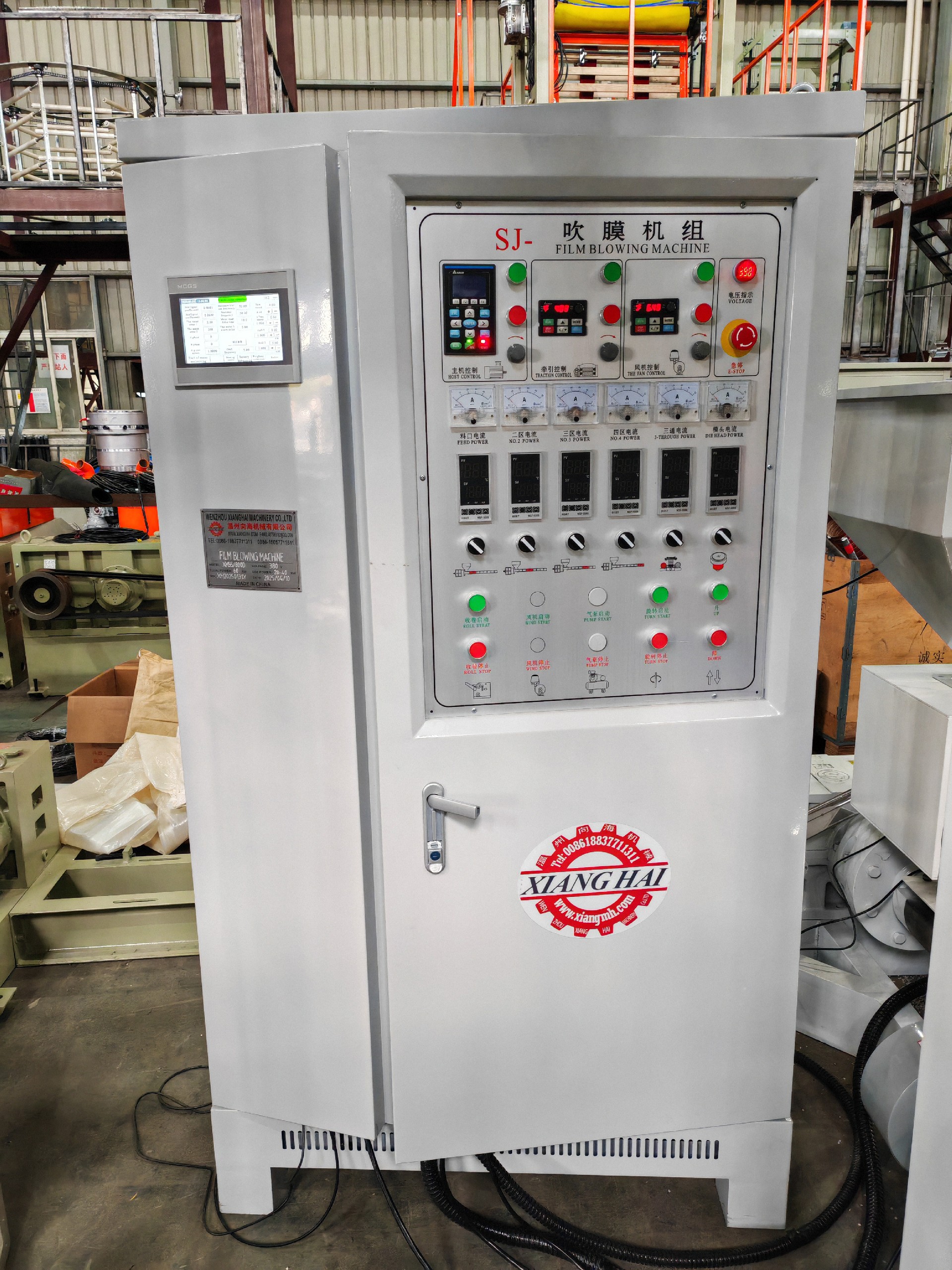

5. Double digital display temperature controller in the die head
1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment
3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head
| Main Technical Parameters | ||||
| Model | XH50 | XH55 | XH60 | XH65 |
| Suitable material | LDPE; LLDPE; HDPE; | |||
| Max Film width | 600mm | 800mm | 1000mm | 1200mm |
| Film thickness | 0.01-0.1mm | |||
| Max.output | 65kg/h | 80kg/h | 100kg/h | 120kg/h |
| Screw diameter | Φ50 | Φ55 | Φ60 | Φ65 |
| Screw L/D | 30:1 Option | |||
| Barrel Screw | Material :38 crmoala | |||
| Main motor | 22kw | 30kw | 37kw | 45kw |
| Screw control | 3 ZONE | 3 ZONE | 4 ZONE | 4 ZONE |
| power use | 25kw/h | 35kw/h | 40kw/h | 50kw/h |
| Die size | Φ60/100 | Φ70/120 | Φ70/150 | Φ80-180 |

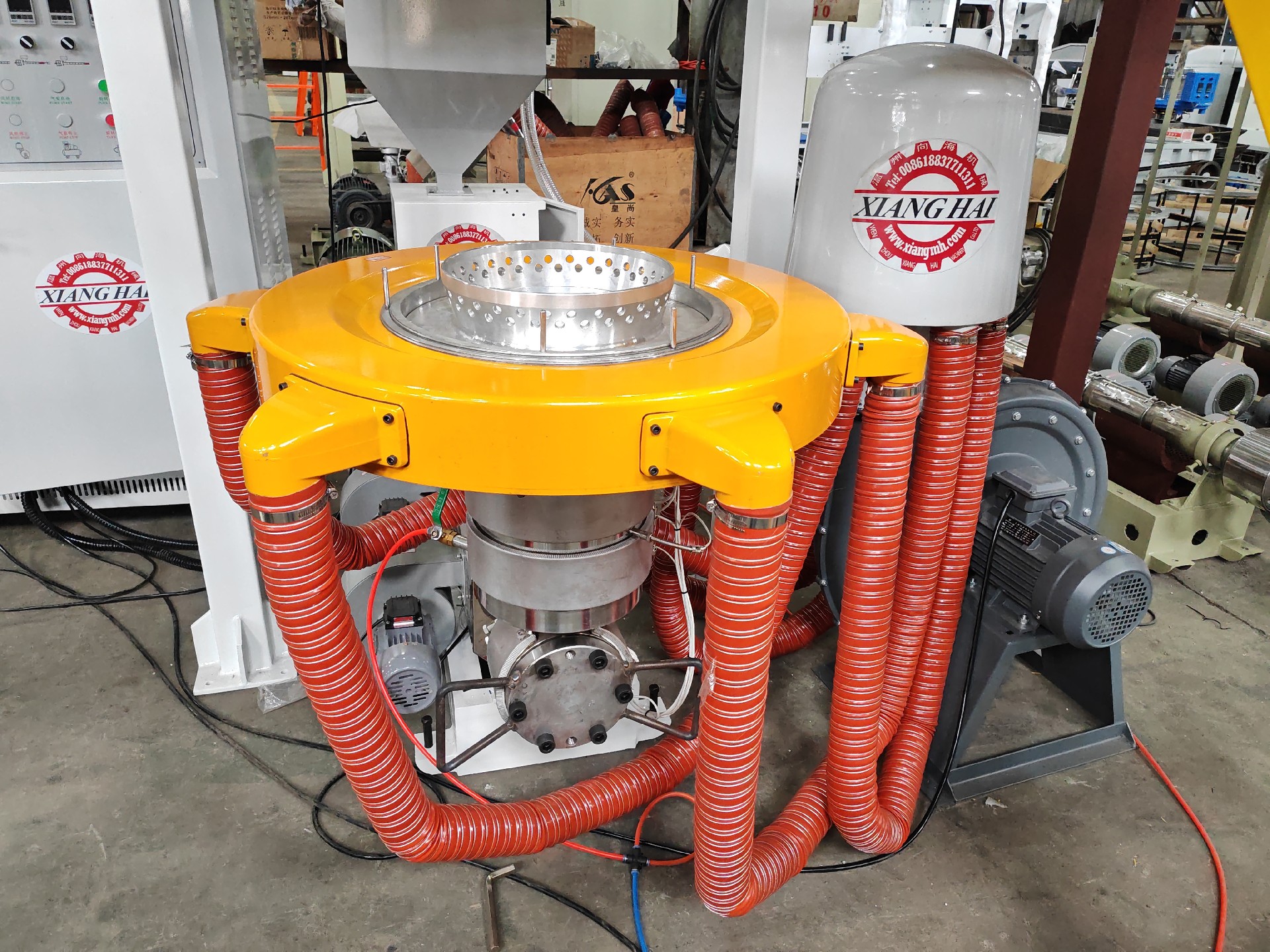

| Air ring | 700mm | 800mm | 1000mm | 1000mm |
| Air blower | 3kw | 4kw | 5.5kw | 7.5kw |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Max Traction speed | Max 60m or 100m/min | |||
| Traction motor | 1.5kw | 2.2kw | 2.2kw | 3kw |

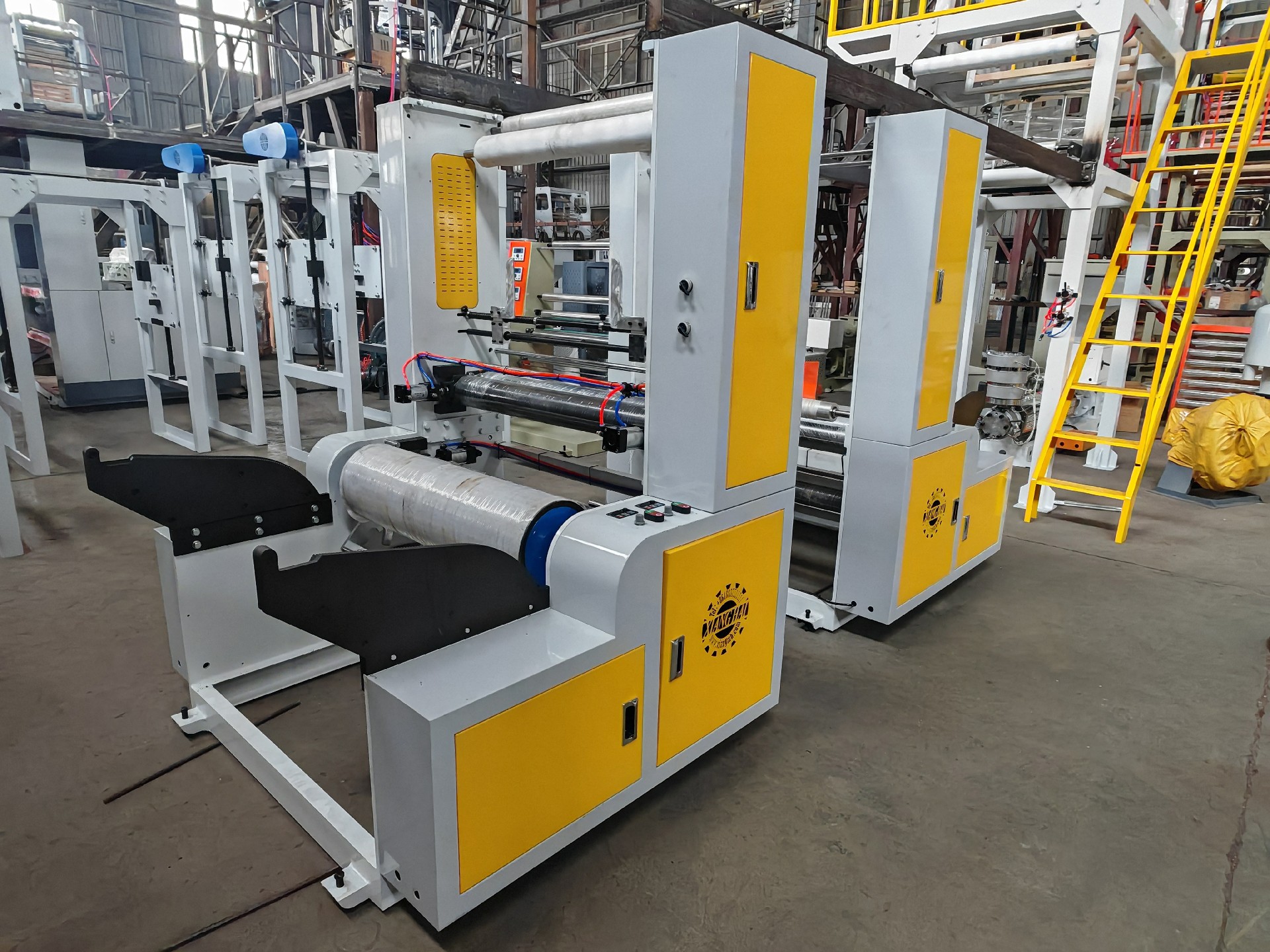

| Winding type | Surface friction type | |||
| Winding motor | 1.5 kw | 2.2KW | 2.2kw | 3kw |
| Winding speed | Max 60m or 100m/min | |||
| Machine size | 5*6*5m | 6*2*5.5m | 6.5*2.5*6m | 6.8*3*6.5m |
| Machine weight | 2.5T | 3T | 3.5T | 4.5T |
 |  |
 |  |
 |  |
 |  |
