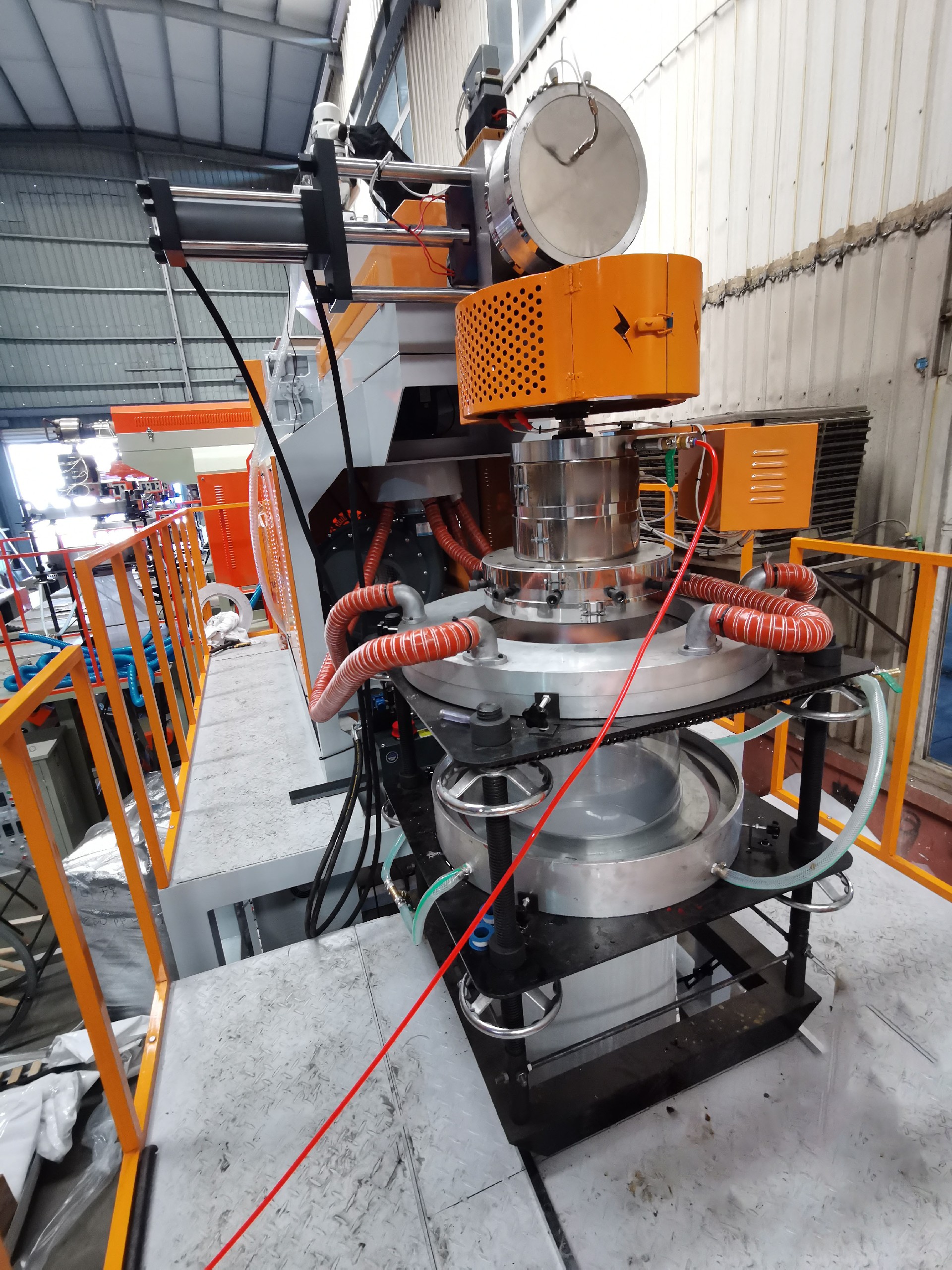

PP Film Blowing Machine

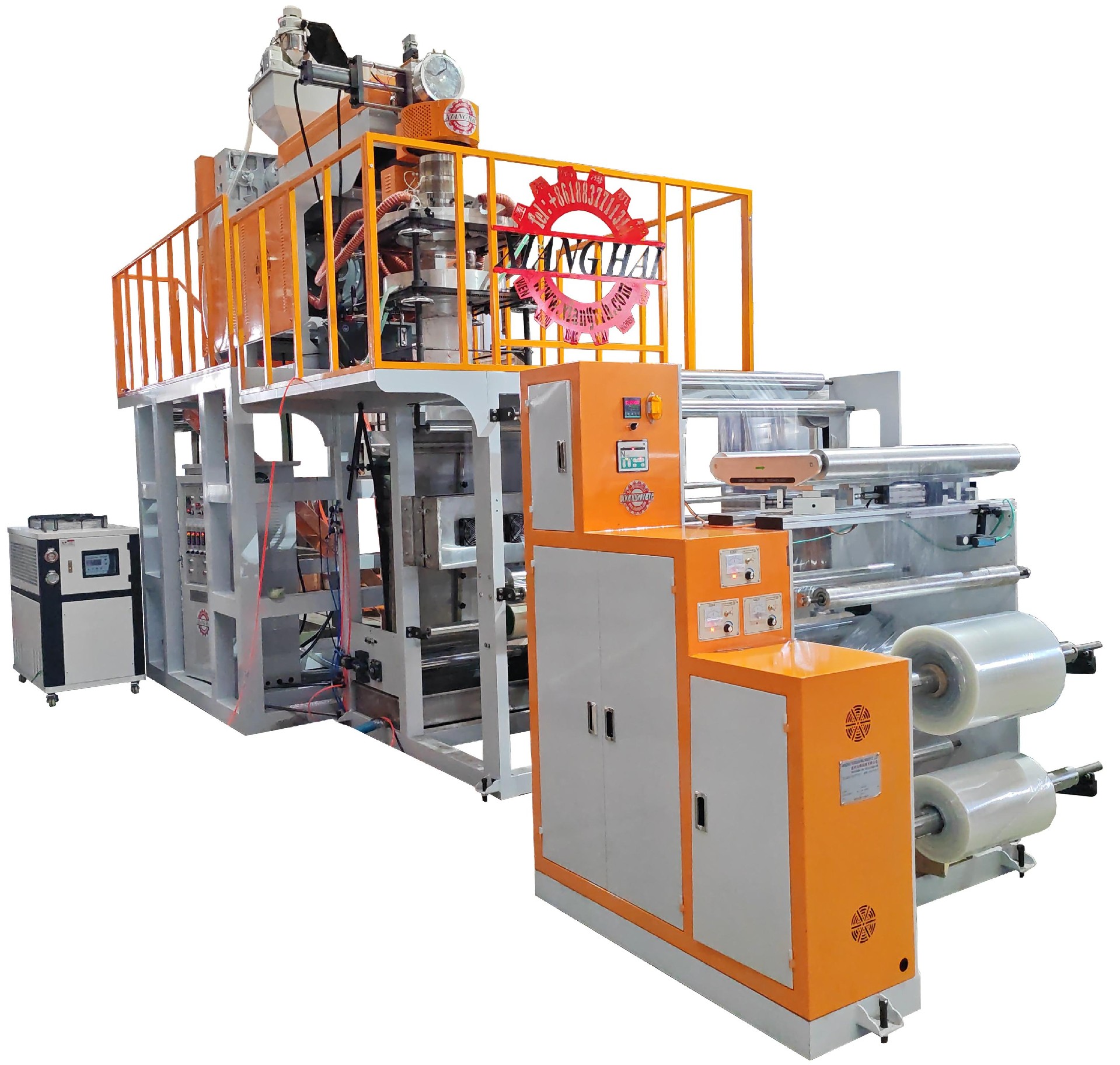

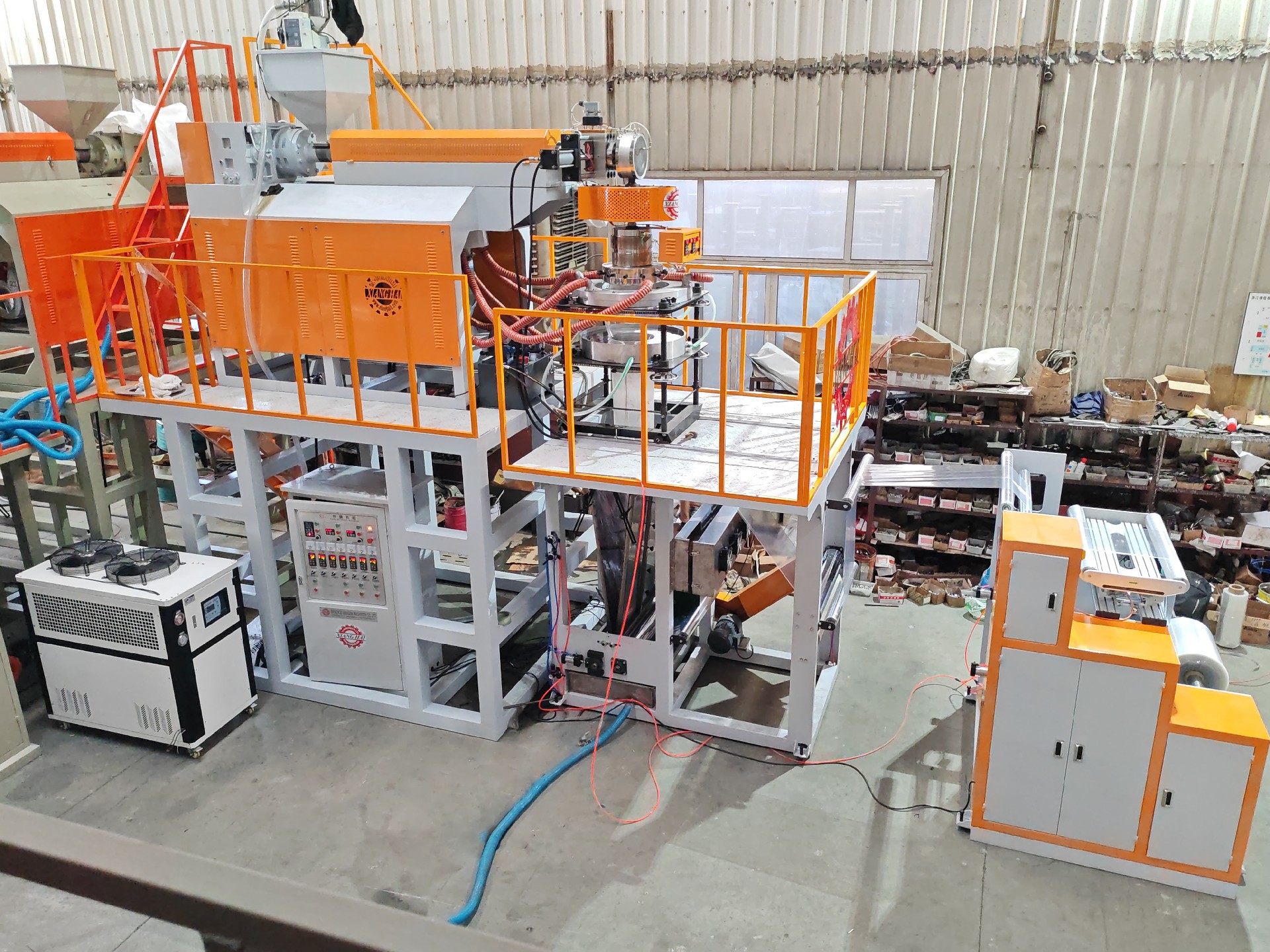

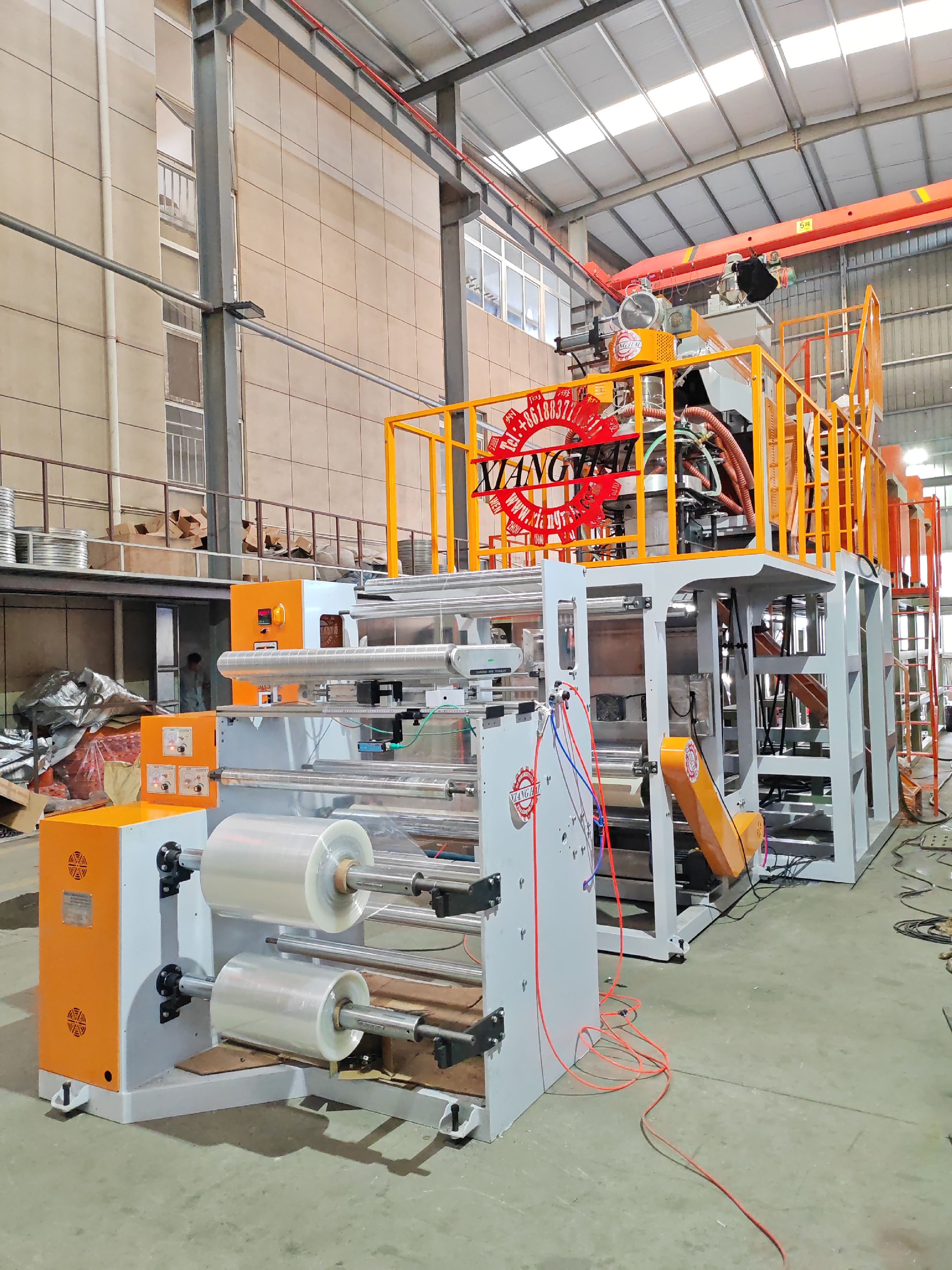

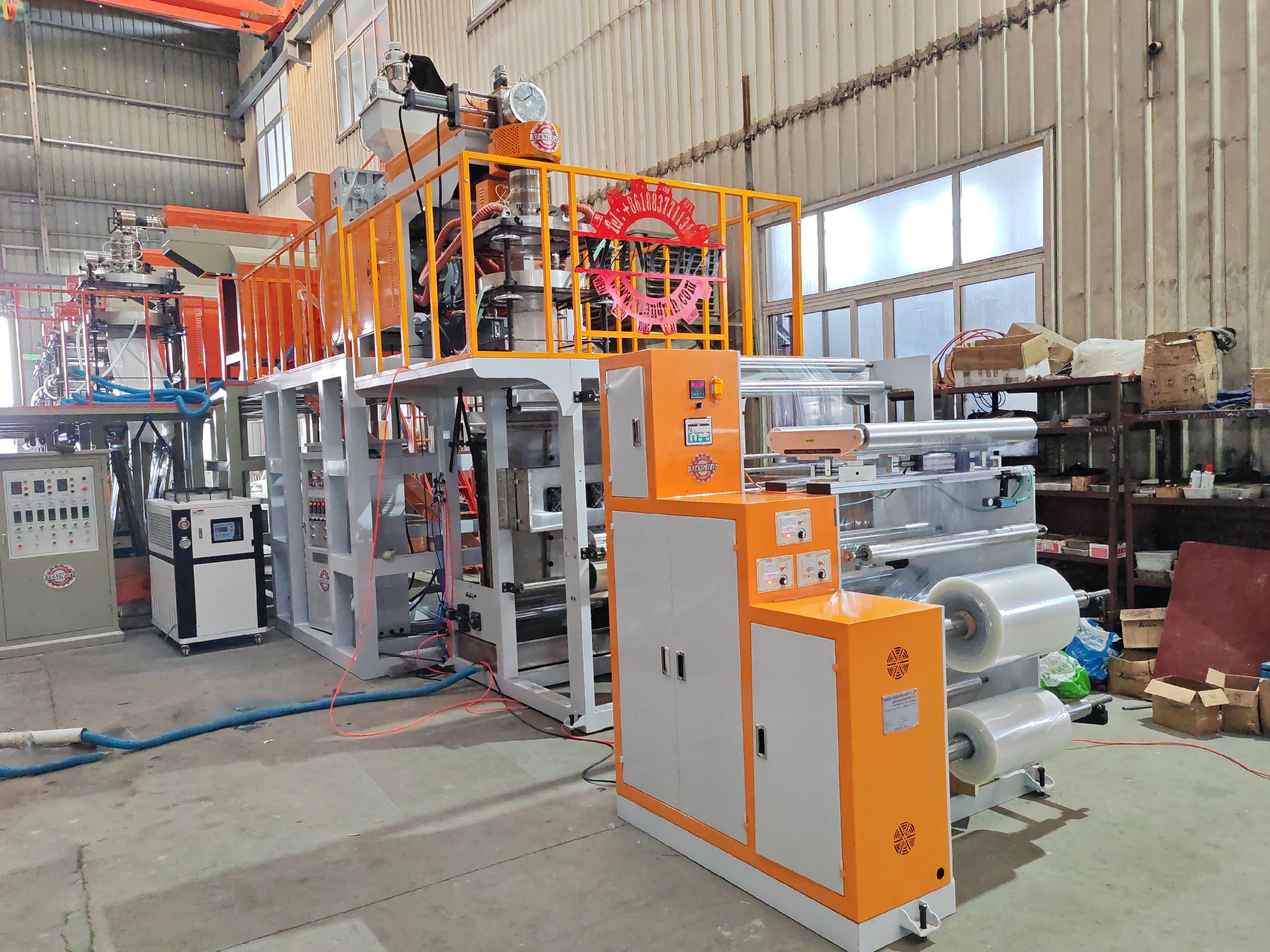

Water cooling plastic LDPE LLDPE PP bag blowing film machine

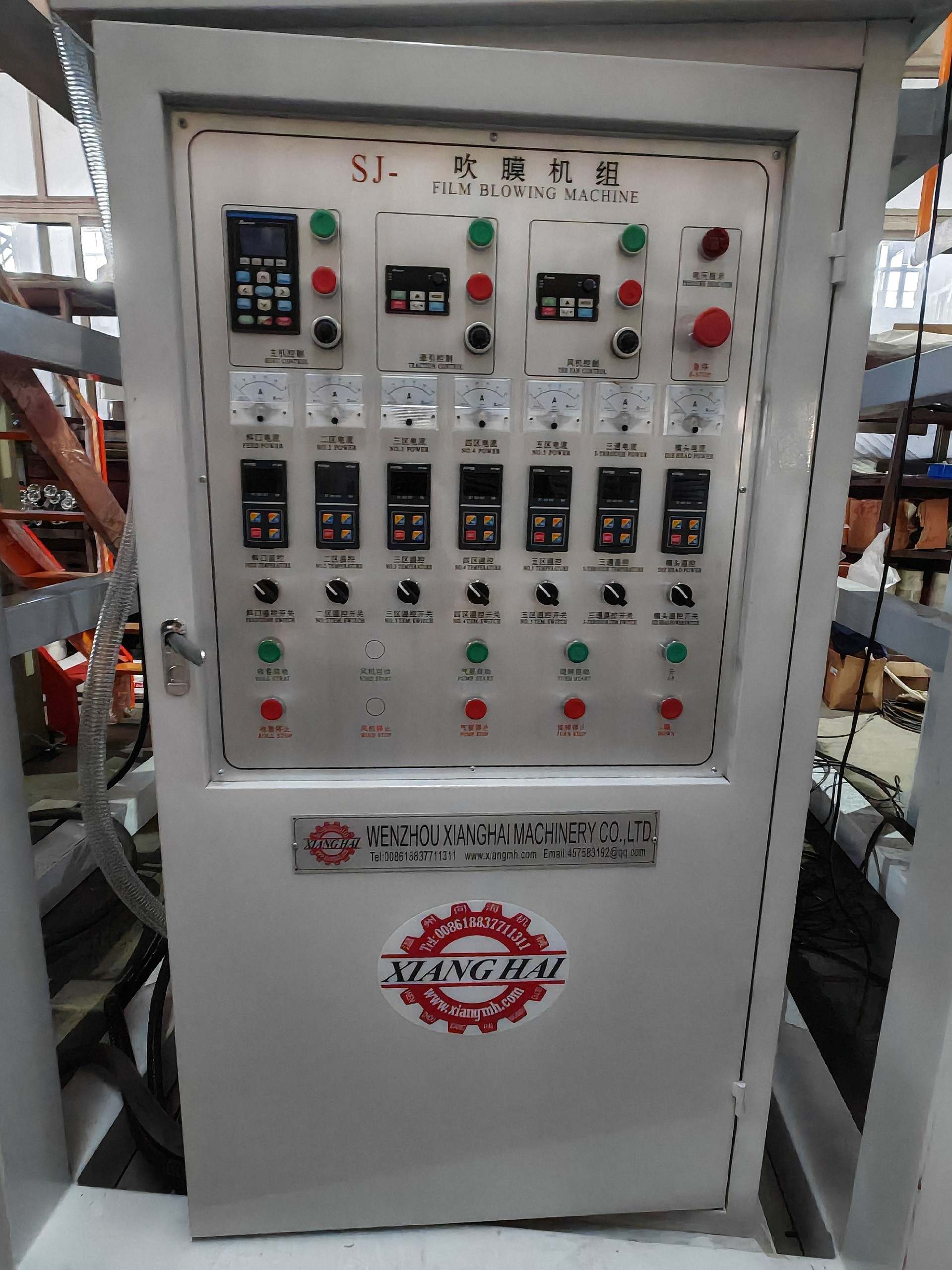

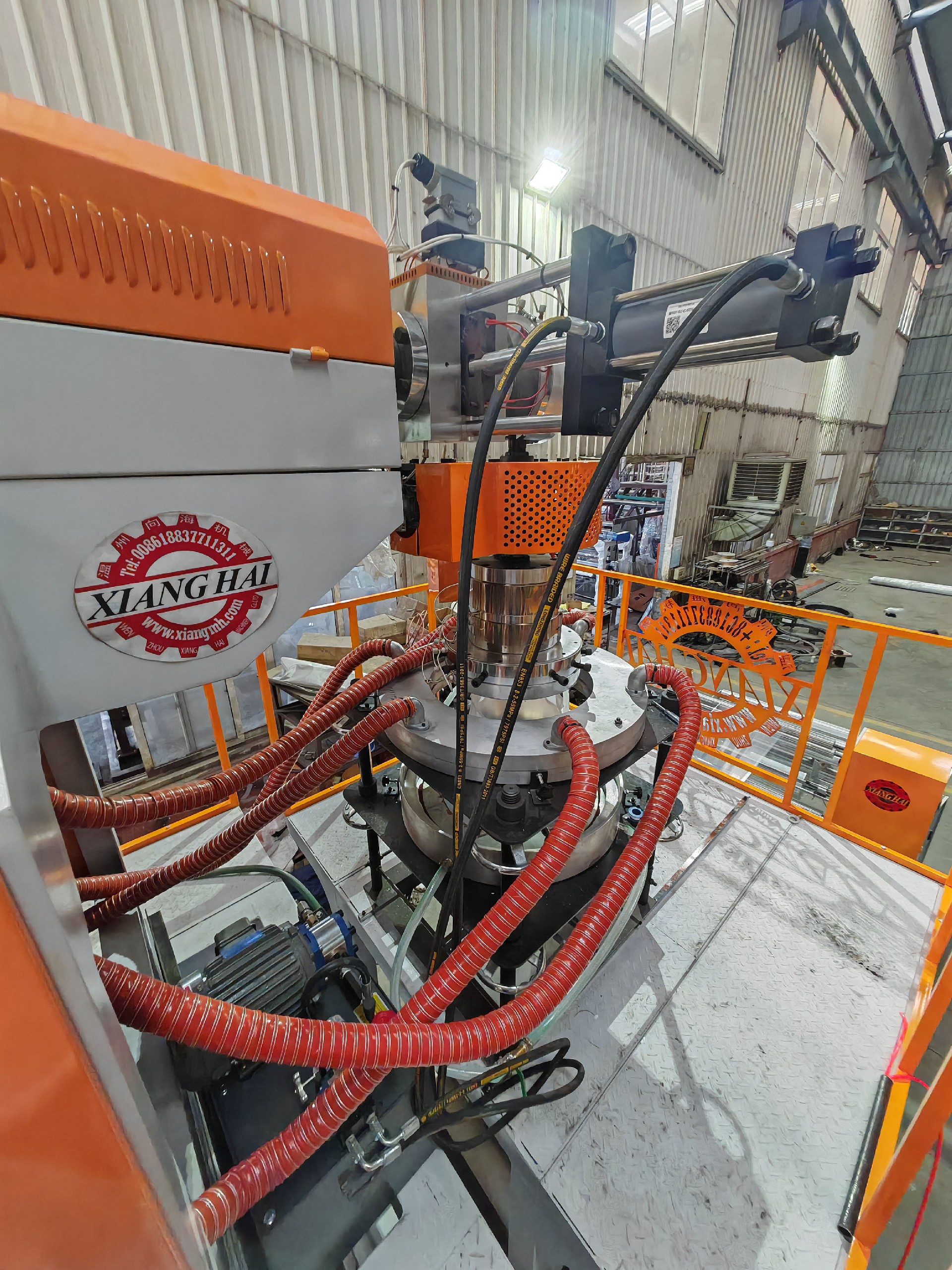

The PP Film Extruder Machine made of special steel, high precision die head,(optional reversing die head)automatic precise temperature controller, contact-free solid-state relay and other famous national brand electronic parts.

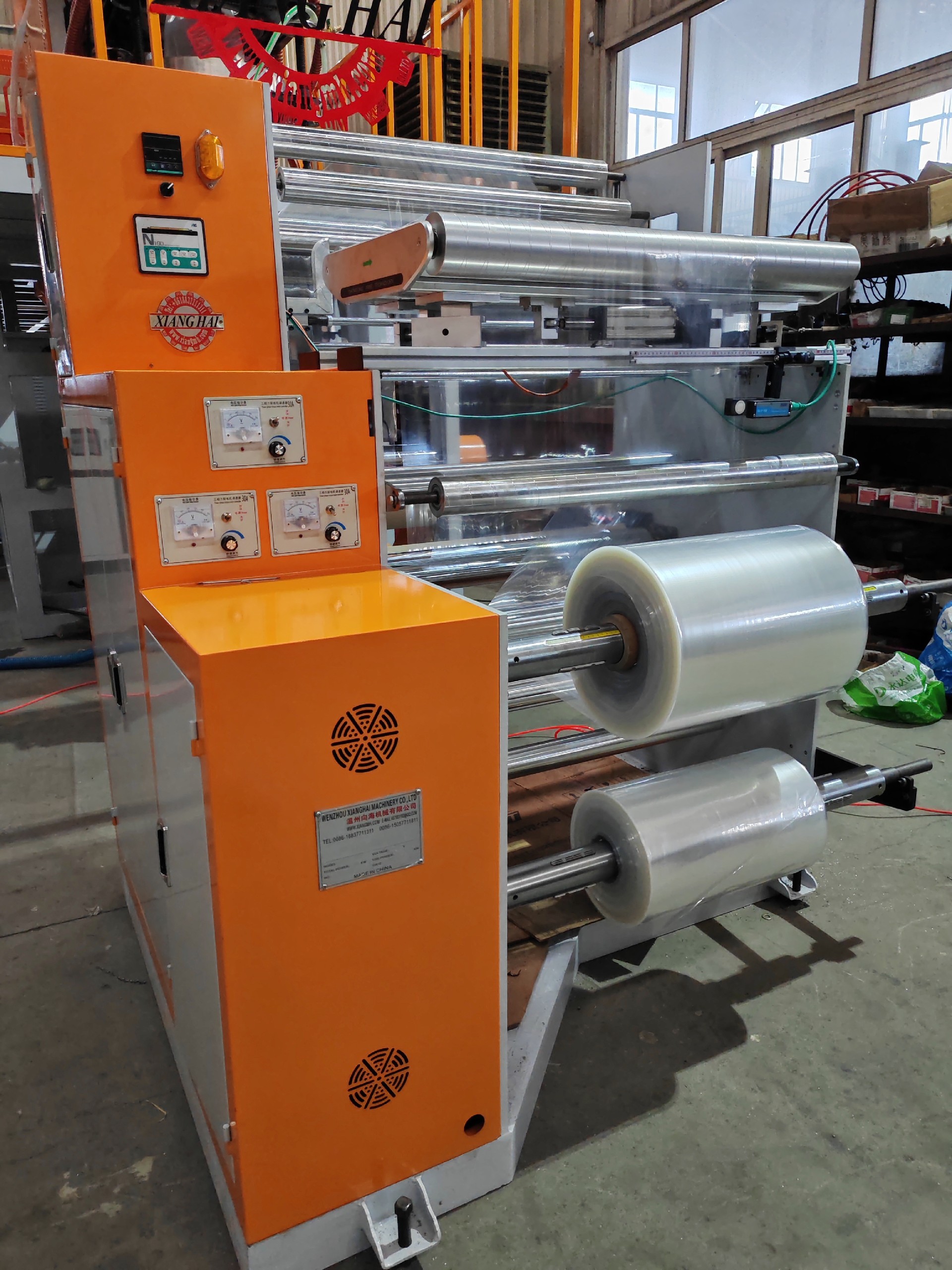

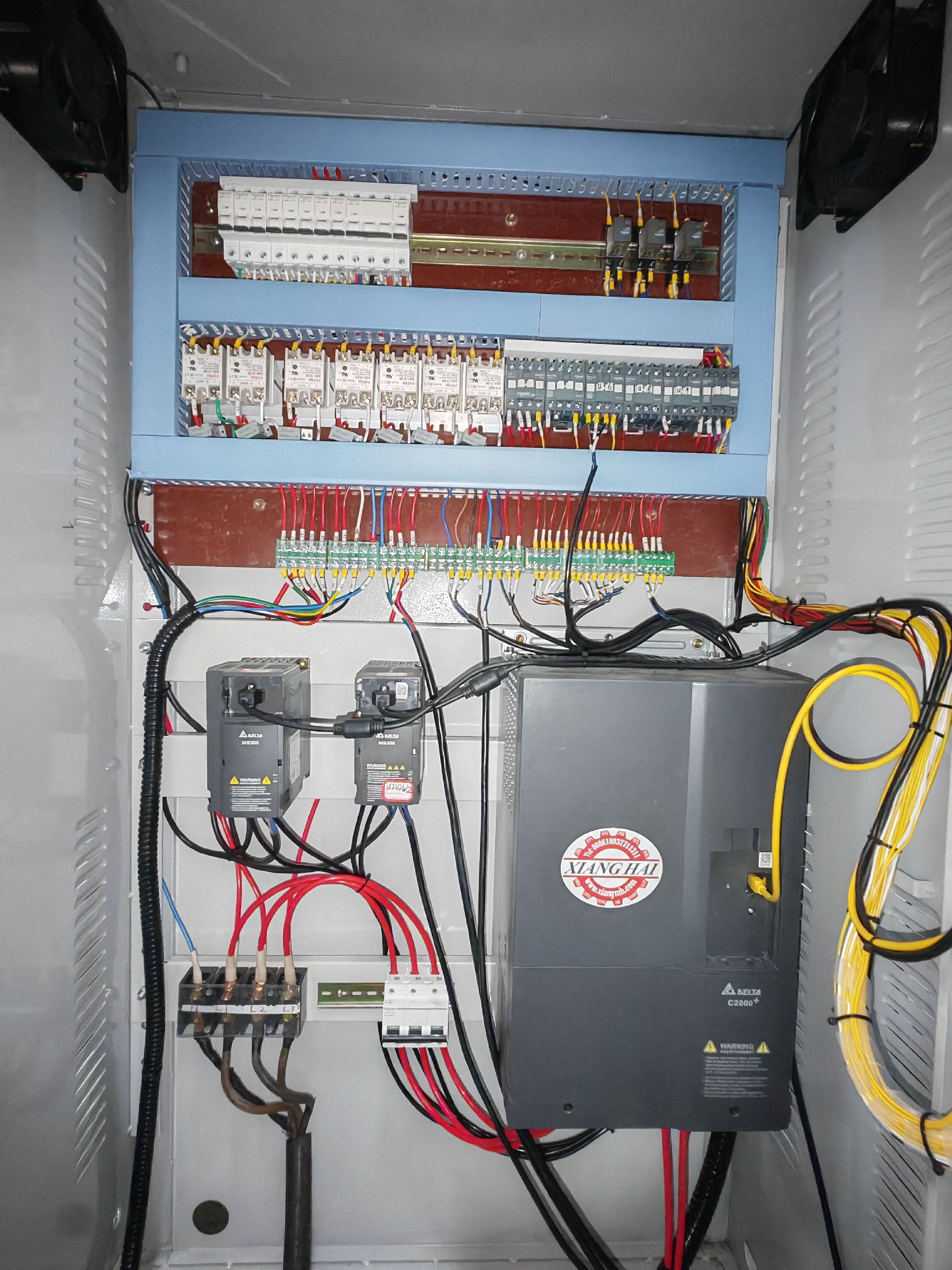

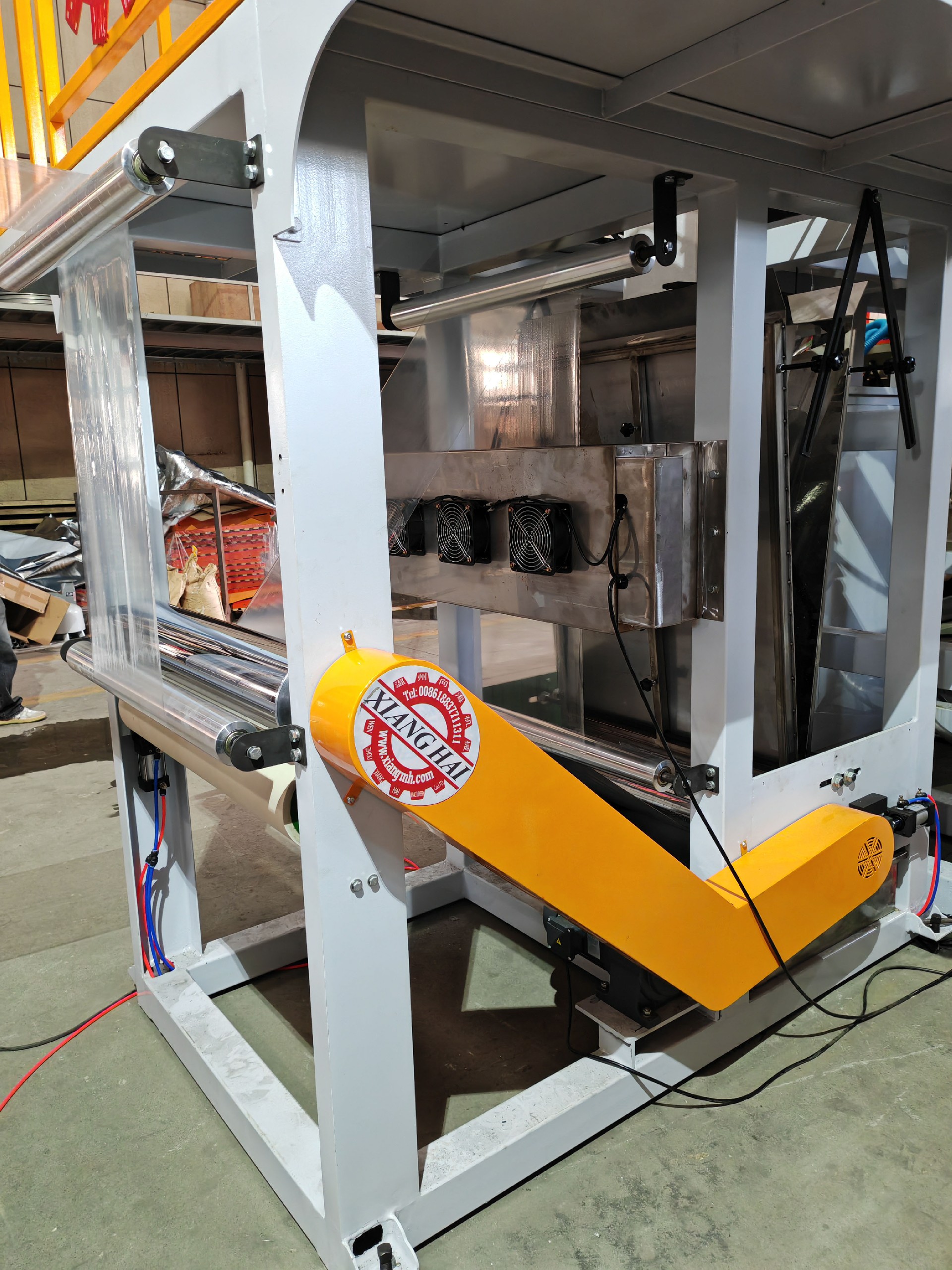

The machine applies speed adjustment of frequency conversing to stabilize the running and increase the productivity with low energy and good reliability With Torque motor, the tension of the winder works evenly so as to produce flat films with good appearance.The machine is applicable for the raw material of PP to constantly blow films with varees specifications.The machine barrel and screw rod of the machine are made of high quality alloy steel. Has the best hardness and corrosion resistance.The extruder can be up to 3 meters, blowing type according to the process requirement bottom blowing method. The coiling device adopts torque motor, which can keep the proper tension, and the winding is tidy.
The PP Film Extruder Machine made of special steel, high precision die head,(optional reversing die head)automatic precise temperature controller, contact-free solid-state relay and other famous national brand electronic parts.
The machine applies speed adjustment of frequency conversing to stabilize the running and increase the productivity with low energy and good reliability With Torque motor, the tension of the winder works evenly so as to produce flat films with good appearance.The machine is applicable for the raw material of PP to constantly blow films with varees specifications.The machine barrel and screw rod of the machine are made of high quality alloy steel. Has the best hardness and corrosion resistance.The extruder can be up to 3 meters, blowing type according to the process requirement bottom blowing method. The coiling device adopts torque motor, which can keep the proper tension, and the winding is tidy.
| Main Technical Parameters | ||
| Model | XH-PP55 | XH-PP70 |
| Suitable materia | PP/LDPE | |
| Max Film width | 600mm | 800mm |
| Film thicknes | 0.02-0.1 | |
| Max.output | 40kg/h | 70kg/h |
| Screw diameter | Φ55 | Φ70 |
| Screw L/D | 30:1 | |
| Screw material | Material :38 crmoala | |
| Main motor | 15kw | 30kw |
| power-use | 20kw/h | 30kw/h |
| Die size | Φ180 | Φ300 |
| Air ring | 620mm | 780mm |
| Air blower | 1.5kw | 1.5kw |
| Roller width | 600mm | 900mm |
| Traction speed | Max 60m/min | |
| Traction motor | 1.5kw | 1.5kw |
| Winder Type | Center winder | |
| Winding motor | 6N.M | 10N.M |
| Winding speed | Max 60m/min | |
 |  |
 |  |
 |  |
 |  |
