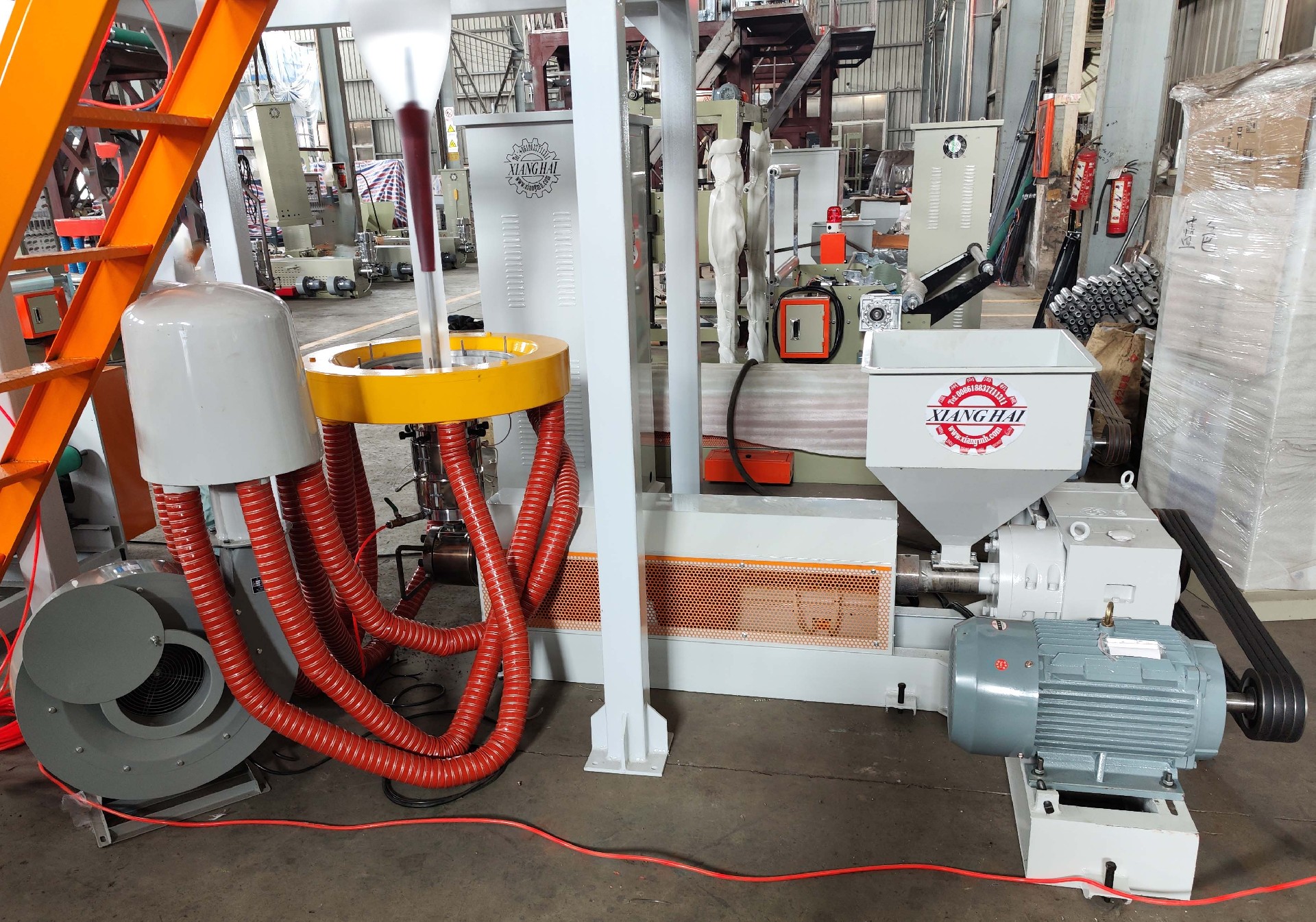

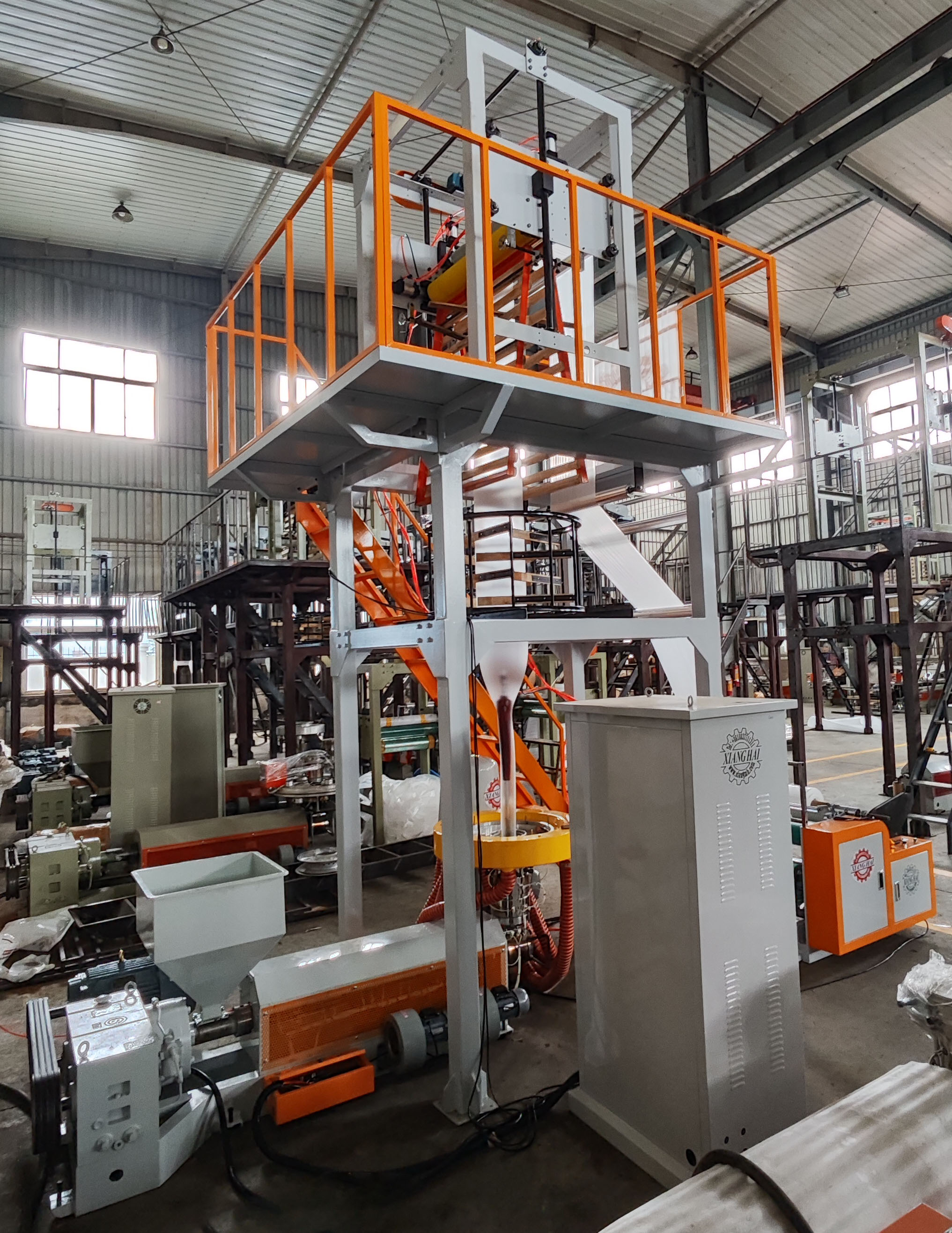

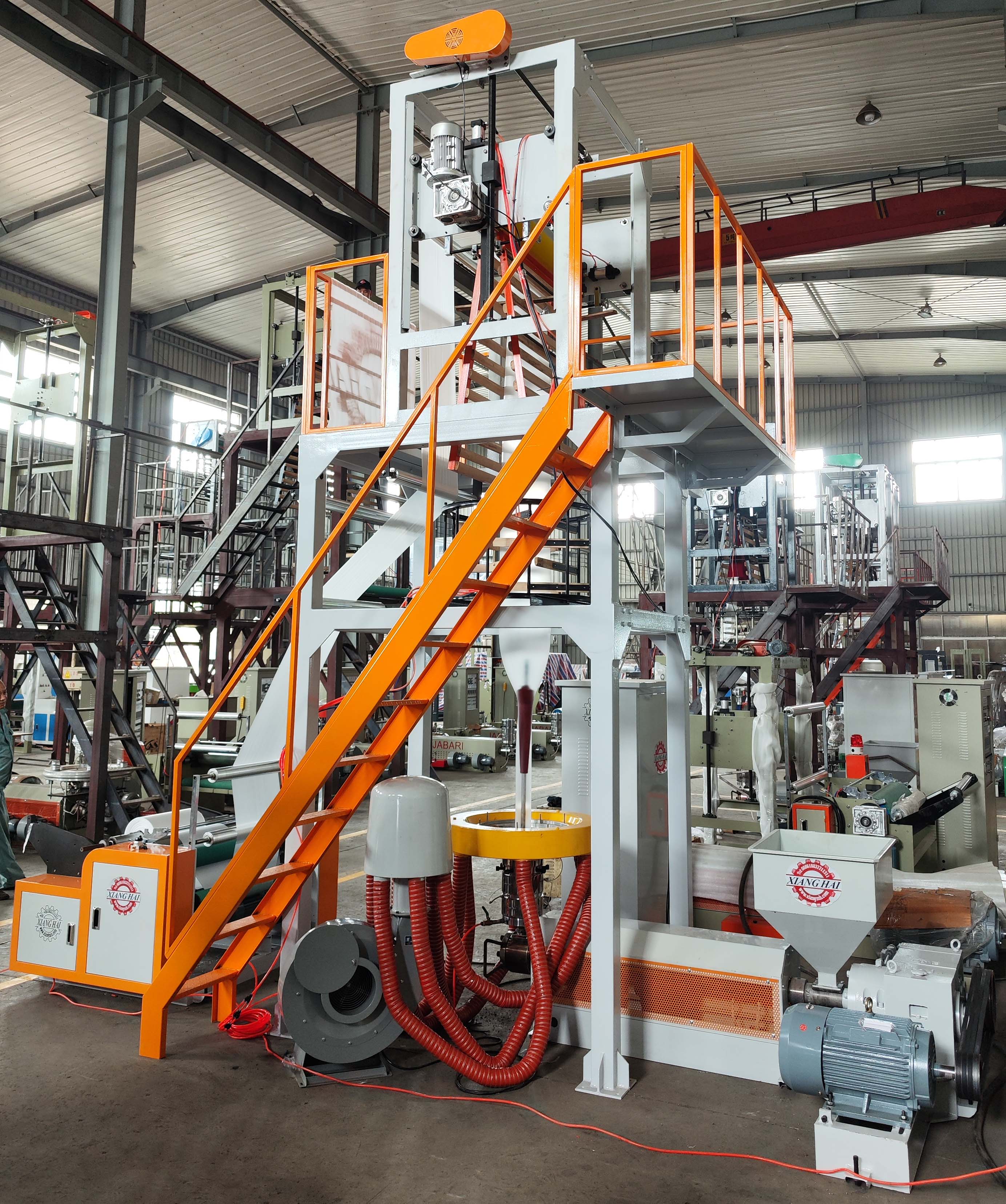

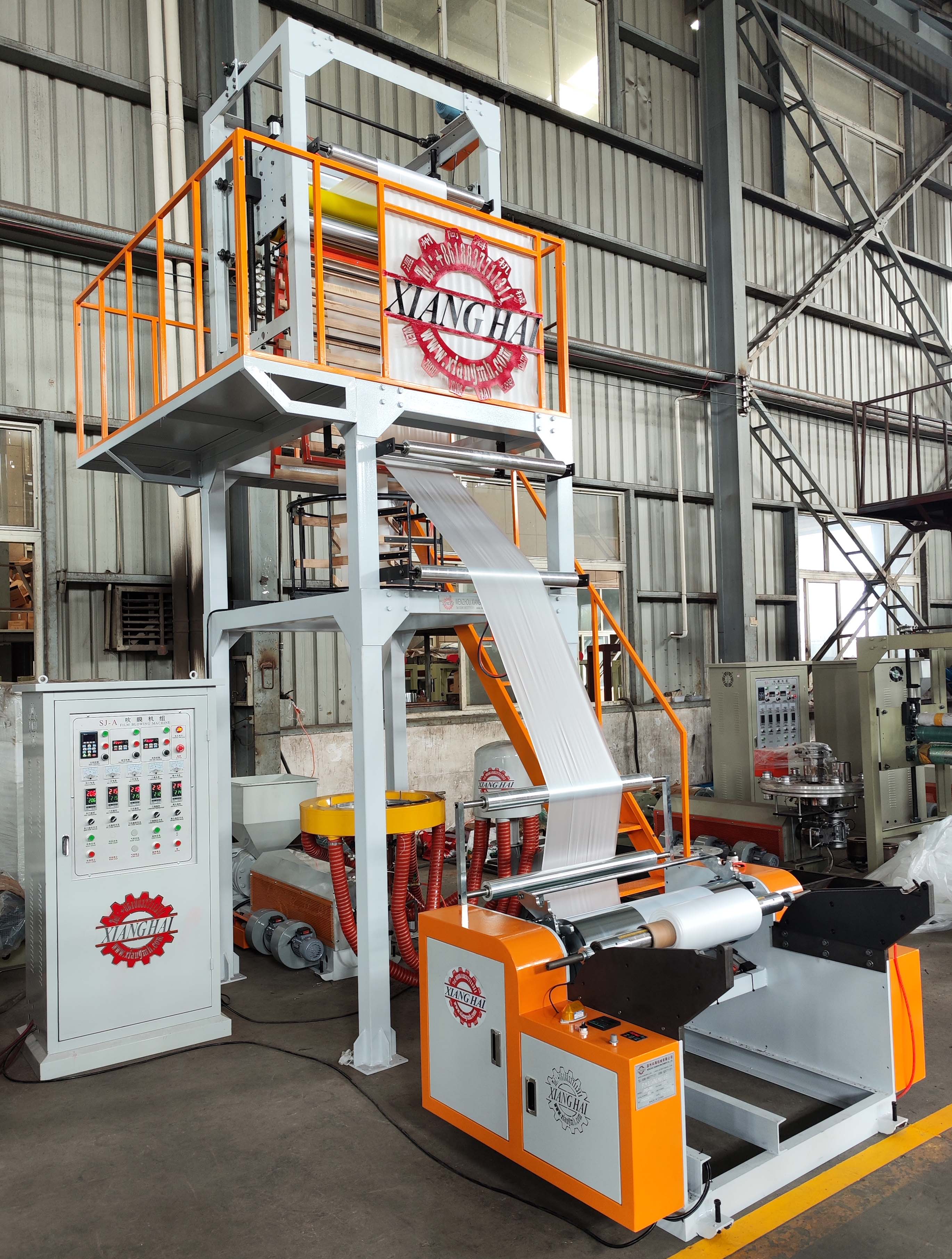

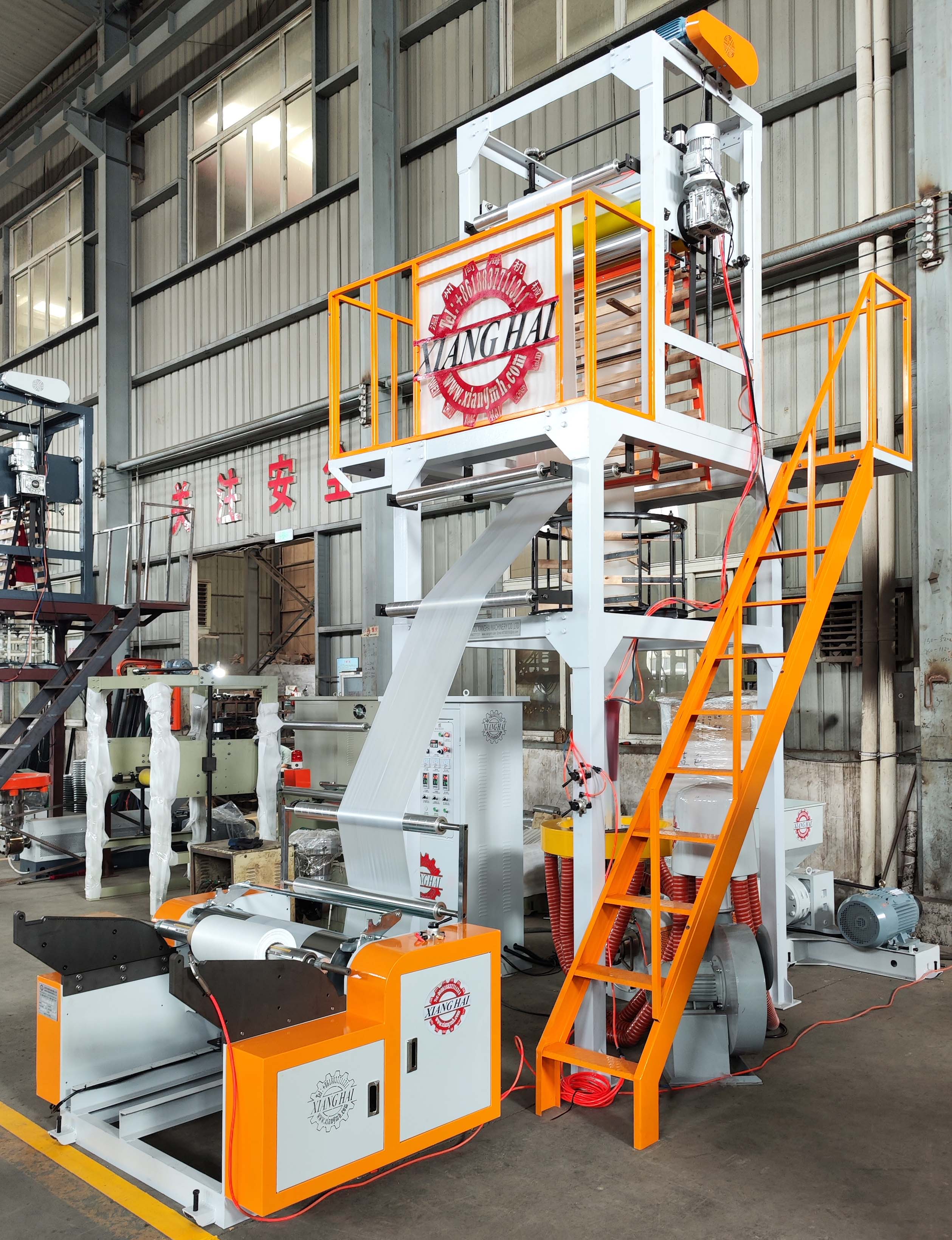

XH55/800 single layer HDPE shopping bag film extruder blowing machine
Main Features:

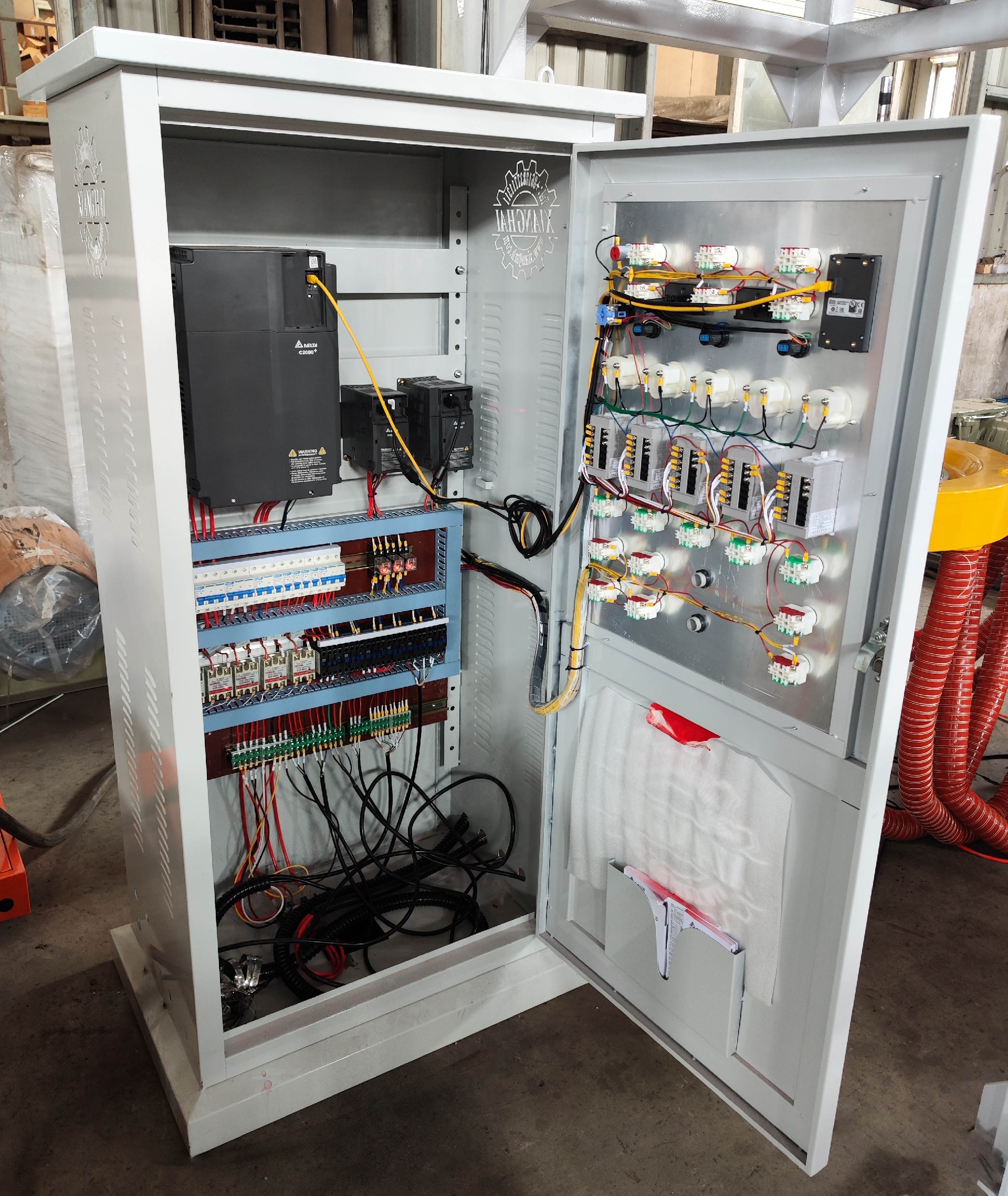

1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment

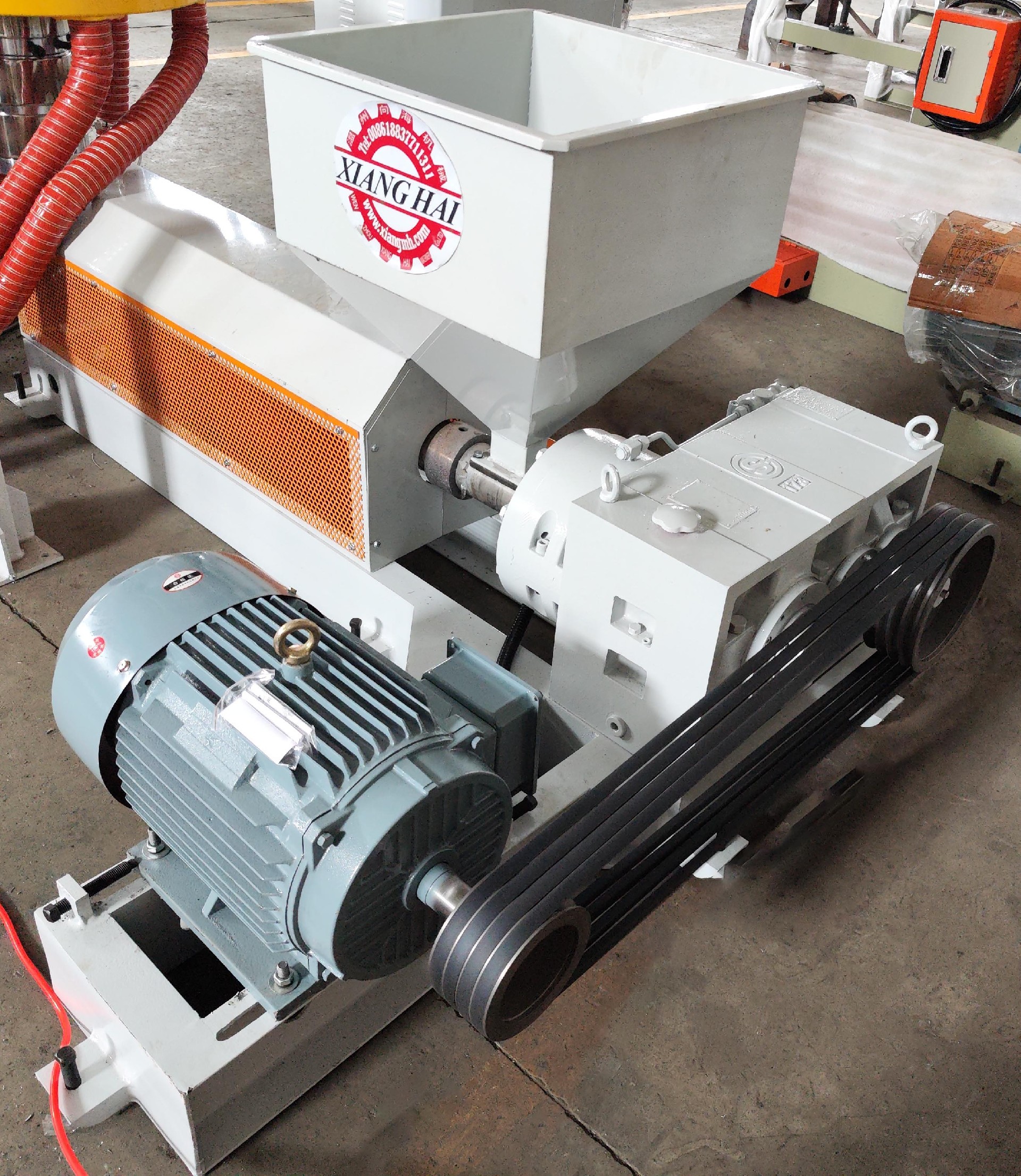

3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding

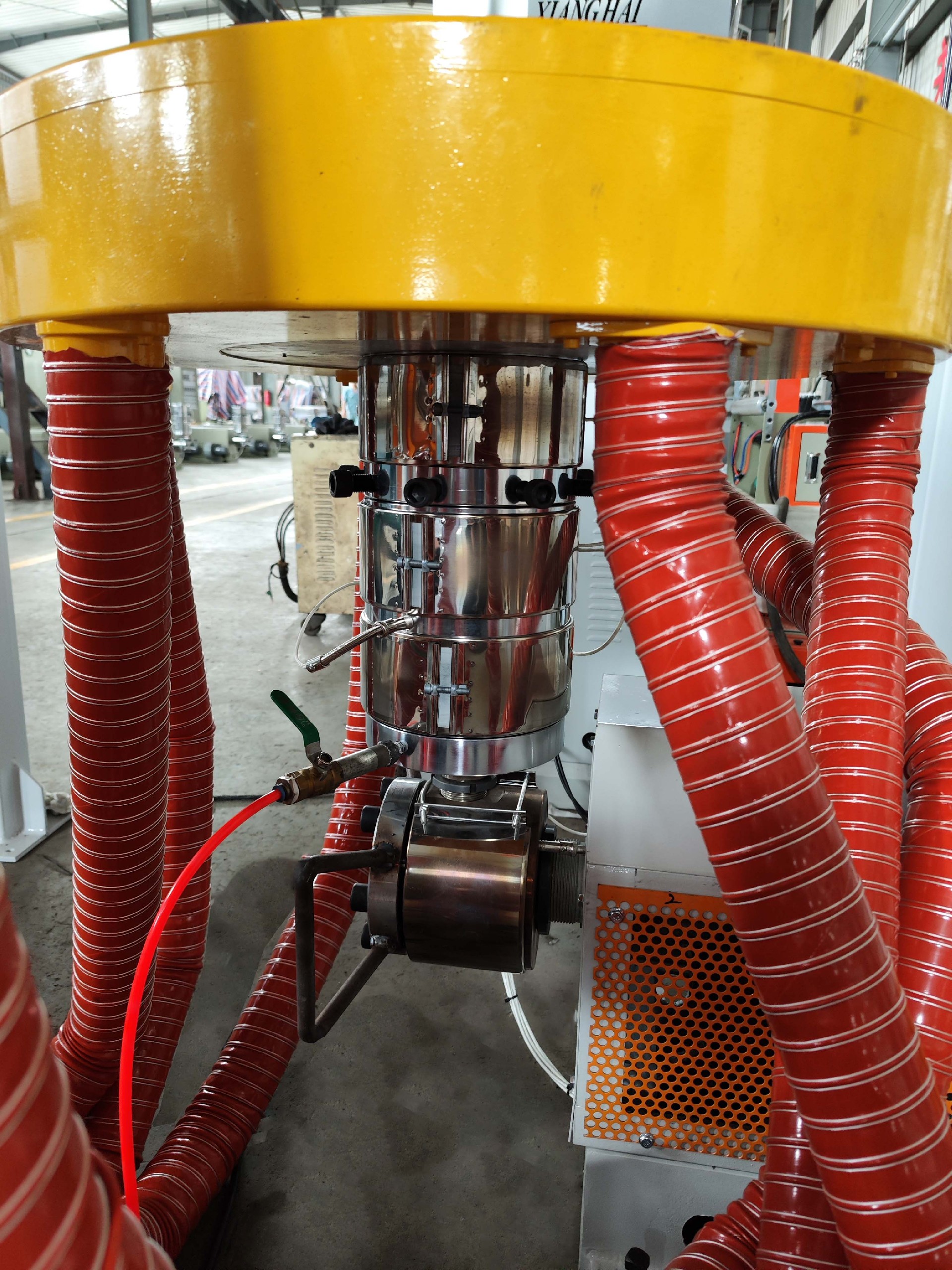

4. Die material: steel No.45 material, hard chrome- plating

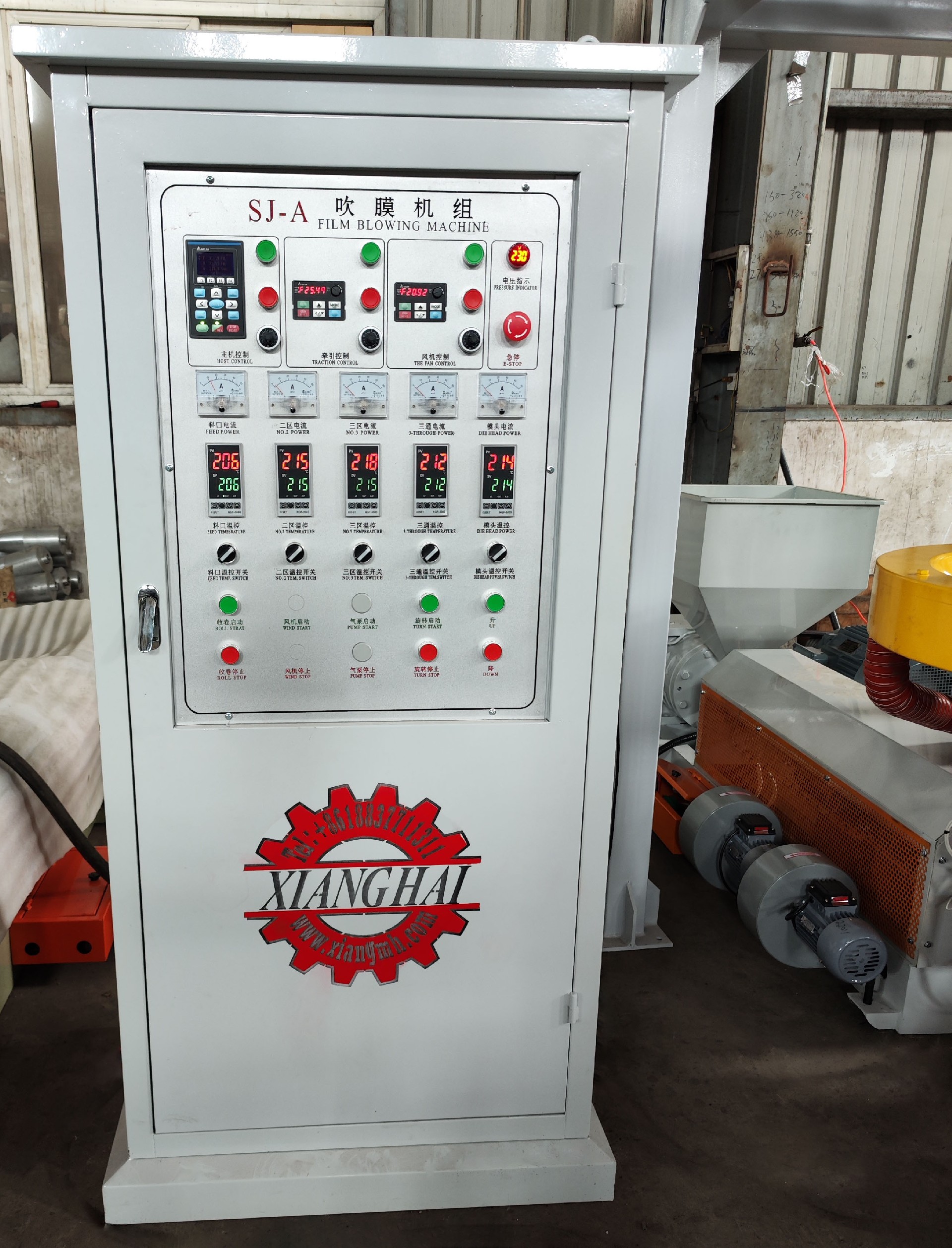

5. Double digital display temperature controller in the die head
Machine Description:
It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film;
film are widely used for packing liquid, industrial products, garments and textile;
for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.
1. frequency inverters main motor and traction motor control.
2. Material of screw and barrel: 38CrMoAIA after nitrogen treatment
3. Gear box: hard teeth gear surface, casting alloy piston, high precise grinding
4. Die material: steel No.45 material, hard chrome- plating
5. Double digital display temperature controller in the die head
Machine Description:
It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film;
film are widely used for packing liquid, industrial products, garments and textile;
for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.
| Main Technical Parameters | ||||
| Model | XHL50 | XHL55 | XHL60 | XHL65 |
| Suitable material | LDPE; LLDPE; HDPE; | |||
| Max Film width | 600mm | 800mm | 1000mm | 1200mm |
| Film thickness | 0.01-0.1mm | |||
| Max.output | 50kg/h | 60kg/h | 70kg/h | 90kg/h |
| Screw diameter | Φ50 | Φ55 | Φ60 | Φ65 |
| Screw L/D | 30:1 Option | |||
| Barrel Screw | Material :38 crmoala | |||
| Main motor | 15kw | 18.5kw | 22kw | 30kw |
| Screw control | 3 ZONE | 3 ZONE | 4 ZONE | 4 ZONE |
| power use | 17 kw/h | 20kw/h | 25kw/h | 35kw/h |
| Die size | Φ60/100 | Φ70/120 | Φ70/150 | Φ80-180 |
| Air ring | 600mm | 700mm | 800mm | 800mm |

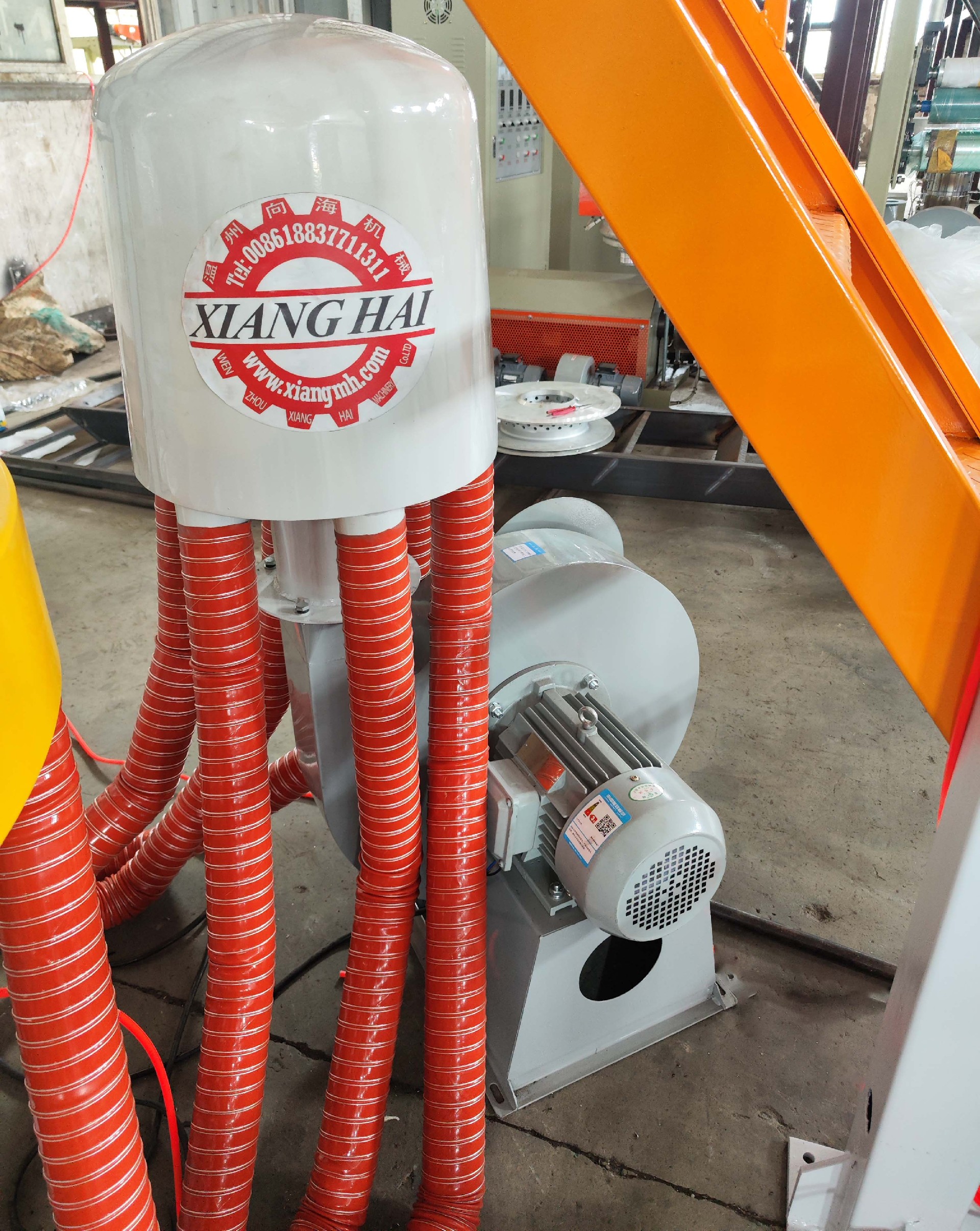

| Air blower | 1.5kw | 2.2kw | 3kw | 3.7kw |
| Roller width | 700mm | 900mm | 1100mm | 1300mm |
| Max Traction speed | Max 60m or 100m/min | |||
| Traction motor | 1.5kw | 1.5kw | 1.5kw | 2.2kw |

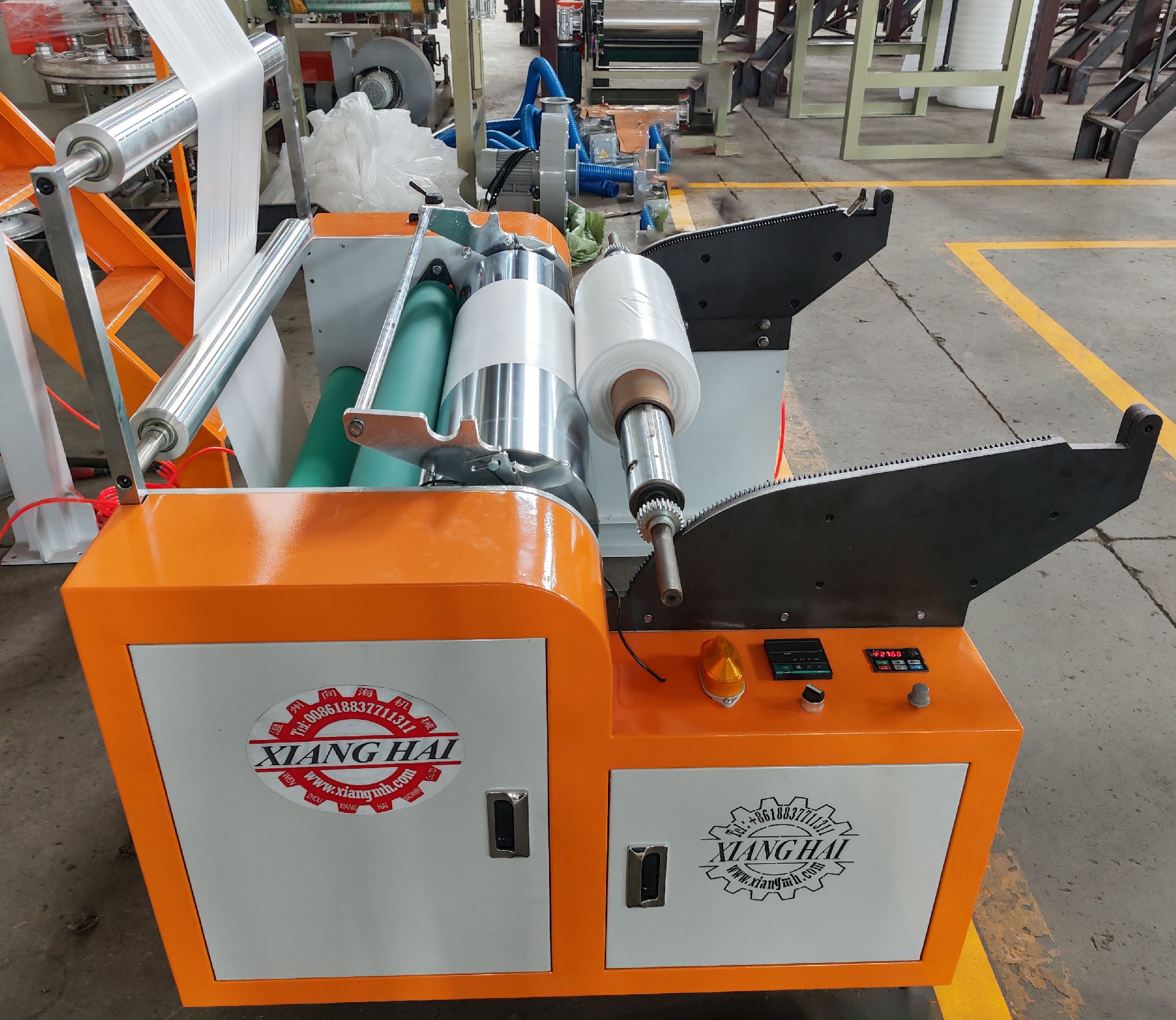

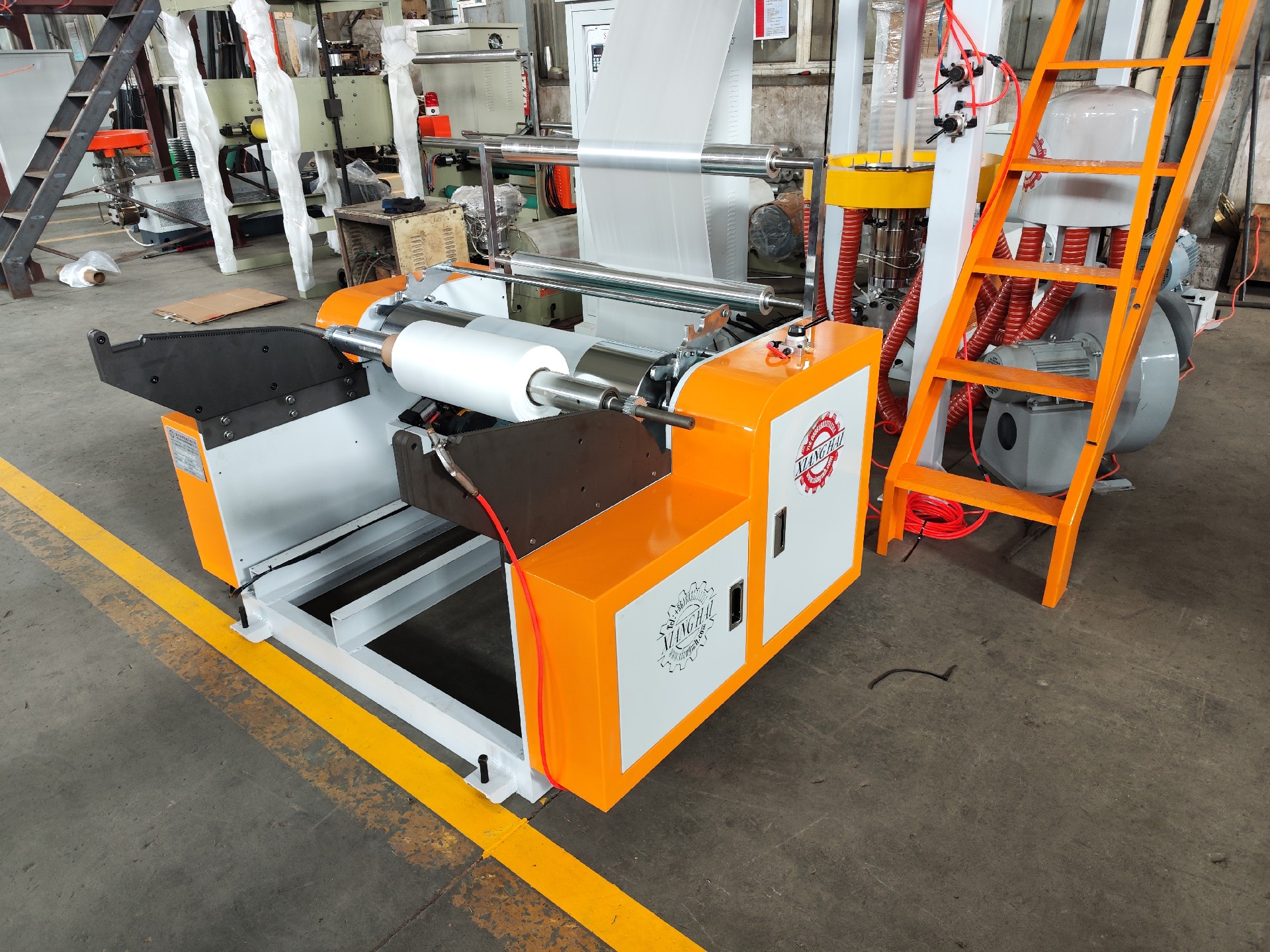

| Winding type | Surface friction type | |||
| Winding motor | 6 N.M | 6 N.M | 10 N.M | 10 N.M |
| Winding speed | Max 60m or 100m/min | |||
| Machine size | 5*1.7*4.3m | 5.3*1.75*4.9m | 6*2*5.5m | 6.2*2.5*6m |
| Machine weight | 2T | 2.5T | 3T | 4T |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
