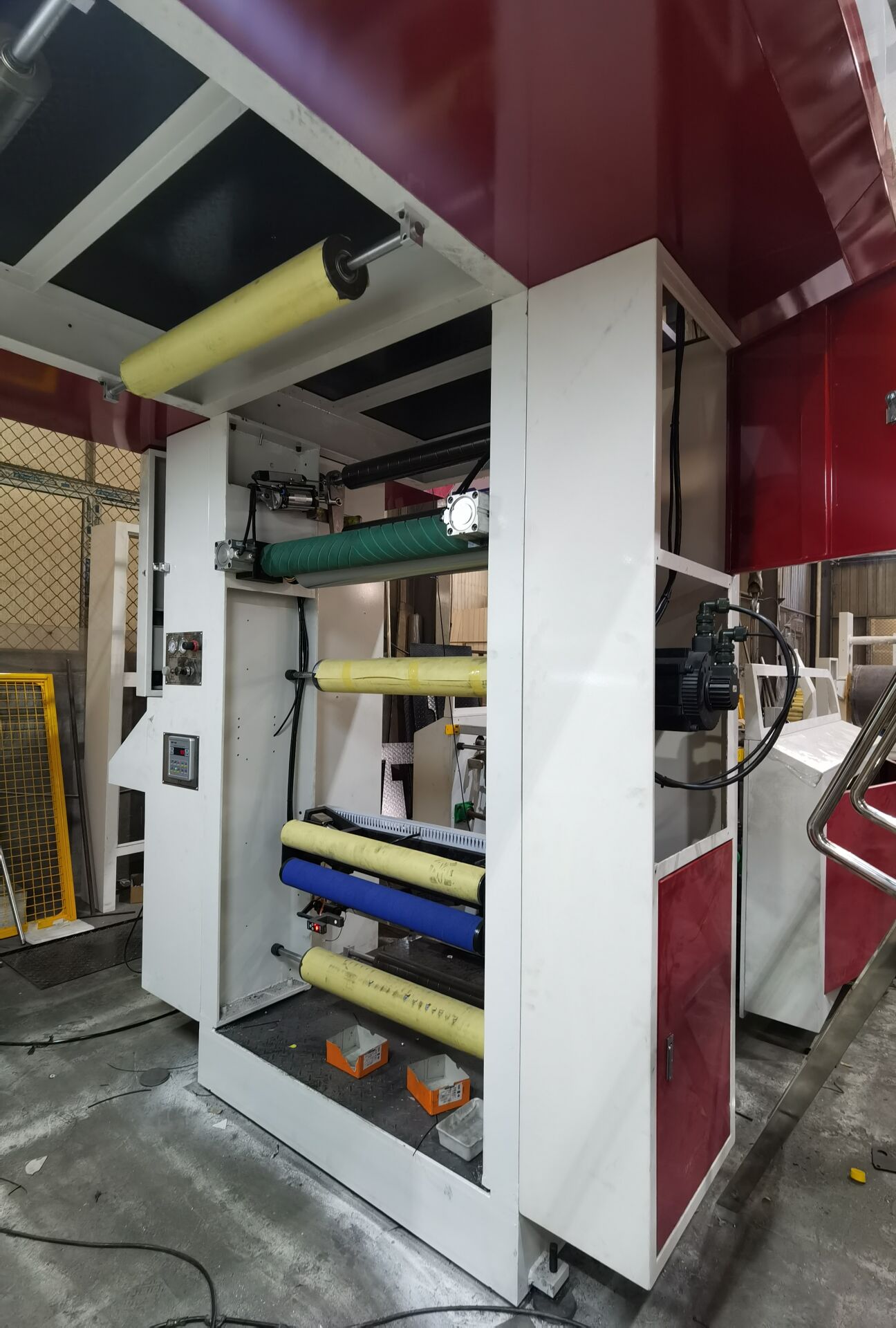

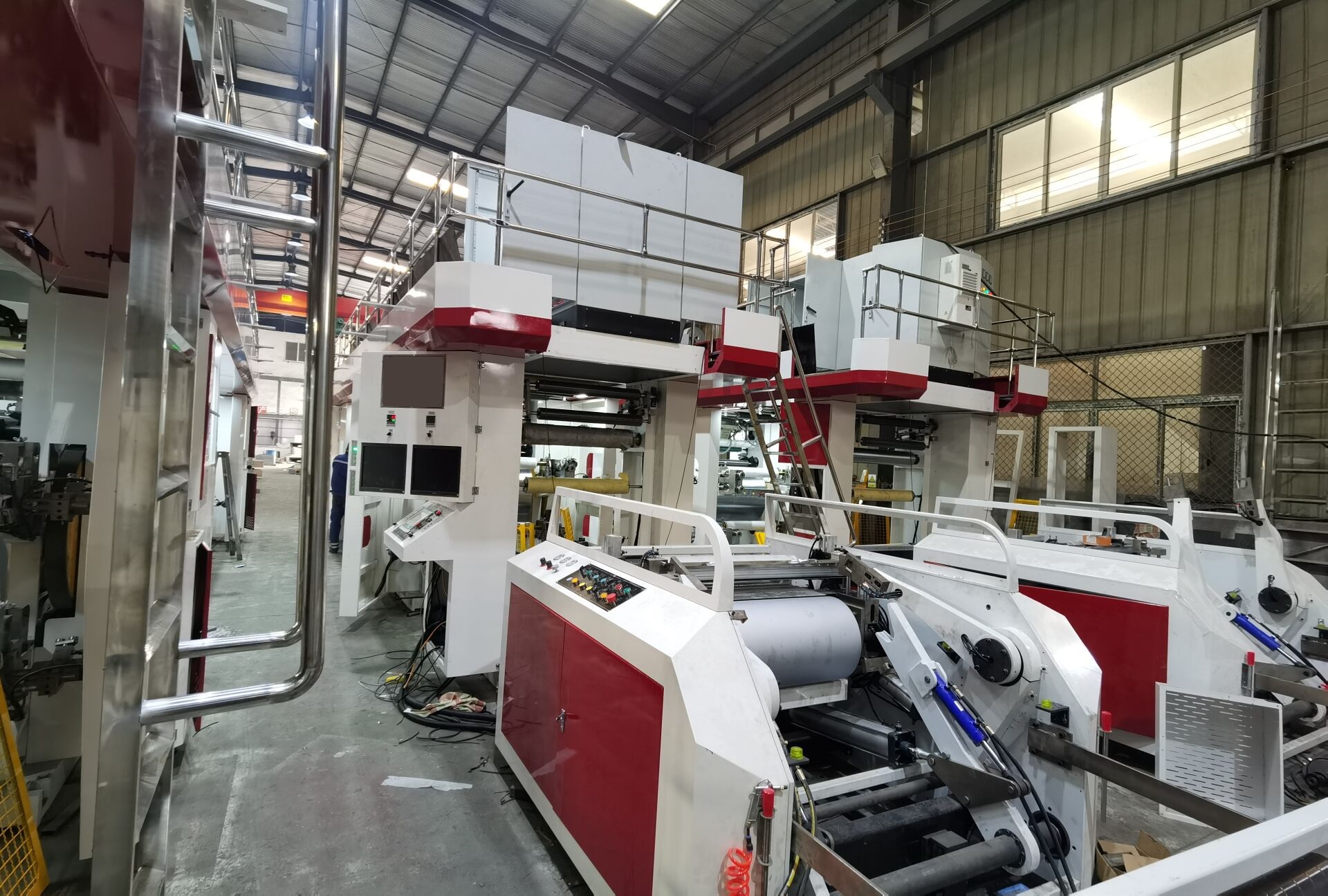

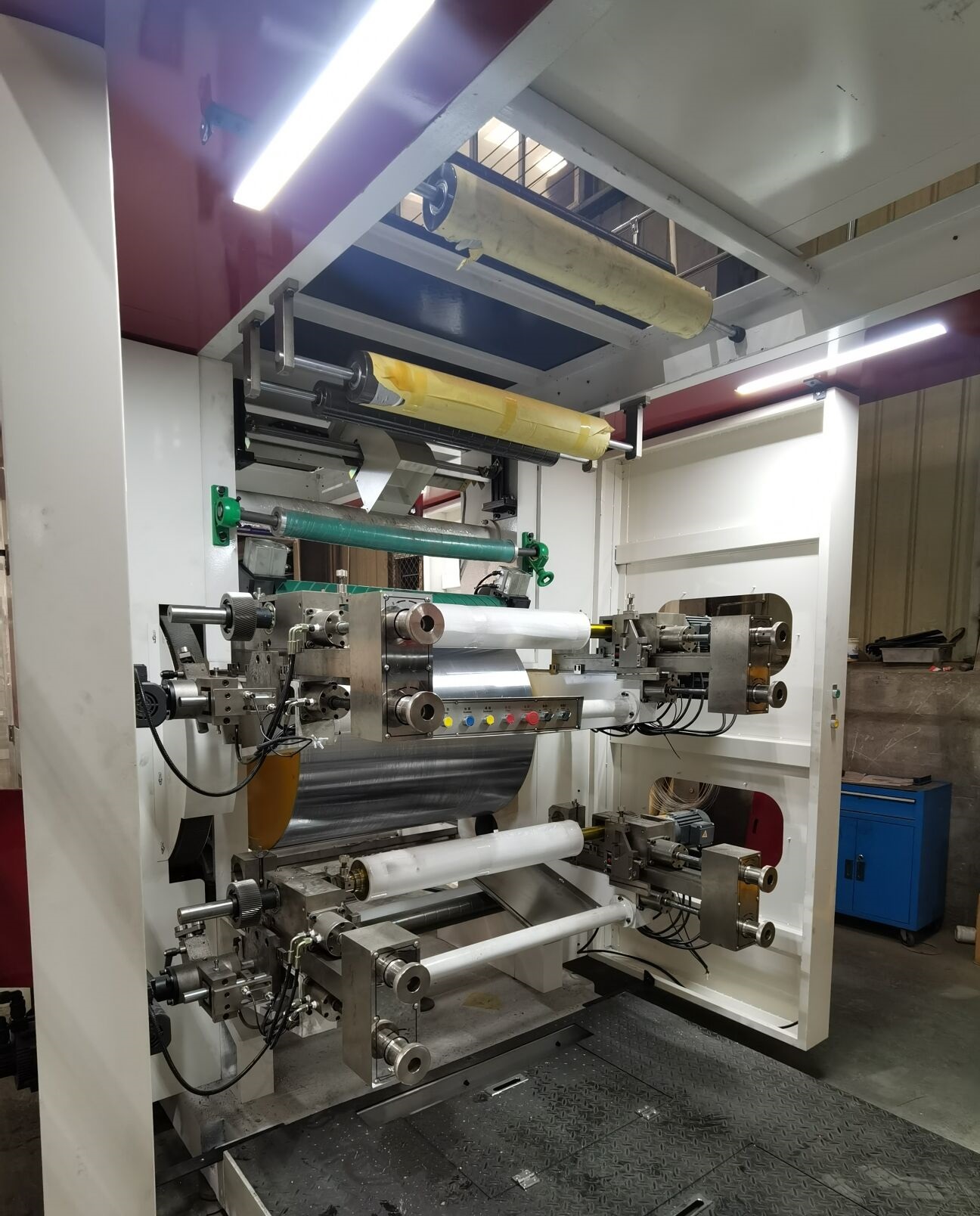

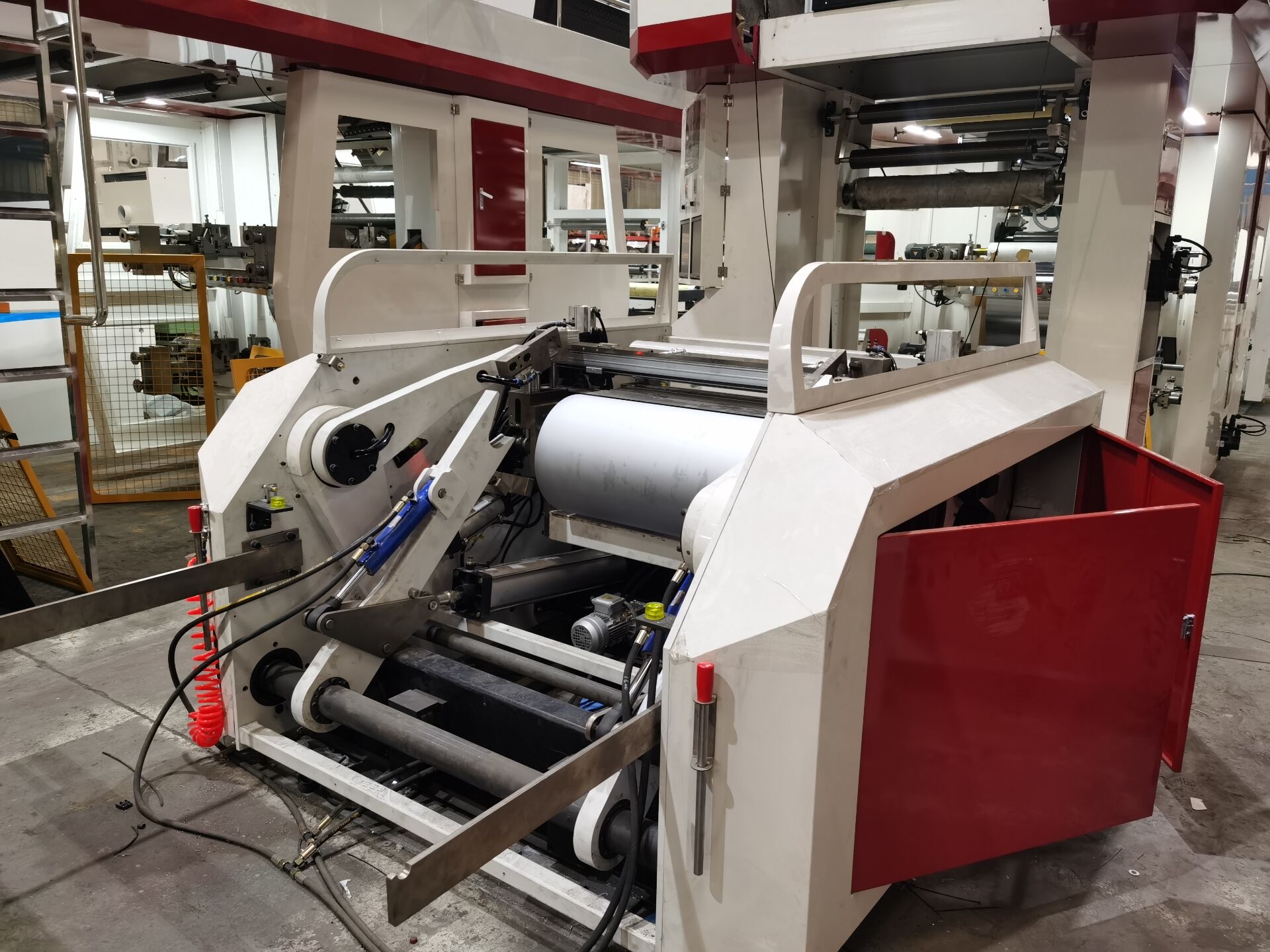

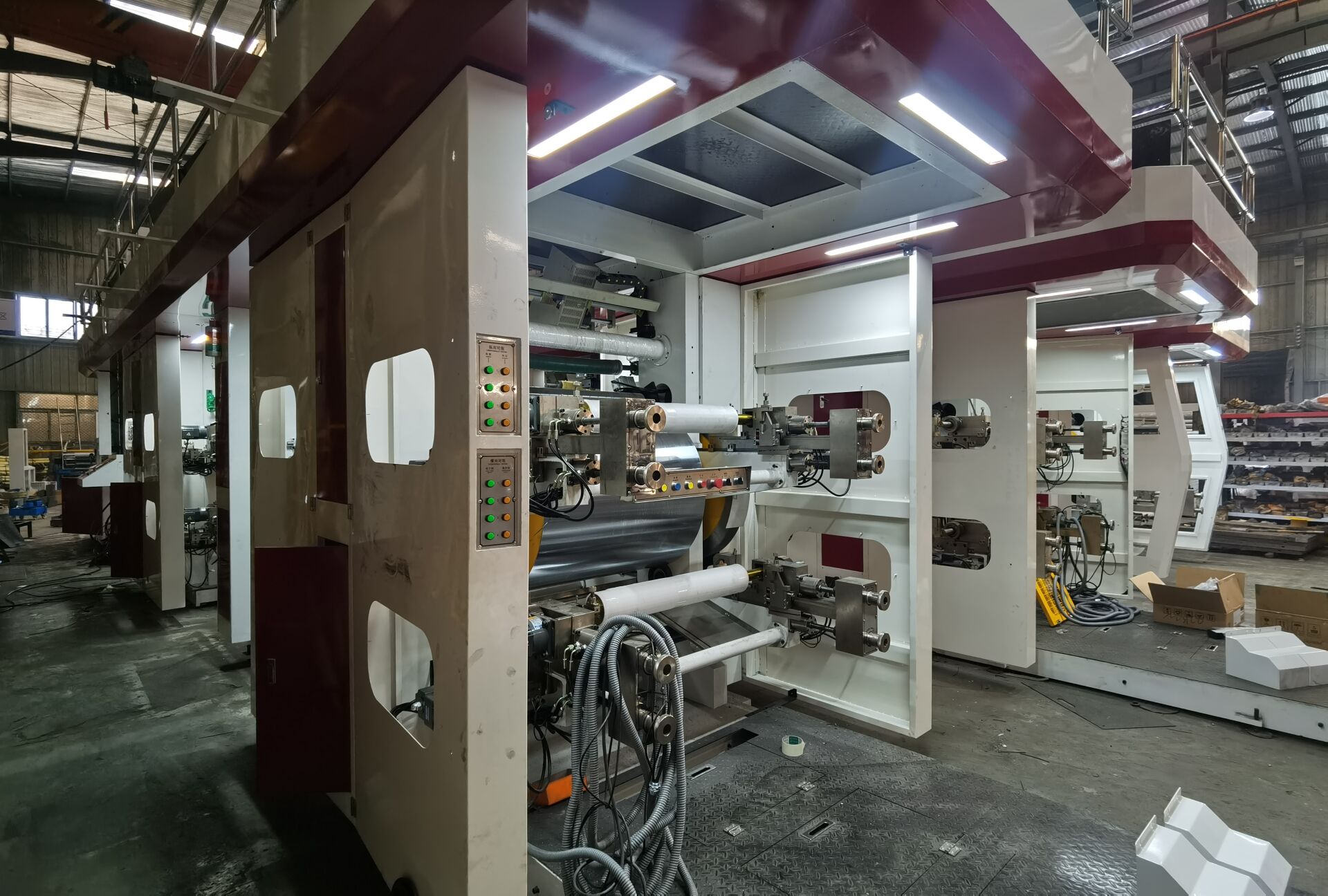

CI 4+4 Flexo Printing Machine
The main features
1.The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
2.After mounting the plate and registration, no longer need registration, improve yield.
3.Replacing 1 set of Plate Roller (unloaded old roller, installed new roller after tightening), only 20 Minute registration can be done by printing.
4.The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5.Maximum production machine speed up 200m/min, registration accuracy ±0.15mm.
6.The overlay accuracy don't change during lifting running speed up or down.
7.When machine stop, tension can be maintained, the substrate is not deviation shift.
8.The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
9.With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
1.The machine introduction & absorption of European technology / process manufacturing, supporting / full functional.
2.After mounting the plate and registration, no longer need registration, improve yield.
3.Replacing 1 set of Plate Roller (unloaded old roller, installed new roller after tightening), only 20 Minute registration can be done by printing.
4.The machine first mount plate, pre-trapping function, to be completed in advance prepress trapping in the shortest possible time.
5.Maximum production machine speed up 200m/min, registration accuracy ±0.15mm.
6.The overlay accuracy don't change during lifting running speed up or down.
7.When machine stop, tension can be maintained, the substrate is not deviation shift.
8.The whole production line from the reel to put the finished product to achieve non-stop continuous production, maximize product yield.
9.With precision structural, easy operation, easy maintenance, high degree of automation and so on, only one person can operate.
Quick Details
Type:Flexographic Printer
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:None
Condition:New
Plate Type:Flexo print, Letterpress
Place of Origin:Zhejiang, China
Brand Name:XIANGHAI
Usage:Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, PP Non-woven Printer
Automatic Grade:Automatic
Color & Page:Multicolor
Voltage:380v, 380V
Dimensions(L*W*H):9300*2000*3500mm
Weight:9000 KG, 9000kg
Print Dimension:550mm
Print Speed:120m/min
Warranty:1 Year
Key Selling Points:High-accuracy
Marketing Type:Ordinary Product
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Other
Printing material:PP woven bag
Application:Flexible Package Printing
Printing color:1-8 Colors
Doctor blade:Sealing scraper
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Technical Specifications
Type:Flexographic Printer
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Showroom Location:None
Condition:New
Plate Type:Flexo print, Letterpress
Place of Origin:Zhejiang, China
Brand Name:XIANGHAI
Usage:Paper Printer, Label Printer, Card Printer, Tube Printer, Bill Printer, PP Non-woven Printer
Automatic Grade:Automatic
Color & Page:Multicolor
Voltage:380v, 380V
Dimensions(L*W*H):9300*2000*3500mm
Weight:9000 KG, 9000kg
Print Dimension:550mm
Print Speed:120m/min
Warranty:1 Year
Key Selling Points:High-accuracy
Marketing Type:Ordinary Product
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:1 Year
Core Components:Bearing, Motor, Pump, Gear, PLC, Gearbox, Pressure vessel, Other
Printing material:PP woven bag
Application:Flexible Package Printing
Printing color:1-8 Colors
Doctor blade:Sealing scraper
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Technical Specifications
| Model | XHCI8-600T | XHCI8-800T |
| Color | 4+4 color | |
| Max. Web width | 650mm | 850mm |
| Max. printing width | 550mm | 750mm |
| Printing width | PP Woven | |
| Printing length (repeat) | 300-1200mm | |
| Max. Mechanical speed | 180m/min | |
| Max. Printing speed | 120m/min | |
| Max. Unwind/ rewind Dia | Φ1200mm | |
| Press power | Mechanic control | |
| Printing way | 4+4, 4+3, 4+2, 4+1, 4+0 Full width. Both side | |
| Printing plate lifting system | Automatic Hydraulic cylinder control printing roll up and down | |
| Drying model | Electric heating | |
| Printing plate thickness | Photopolymer plate 1.7mm or 2.28mm ( As customer requirement) | |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
