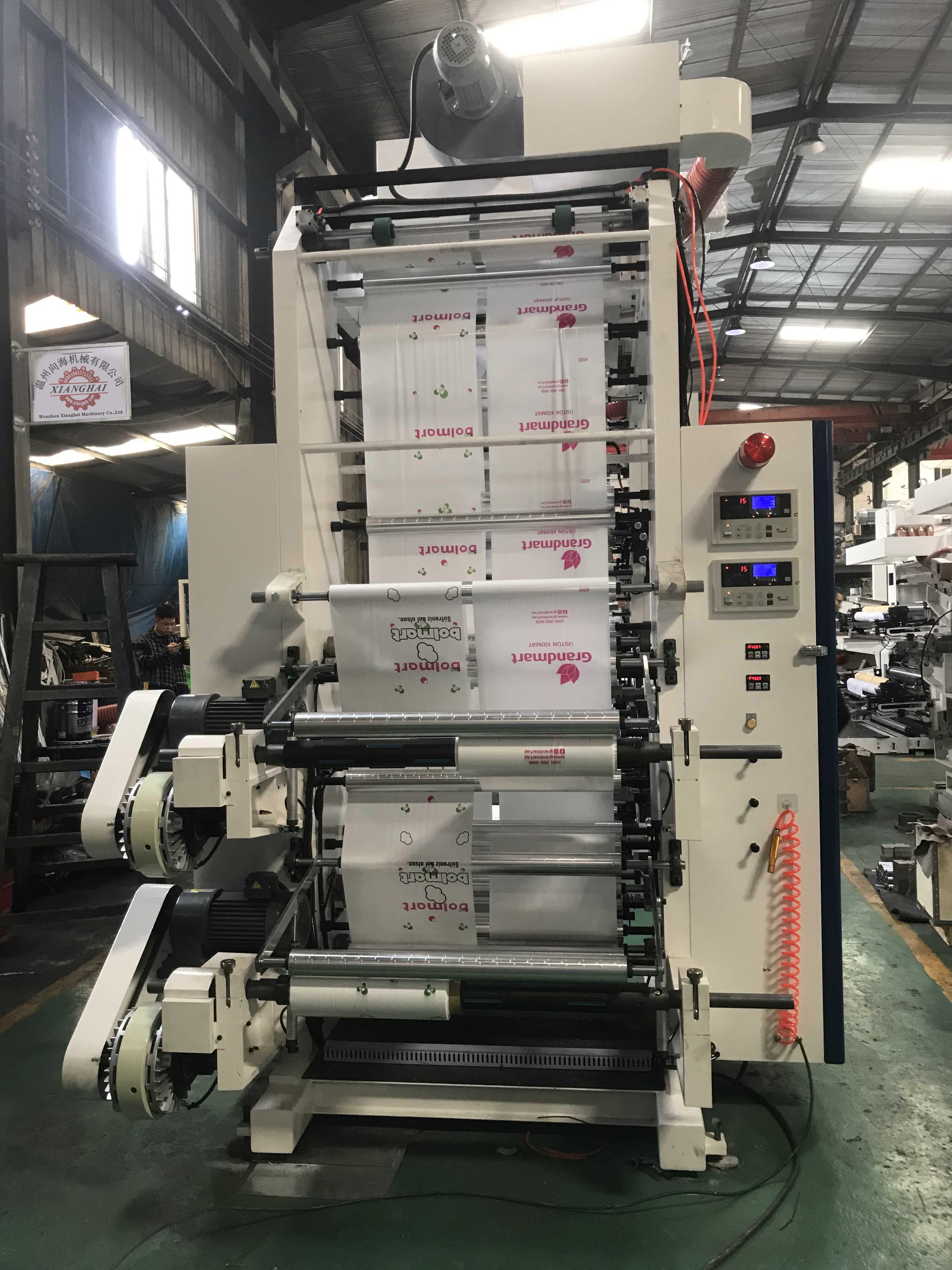

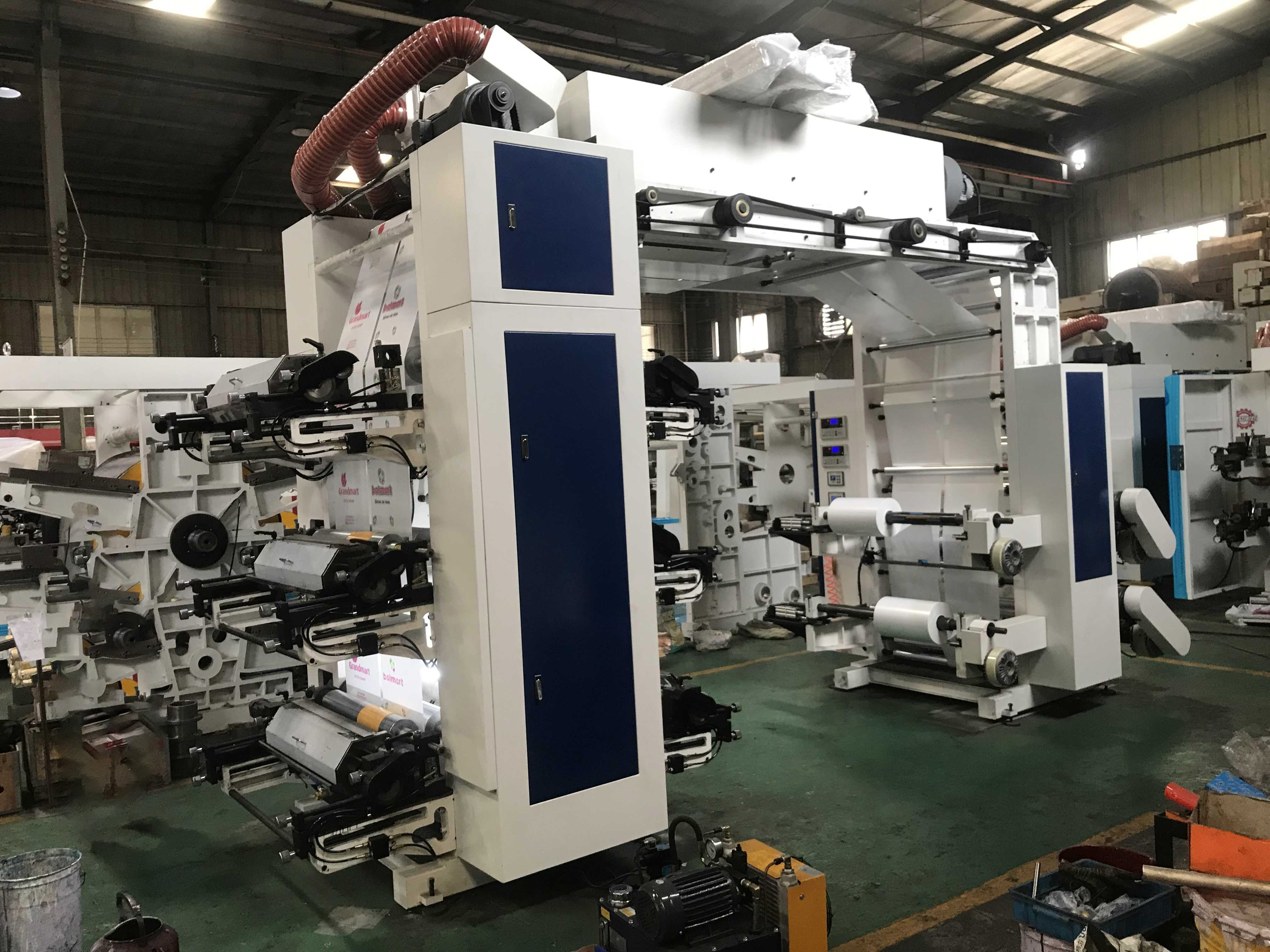

high speed PE film paper nonwoven 6 colour flexo printing machine
Main Features:
Single Unwind system --Auto tension control --Auto EPC Web guide--Printing Unit--Dry system after printing--Auto tension control--Single Rewind system
Machine Description:
Introduce sentitizationj resin as flexible printing plate,suitable fir printing such packing materials as polyethylene,polypropylene bag, cellophane and roll paper, etc.It is a kind of iddal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Single Unwind system --Auto tension control --Auto EPC Web guide--Printing Unit--Dry system after printing--Auto tension control--Single Rewind system
Machine Description:
Introduce sentitizationj resin as flexible printing plate,suitable fir printing such packing materials as polyethylene,polypropylene bag, cellophane and roll paper, etc.It is a kind of iddal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Condition：New
Type：Flexo printing
Place of Origin：Zhejiang, China
Automatic Grade：Automatic
Print color number：6 colors
Voltage：380v
Dimensions(L*W*H)：6.1m*2.2m*3.5m
Weight：6800 kg
Print Dimension：800mm
Print Speed：100m/min
Warranty：1 Year
core selling point：High Productivity
Machinery Test Report：Provided
Video outgoing-inspection：Provided
Warranty of core components：1 Year
structure mode：Stack
Printing length：180-900mm
Plate thickness：1.14-2.38mm
Marketing Type：Ordinary Product
Gross Power：40kw
Type：Flexo printing
Place of Origin：Zhejiang, China
Automatic Grade：Automatic
Print color number：6 colors
Voltage：380v
Dimensions(L*W*H)：6.1m*2.2m*3.5m
Weight：6800 kg
Print Dimension：800mm
Print Speed：100m/min
Warranty：1 Year
core selling point：High Productivity
Machinery Test Report：Provided
Video outgoing-inspection：Provided
Warranty of core components：1 Year
structure mode：Stack
Printing length：180-900mm
Plate thickness：1.14-2.38mm
Marketing Type：Ordinary Product
Gross Power：40kw
| Main Technical Parameters | ||||
| Model | XH-PF600 | XH-PF800 | XH-PF1000 | XH-PF1200 |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
| Max. Mechanical Speed | 110m/min | |||
| Printing color | 2color -8 color | |||
| Max. Printing Speed | 100m/min | |||
| Max. Unwind/Rewind | 800mm/1200mm/1500mm | |||
| Drive Type | Belt and Gear type | |||
| Printing Length (repeat) | 400mm-900mm-1200mm | |||
| Ink | Water base ink or solvent ink | |||
| Range of Substrates | Film, Paper, Nonwoven, Aluminum Foil | |||
| Plate Thickness | Photopolymer plate 2.84mm or 1.14mm (or to be specified) | |||
 |  |
 |  |
