four side sealing bag making
Four side sealing bag making machine adopts PLC microcomputer control, double servo and double frequency control, photoelectric monitoring and correction, pneumatic transmission and other technologies, integrated with the machine photoelectric, automatic unwinding, cutting, tension adjustment control system, five rows of bridge type longitudinal sealing scalding knife heat sealing and circulating water cooling bonding device, heating temperature Pc control, according to the need to add a variety of special-shaped bag auxiliary bag making device.

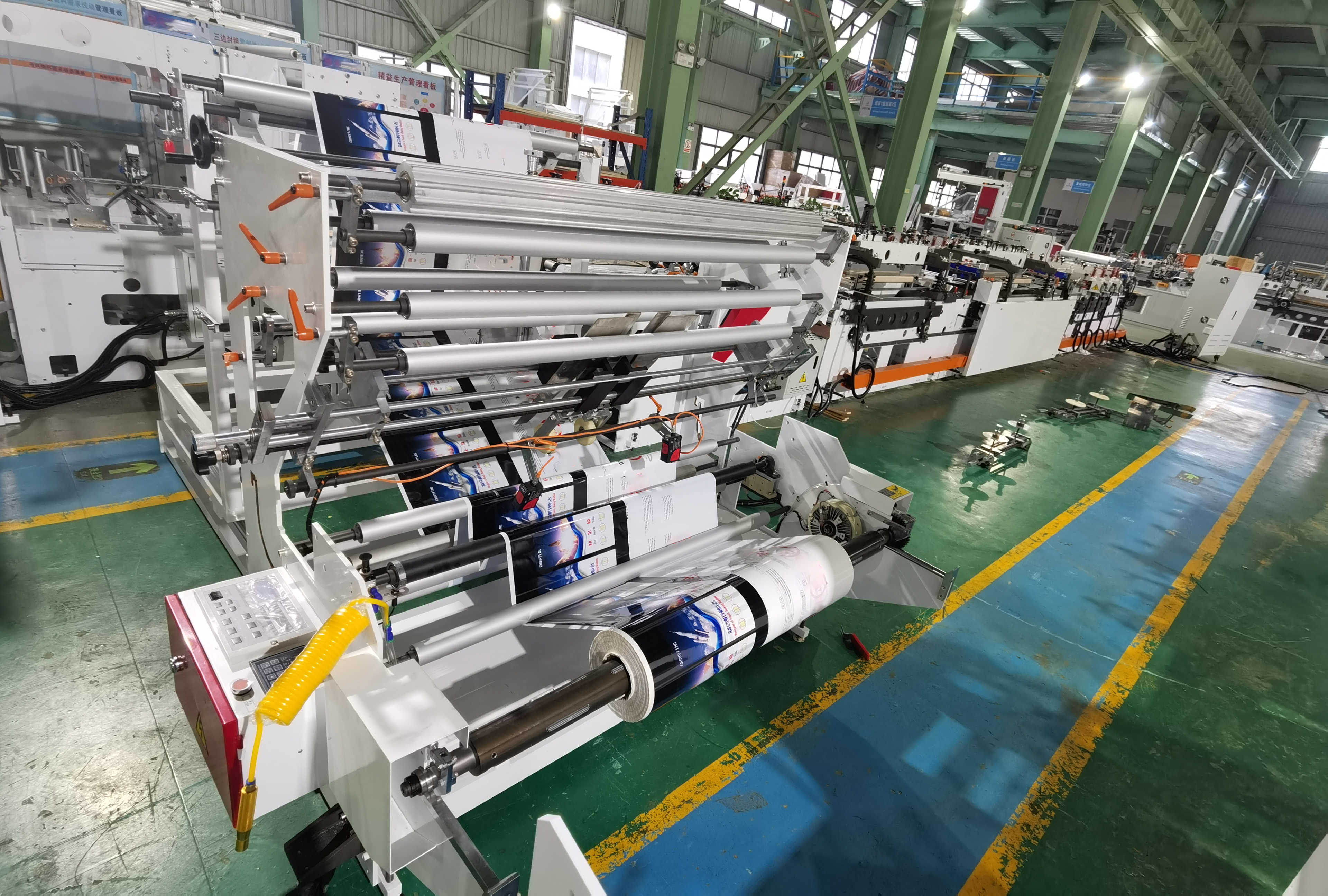

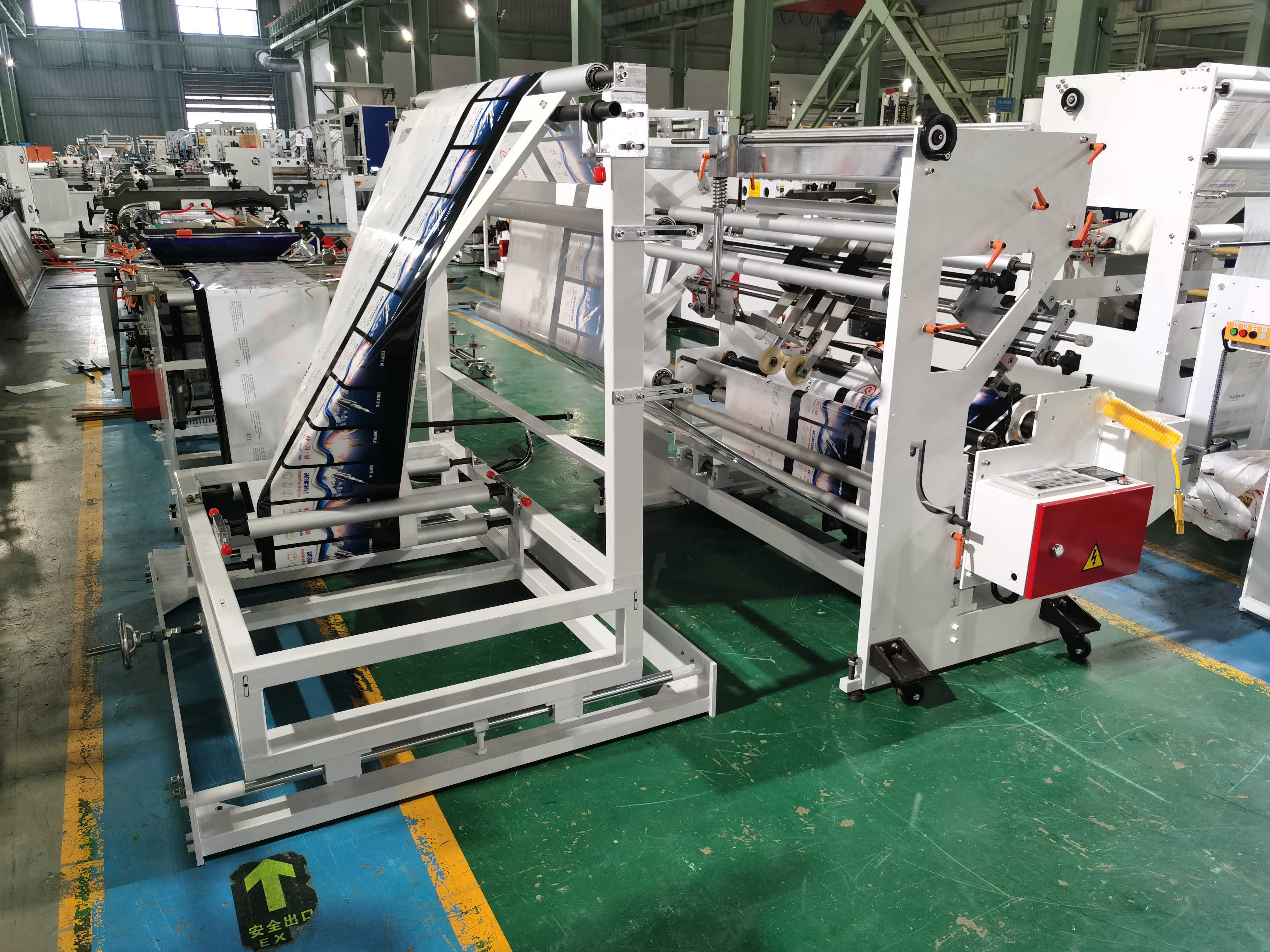

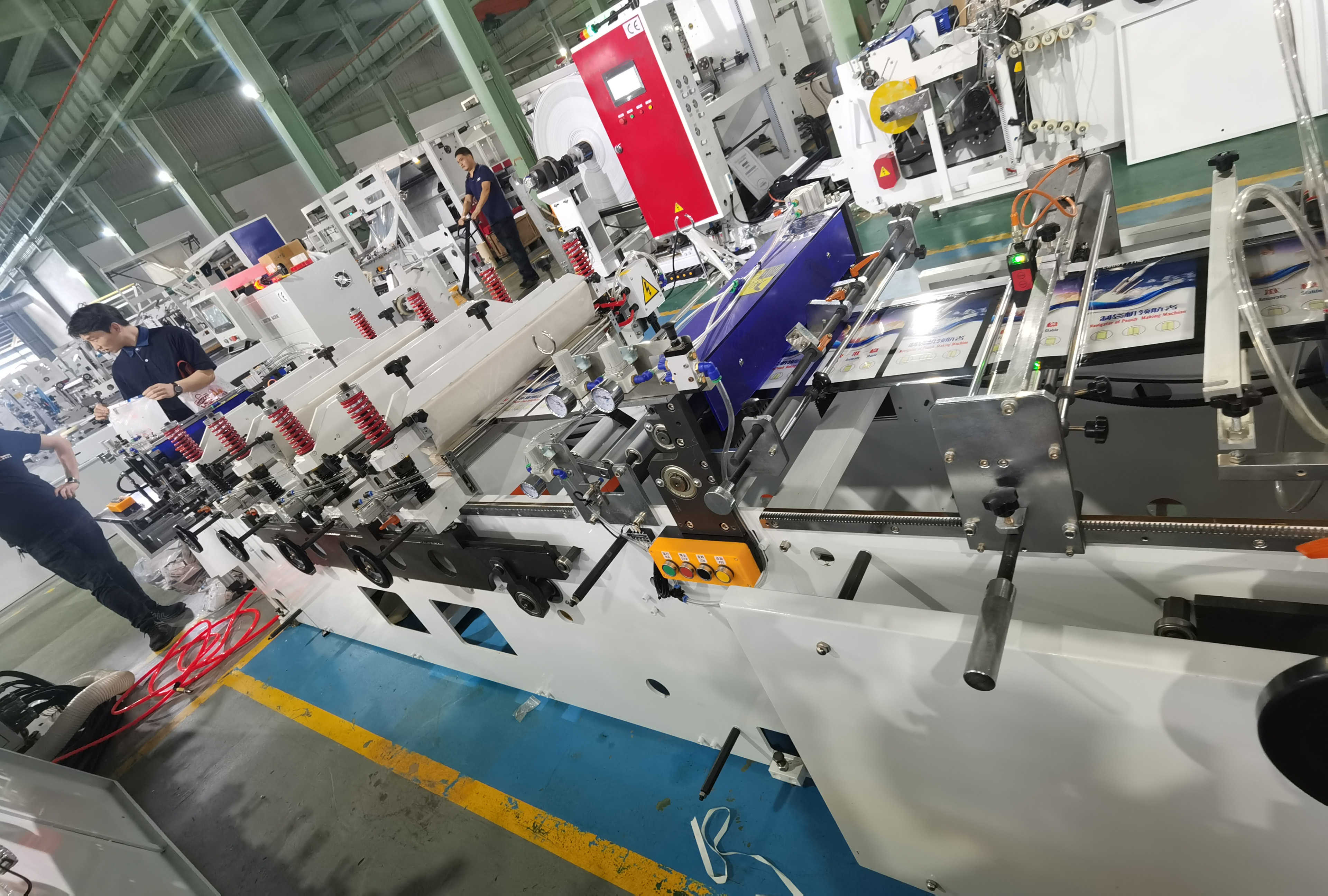

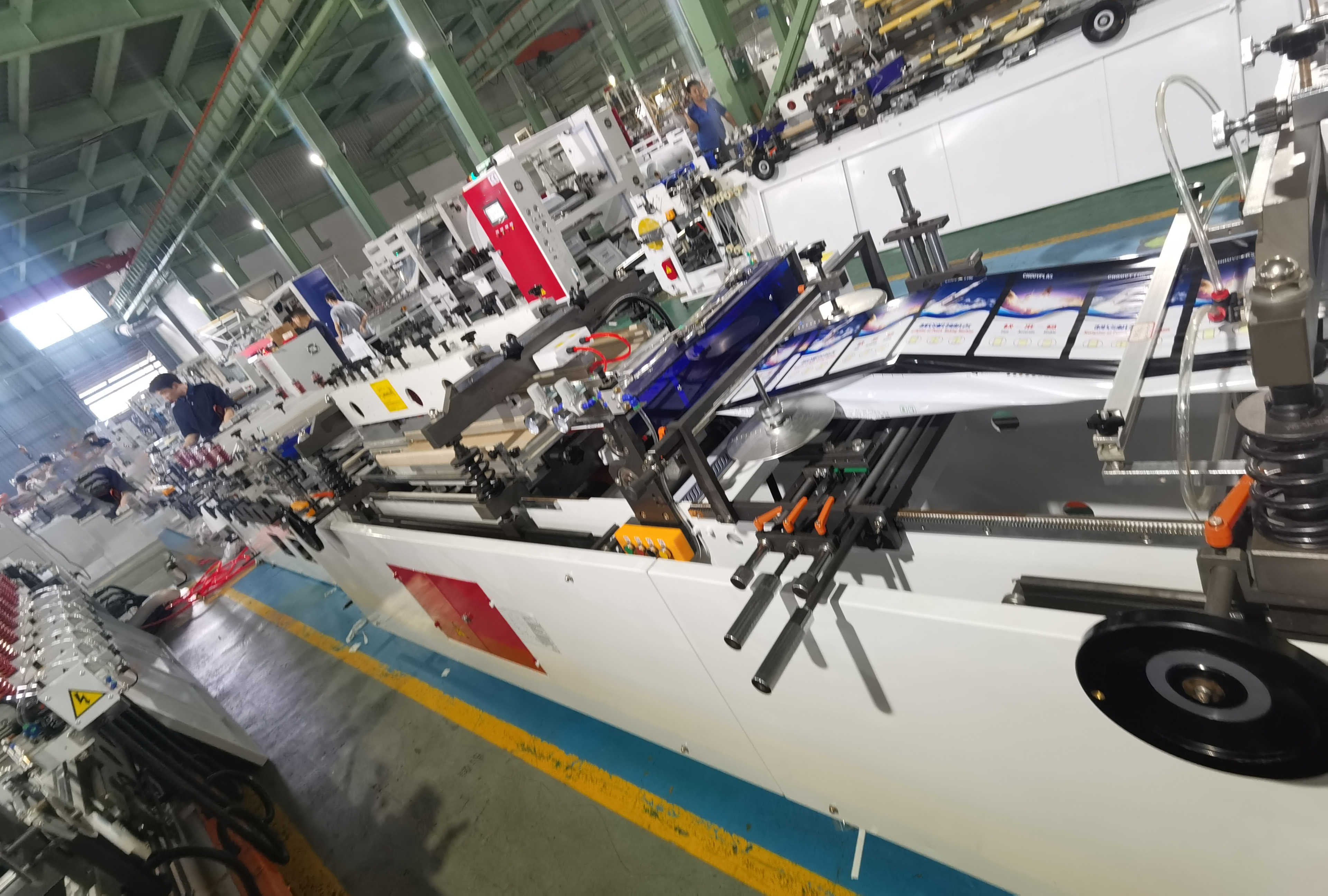

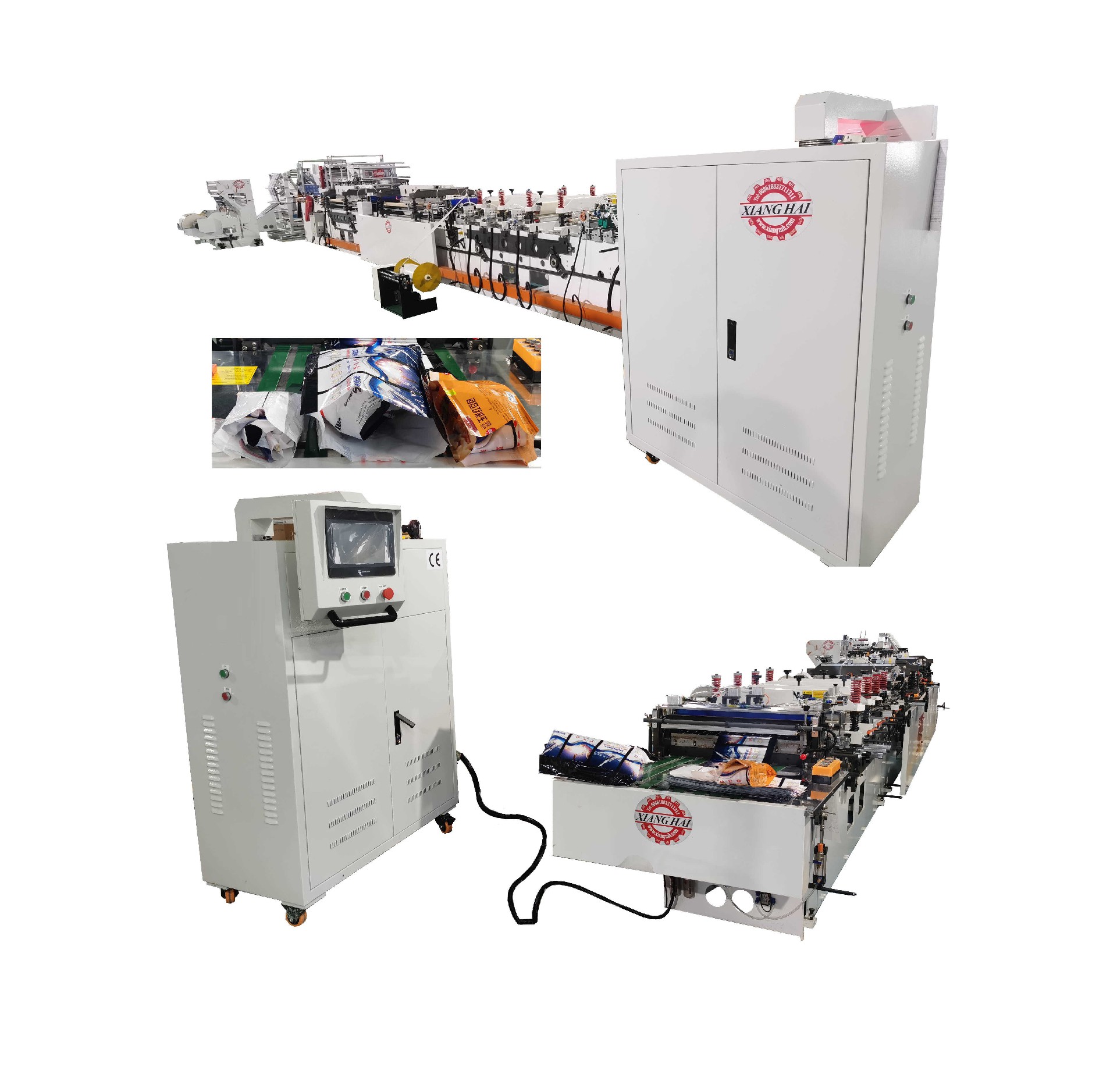

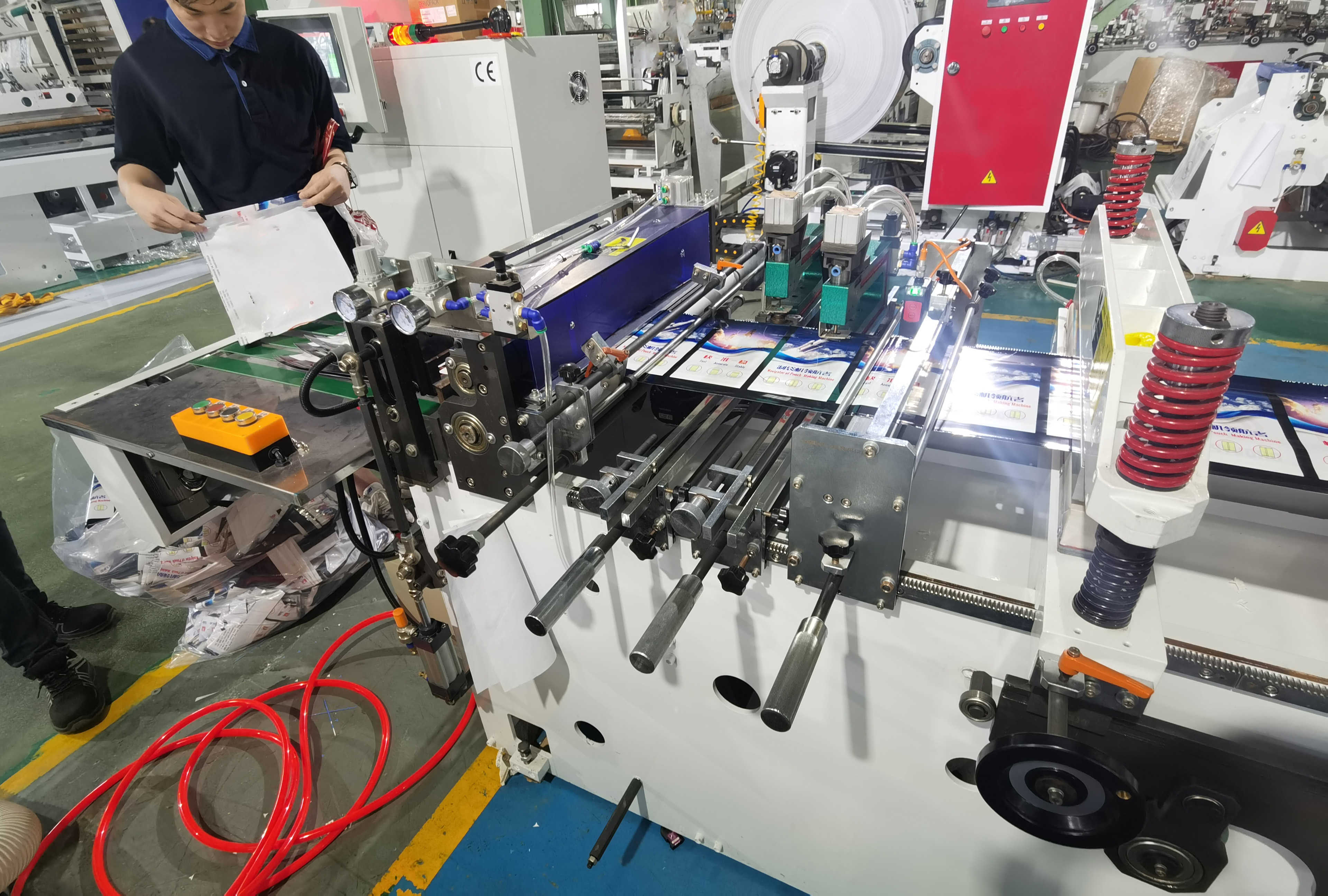

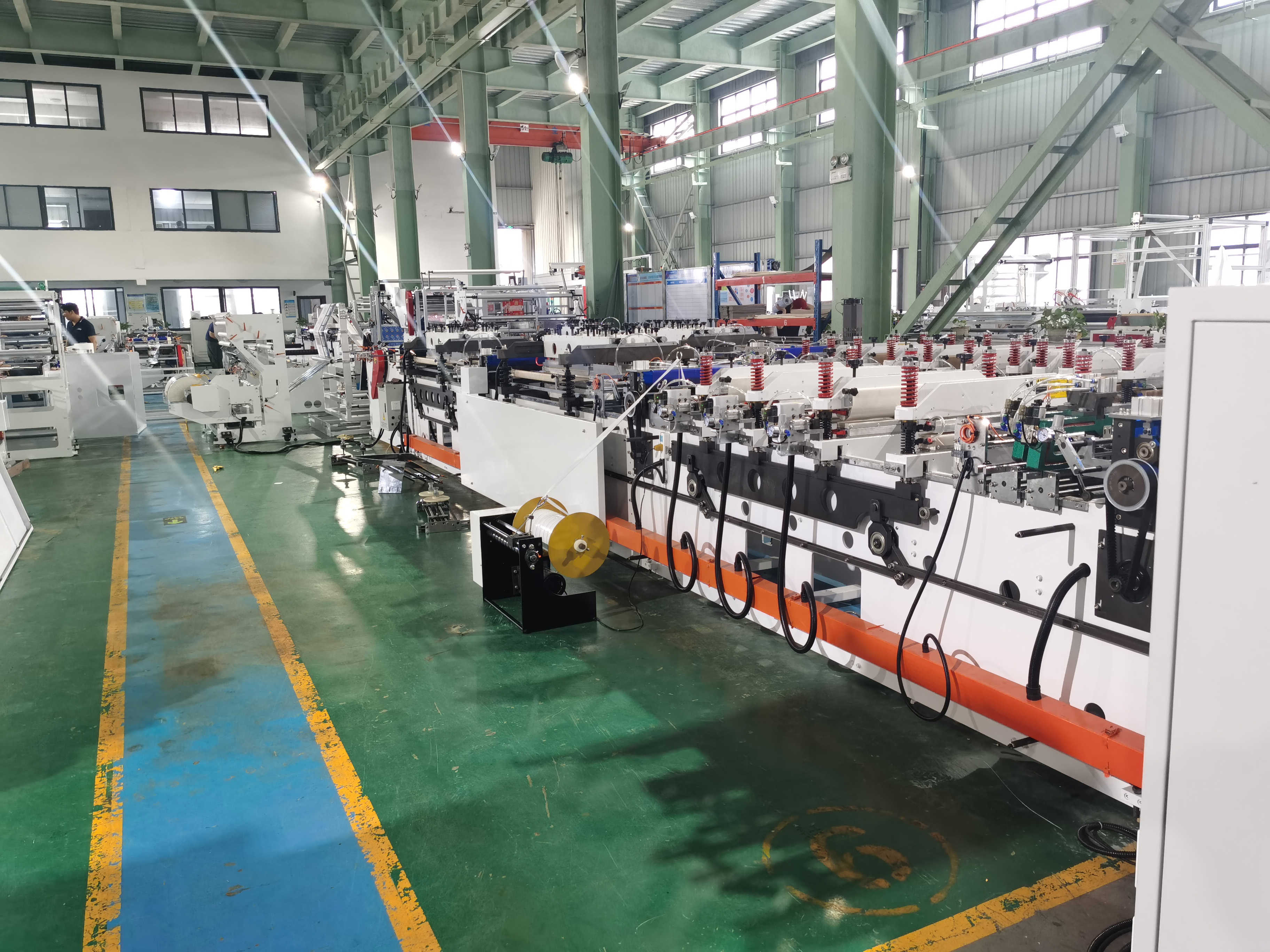

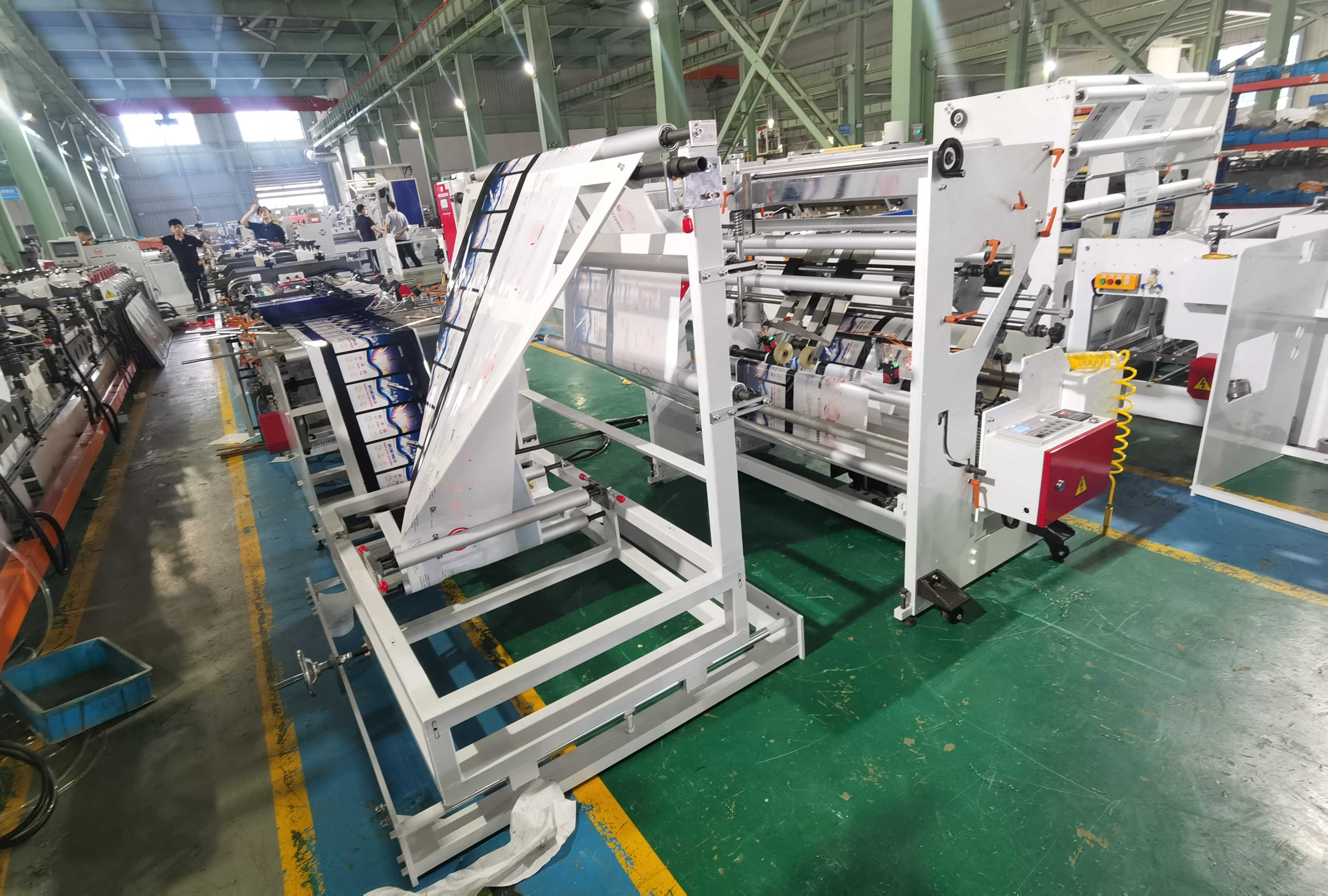

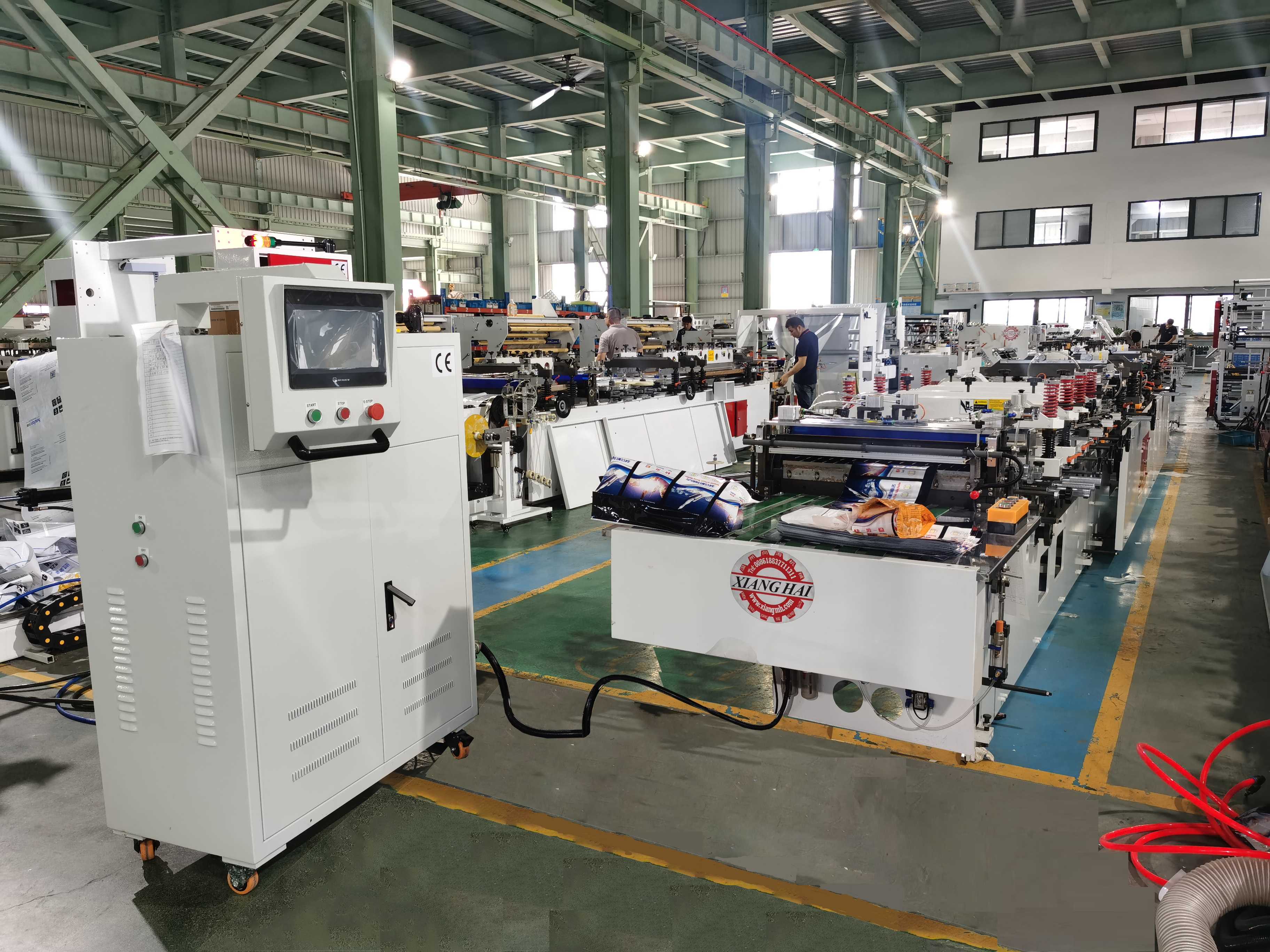

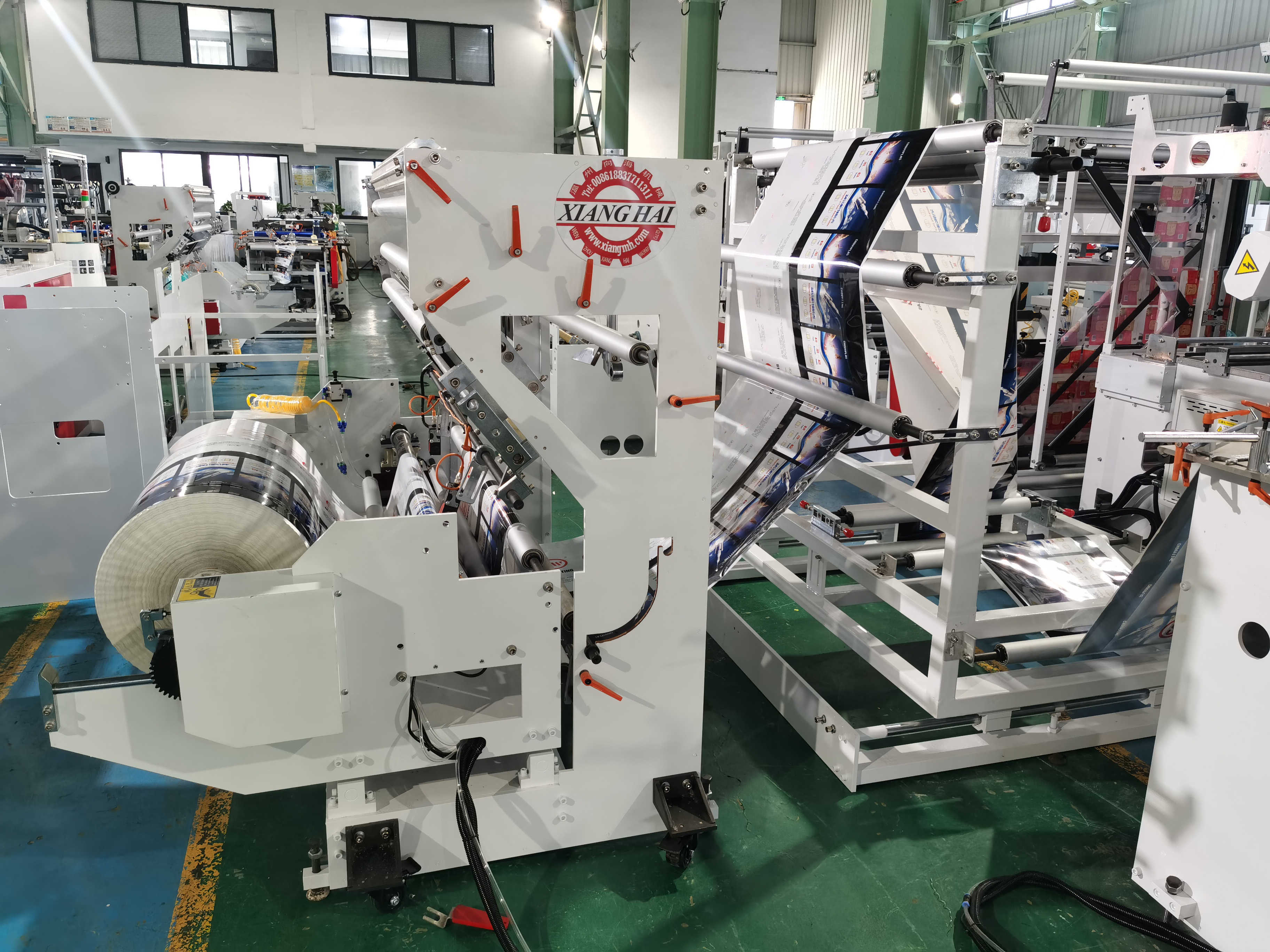

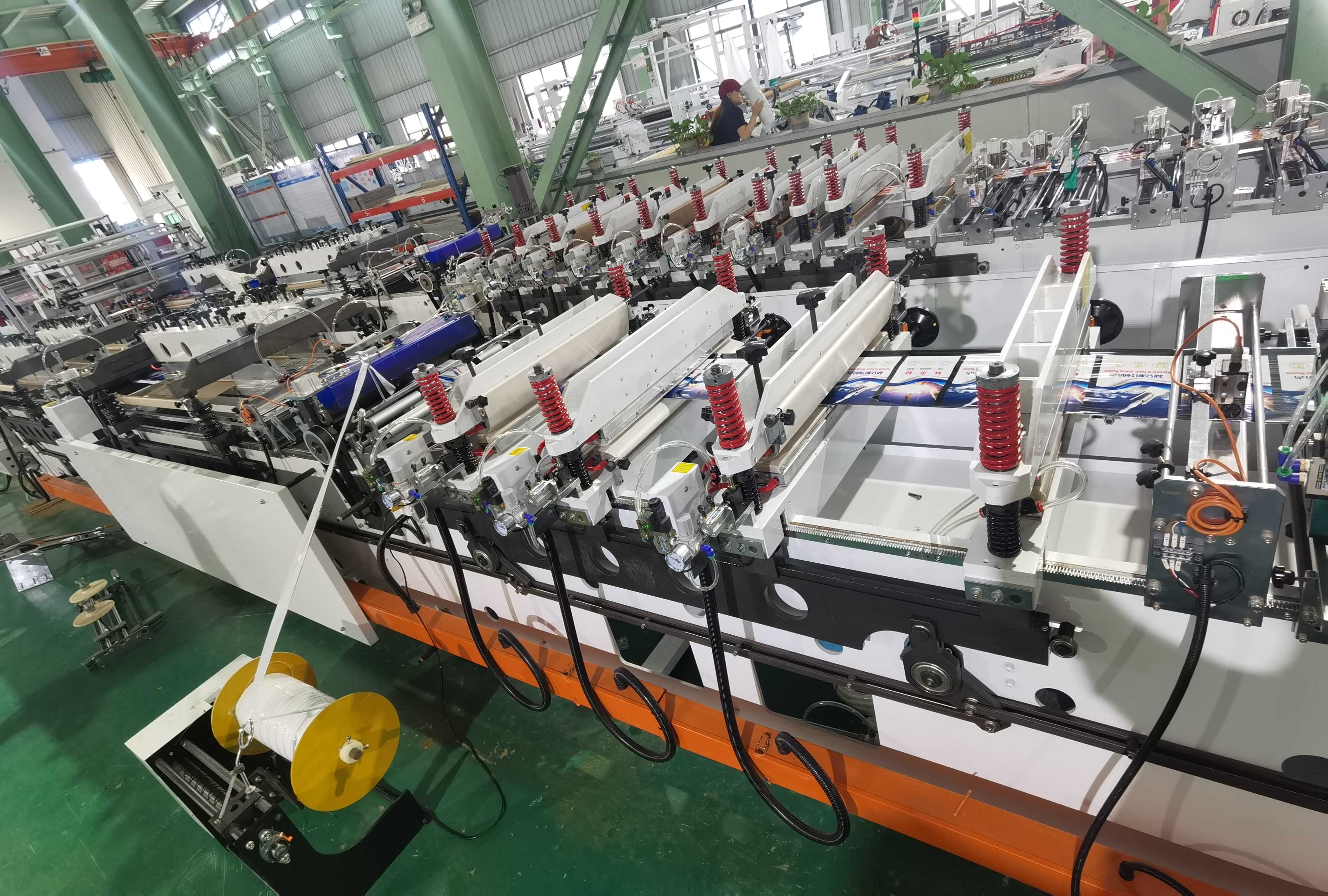

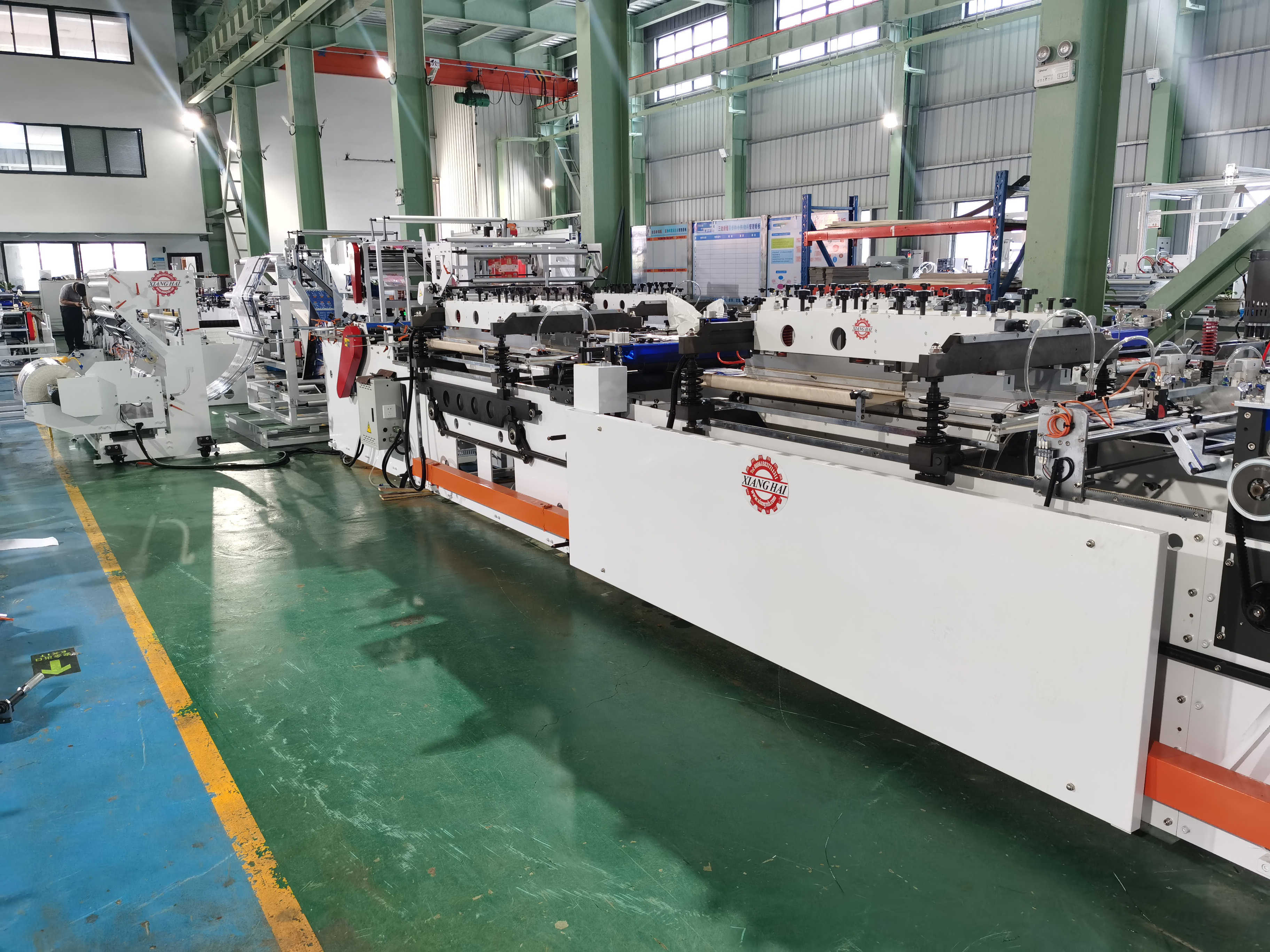

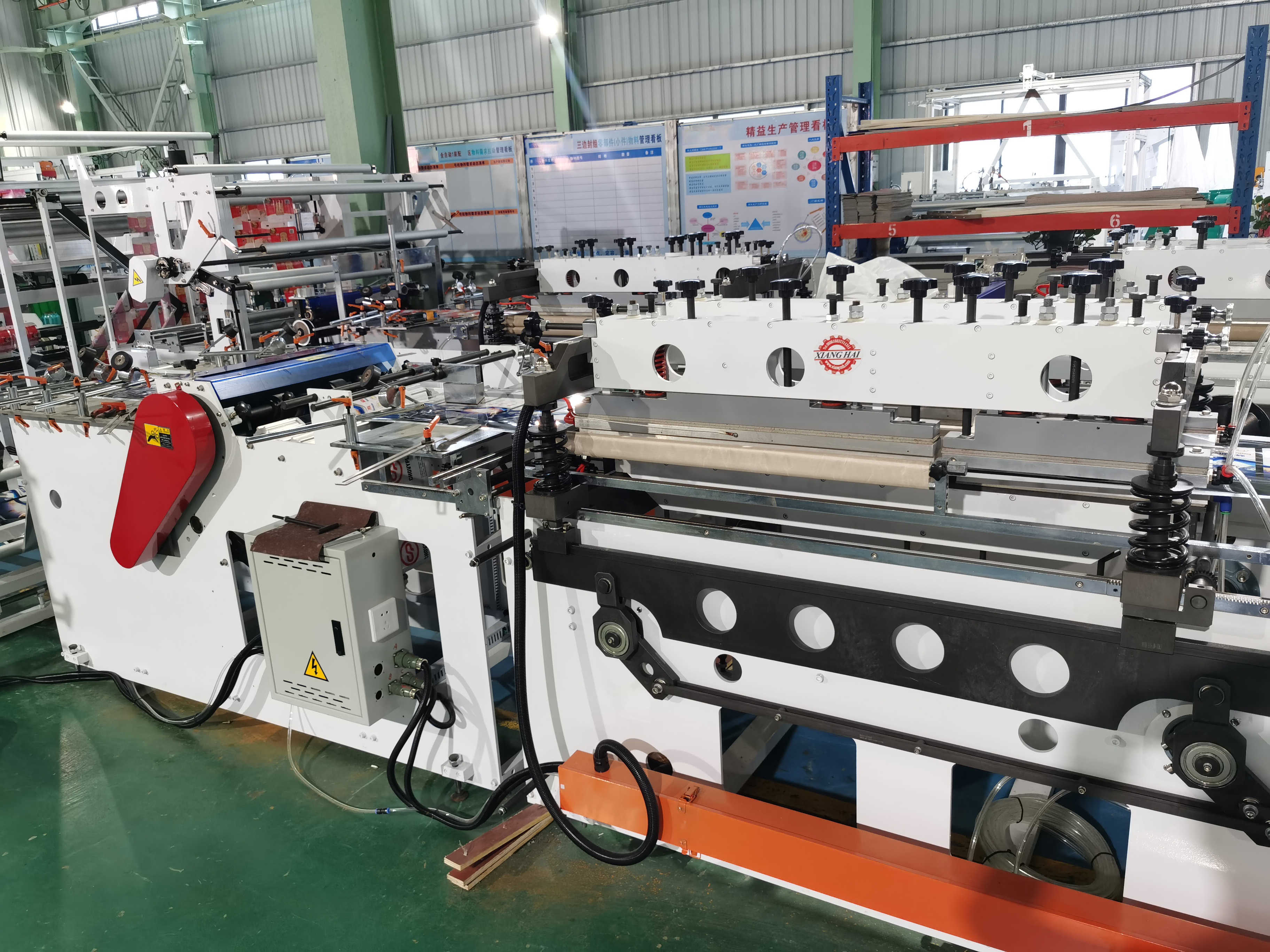

(Four side sealing bag making machine)
1.Function making ：
Side bottom sealing bag ，Three-side sealing ， bottom folding Bag ，bottom paster bag，
2.Suitable for substrate:
BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating composite film, paper plastic composite film, anti-static composite film.
3.The highest rhythm of mechanical design: 160 times/min
4.Surface wire speed: ≤ 30m/min (depending on the material)
5.Unwinding maximum size :(diameter × width) feeding ￠650X1250mm
6.positioning accuracy: ≤±0.5mm
7.Temperature setting range: 0-300℃
8.Total power: 25KW (the actual power is generally about 15KW when just powered on, and about 7KW when heat preservation)
9.Overall dimension: 9000X1400X1800mm (length · width · height)
10.Net weight of the machine: about 4500kg
11.Equipment color: American white body + American white cover + Chinese red door
1.Function making ：
Side bottom sealing bag ，Three-side sealing ， bottom folding Bag ，bottom paster bag，
2.Suitable for substrate:
BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating composite film, paper plastic composite film, anti-static composite film.
3.The highest rhythm of mechanical design: 160 times/min
4.Surface wire speed: ≤ 30m/min (depending on the material)
5.Unwinding maximum size :(diameter × width) feeding ￠650X1250mm
6.positioning accuracy: ≤±0.5mm
7.Temperature setting range: 0-300℃
8.Total power: 25KW (the actual power is generally about 15KW when just powered on, and about 7KW when heat preservation)
9.Overall dimension: 9000X1400X1800mm (length · width · height)
10.Net weight of the machine: about 4500kg
11.Equipment color: American white body + American white cover + Chinese red door
| Main Technical Parameters | |
| Film | Laminated film of all kinds,thickness with 50-200mic |
| Roll size | Body material/Maximum width:1200mm , Maximum diameter:800mm, 3-inch paper core. Maximum Bottom material width:150mm, diameter:800mm, weight:35Kgf, 3-inch paper core Zipper material/Maximum width:250mm, Maximum diameter:800mm, 2-inch paper core. |
| Sealing width | Cross seal width:60mm max., Longitudinal sealing width:50mm max wide heat sealer required for sealing widths exceeded 50mm (60mm max), Bottom gusset sealing width:70mm max |
| Pouch making capacity | Number cycles and film speed are calculated separately and are not related.Three-side-seal pouch making:Maximum cycles:160 CPM.Maximum film speed :36m/min, Standing pouch making:Maximum cycles:120 CPM,maximum film speed:25m/min, Zipper and Standing pouch making:maximum cycles:100 CPM,maximum film speed:21 m/min |
| Power required | Feed servo motor 2*1Kw=2*1.5Kw=3.0Kw Longitudinal heat sealer 5*2.5Kw*2=25.0Kw Heat sealer AC motor 1*3.0KW=3.0Kw Bottom heat sealer 2*2.0Kw*5=20.0Kw Roll film unwinding motor 1*0.4Kw=0.4Kw Zipper point heat sealer 2*2.0Kw*2=8.0Kw Standing pouch motor 2*0.09Kw=0.1 8Kw Cross heat sealer 3*2.0Kw*2=12.0Kw Zipper heat sealer 2*2.0Kw*2=8.0Kw Other 2.5Kw Total 65Kw |
| Area for installation | (About) 13800*2545*2200mm |
| Weight | (About) 8000kg |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
