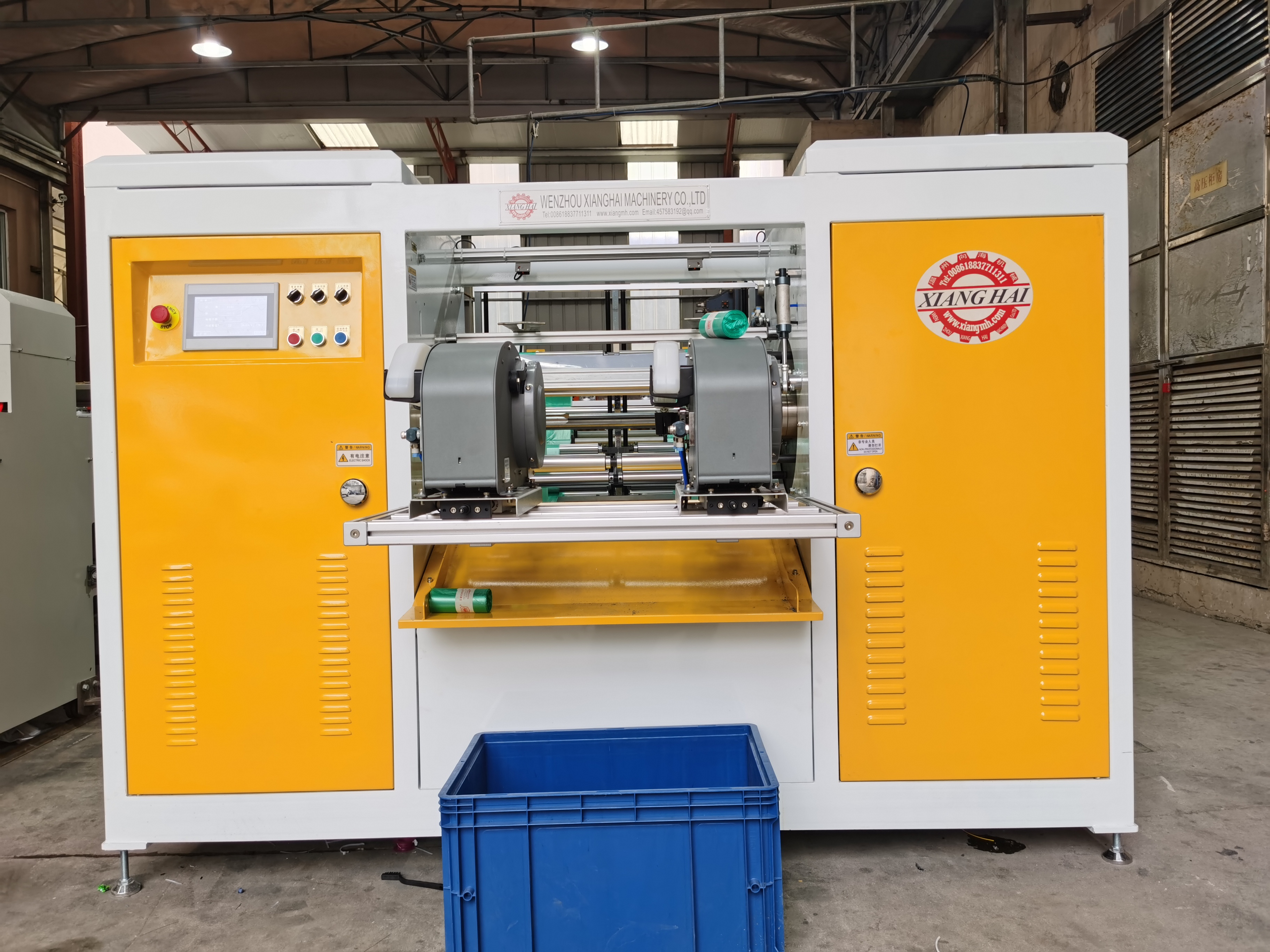

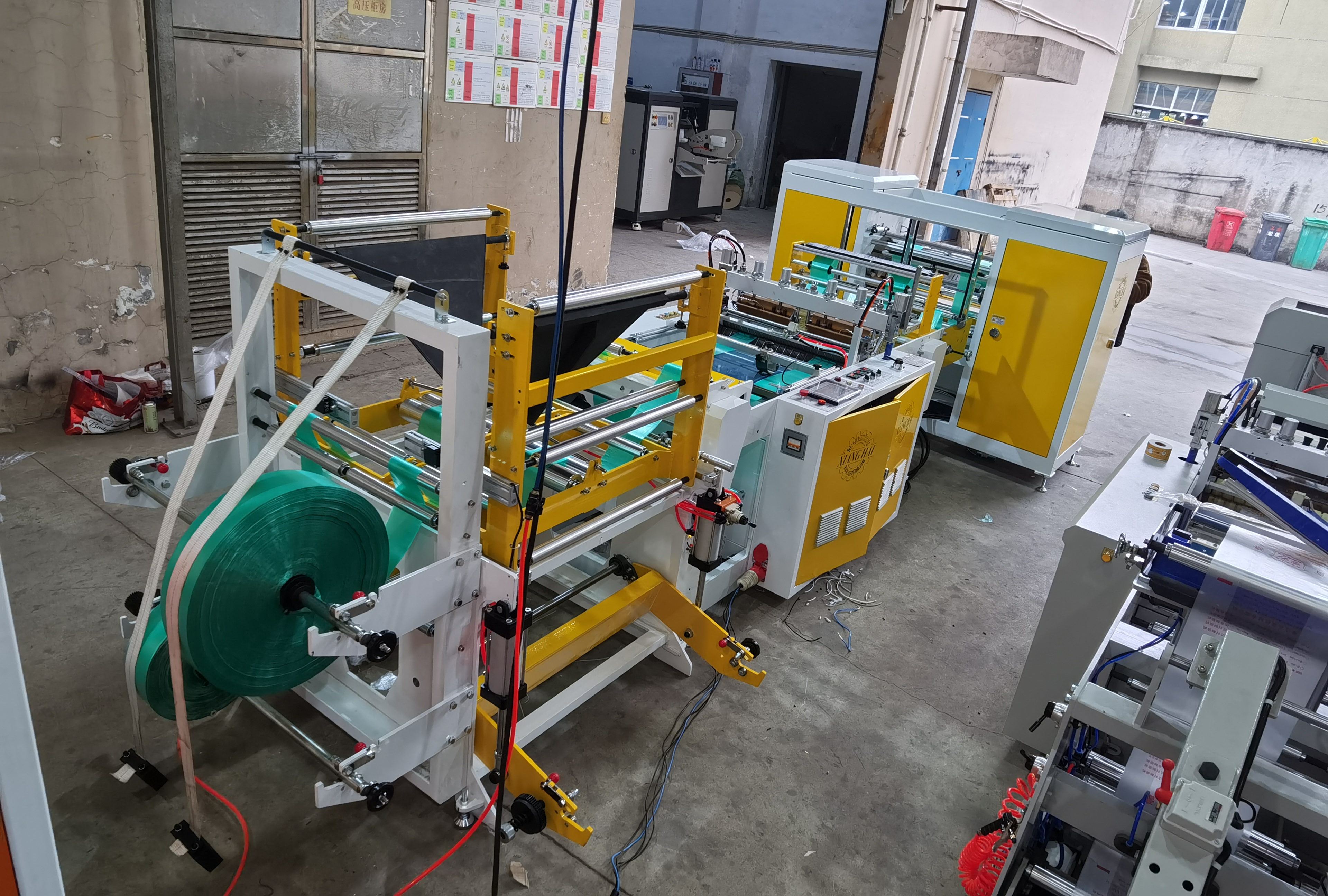

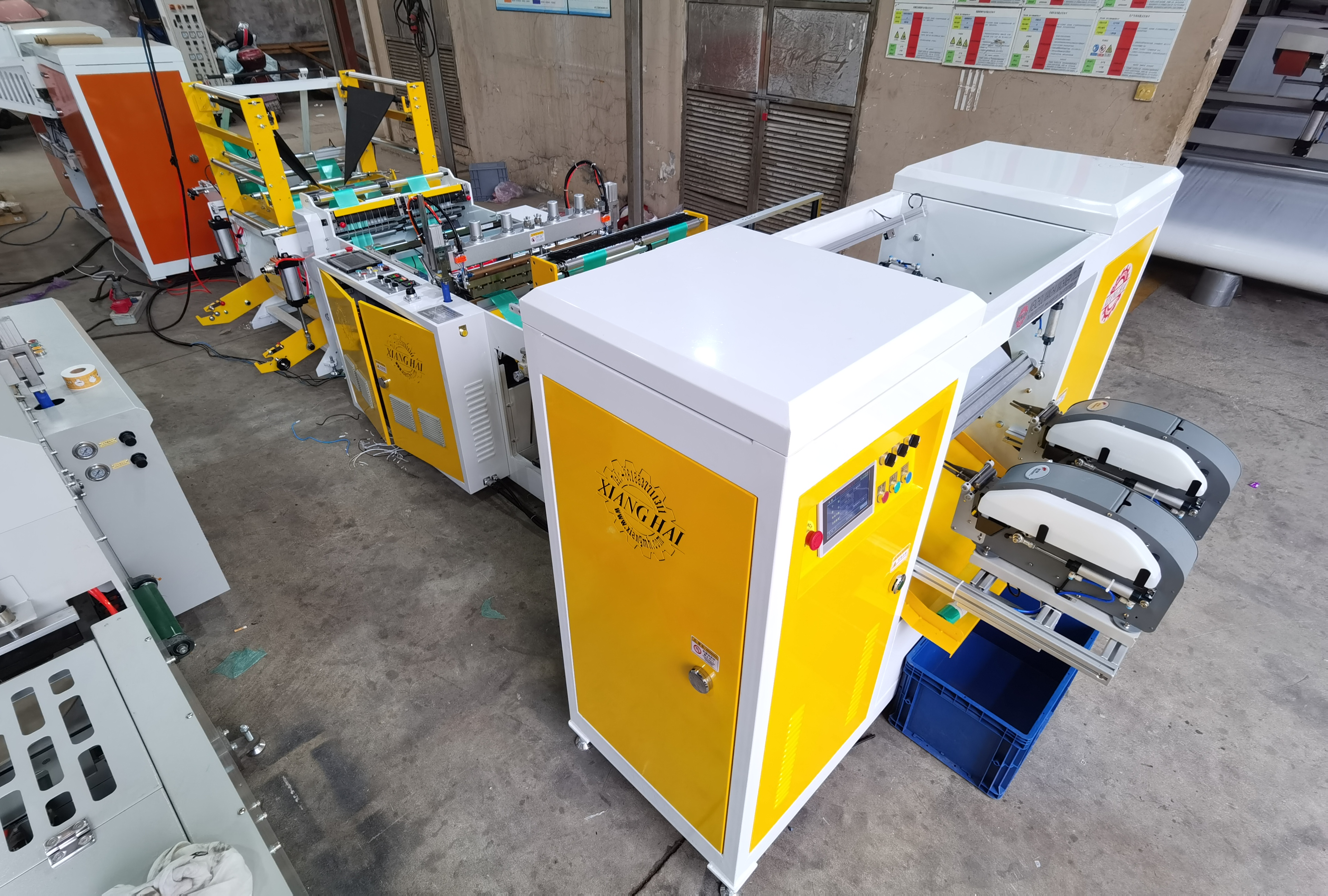

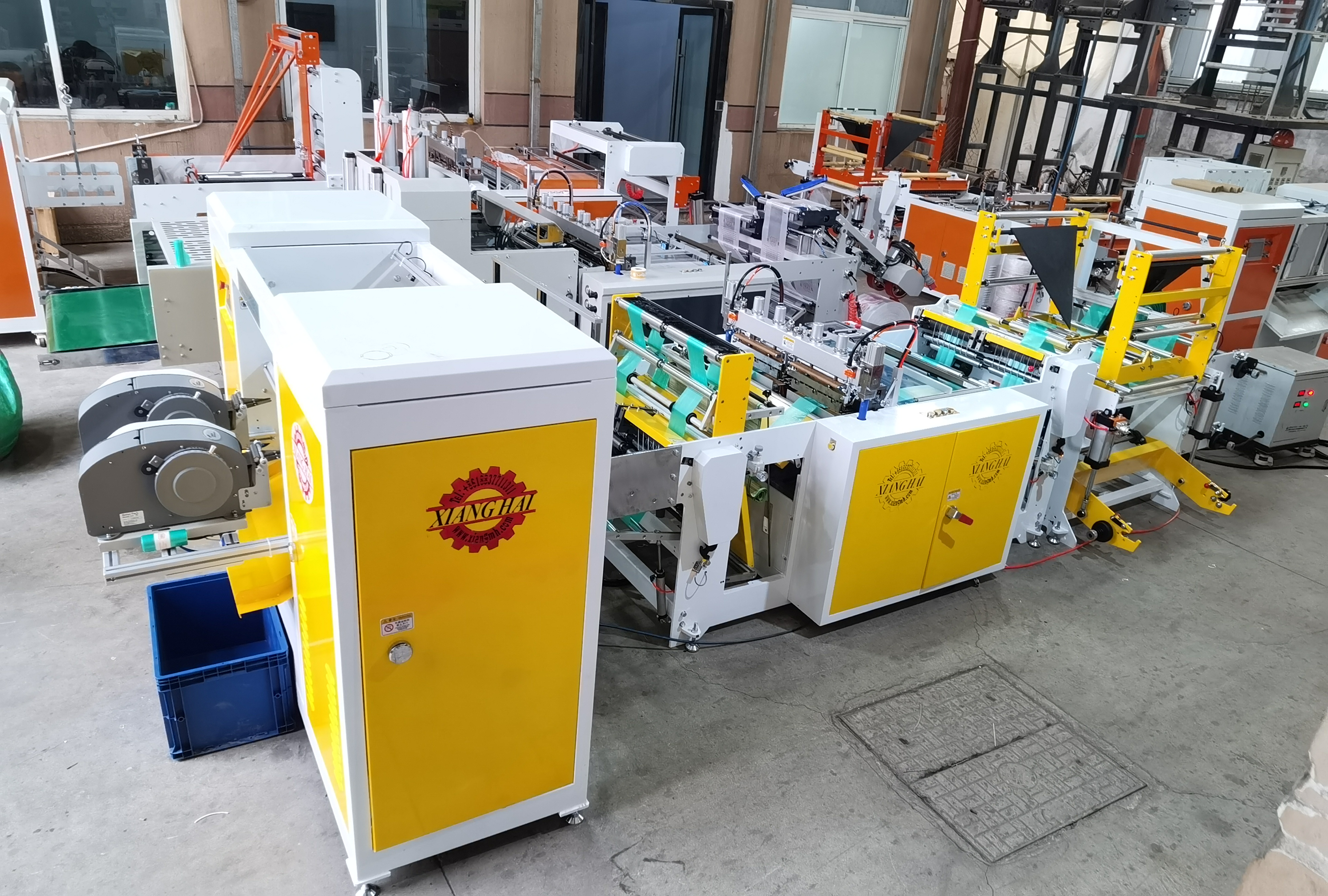

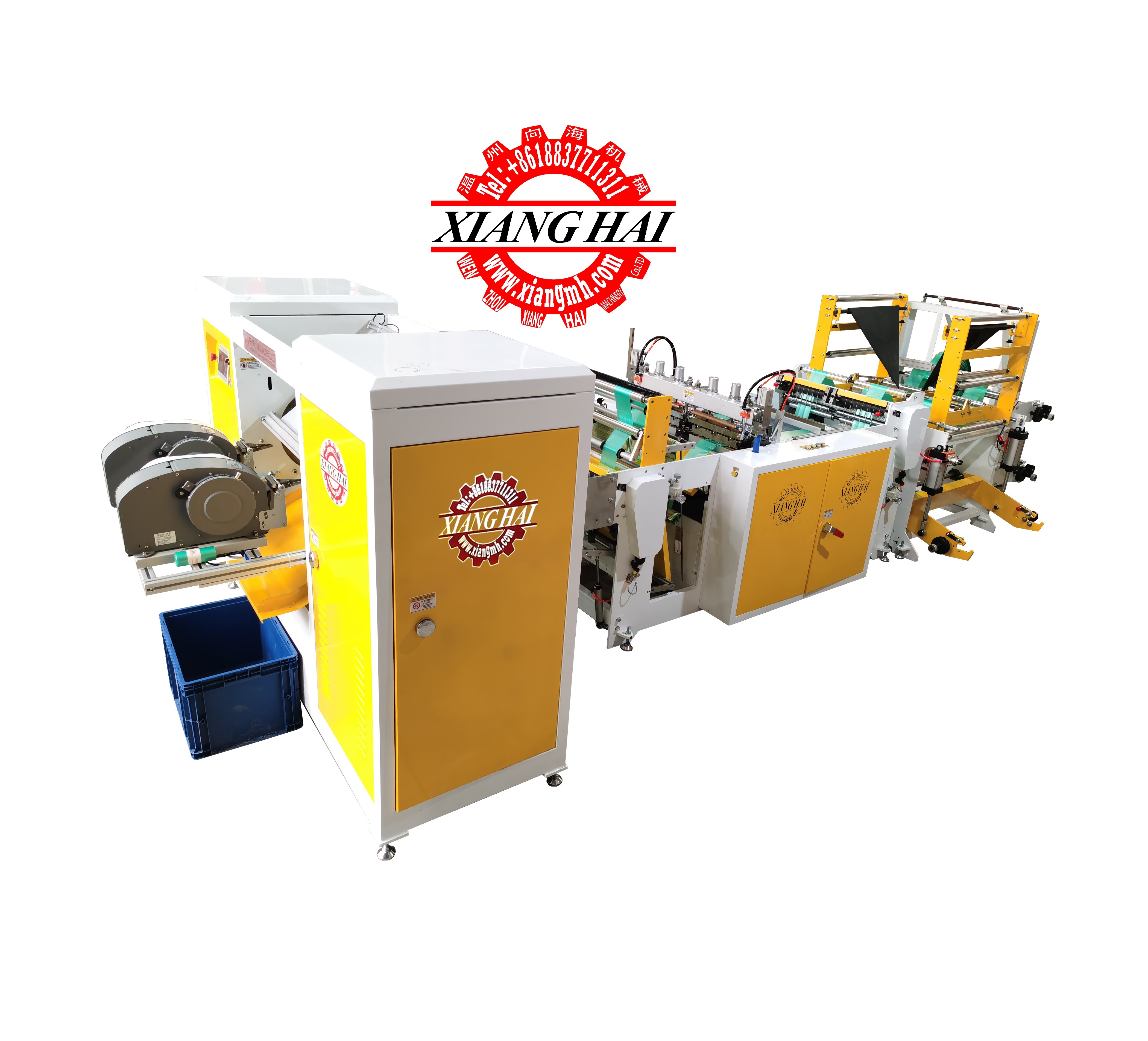

XIANGHAI 100m/min*2 Coreless Double Lines Rolls Linkage Garbage Bag Making Machines


Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you!
Wenzhou xianghai XH-RD700 automatic chang roll high speed coreless single line linkage garbag bag making machine. Suitable HDPE and LDPE film to make roll bags.

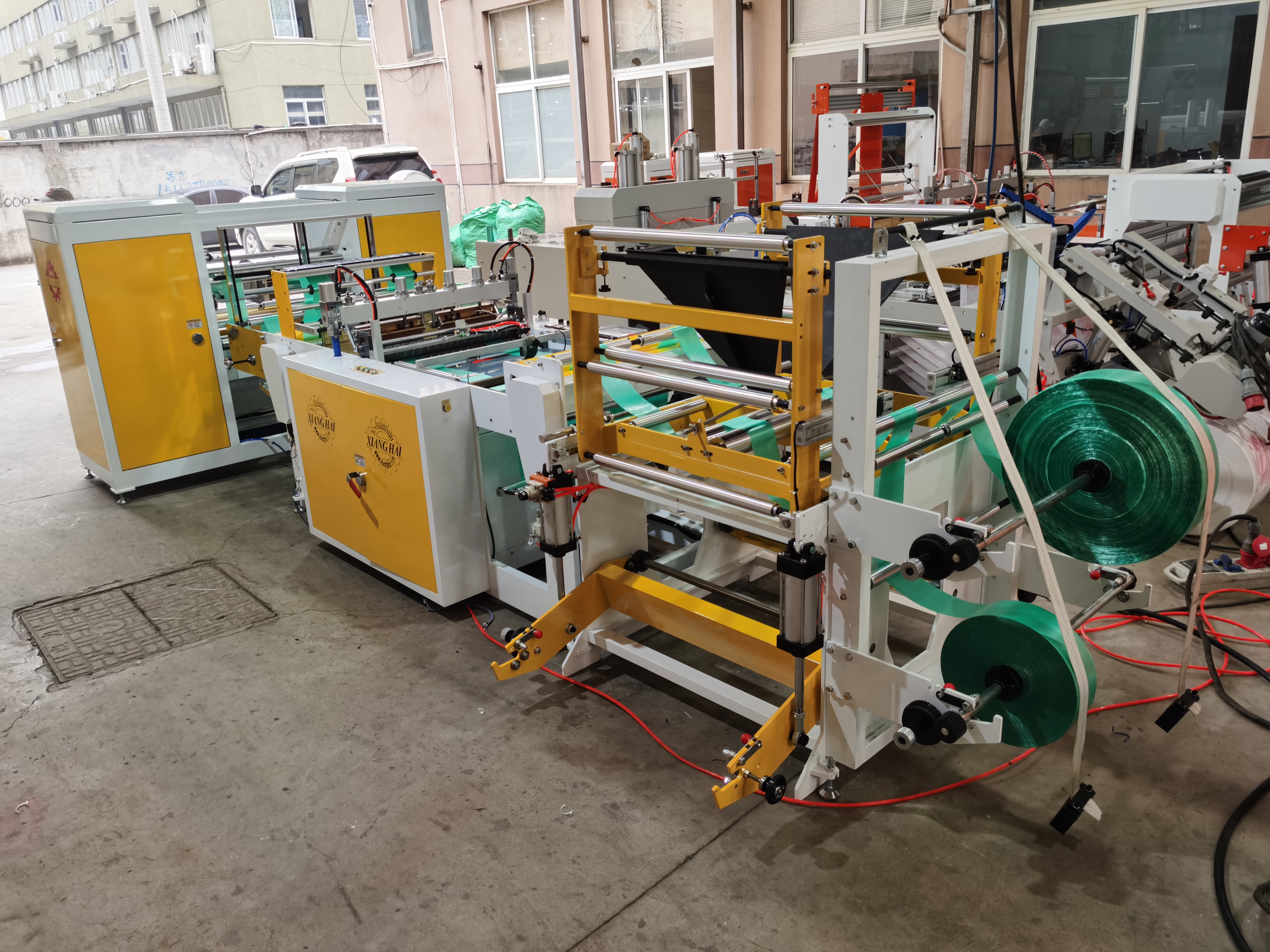

Double Lines Rolls Linkage Garbage Bag Making Machines
Features:
1. Use 1 pc servo motor driving, improve the speed and stability.

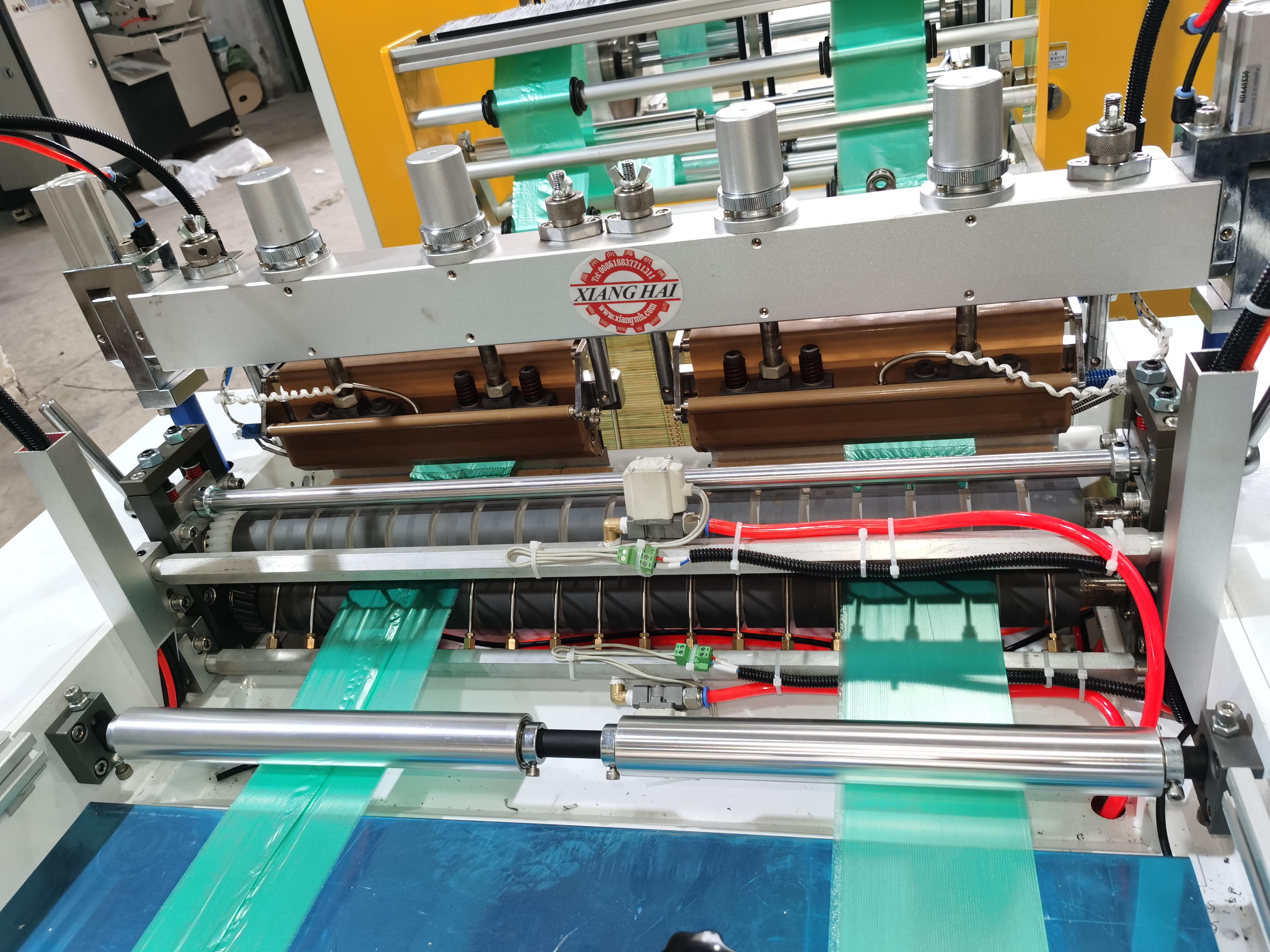

2. Heat seal and cold cut design ensures the quality of the bag
3. Perforation line always keeps a same distance from the sealing line to ensure there won’t be any tensile force whenever in changing of difference length.

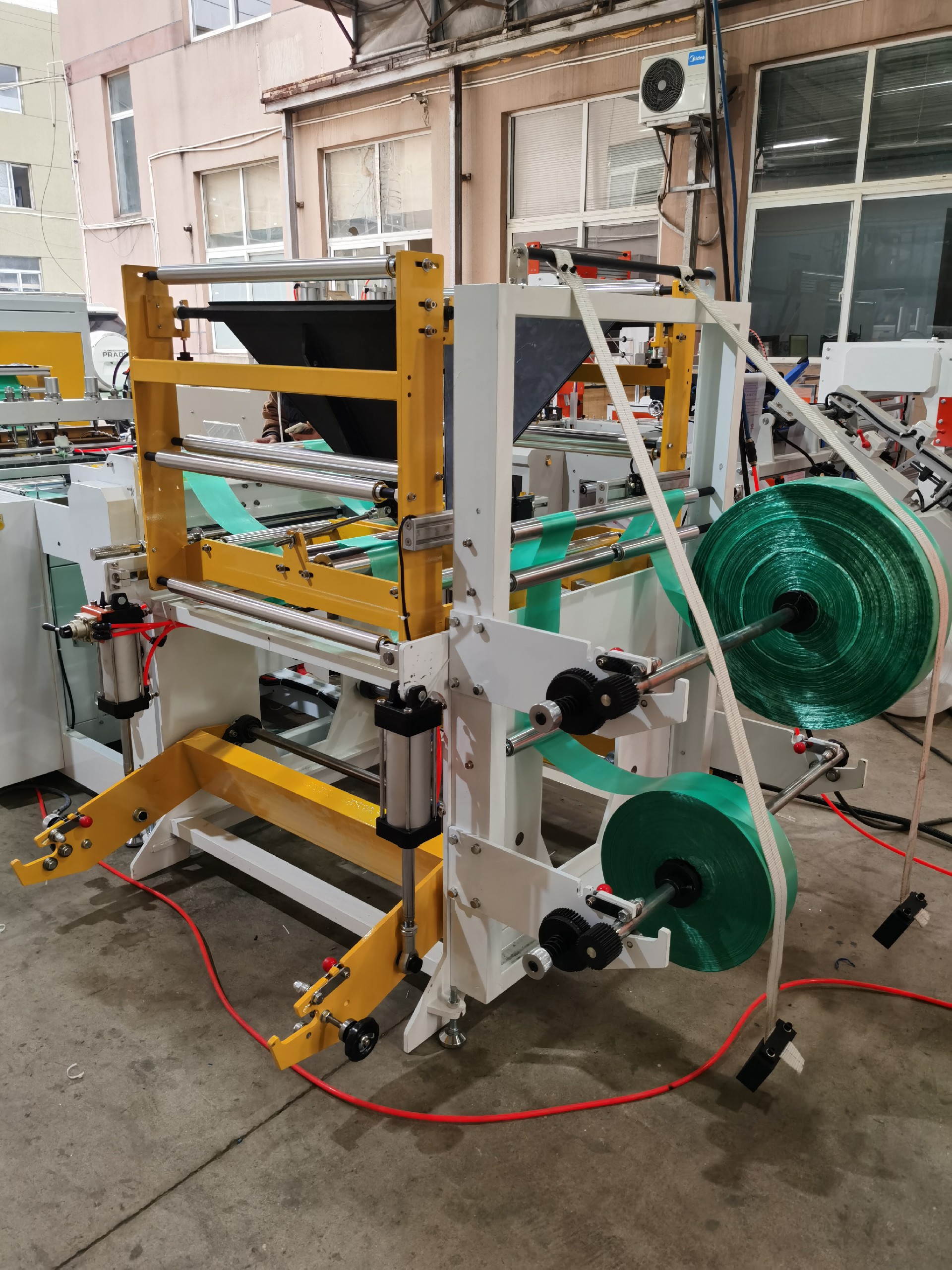

4. Auto exchange new rolling.
5. Both printed bags and blank bags can be made by this machine.

Main Technical Parameters
ModelXH-DR700
Total Power14kw
Use Power6 - 8kw
Film Width90 - 280mm
Bag Lenght400 - 1500mm
Max Speed80m/min*2
Weight2500 KG
