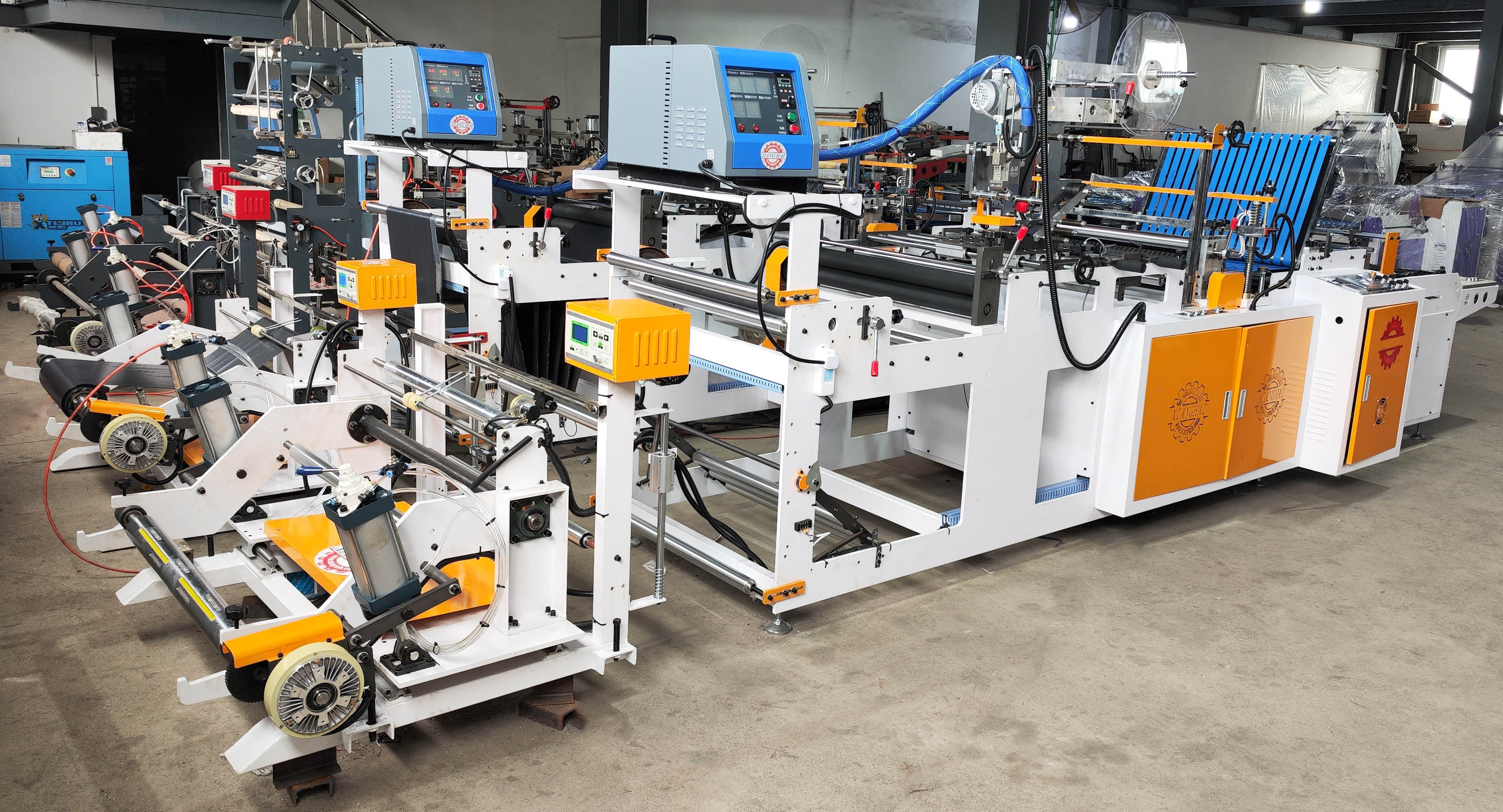

Side seal bag making machine high speed side sealing express bag making machine
Machine Description:
1. Suitable for
substrate: BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating
composite film, paper plastic composite film, anti-static composite film.
2. Unwinding maximum size :(diameter × width) feeding ￠800X800mm
3.positioning accuracy: ≤±0.5mm
4. Temperature setting range: 0-300℃
5. Total power: 12KW (the actual power is generally about 4KW when just powered on, and about 2KW when heat preservation)
6. Function making ：
Courier bag、Side sealing bag 、DHL Mail bag
1. Suitable for
substrate: BOPP, PET, aluminum foil, nylon and other plastic composite film multi-layer co-extruding film, aluminum plating
composite film, paper plastic composite film, anti-static composite film.
2. Unwinding maximum size :(diameter × width) feeding ￠800X800mm
3.positioning accuracy: ≤±0.5mm
4. Temperature setting range: 0-300℃
5. Total power: 12KW (the actual power is generally about 4KW when just powered on, and about 2KW when heat preservation)
6. Function making ：
Courier bag、Side sealing bag 、DHL Mail bag
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Main technical parameters：
Constant innovation and beyond just to create higher value for you！
Main technical parameters：
| Type | SC800 | |
| Length of bag-making | 200-750mm | |
| Width of bag-making | 250-600mm | |
| Speed of bag-making | 240 pcs/min | |
| Total power | 12kw | |
| Machine weight | 1770kg | |
| Width size of unwinding | 800mm | |
| Diameter of unwinding | ￠800mm | |
| Machine dimension | 6270mm*1350mm*1950mm | |
| Thickness of film | HDPE 0.01-0.06mm LDPE 0.015-0.08mm |
 |  |
 |  |
 |  |
 |  |
