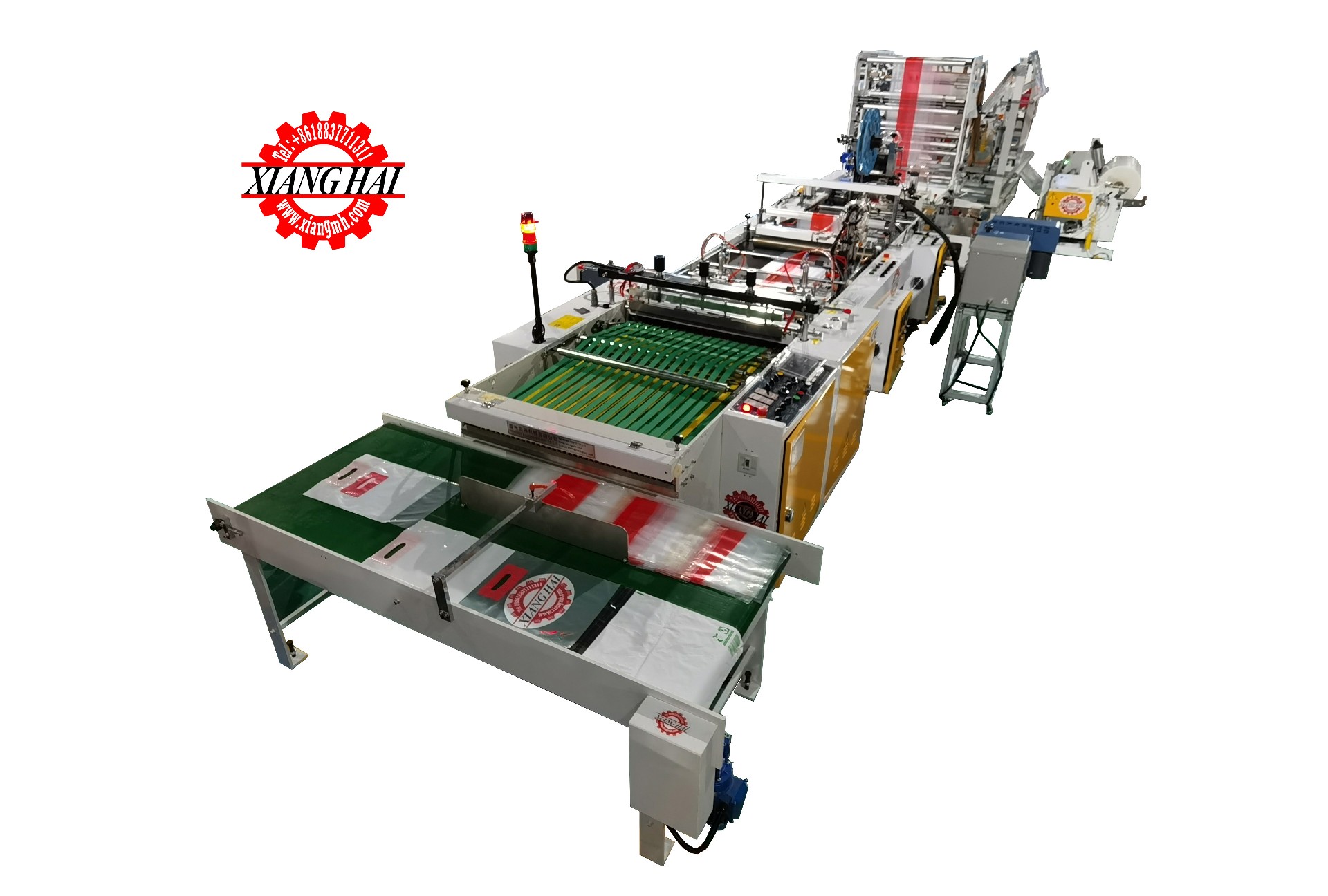

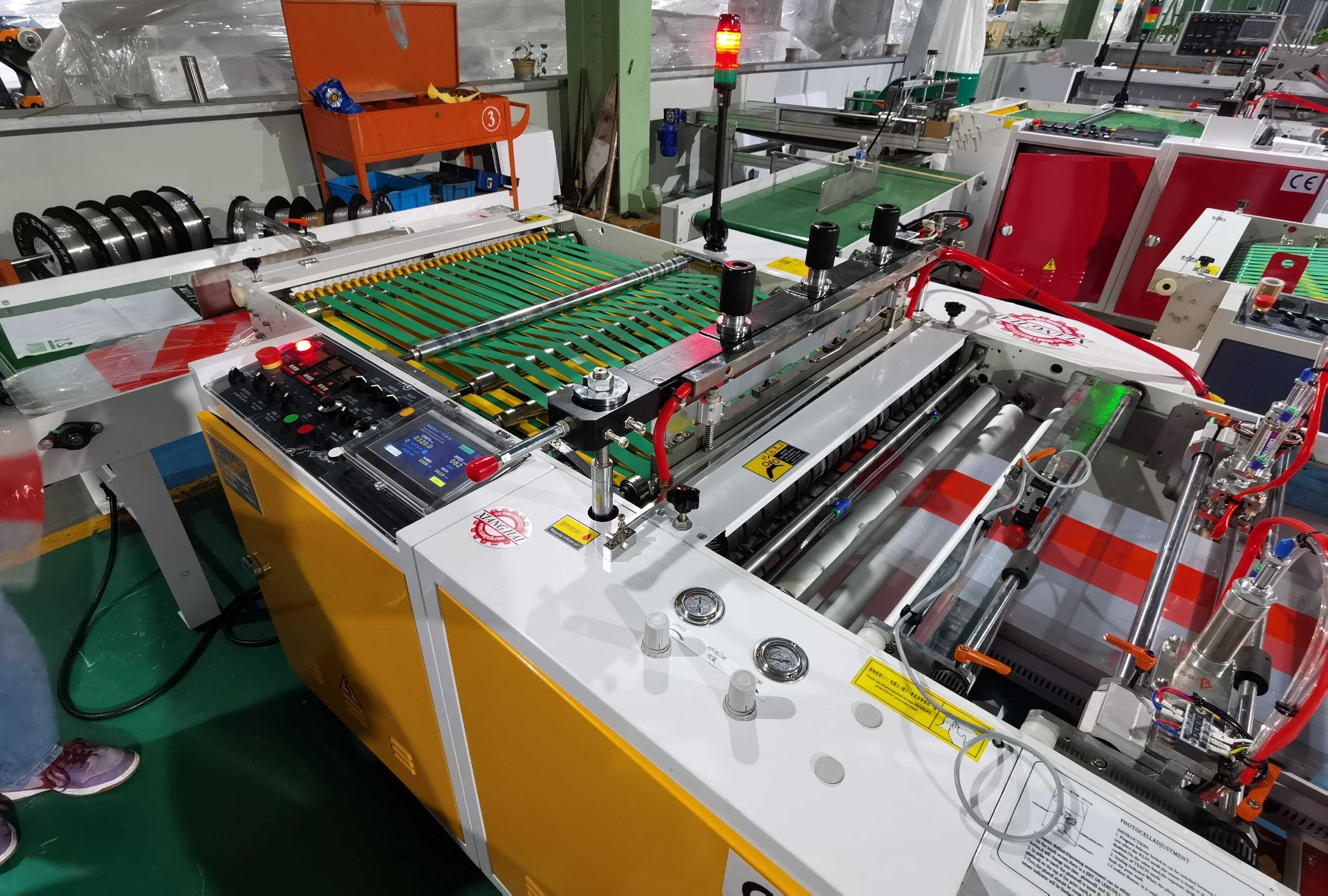

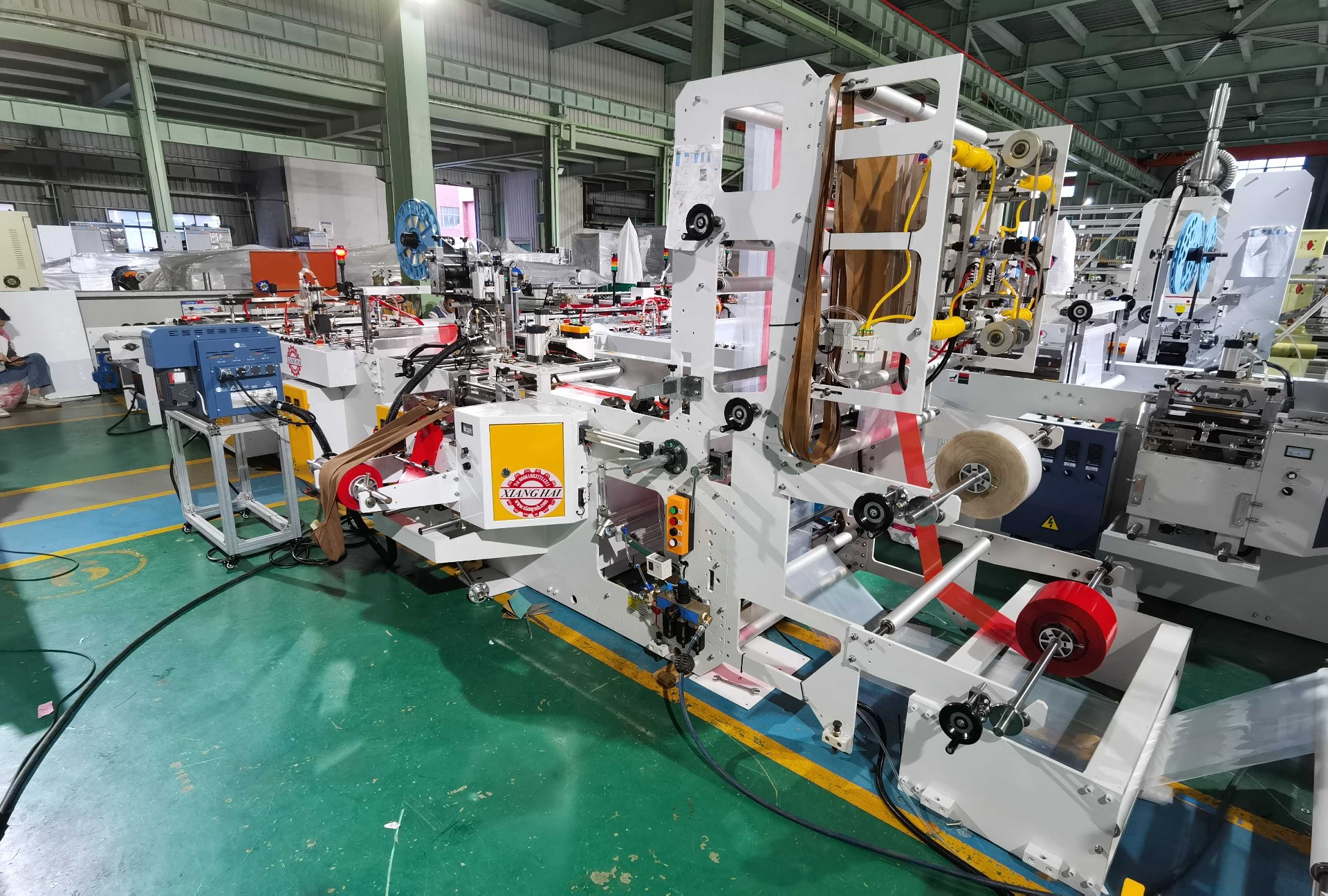

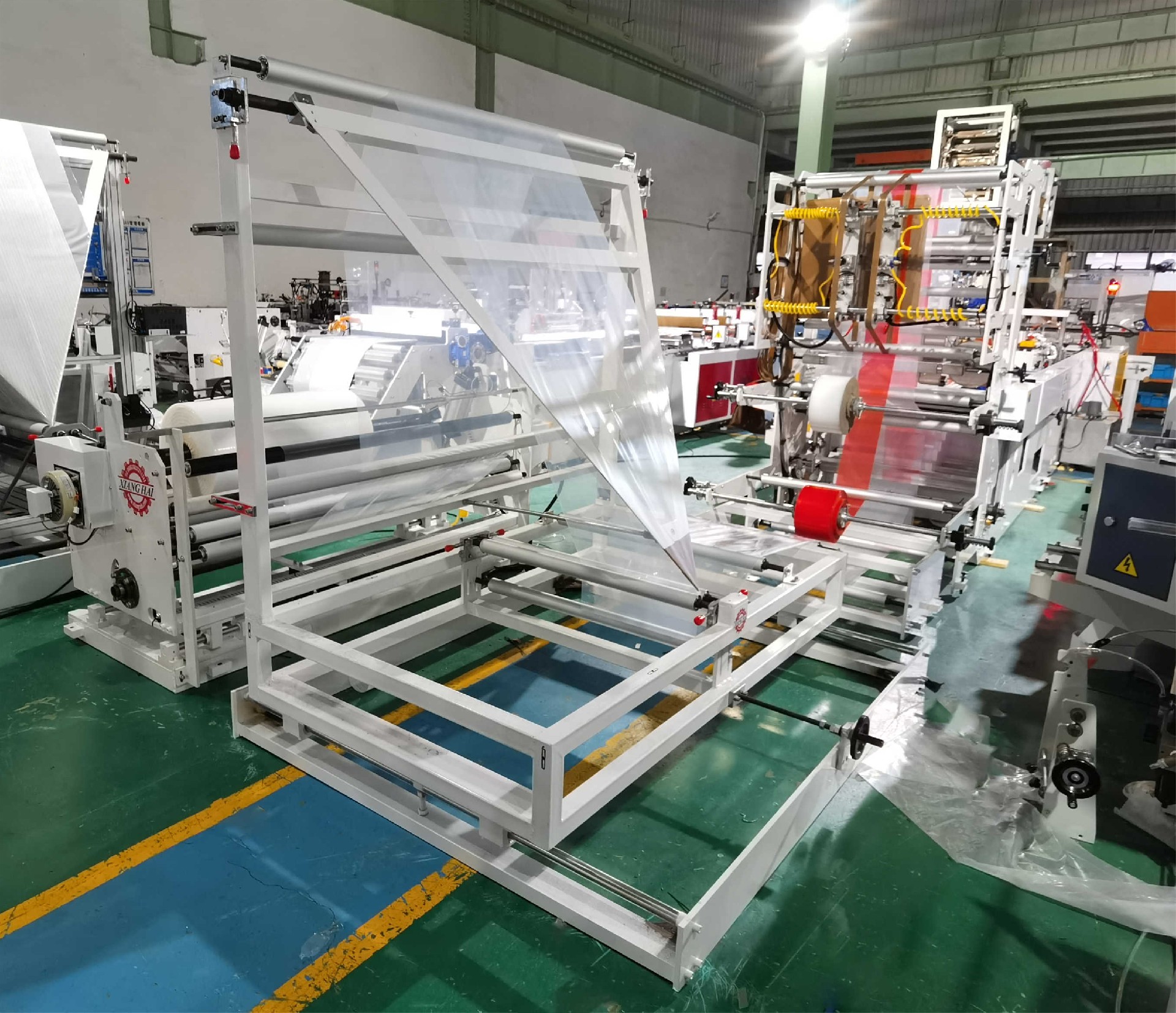

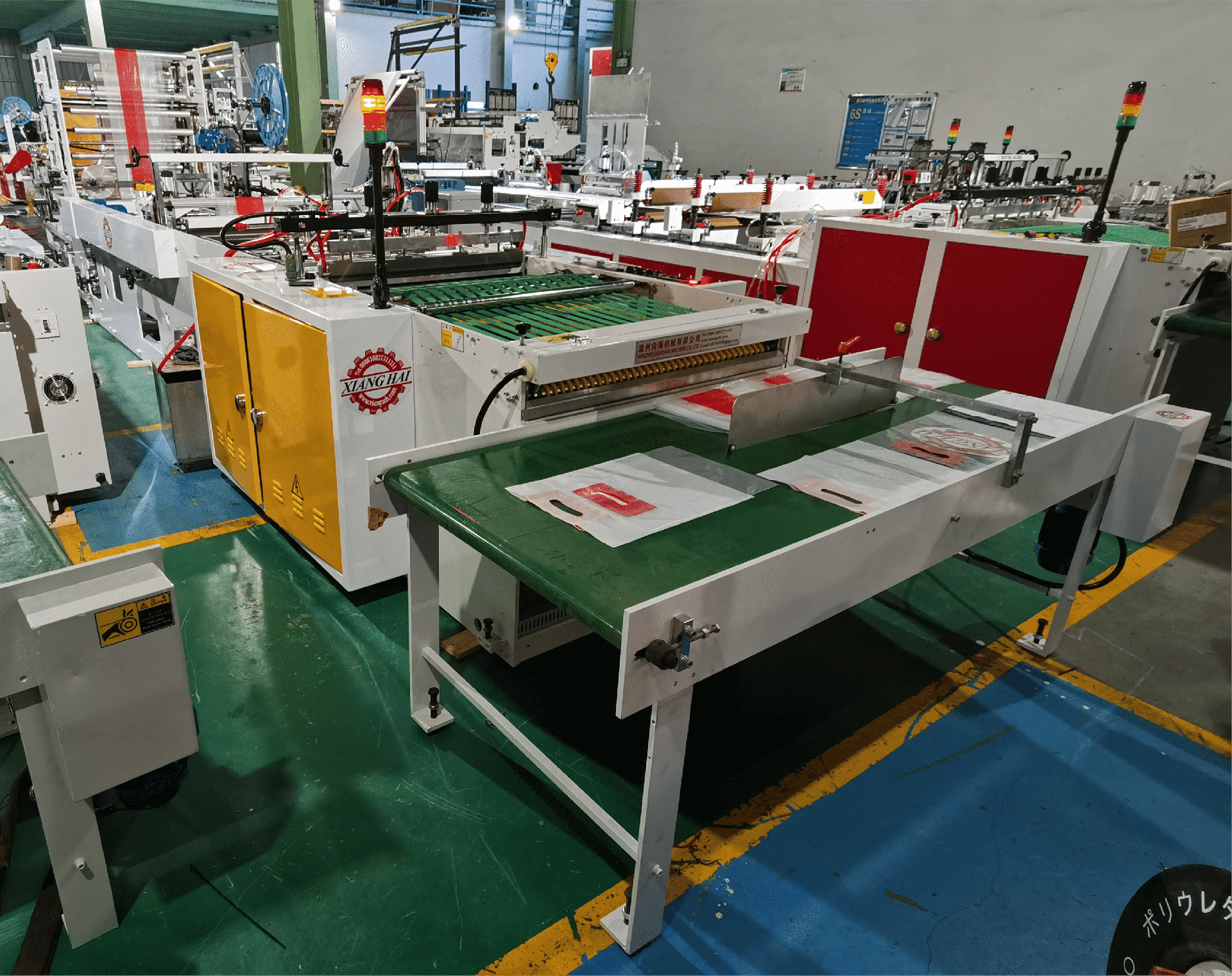

COURIER LABEL BAG MAKING MACHINE
Express label bag making machine has functions such as D cutting,and inserting bottom, gluing and sticking handle. All functions are integrated on the touch screen, thus simplifying operation and improving productivity.
Characteristics:

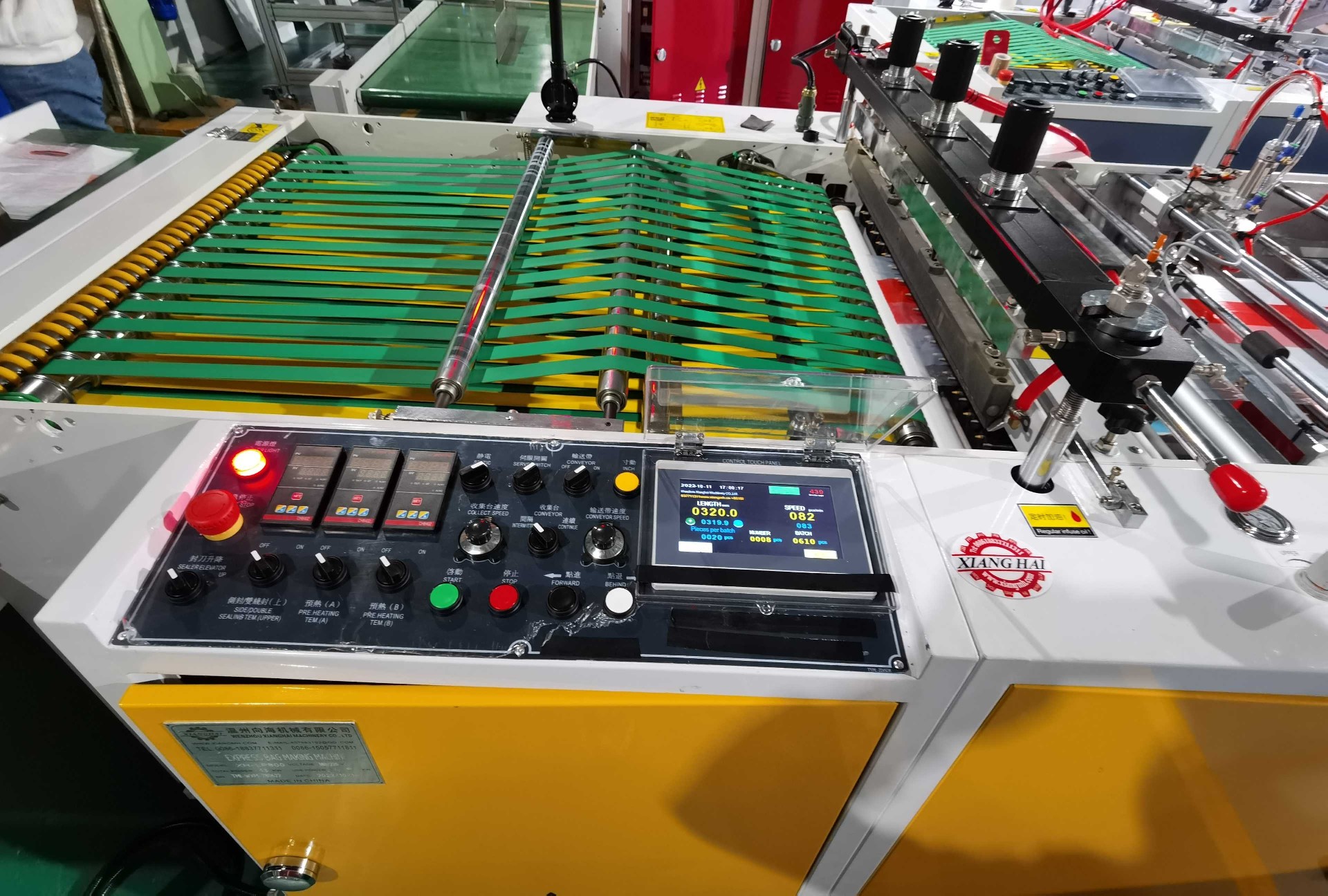

1. All parameters are displayed in real time by the man-machine interface, and can be preset bag-making speed, bag-making length, temperature, counting, finished product delivery, etc.
2. The machine adopts imported PLC, man-machine interface centralized control. Stable performance, easy to operate and maintain. The operation interface can be switched between Chinese and English
3. Imported double servo towing control.
4. the upper and lower seal pressure AC frequency conversion motor drive.

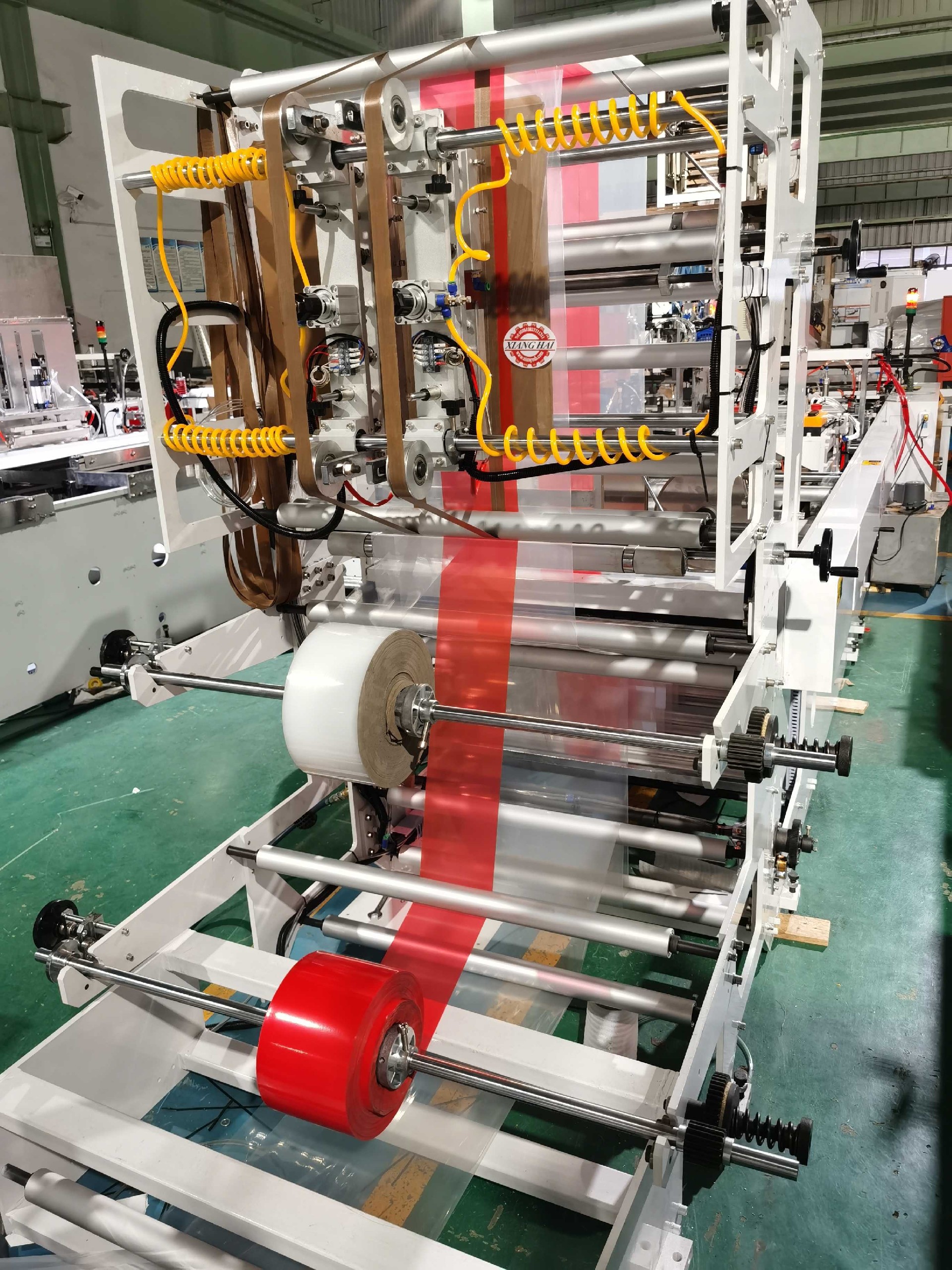

5. LPC automatic correction, double photoelectric tracking feeding, automatic constant tension control AC frequency conversion constant speed automatic feeding.
| Main Technical Parameters | |
| Type | SPDR800 |
| Length of bag-making | 250-750mm |
| Width of bag-making | 250-600mm |
| Top-folding edge | 50-75mm |
| Bottom gusseted | 30-60mm |
| Speed of bag-making | 75pcs/min |
| Total power | 10kw |
| Machine weight | 3200kg |
| Machine dimension | 7500*2100*1950mm |
| Air (not included) | 6HP |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
