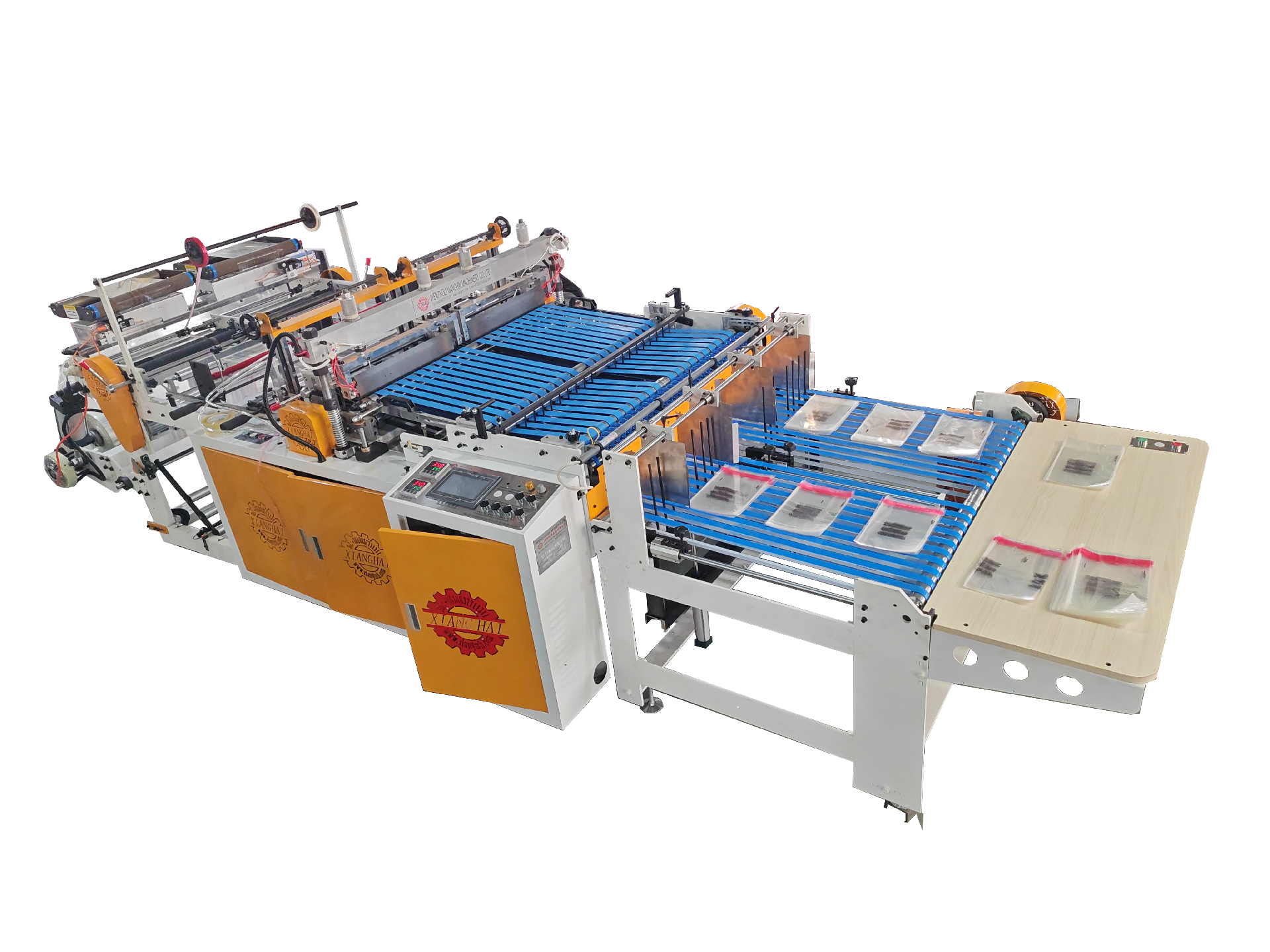

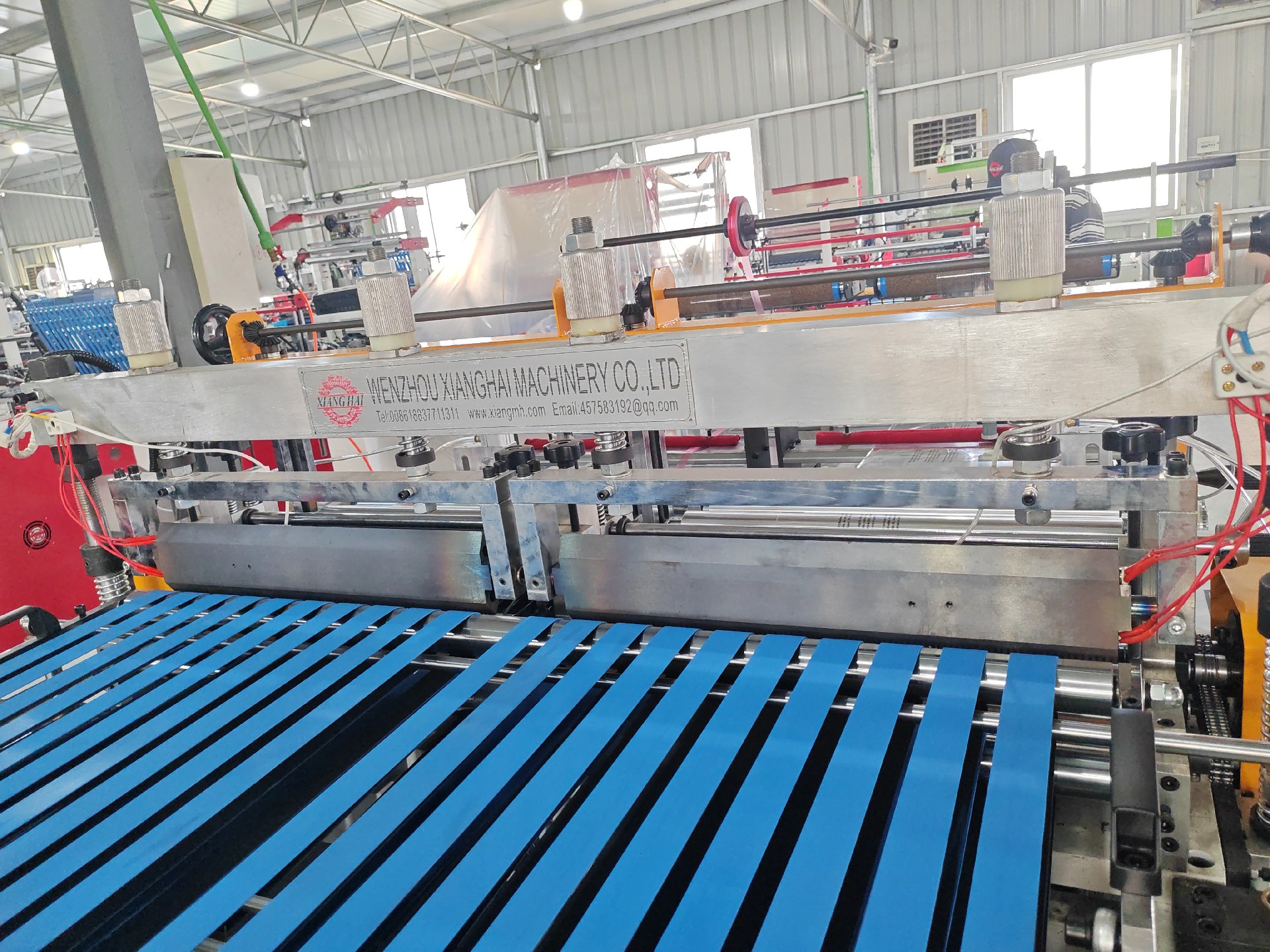

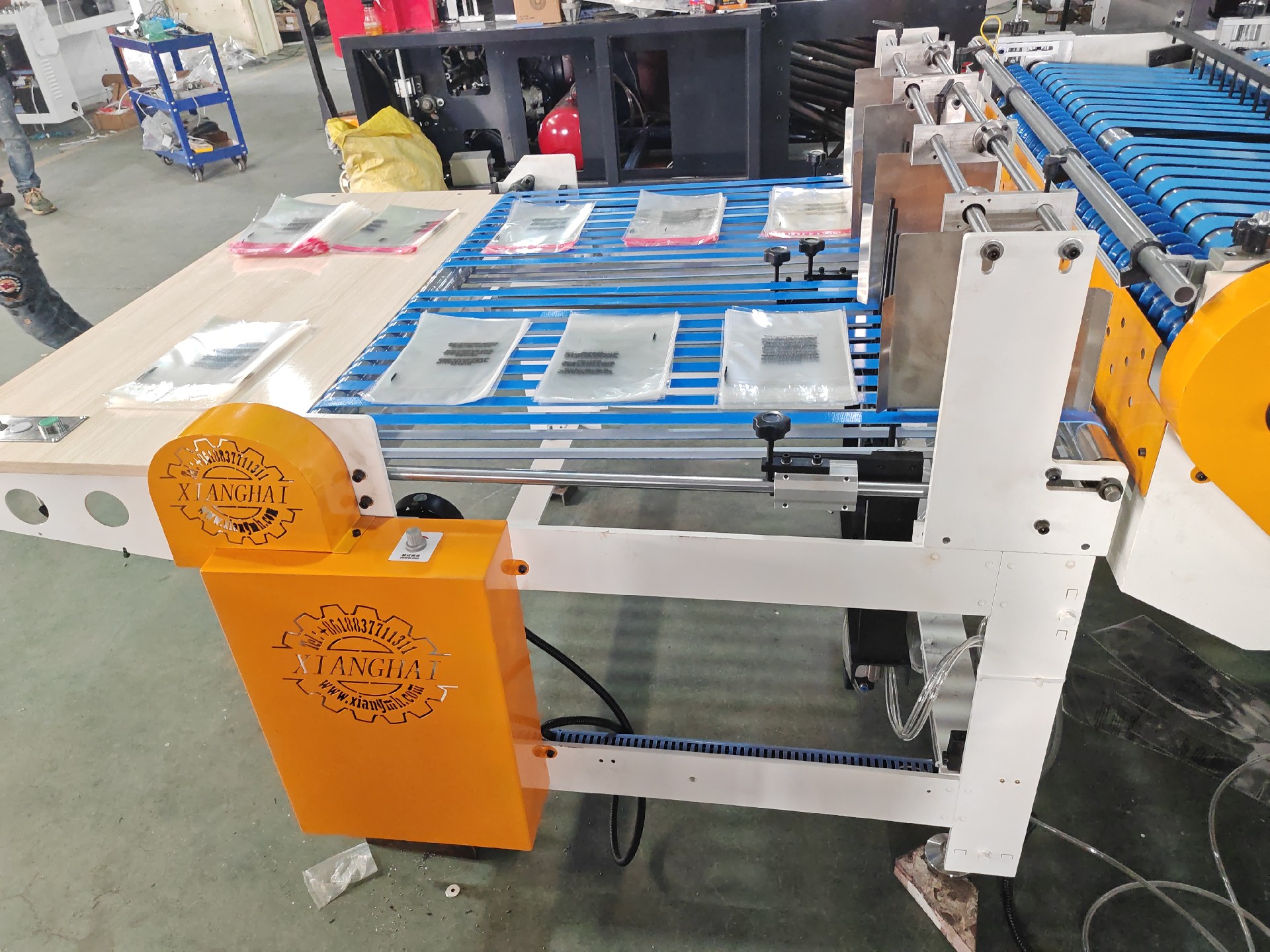

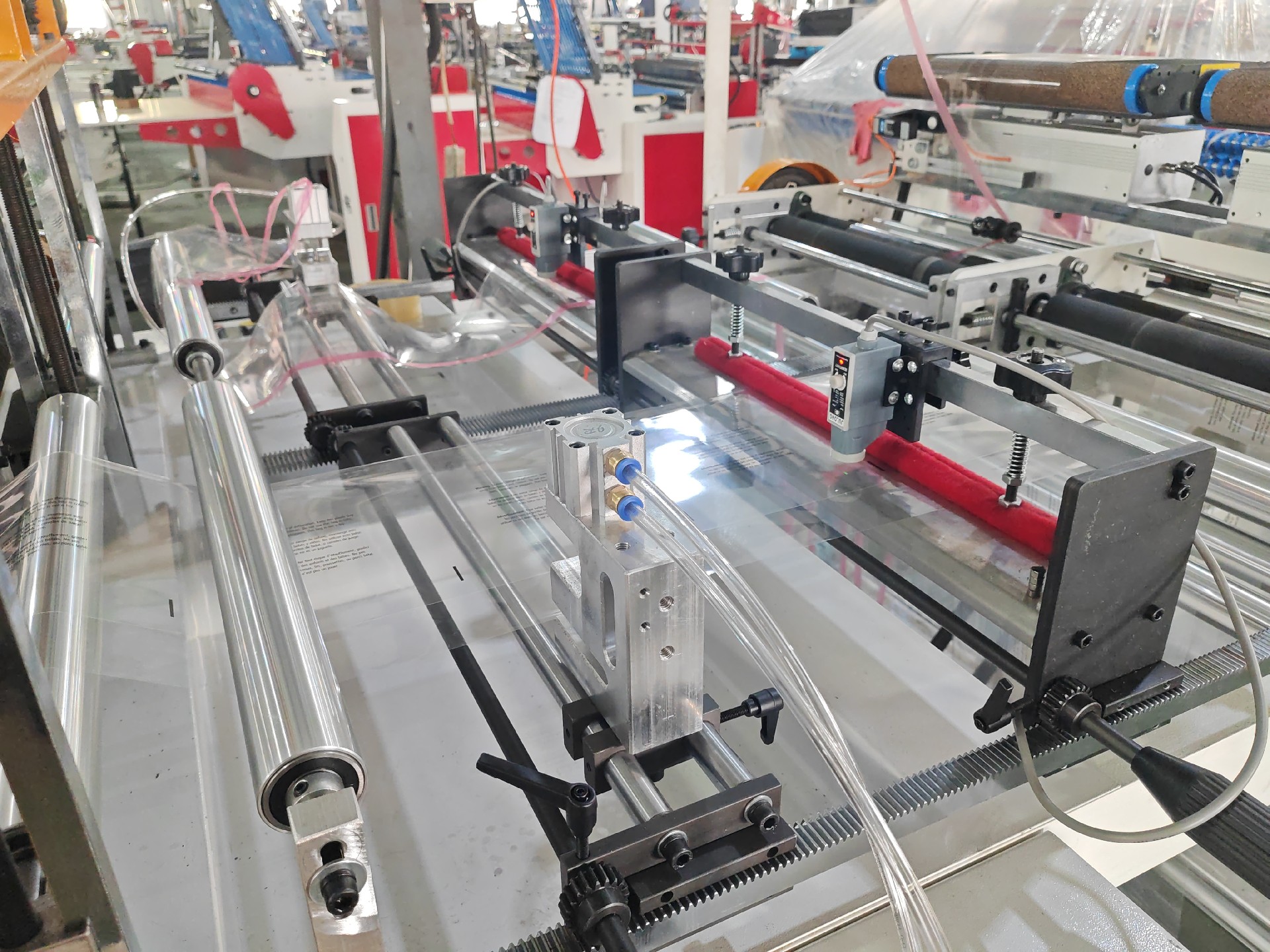

2 Line Side Sealing Plastic Bag Making Machine
Brief Introduction:
The machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity, less machine vibration under high-speed running. Feeding motor, automatic control, save labor adjusted, stability in operation professional technician is not necessary. Any different type of the bag with several use as option, easy to replace.
Adopt electrical integration, computer length setting, photoelectrical tracking, Suitable for making heating sealing and bags that take PP, BOPP, HDPE, LDPE as raw material. Suitable for packing cloth, hardware,plastic production, stationery, food and household things.
The machine frame is made of prefabricated flame cut sheet 12mm thick to ensure the machine rigidity, less machine vibration under high-speed running. Feeding motor, automatic control, save labor adjusted, stability in operation professional technician is not necessary. Any different type of the bag with several use as option, easy to replace.
Adopt electrical integration, computer length setting, photoelectrical tracking, Suitable for making heating sealing and bags that take PP, BOPP, HDPE, LDPE as raw material. Suitable for packing cloth, hardware,plastic production, stationery, food and household things.
| Main Technical Parameters | |
| Model | XH500*2 |
| Bag style: | side sealing bag |
| Width size of unwinding: | 500mm*2 (Single layer) |
| Diameter of unwinding | ¢600mm*2(max ) |
| Length size of bag making | 100-450mm(if want bigger size that should order) |
| Width size of bag making : | 150-600mm |
| Machine size | 6.5m*1.6m*1.5m |
| Thickness of film | HDPE 0.01-0.06mm LDPE 0.015-0.08mm |
| Speed of bag making | (20-240)*2 pcs/min |
| Total power | about 12KW |
| Use power | bout 4~7KW |
 |  |
 |  |
 |  |
 |  |
