Kraft Paper Bag Making Machine

Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you!

Products Detail

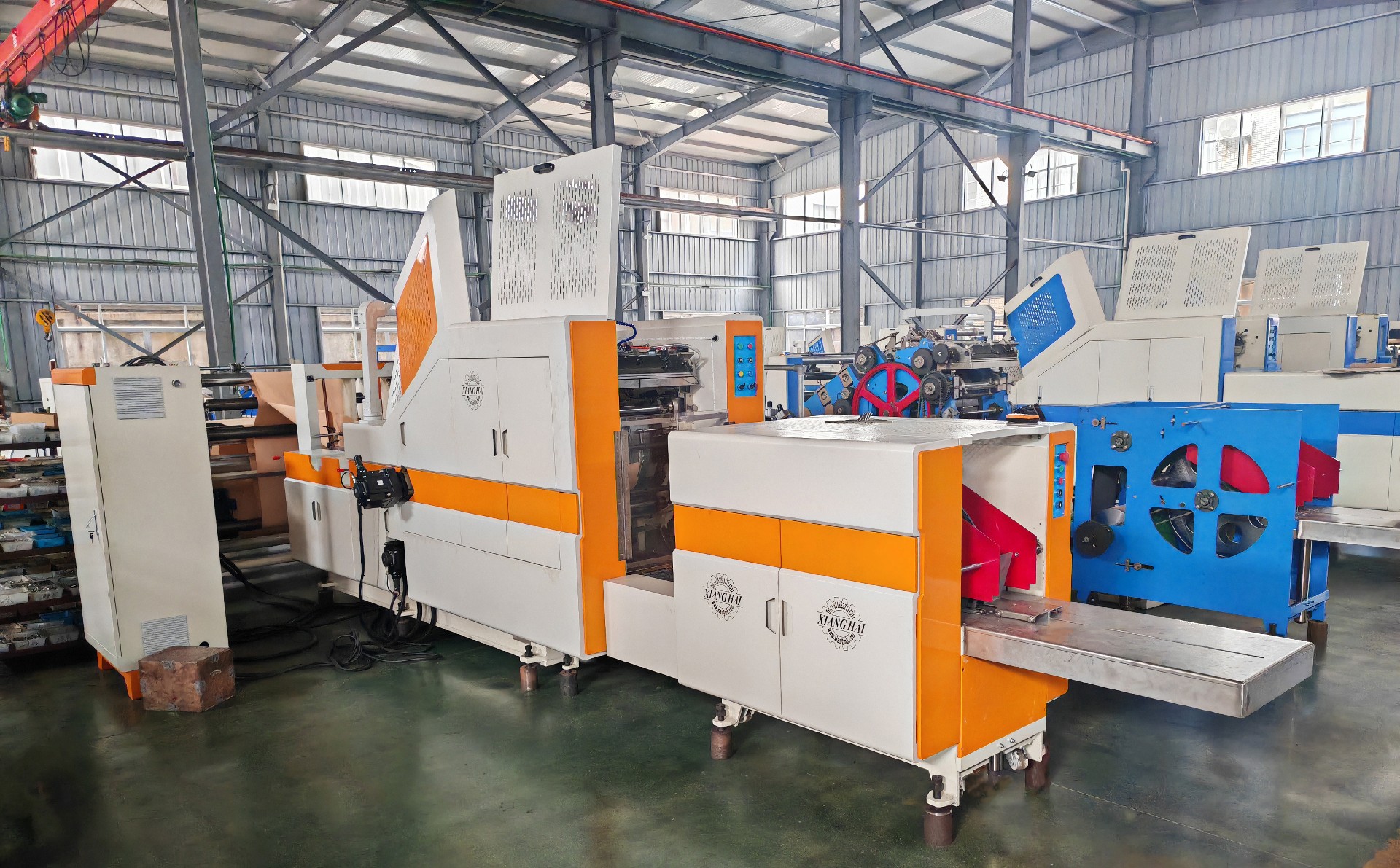

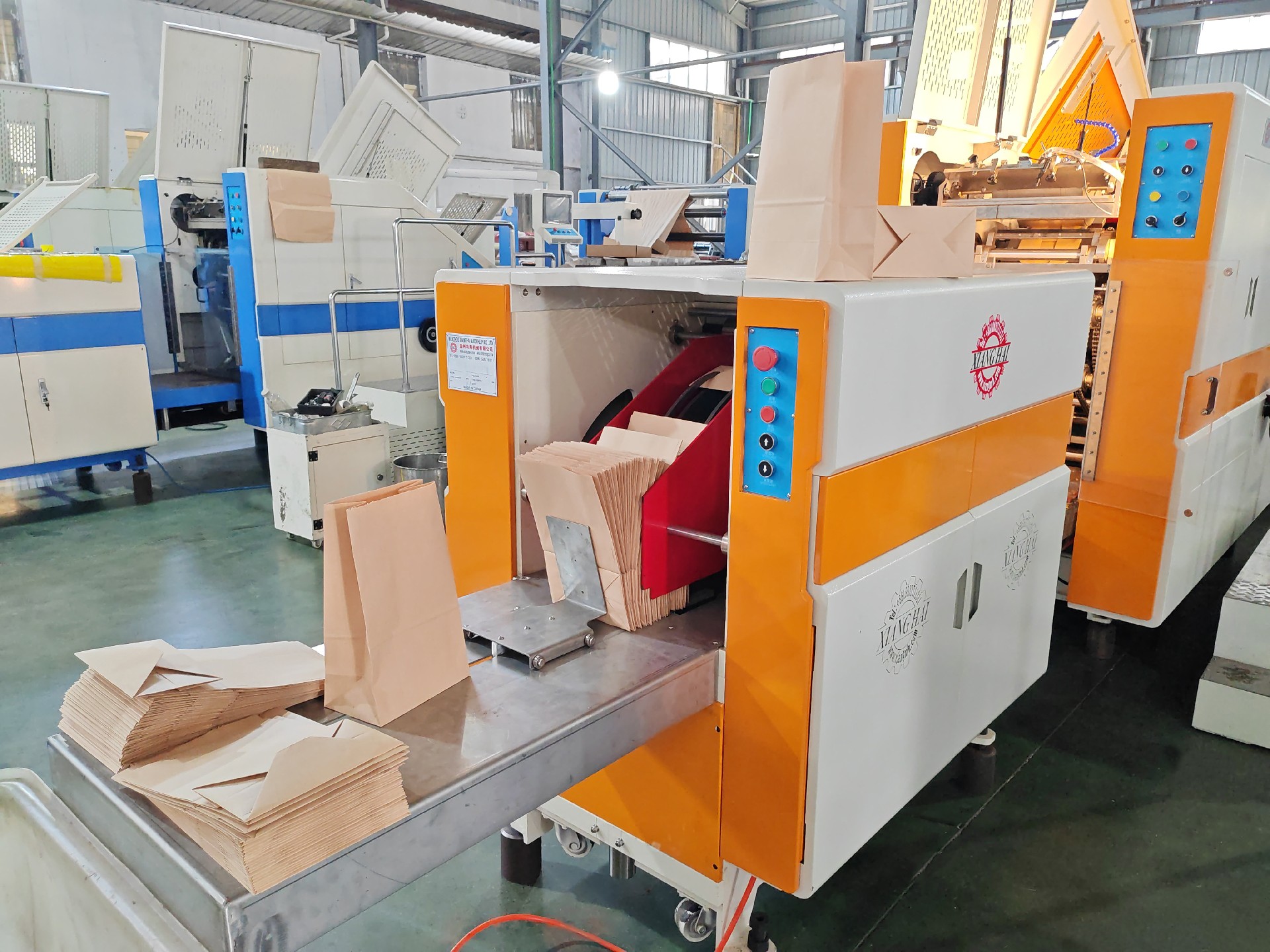

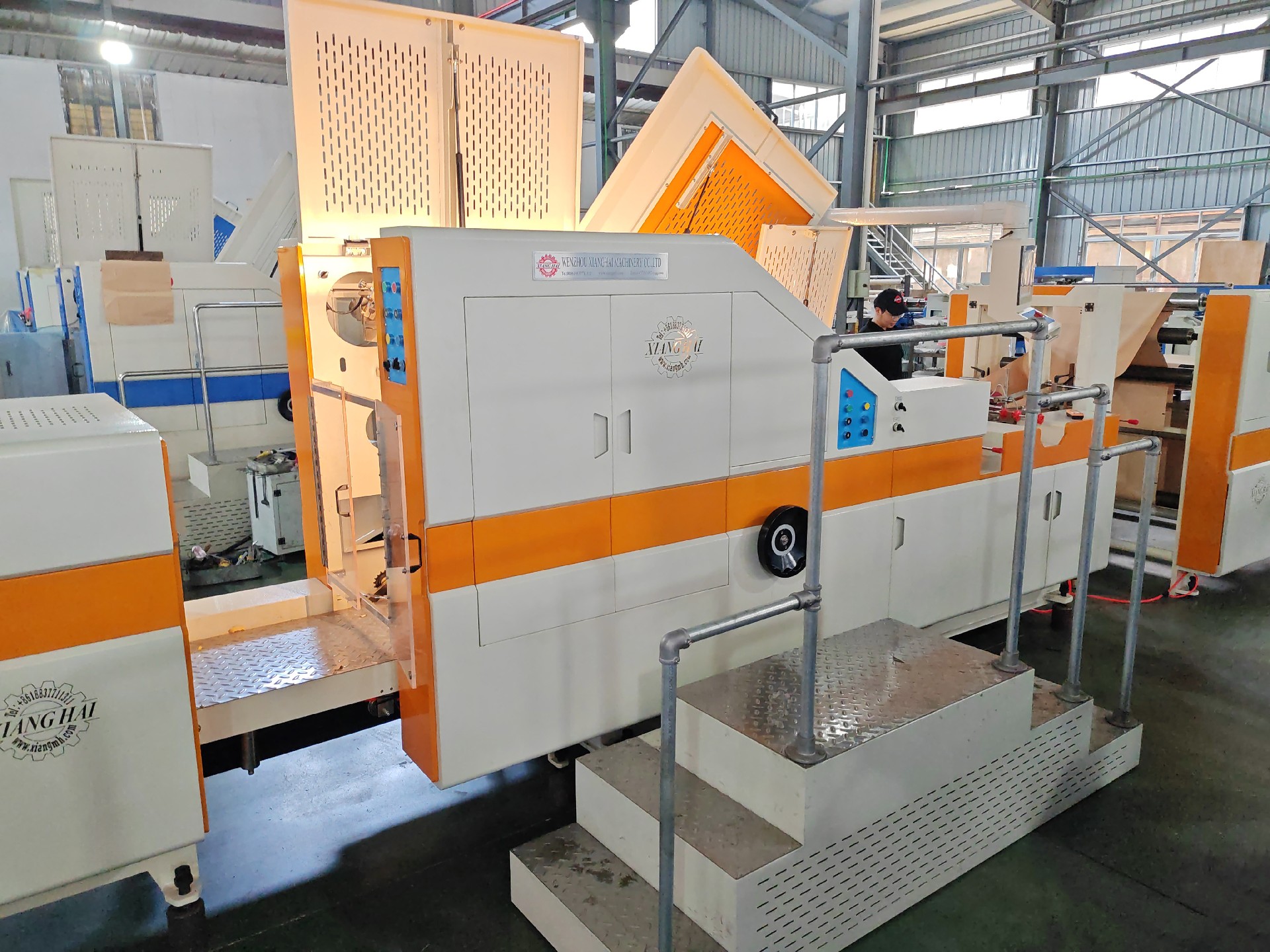

Machine Description:

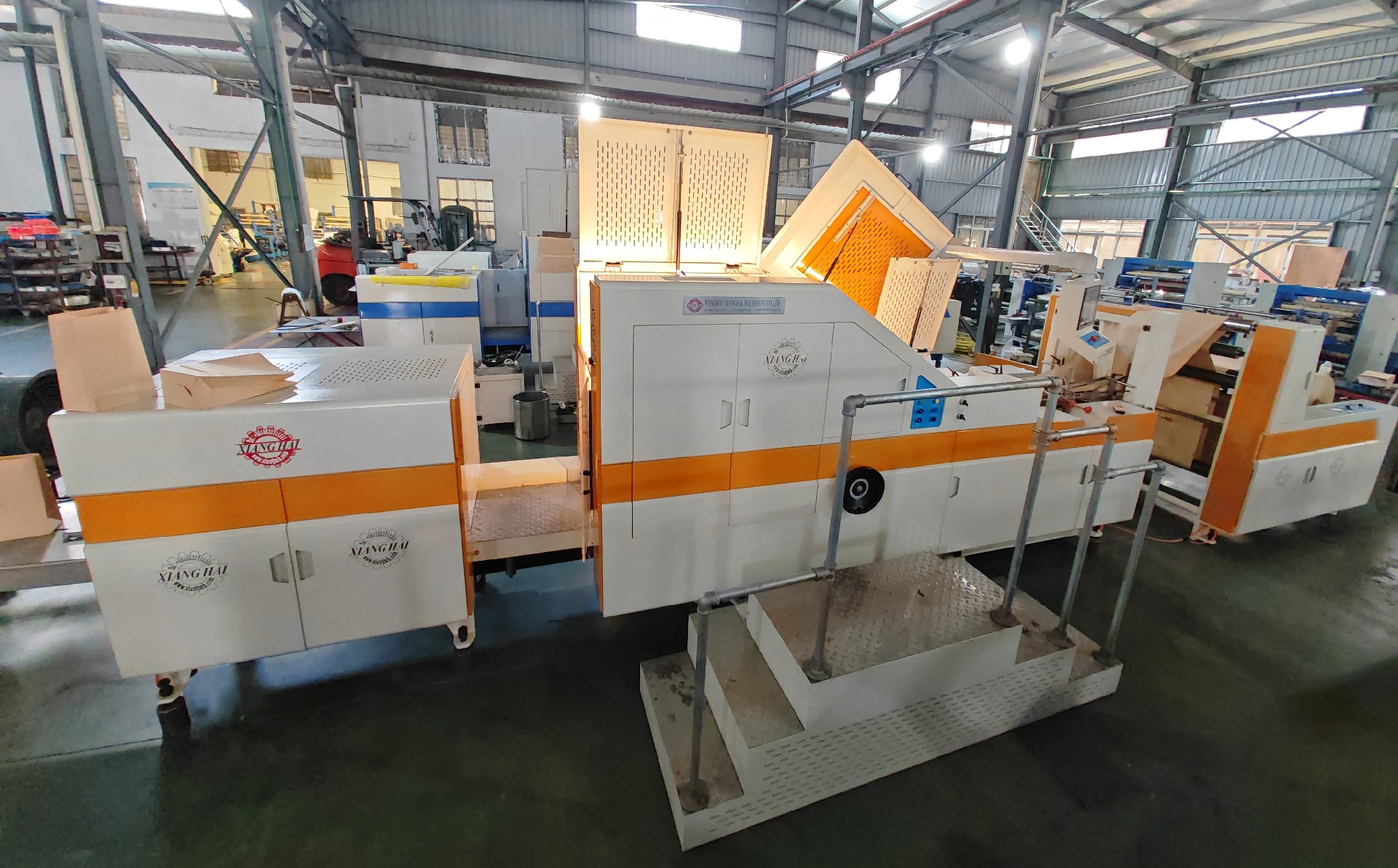

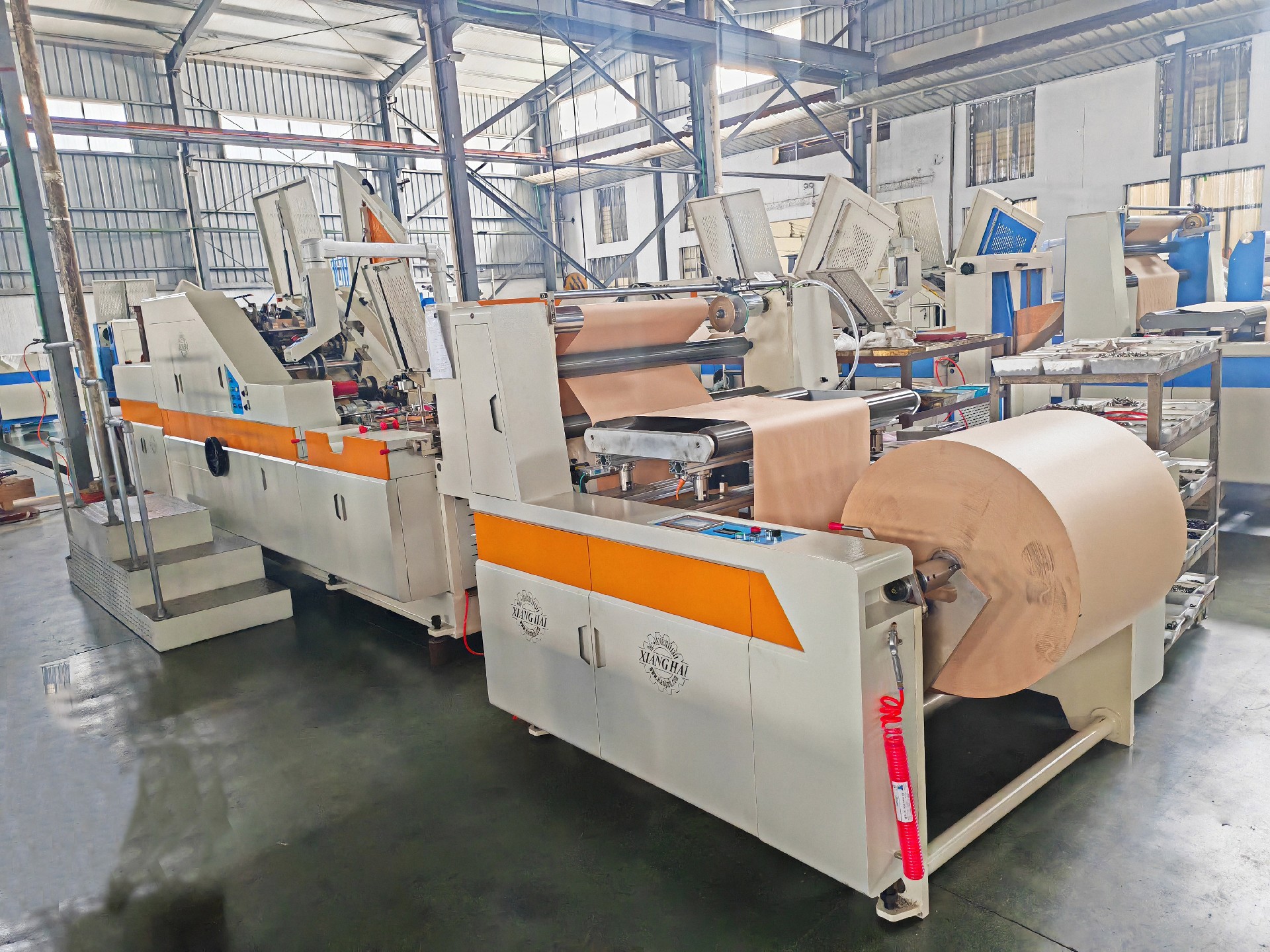

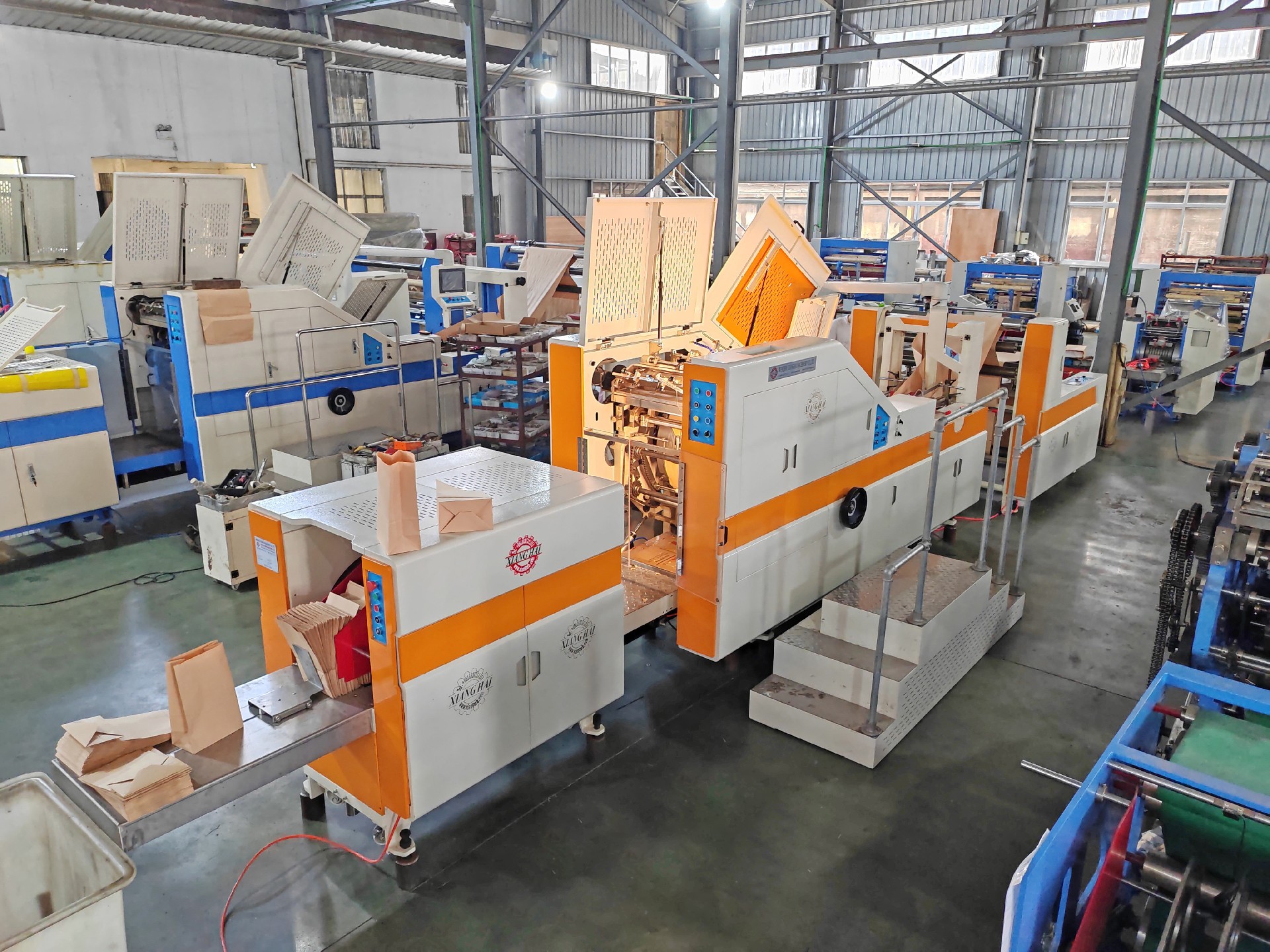

The machine is suitable for making square bottom bags, which is widely used in shopping, food industry and so on. Having absorbed the advanced technology both at home and abroad, we successfully developed the square bottom type of paper bag making machine with roll paper or printed roll paper.

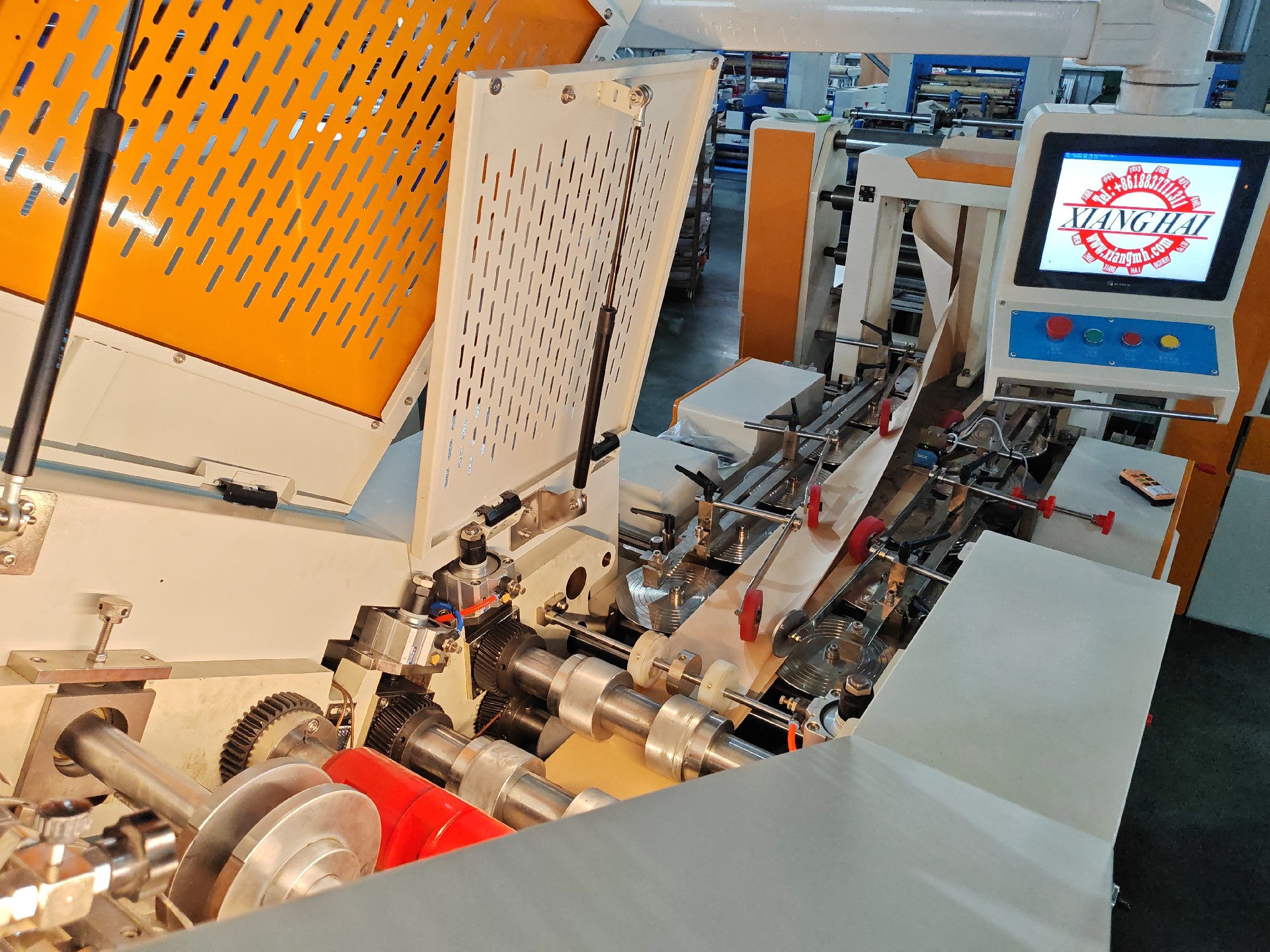

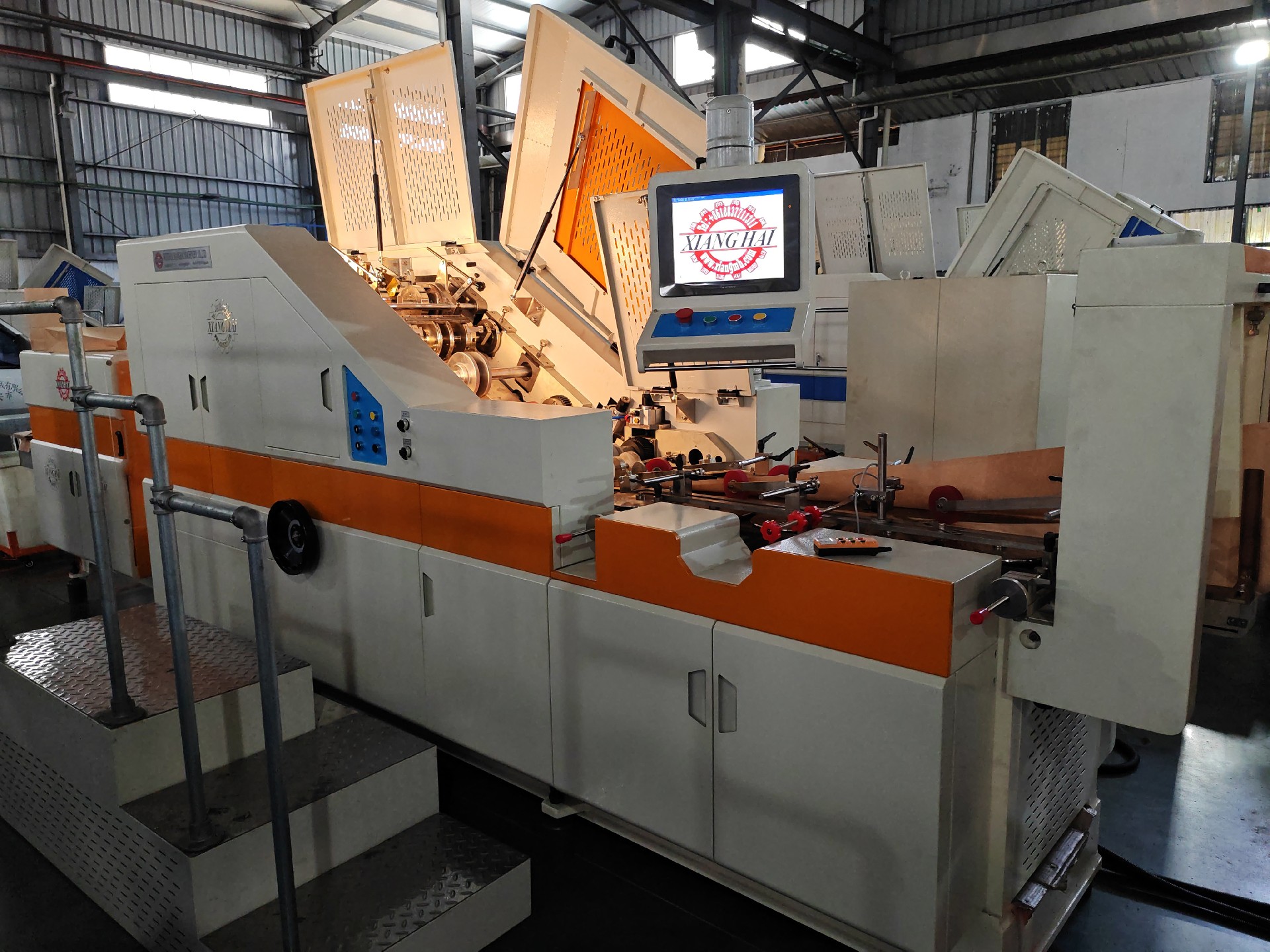

This machine features a continuous function of automatic paper suction, gluing, creasing,bottom sticking and bag formation at a stroke. The machine has automatic force controlling machine and the function of color marking tracking. All the operation procedures are controlled by PLC,saving labor force.

Main Technical Parameters
Model	XH-PB290	XH-PB330	XH-PB460
Bag Length	260-533mm	260-533mm	260-533mm
Bag Width	120-290mm	140-330mm	220-460mm
Bottom Size	60-160mm	60-160mm	60-160mm
Paper Thickness	60-150gsm	60-150gsm	60-150gsm
Maximum Roll Width	320-900mm	320-900mm	600-1300mm
Max Roll Diameter	1300mm	1300mm	1300mm
Material Core Diameter	76mm	76mm	76mm
Max. Production Speed	200pcs/min	200pcs/min	180pcs/min
Total Power	12kw	12kw	15kw
Machine Weight	6500kg	7000kg	8000kg
Machine Size	860250180cm	860260180cm	860300180cm
