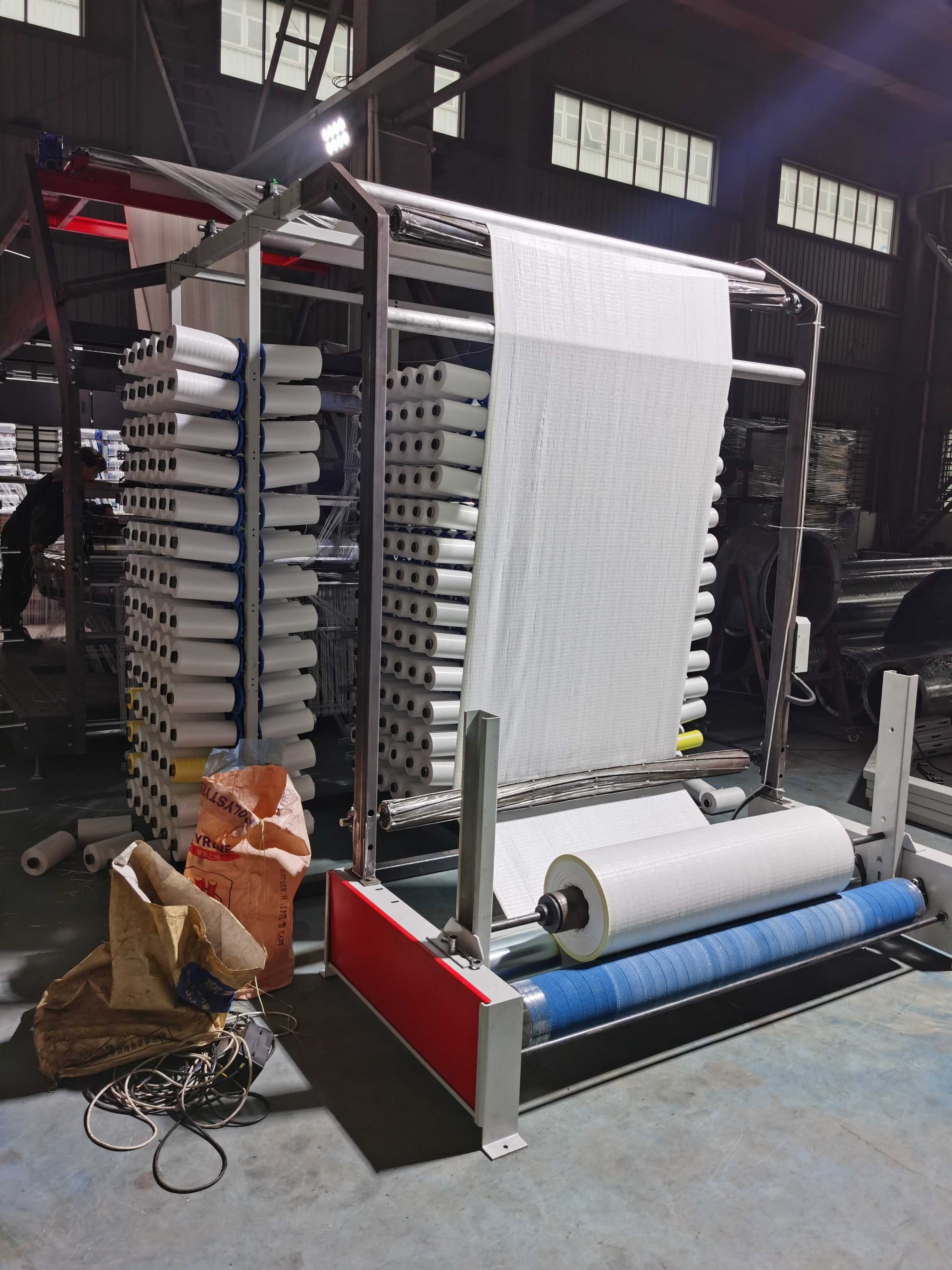

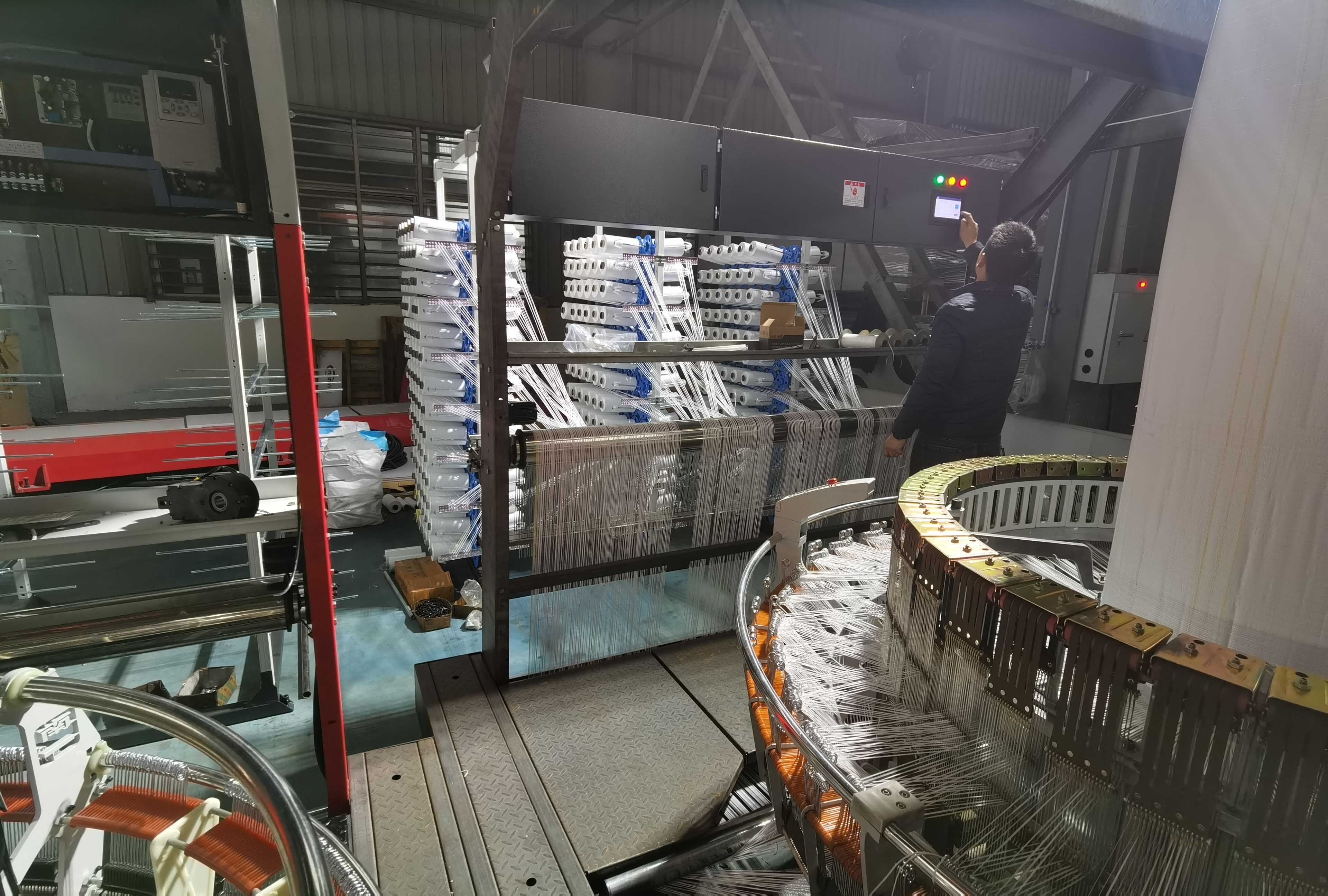

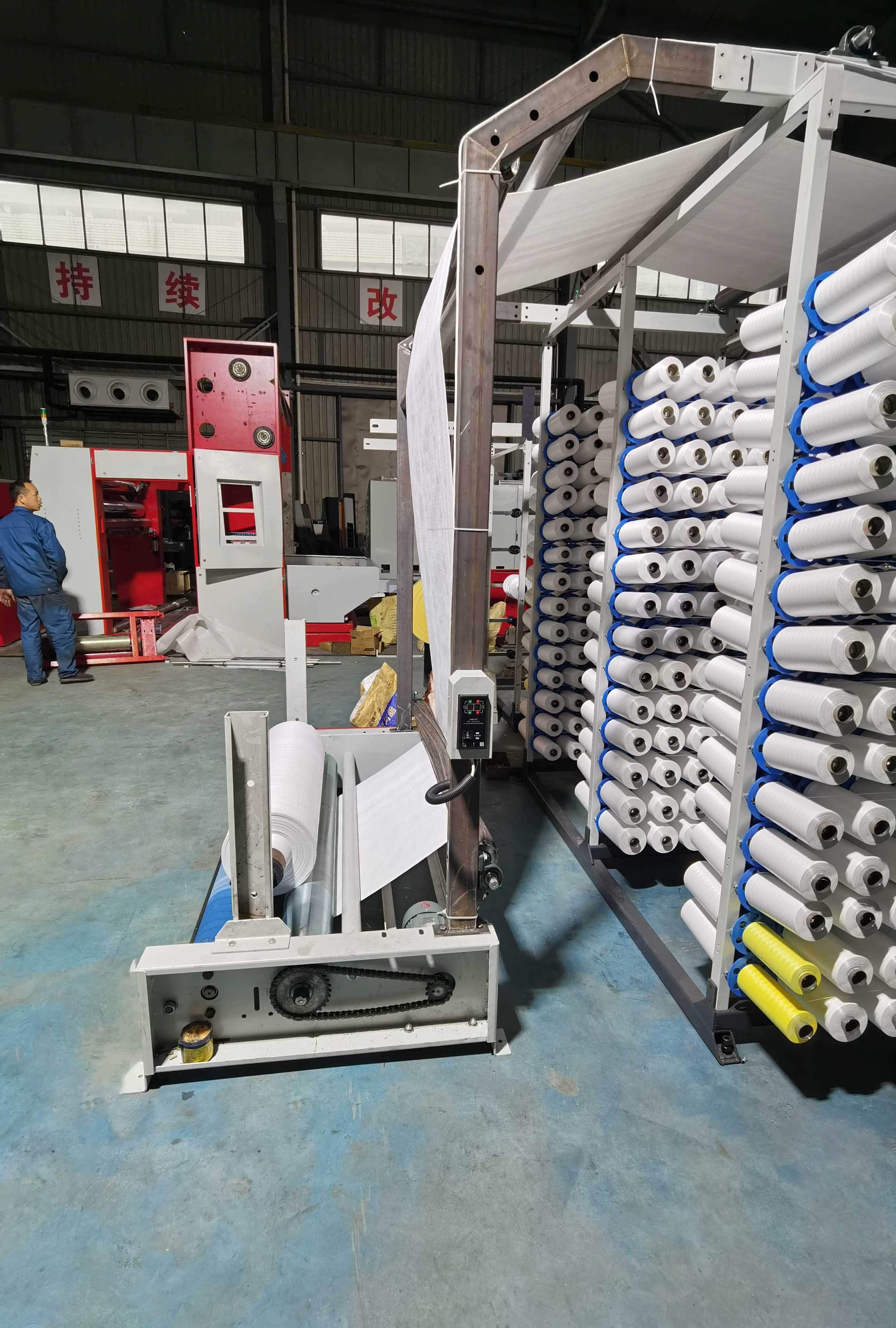

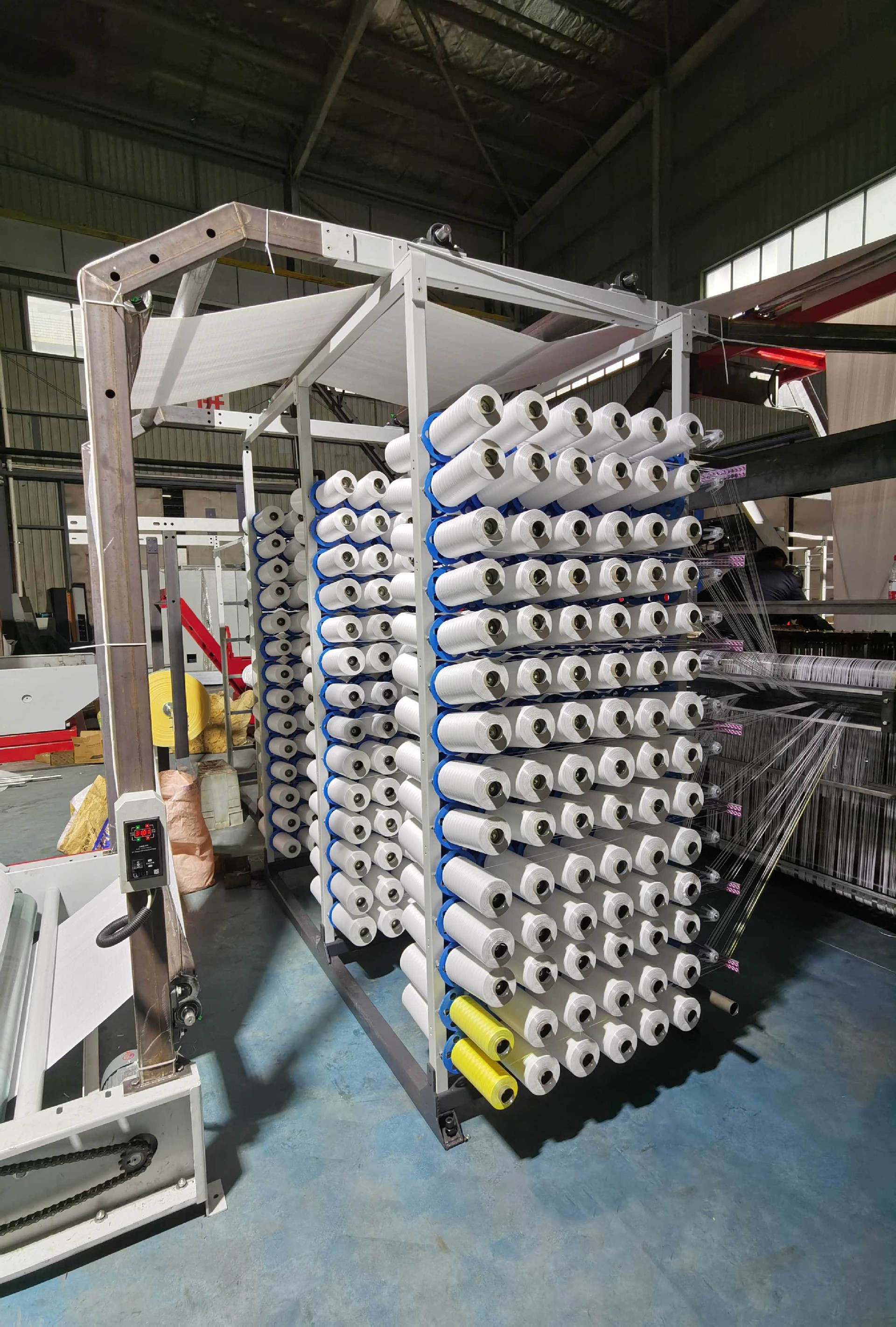

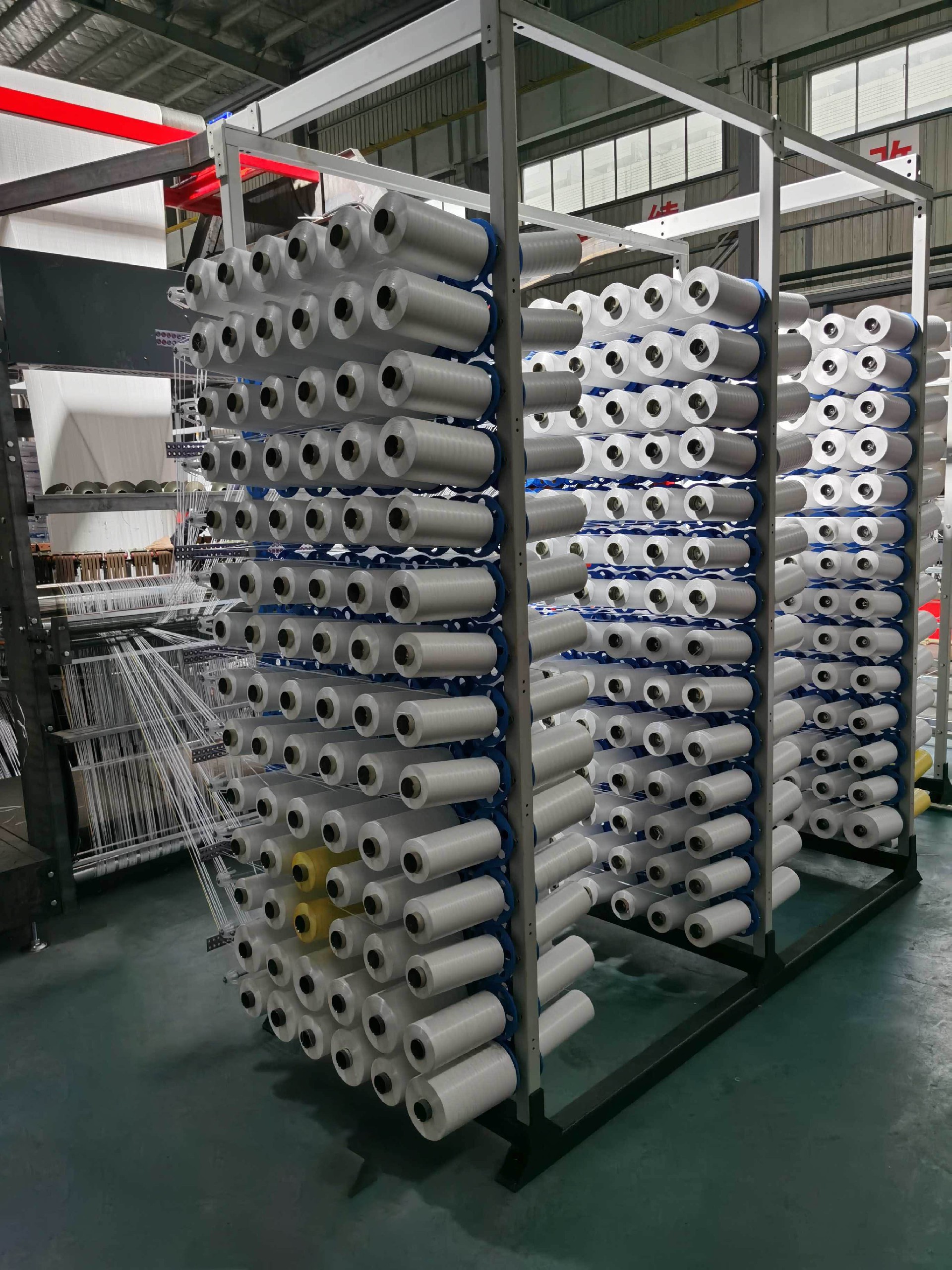

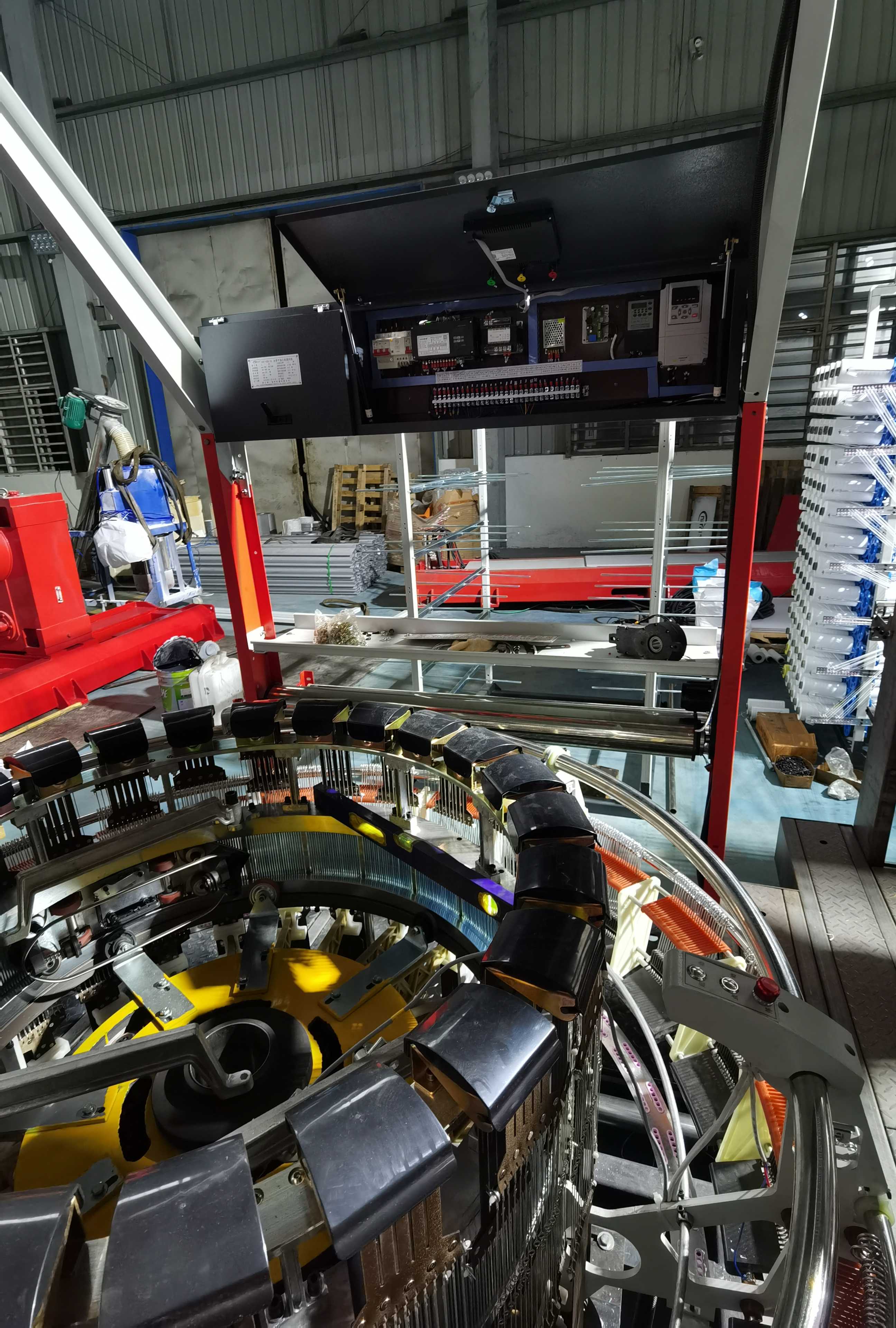

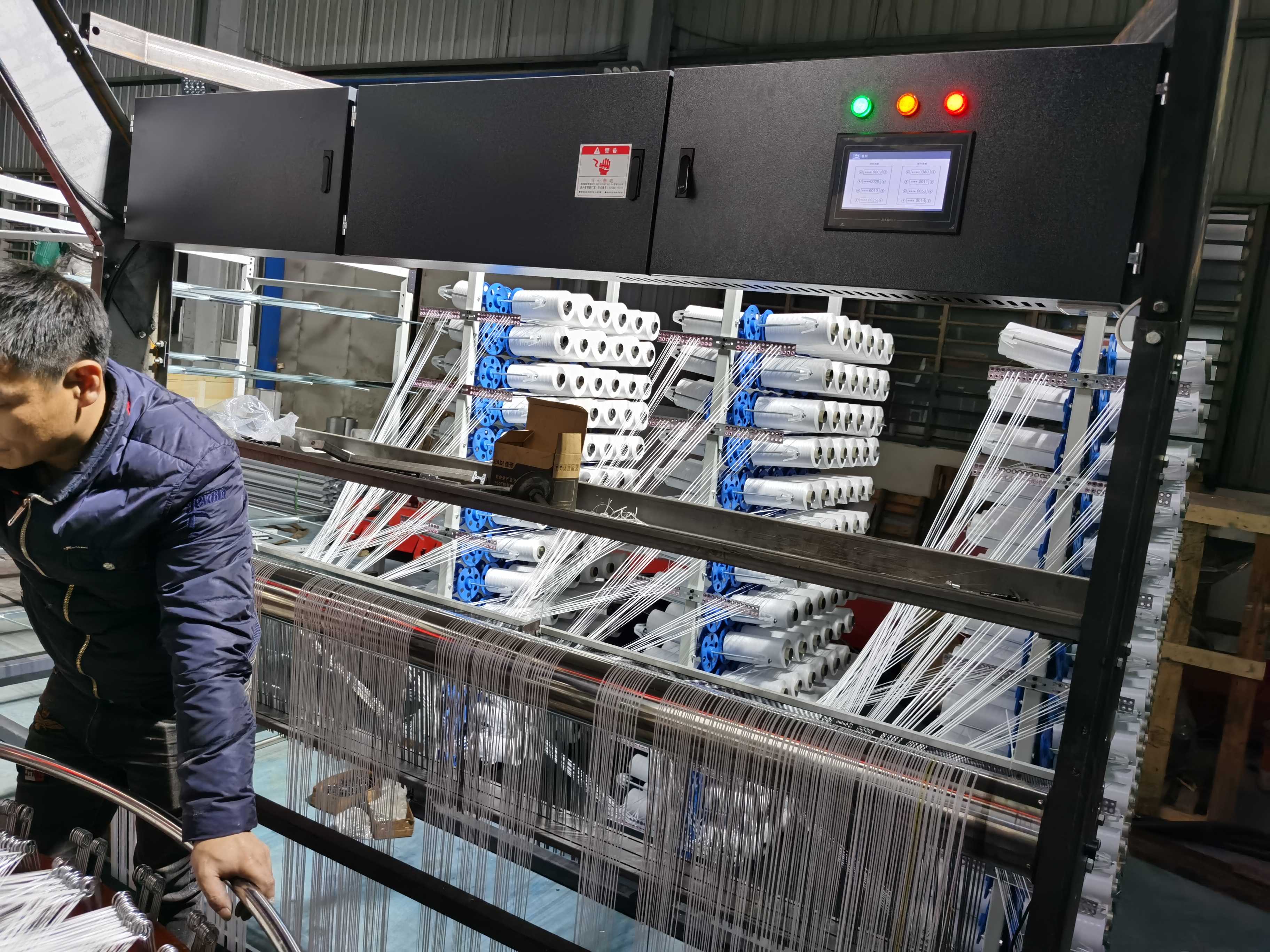

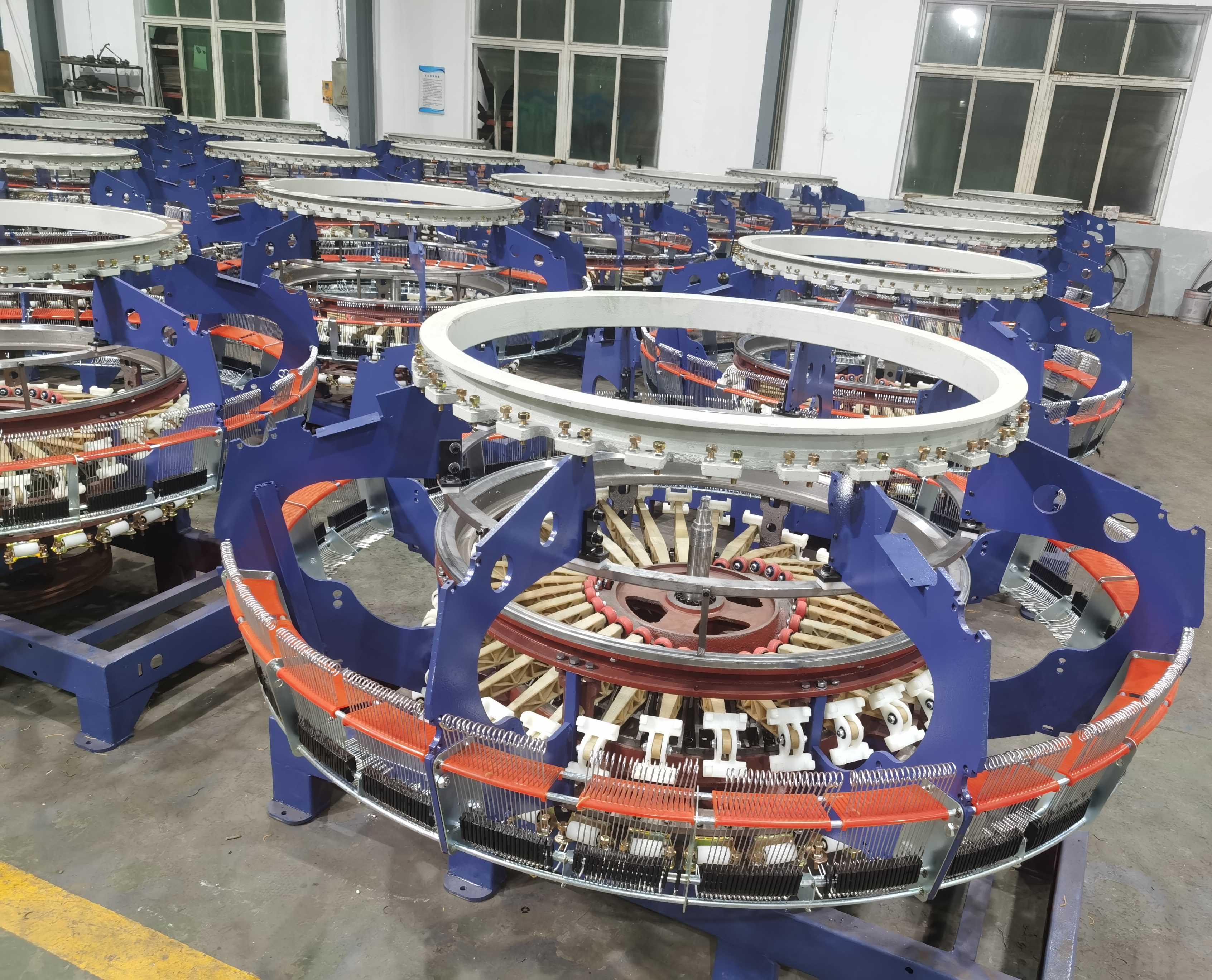

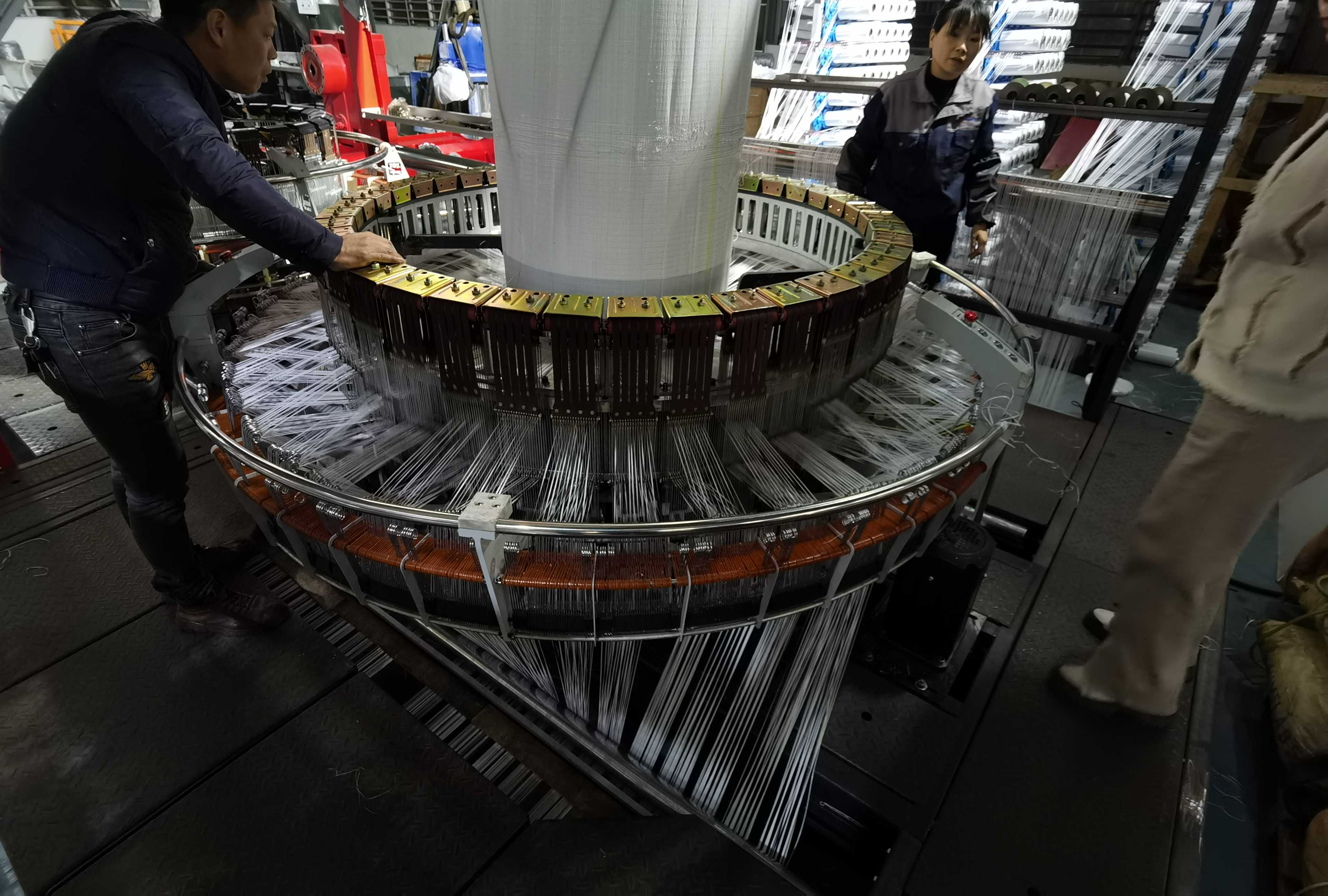

Latest energy saving high-speed small-sized six-shuttle circular loom
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Constant innovation and beyond just to create higher value for you！
Latest energy saving high-speed small-sized six-shuttle circular loom
| Model | S-YZJ-850/6S |
| Number of shuttles | 6 pcs |
| Rotational speed | 120-180 r.p.m. 1080picks/min |
| Weft density | 20-55wefts/100mm |
| Max. number of warp | 720 pcs (360 pcs×2) |
| Working width, double-flat | 350-850mm |
| Inner dia. of core | 38mm |
| Length of core | 230mm |
| Max. dia. of warp bobbin | 120mm |
| Max. dia. of weft bobbin | 110mm |
| Length of warp/weft bobbin | 200mm |
 |  |
 |  |
 |  |
 |  |
 |  |
 |  |
